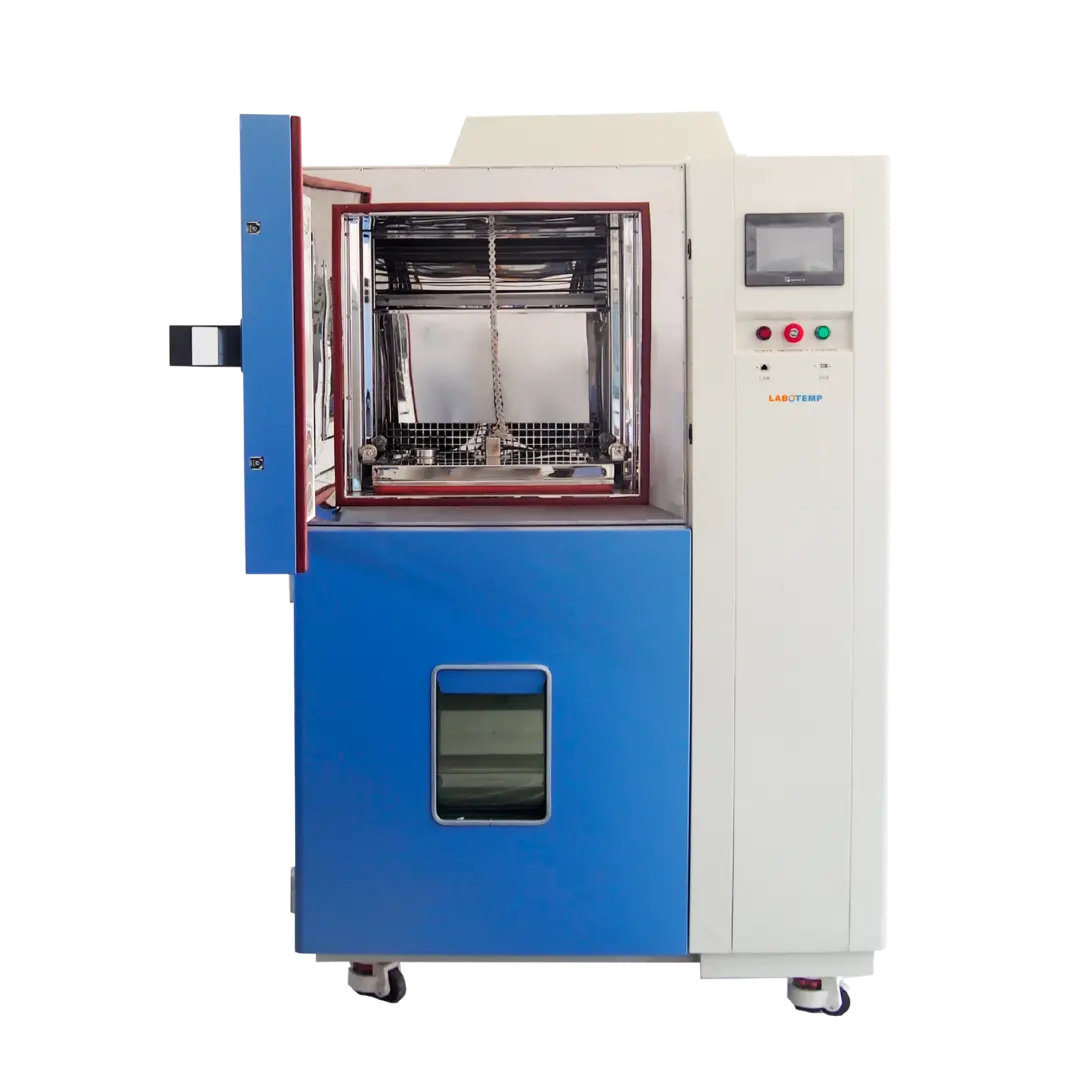

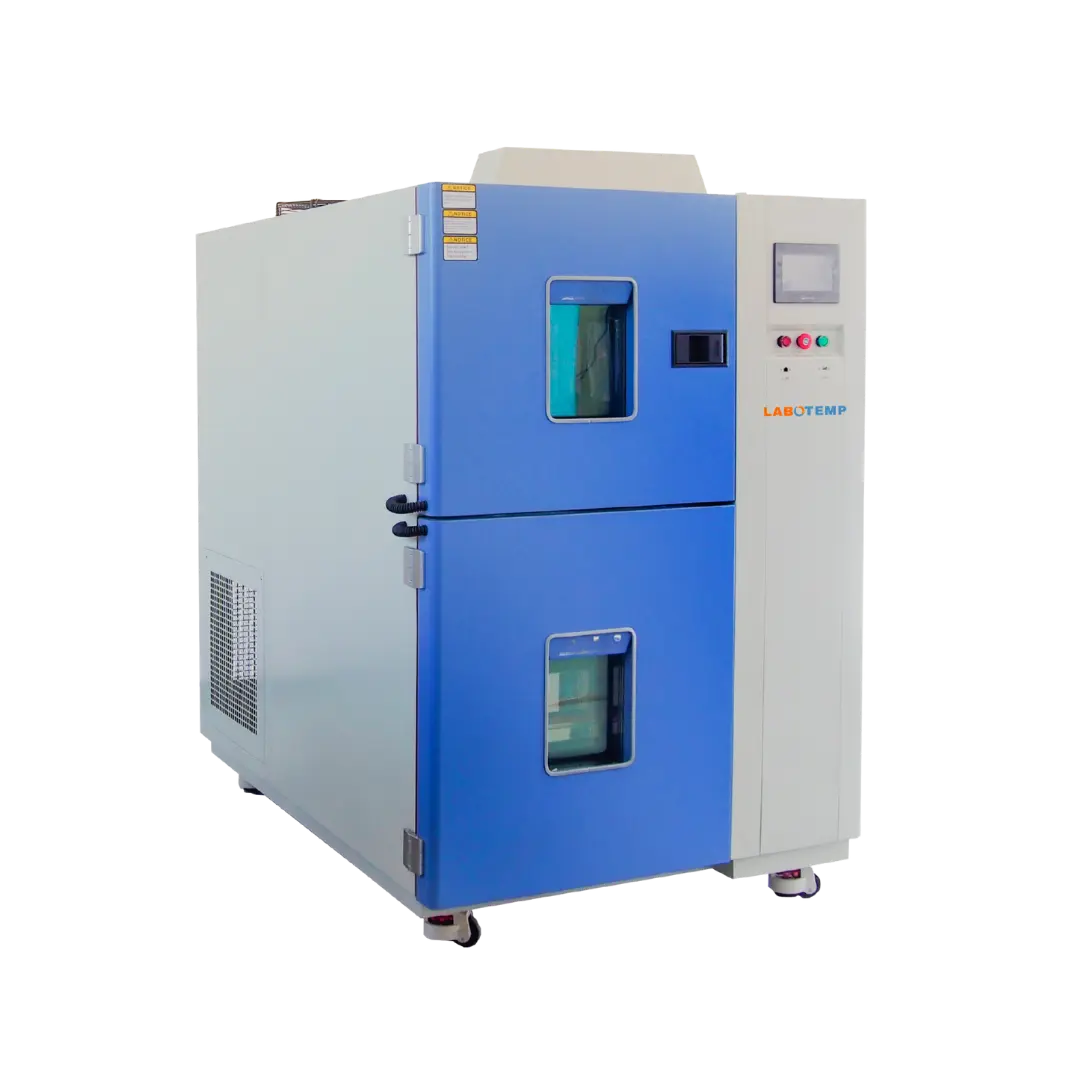

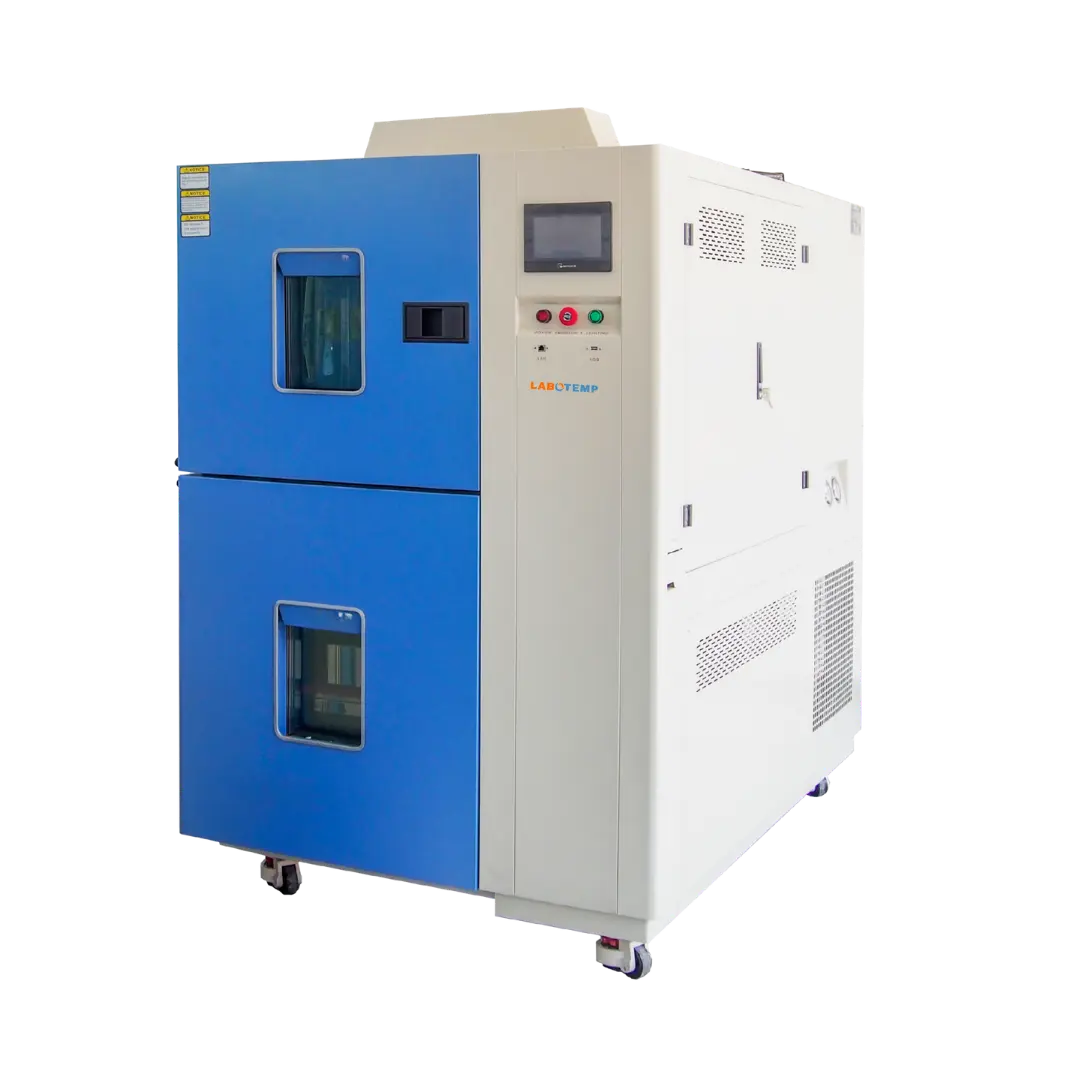

Labotemp Thermal Shock Chamber LTC-102 is a high-performance thermal shock chamber designed for precise evaluation of product durability under rapid temperature transitions. This advanced two zone chamber exposes samples to extreme hot and cold environments, enabling accurate thermal shock testing across industries such as electronics, automotive, aerospace, and materials research. With a high-temperature limit of +220°C and a low-temperature range down to -75°C, it simulates real-world thermal stress conditions for reliable validation of components and materials.
Engineered for consistency and repeatability, this thermal chamber offers a spacious 72 L interior volume and supports loading capacities up to 30 kg, making it suitable for medium-scale testing applications. It maintains excellent temperature stability with fluctuation within ±0.5°C and deviation within ±3°C, ensuring precise and dependable test results. The system features rapid temperature recovery within 5 minutes, improving testing efficiency during continuous operation. Equipped with a programmable LCD touchscreen controller, mechanical refrigeration system with TECUMSEH compressor, and comprehensive safety protections, the unit ensures controlled, safe, and long-term reliable performance.
Why Choose Labotemp Thermal Shock Chamber LTC-102?
✓ Reliable Thermal Shock Testing - Designed for accurate and repeatable thermal shock testing across industries.
✓ Precision Thermal Chamber Control - Ensures stable and consistent testing conditions.
✓ Trusted Thermal Shock Chamber Manufacturer - Built with industrial-grade components for long-term performance.
|
Test Room – High Temperature Exposure Range : Ambient +20°C to +200°C Test Room – High Temperature Exposure Range |
Ambient +20°C to +200°C |
|
Test Room – Low Temperature Exposure Range : -65°C to -5°C Test Room – Low Temperature Exposure Range |
-65°C to -5°C |
|
Pre-heat Room – Upper Limit Temperature : +220°C Pre-heat Room – Upper Limit Temperature |
+220°C |
|
Pre-cool Room – Lower Limit Temperature : -75°C Pre-cool Room – Lower Limit Temperature |
-75°C |
|
Temperature Fluctuation : ±0.5°C Temperature Fluctuation |
±0.5°C |
|
Temperature Deviation : ±3°C Temperature Deviation |
±3°C |
|
Temperature Recovery Time : Within 5 minutes Temperature Recovery Time |
Within 5 minutes |
|
Pre-heat Room – Heating Time : Ambient to +200°C within 30 minutes Pre-heat Room – Heating Time |
Ambient to +200°C within 30 minutes |
|
Pre-cool Room – Cooling Time : Ambient to -70°C within 30 minutes Pre-cool Room – Cooling Time |
Ambient to -70°C within 30 minutes |
|
Cooling System : Mechanical compression refrigeration system Cooling System |
Mechanical compression refrigeration system |
|
Refrigerating Unit : TECUMSEH compressor Refrigerating Unit |
TECUMSEH compressor |
|
Controller : Programmable color LCD touch screen, Ethernet connection, PC link Controller |
Programmable color LCD touch screen, Ethernet connection, PC link |
|
Loading Capacity : 30kg Loading Capacity |
30kg |
|
Interior Volume : 72L Interior Volume |
72L |
|
Internal Dimensions (mm) : 450x450x360mm Internal Dimensions (mm) |
450x450x360mm |
|
Overall Dimensions (mm) : 1710x1020x1845mm Overall Dimensions (mm) |
1710x1020x1845mm |
|
Safety Devices : Over-temperature, over-current, high-pressure, leakage protection Safety Devices |
Over-temperature, over-current, high-pressure, leakage protection |
|
Interior Material : SUS304 stainless steel Interior Material |
SUS304 stainless steel |
|
Exterior Material : Steel plate with protective coating Exterior Material |
Steel plate with protective coating |
|
Net Weight : 840kg Net Weight |
840kg |
|
Gross Weight : 981kg Gross Weight |
981kg |
|
Package Size : 2370 × 1940 × 2820mm Package Size |
2370 × 1940 × 2820mm |
