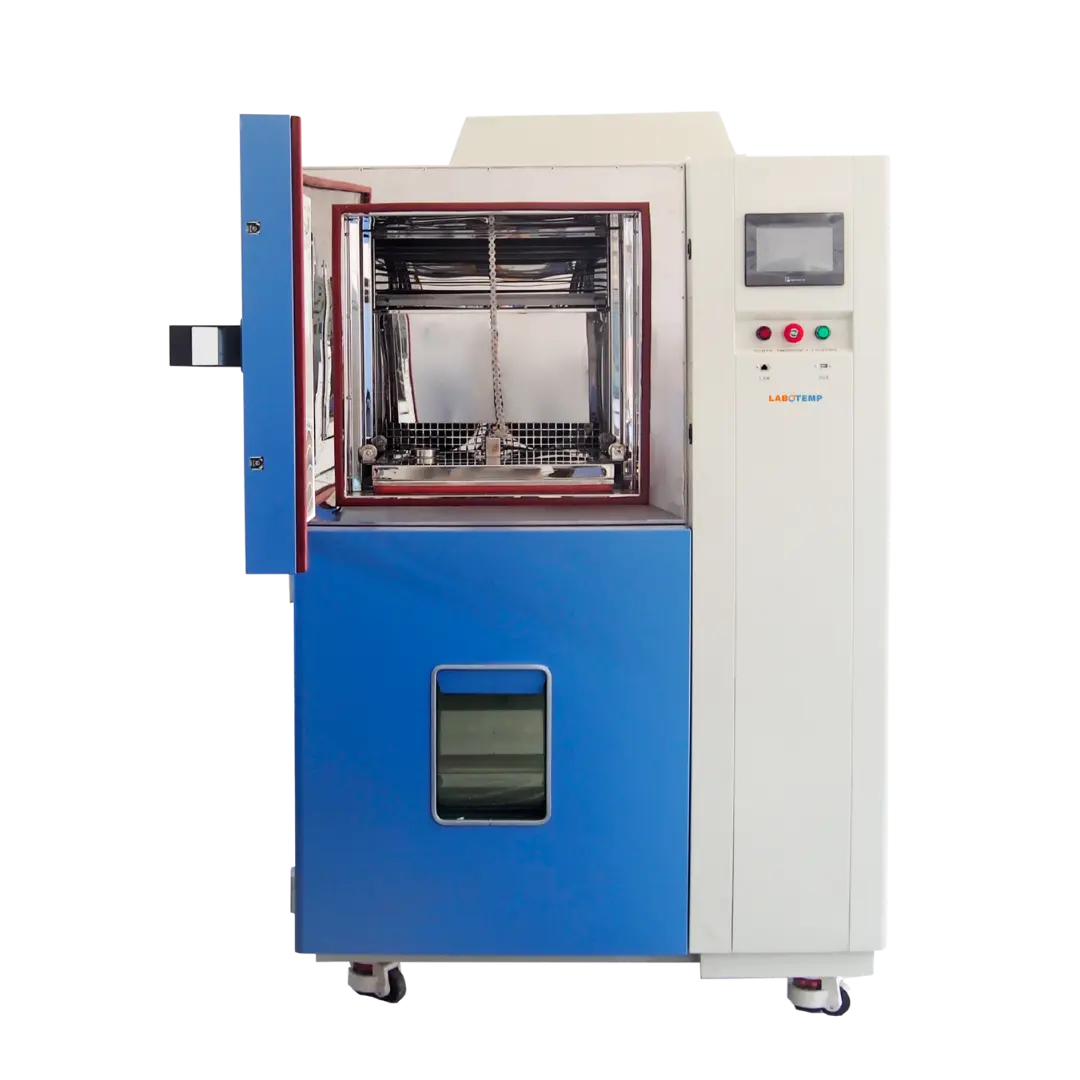

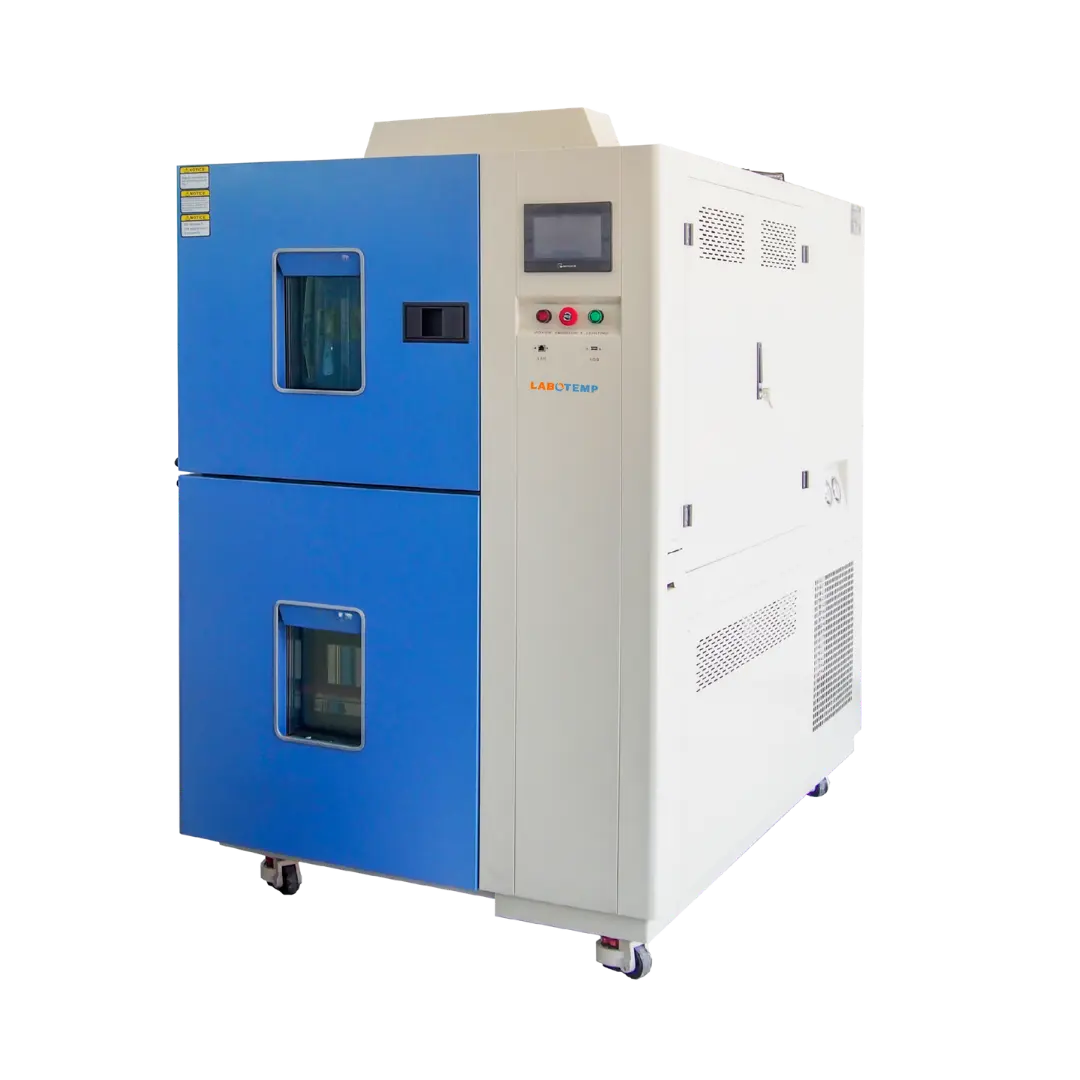

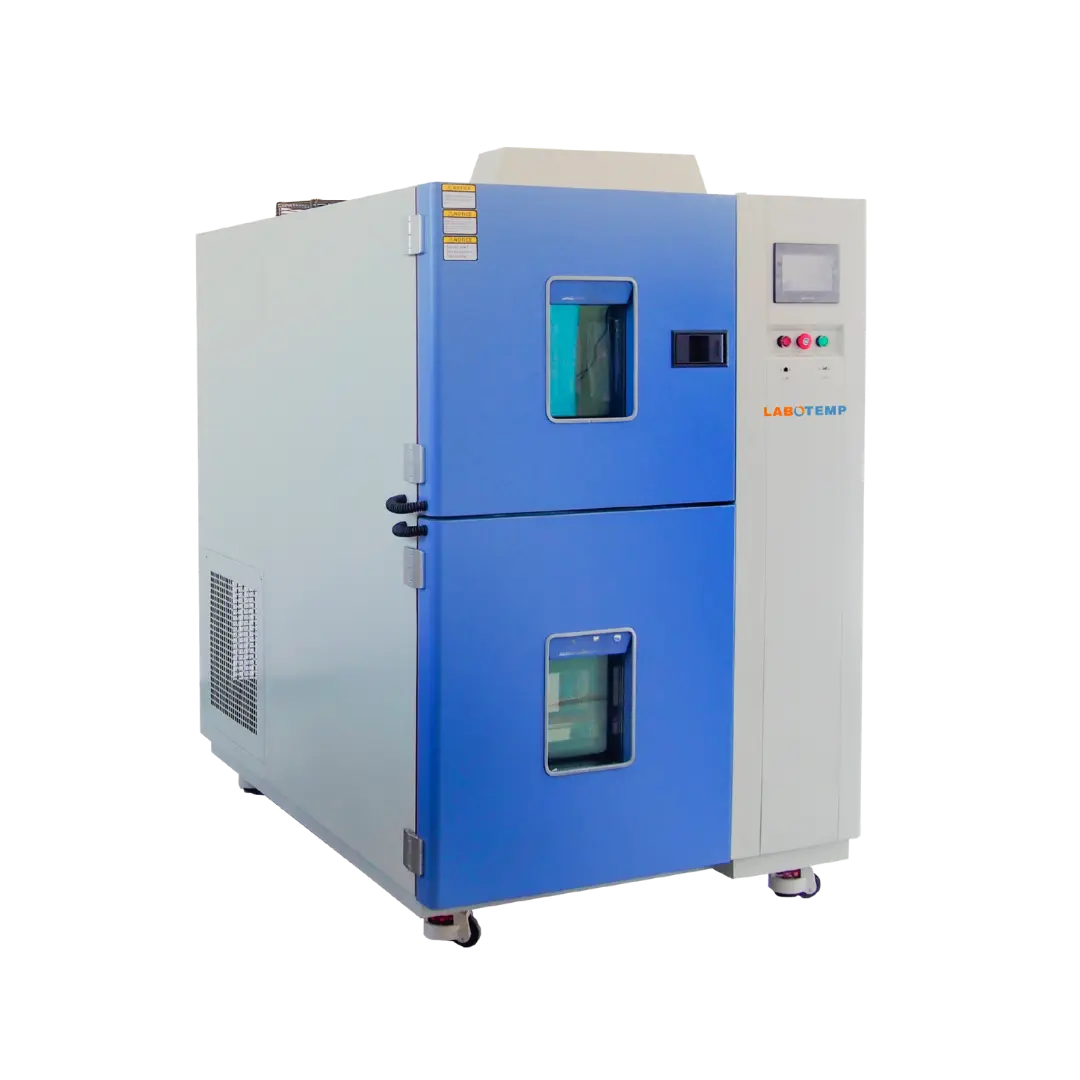

Labotemp Thermal Shock Chamber LTC-104 is a high-capacity thermal shock chamber designed for large-scale and batch testing applications requiring rapid temperature transitions. This advanced two zone chamber exposes samples to extreme hot and cold environments, enabling accurate thermal shock testing for industrial components, assemblies, and materials. With a high-temperature capability of +220°C and low-temperature performance down to -75°C, it effectively simulates harsh environmental conditions for reliability validation across automotive, aerospace, electronics, and manufacturing sectors.
Engineered for heavy-duty operation, this thermal chamber features a spacious 505 L interior volume and supports loading capacities up to 60 kg, making it ideal for bulk testing and large components. It maintains precise temperature stability with fluctuation within ±0.5°C and deviation within ±3°C, ensuring consistent and repeatable results. A fast temperature recovery time within 5 minutes improves testing efficiency during continuous cycles. The system is equipped with a programmable LCD touchscreen controller, mechanical refrigeration system with TECUMSEH compressor, and advanced safety protections for secure operation.
Why Choose Labotemp Thermal Shock Chamber LTC-104?
✓ High-Capacity Thermal Shock Testing - Designed for large components and batch processing.
✓ Advanced Two Zone Chamber - Enables rapid transition between extreme temperatures.
✓ Trusted Thermal Shock Chamber Manufacturer - Built for industrial-scale reliability.
|
Test Room – High Temperature Exposure Range : Ambient +20°C to +200°C Test Room – High Temperature Exposure Range |
Ambient +20°C to +200°C |
|
Test Room – Low Temperature Exposure Range : -65°C to -5°C Test Room – Low Temperature Exposure Range |
-65°C to -5°C |
|
Pre-heat Room – Upper Limit Temperature : +220°C Pre-heat Room – Upper Limit Temperature |
+220°C |
|
Pre-cool Room – Lower Limit Temperature : -75°C Pre-cool Room – Lower Limit Temperature |
-75°C |
|
Temperature Fluctuation : ±0.5°C Temperature Fluctuation |
±0.5°C |
|
Temperature Deviation : ±3°C Temperature Deviation |
±3°C |
|
Temperature Recovery Time : Within 5 minutes Temperature Recovery Time |
Within 5 minutes |
|
Pre-heat Room – Heating Time : Ambient to +200°C within 30 minutes Pre-heat Room – Heating Time |
Ambient to +200°C within 30 minutes |
|
Pre-cool Room – Cooling Time : Ambient to -70°C within 30 minutes Pre-cool Room – Cooling Time |
Ambient to -70°C within 30 minutes |
|
Cooling System : Mechanical compression refrigeration system Cooling System |
Mechanical compression refrigeration system |
|
Refrigerating Unit : TECUMSEH compressor Refrigerating Unit |
TECUMSEH compressor |
|
Controller : Programmable color LCD touch screen, Ethernet connection, PC link Controller |
Programmable color LCD touch screen, Ethernet connection, PC link |
|
Loading Capacity : 60kg Loading Capacity |
60kg |
|
Interior Volume : 505 L Interior Volume |
505 L |
|
Internal Dimensions (mm) : 850x850x700mm Internal Dimensions (mm) |
850x850x700mm |
|
Overall Dimensions (mm) : 2110x1420x2665mm Overall Dimensions (mm) |
2110x1420x2665mm |
|
Safety Devices : Over-temperature, over-current, refrigerant high-pressure, leakage protection Safety Devices |
Over-temperature, over-current, refrigerant high-pressure, leakage protection |
|
Interior Material : SUS304 stainless steel Interior Material |
SUS304 stainless steel |
|
Exterior Material : Steel plate with protective coating Exterior Material |
Steel plate with protective coating |
|
Net Weight : 1251kg Net Weight |
1251kg |
|
Gross Weight : 1531kg Gross Weight |
1531kg |
|
Package Size : 2990 × 2460 × 3420mm Package Size |
2990 × 2460 × 3420mm |
