Horizontal Autoclaves

Labotemp Horizontal Autoclaves are high-performance horizontal steam sterilizers designed for efficient sterilization of laboratory instruments, glassware, culture media, and medical dressing materials. These advanced horizontal cylindrical pressure steam sterilizers use saturated steam at controlled temperature and pressure to eliminate bacteria, viruses, and spores, ensuring complete contamination control. They are widely used in microbiology laboratories, pharmaceutical manufacturing units, hospitals, research institutes, and industrial quality control facilities. The horizontal autoclave machines are designed to allow easy loading of bulk materials, making it ideal for continuous laboratory and industrial sterilization applications. Available in capacities ranging from 150L to 500L, these laboratory autoclaves operate at a working pressure of 0.22 MPa and maximum temperature of 134°C, ensuring effective and reliable sterilization. The adjustable temperature range from 40°C to 134°C and sterilization and drying time from 0–60 minutes provide flexibility for different processes. They feature automatic sterilization control, integrated drying function, and multiple safety protections including over-pressure and low-water cut-off. Labotemp, a trusted horizontal autoclave manufacturer, delivers reliable and long-lasting sterilization solutions and manufactures durable stainless steel chambers built in compliance with ISO & CE standards.

Volume

Power

Voltage

Heat average

Uniform Heating

Horizontal Autoclave HZA-01

Working temperature : 134°C

Volume : 150L

Power : 9kW

Voltage : 380V 50Hz

ISO/CE Certified

Horizontal Autoclave HZA-02

Working Temperature : 134°C

Volume : 280L

Power : 12KW

Voltage : 380V 50Hz

400L Large Capacity

Horizontal Autoclave HZA-03

Working Temperature : 134°C

Volume : 400L

Power : 18KW

Voltage : 380V 50Hz

Pressure-Safe Door Lock

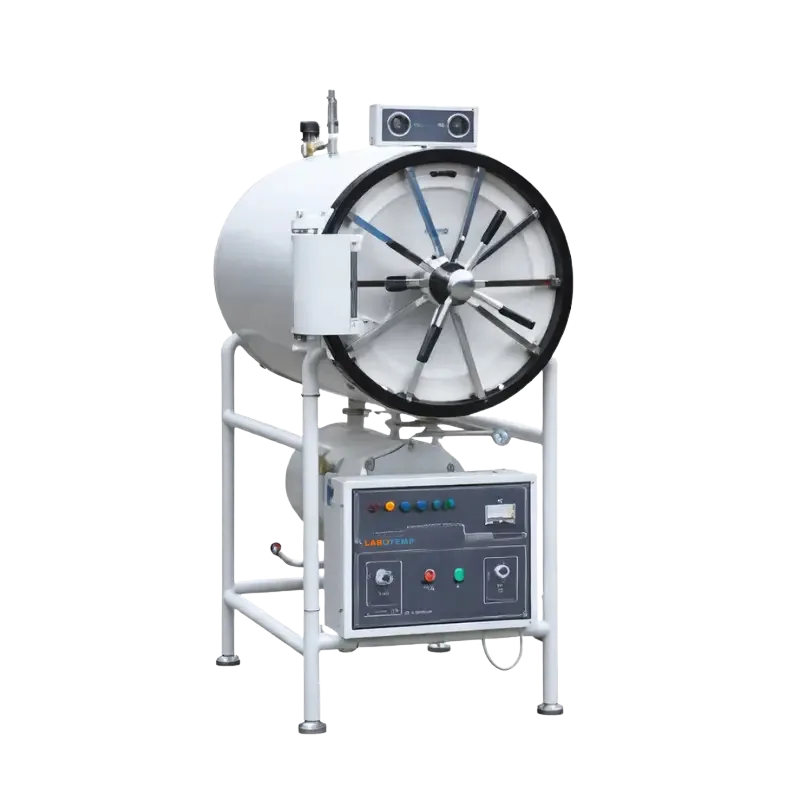

Horizontal Autoclave HZA-04

Working Temperature : 134°C

Capacity : 400 L

Voltage : 380 V / 50 Hz

Power : 18 kW

Precise Sterilizing

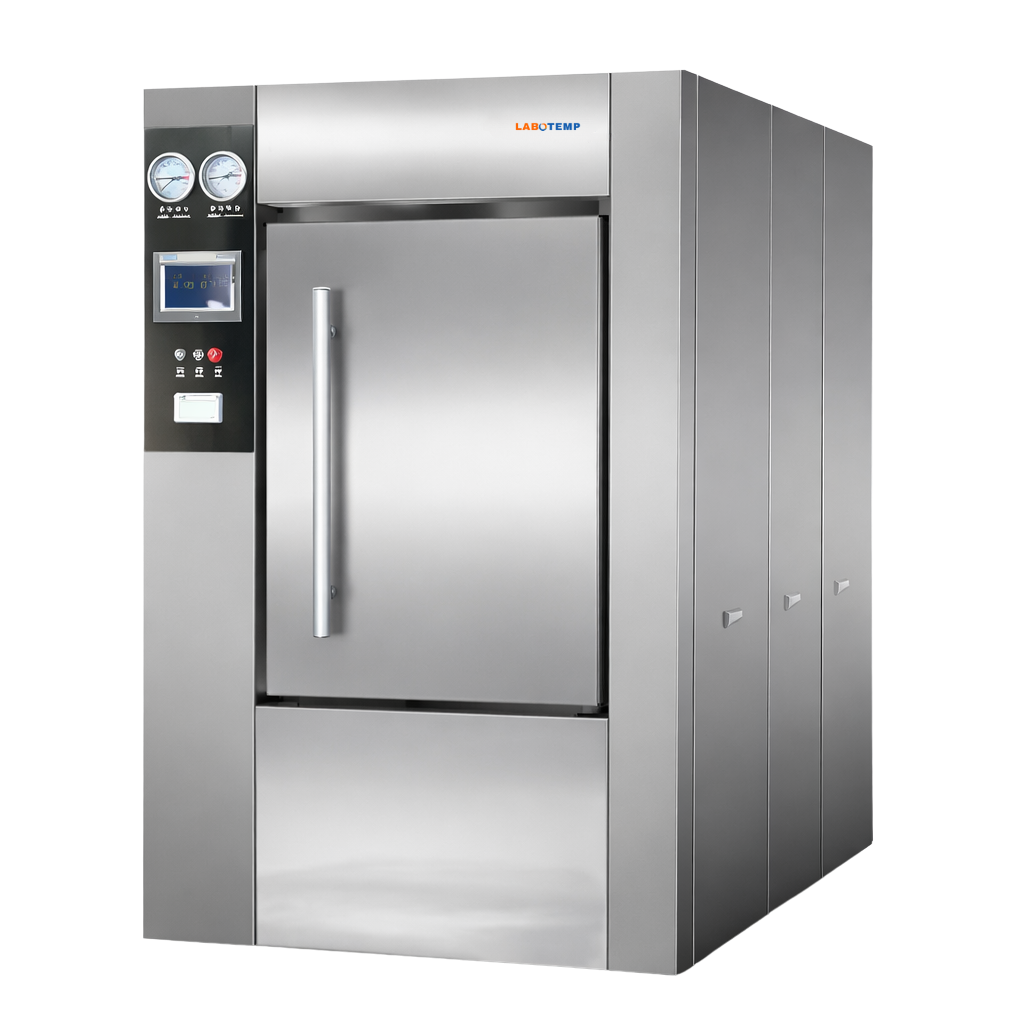

Horizontal Steam Autoclave HZA-05

Design Temperature : 144 °C

Working Temperature : 105 – 138 °C

Temperature Uniformity : ≤ ±2 °C

Design Pressure : -0.1 ~ 0.3 MPa
