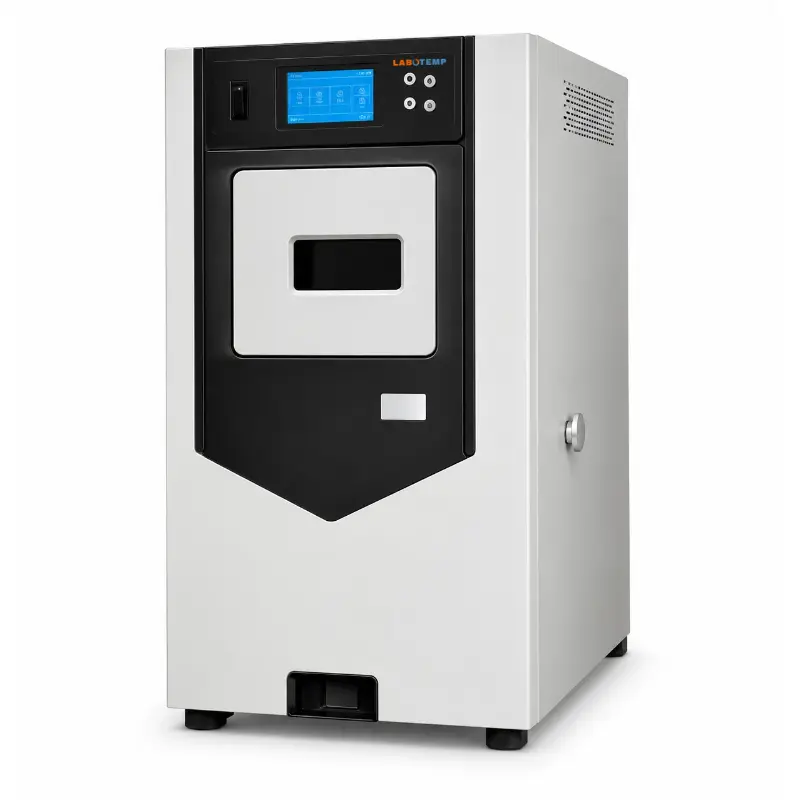

Labotemp Hydrogen Peroxide Low-Temperature Plasma Sterilizer LPP-106 uses hydrogen peroxide plasma technology for low-temperature sterilization of suitable heat- and moisture-sensitive medical instruments. With a user-confirmed nominal capacity of 150 L, this model supports larger suitable instrument loads in healthcare environments. Its hydrogen peroxide tank-based supply system uses a storage tank rather than a hydrogen peroxide cartridge, providing an alternative to cartridge-based supply arrangements.
A built-in vacuum pump supports chamber evacuation, while a PLC control system and 10-inch TFT colour touchscreen support equipment operation and process monitoring. An aluminium alloy sterilization chamber and four-layer loading arrangement provide organized space for compatible instruments. Data recording, query and printing functions support retrieval of stored process records. Operating ambient temperature ranges from 5°C to 40°C, while sterilization chamber working temperature ranges from 35°C to 55°C. Relative humidity requirements range from 30% to 95%, without condensation. Confirm compatible loads and validated cycle parameters before operation.
Why Choose Labotemp Hydrogen Peroxide Low-Temperature Plasma Sterilizer LPP-106?
✓ 150 L Nominal Capacity: Supports larger suitable sterilization loads.
✓ Tank-Based Supply: Uses a hydrogen peroxide storage tank rather than a cartridge.
✓ Touchscreen Control: Features a 10-inch TFT colour touchscreen and PLC-based control.
| General Information | |
|
Product Name : Hydrogen Peroxide Low-Temperature Plasma Sterilizer Product Name |
Hydrogen Peroxide Low-Temperature Plasma Sterilizer |
|
Labotemp Model : LPP-106 Labotemp Model |
LPP-106 |
|
Total Capacity : 150 L Total Capacity |
150 L |
|
Effective Capacity : 120 L Effective Capacity |
120 L |
|
Sterilization Technology : Hydrogen Peroxide Plasma Sterilization Technology |
Hydrogen Peroxide Plasma |
|
Working System : Short-term loading, continuous operation Working System |
Short-term loading, continuous operation |
| Chamber and Dimensions | |
|
Chamber Dimensions (H × W × D) : 520 × 450 × 800 mm Chamber Dimensions (H × W × D) |
520 × 450 × 800 mm |
|
Overall Dimensions (H × W × D) : 1785 × 860 × 1090 mm Overall Dimensions (H × W × D) |
1785 × 860 × 1090 mm |
|
Packing Dimensions (H × W × D) : 2020 × 1000 × 1240 mm Packing Dimensions (H × W × D) |
2020 × 1000 × 1240 mm |
|
Storage Compartment Dimensions (W × D) : 462 × 760 mm Storage Compartment Dimensions (W × D) |
462 × 760 mm |
|
Storage Arrangement : Four layers Storage Arrangement |
Four layers |
|
Storage Bar Load Capacity : 40 kg total; 10 kg per layer Storage Bar Load Capacity |
40 kg total; 10 kg per layer |
|
Sterilization Chamber Material : 6061 aluminium alloy Sterilization Chamber Material |
6061 aluminium alloy |
|
Outer Shell Material : Q235 steel Outer Shell Material |
Q235 steel |
| Sterilization Performance | |
|
Hydrogen Peroxide Dosage — Detection Mode : 4.5 mL per cycle Hydrogen Peroxide Dosage — Detection Mode |
4.5 mL per cycle |
|
Hydrogen Peroxide Dosage — Standard Mode : 9 mL per cycle Hydrogen Peroxide Dosage — Standard Mode |
9 mL per cycle |
|
Sterilization Time — Detection Mode : 35 minutes 45 seconds Sterilization Time — Detection Mode |
35 minutes 45 seconds |
|
Sterilization Time — Standard Mode : 58 minutes 45 seconds Sterilization Time — Standard Mode |
58 minutes 45 seconds |
|
Sterilization Chamber Working Temperature : 35°C to 55°C Sterilization Chamber Working Temperature |
35°C to 55°C |
|
Minimum Vacuum During Chamber Operation : 55 Pa Minimum Vacuum During Chamber Operation |
55 Pa |
| Electrical Requirements | |
|
Power Supply : Three-phase, five-wire Power Supply |
Three-phase, five-wire |
|
Voltage : 380 V Voltage |
380 V |
|
Frequency : 50 Hz Frequency |
50 Hz |
|
Input Power : ≤ 4200 W Input Power |
≤ 4200 W |
|
Constant Temperature Power : 2000 W Constant Temperature Power |
2000 W |
| Control System and Data Management | |
|
Control System : PLC-based control Control System |
PLC-based control |
|
Display : 10-inch TFT true-colour touchscreen Display |
10-inch TFT true-colour touchscreen |
|
Data Recording : Supported Data Recording |
Supported |
|
Data Query : Supported Data Query |
Supported |
|
Record Printing : Supported Record Printing |
Supported |
|
Printer Type : Dot-matrix printer Printer Type |
Dot-matrix printer |
| Operating Environment | |
|
Operating Ambient Temperature : 5°C to 40°C Operating Ambient Temperature |
5°C to 40°C |
|
Relative Humidity : 30% to 95%, no condensation Relative Humidity |
30% to 95%, no condensation |
|
Operating Ambient Atmospheric Pressure : 700 hPa to 1060 hPa Operating Ambient Atmospheric Pressure |
700 hPa to 1060 hPa |
| Weight and Packaging | |
|
Net Weight : 390 kg Net Weight |
390 kg |
|
Gross Weight : 540 kg Gross Weight |
540 kg |
|
Packing Dimensions : 2020 × 1000 × 1240 mm Packing Dimensions |
2020 × 1000 × 1240 mm |
