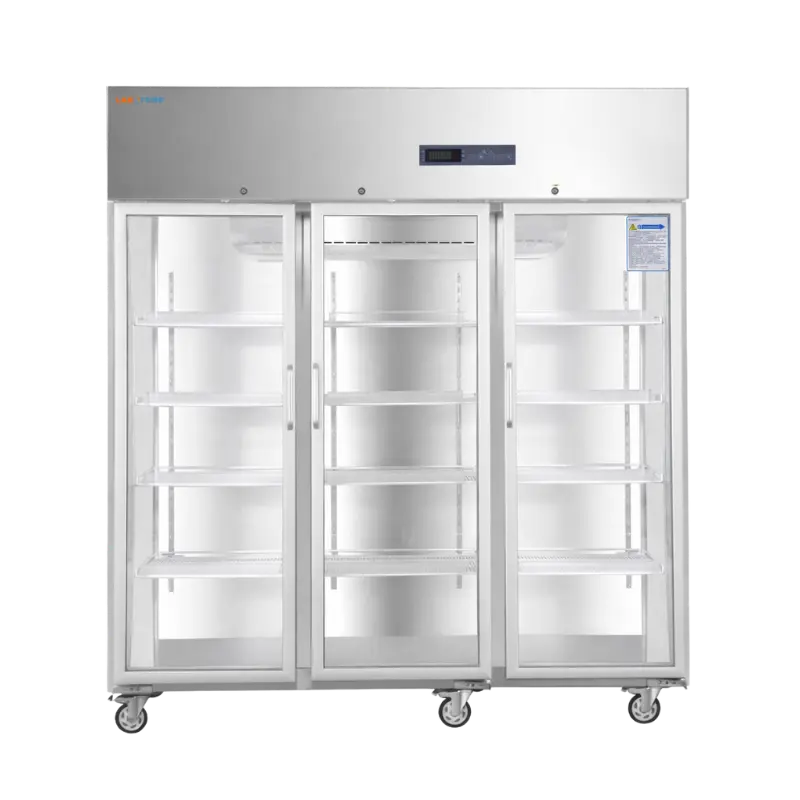

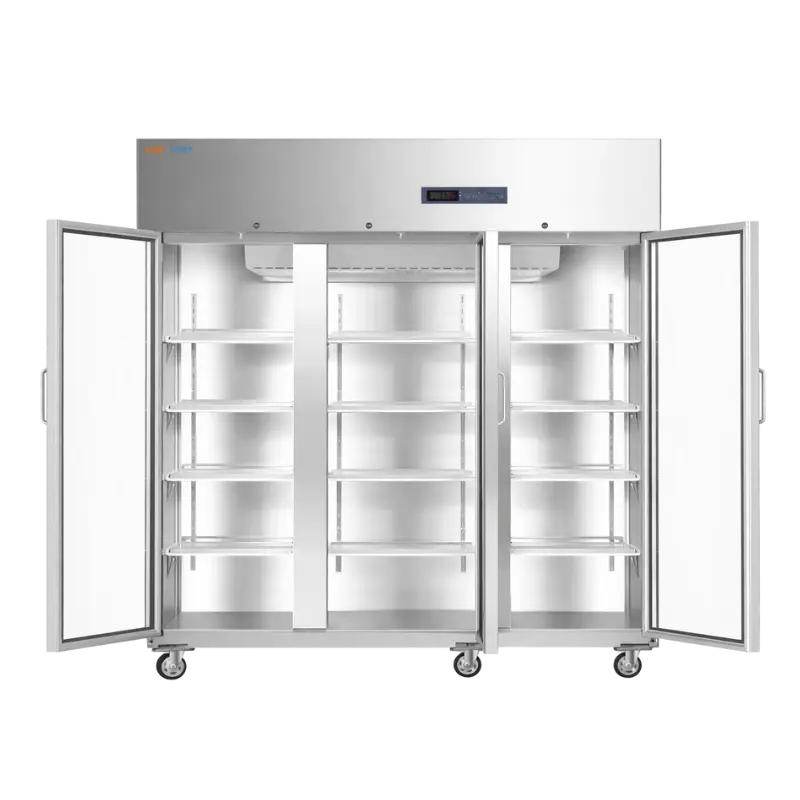

Labotemp Pharmaceutical and Vaccine Refrigerator PHR-08 is a high-capacity medical refrigerator designed for secure storage of vaccines, medicines, insulin, and pharmaceutical products in hospitals, pharmacies, laboratories, and immunization centers. Operating accurately within 2–8°C, this vaccine refrigerator features microprocessor control with 0.1°C accuracy to maintain temperature stability essential for cold-chain compliance. The forced-air cooling system ensures uniform airflow, making it a reliable medical grade refrigerator for pharmaceutical storage.
With a 1500L capacity, stainless steel interior, and triple heated glass doors, the PHR-08 serves as a dependable pharmacy fridge and pharmaceutical refrigerator. Auto defrost, NTC sensors, LED lighting, adjustable shelves, and low-noise operation (55 dB) support continuous clinical use. Audible and visual alarms for temperature deviation, power failure, door ajar, and sensor error ensure operational safety.
Why choose Labotemp Pharmaceutical Refrigerator PHR-08?
✓Temperature safety: Stable 2–8°C with forced-air cooling
✓Access control: Door lock and controller password protection
✓Power protection: 8-hour backup battery for alarms and data
|
Model : PHR-08 Model |
PHR-08 |
|
Temperature Range : 2 ~ 8 °C Temperature Range |
2 ~ 8 °C |
|
Ambient Temperature : 10 ~ 32 °C Ambient Temperature |
10 ~ 32 °C |
|
Capacity : 1500 L / 52.97 cu.ft Capacity |
1500 L / 52.97 cu.ft |
|
Interior Dimensions (W×D×H) : 1680×640×1420 mm Interior Dimensions (W×D×H) |
1680×640×1420 mm |
|
Exterior Dimensions (W×D×H) : 1800×775×1965 mm Exterior Dimensions (W×D×H) |
1800×775×1965 mm |
|
Net Weight : 245 kg Net Weight |
245 kg |
|
Noise Level : 55 dB Noise Level |
55 dB |
|
Controller : Microprocessor Controller |
Microprocessor |
|
Display : Digital Display |
Digital |
|
Sensor : NTC Sensor |
NTC |
|
Voltage / Frequency : 220V/110V, 50/60 Hz Voltage / Frequency |
220V/110V, 50/60 Hz |
|
Power : 1065 W Power |
1065 W |
|
Electric Current : 5.64 A Electric Current |
5.64 A |
|
Power Consumption : 14.42 kWh / 24h Power Consumption |
14.42 kWh / 24h |
|
Refrigeration Type : Forced-air cooling Refrigeration Type |
Forced-air cooling |
|
Defrost : Automatic Defrost |
Automatic |
|
Compressor : SECOP / 1 no. Compressor |
SECOP / 1 no. |
|
Refrigerant : R134a / 620 g Refrigerant |
R134a / 620 g |
|
Doors : Heating glass doors / 3 Doors |
Heating glass doors / 3 |
|
Shelves : Adjustable shelves – 12 Shelves |
Adjustable shelves – 12 |
|
Interior Material : Stainless steel Interior Material |
Stainless steel |
|
Exterior Material : Stainless steel Exterior Material |
Stainless steel |
|
Insulation : PURF, 60 mm Insulation |
PURF, 60 mm |
|
Door Lock : Yes Door Lock |
Yes |
|
LED Lamp : Yes LED Lamp |
Yes |
|
Castors : 5 Castors |
5 |
|
Shipping Weight : 280 kg Shipping Weight |
280 kg |
|
Shipping Size (W×D×H) : 1940×880×2040 mm Shipping Size (W×D×H) |
1940×880×2040 mm |
|
Shipping Volume : 3.48 CBM Shipping Volume |
3.48 CBM |
