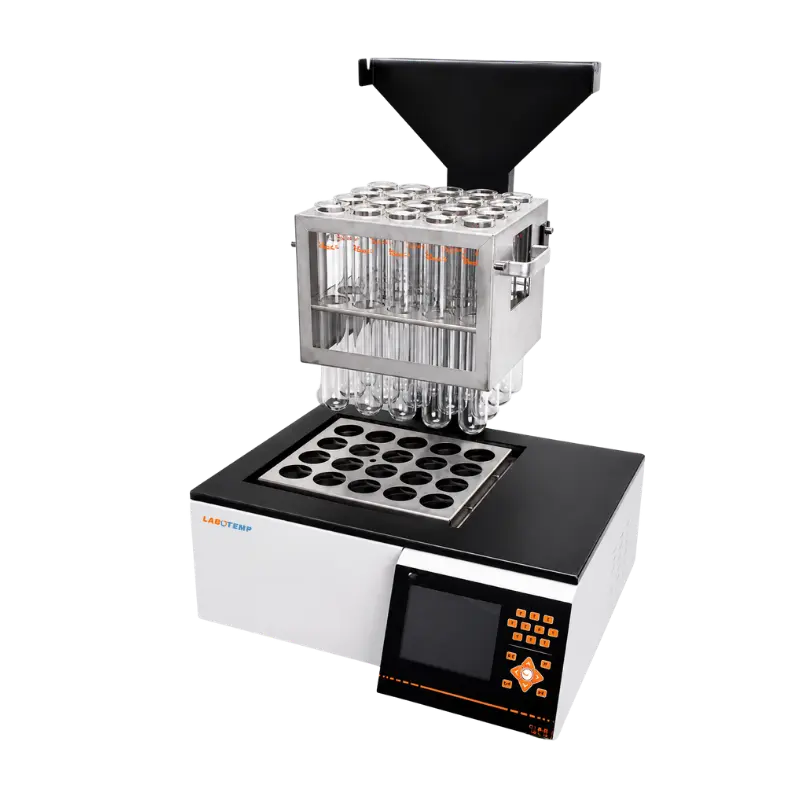

Laboratory Digestion Unit LMD-301

Name: Laboratory Digestion Unit LMD-301
Brand: Labotemp
SKU: LMD-301
Price: 5545.00 USD
Availability: InStock
Rating: 4.7 (965 reviews)

Labotemp Laboratory Digestion Unit LMD-301 provides controlled high-temperature sample digestion for multi-sample laboratory preparation, with 20 sample holes, a 450°C designed temperature, ±1°C temperature control accuracy, approximately 6–15°C/min heating rate, and 4 kW heating power. Its 5.5-inch color touchscreen, 9 programmable recipe groups, and 1–999 minute timer support repeatable digestion workflows. The system supports analytical procedures in which samples are heated with strong acids and catalysts to break down organic matter and convert organically bound nitrogen into ammonium ions (NH₄⁺) in the digestion medium; this ammonium is later released as ammonia during a subsequent distillation step for quantification. This digestion approach is part of a standard laboratory method used to determine total nitrogen content in organic and inorganic samples. Over-temperature protection helps provide safer operation during prolonged heating.

The LMD-301 can be paired with a Waste Gas Collection Hood to manage acid mist and fumes generated during digestion. The hood provides 20 collection ports and 2 extraction openings, while PTFE sealing caps offer high-temperature and acid resistance. Its welded stainless-steel construction provides corrosion resistance when handling acidic digestion fumes, with collected gases directed toward a suitable neutralization or exhaust system. This combination provides a practical setup for laboratories performing nitrogen determination, environmental testing, food and agricultural analysis, pharmaceutical research, and other acid digestion-based sample preparation procedures.

Why Choose Labotemp Laboratory Digestion Unit LMD-301?

✓ 20-Sample Capacity: Processes multiple digestion samples simultaneously for efficient laboratory workflows.
✓ Precise Temperature Control: 450°C designed temperature with ±1°C control accuracy.
✓ Controlled Fume Collection: Compatible Waste Gas Collection Hood helps manage acid mist and digestion fumes.

$5545

Datasheet

Laboratory Digestion Unit Specifications
Number of Sample Holes : 20 Holes Number of Sample Holes	20 Holes
Digestion Tube Capacity : 300 ml Digestion Tube Capacity	300 ml
Aperture : Ø43.5 mm Aperture	Ø43.5 mm
Heating Module Material : 6061 Aluminum Alloy Heating Module Material	6061 Aluminum Alloy
Designed Temperature : 450°C Designed Temperature	450°C
Temperature Control Accuracy : ±1°C Temperature Control Accuracy	±1°C
Heating Rate : ≈6–15°C/min Heating Rate	≈6–15°C/min
Control Mode : Single-Point Heating Control Mode	Single-Point Heating
Recipe Management : 9 Groups Recipe Management	9 Groups
Timing Shutdown : 1–999 Minutes Timing Shutdown	1–999 Minutes
Power Supply : AC 220V, 110V 50/60 Hz Power Supply	AC 220V, 110V 50/60 Hz
Heating Power : 4 kW Heating Power	4 kW
Dimensions (W × D × H) : 542 × 387 × 533 mm Dimensions (W × D × H)	542 × 387 × 533 mm
Shipping Size (W × D × H) : 690 × 530 × 650 mm Shipping Size (W × D × H)	690 × 530 × 650 mm
Net Weight : 26 kg Net Weight	26 kg
Gross Weight : 35 kg Gross Weight	35 kg
Waste Gas Collection Hood Specifications
Collection Port : 20 Collection Port	20
Extraction Opening : 2 Extraction Opening	2
Dimensions (W × D × H) (Waste Gas Collection Hood) : 250 × 150 × 160 mm Dimensions (W × D × H) (Waste Gas Collection Hood)	250 × 150 × 160 mm
Shipping Size (W × D × H) (Waste Gas Collection Hood) : 490 × 500 × 470 mm Shipping Size (W × D × H) (Waste Gas Collection Hood)	490 × 500 × 470 mm
Net Weight (Waste Gas Collection Hood) : 4.2 kg Net Weight (Waste Gas Collection Hood)	4.2 kg
Gross Weight (Waste Gas Collection Hood ) : 6 kg Gross Weight (Waste Gas Collection Hood )	6 kg
Collection Hood Material : Welded Stainless Steel Collection Hood Material	Welded Stainless Steel
Sealing Cap Material : High-Temperature and Strong Acid-Resistant PTFE Sealing Cap Material	High-Temperature and Strong Acid-Resistant PTFE

9 Programmable Recipes ➤ 9 Programmable Recipes
20-hole digestion configuration supports simultaneous processing of multiple samples. ➤ 20-hole digestion configuration supports simultaneous processing of multiple samples.
6061 aluminum alloy heating module provides durable and efficient heat transfer. ➤ 6061 aluminum alloy heating module provides durable and efficient heat transfer.
High-temperature operation up to 450°C supports demanding digestion procedures. ➤ High-temperature operation up to 450°C supports demanding digestion procedures.
±1°C temperature control accuracy helps maintain consistent digestion conditions. ➤ ±1°C temperature control accuracy helps maintain consistent digestion conditions.
Single-point heating provides controlled and uniform heating across the sample positions. ➤ Single-point heating provides controlled and uniform heating across the sample positions.
Heating rate of approximately 6–15°C/min supports efficient temperature ramping. ➤ Heating rate of approximately 6–15°C/min supports efficient temperature ramping.
9 programmable recipe groups allow repeatable digestion workflows for different methods. ➤ 9 programmable recipe groups allow repeatable digestion workflows for different methods.
Adjustable 1–999 minute timer supports controlled digestion cycles. ➤ Adjustable 1–999 minute timer supports controlled digestion cycles.
5.5-inch color touchscreen provides convenient parameter setting and monitoring. ➤ 5.5-inch color touchscreen provides convenient parameter setting and monitoring.
Over-temperature protection helps safeguard the equipment during operation. ➤ Over-temperature protection helps safeguard the equipment during operation.
Waste gas collection hood provides 20 collection ports for handling digestion fumes. ➤ Waste gas collection hood provides 20 collection ports for handling digestion fumes.
Two extraction openings support connection to an appropriate exhaust or neutralization system. ➤ Two extraction openings support connection to an appropriate exhaust or neutralization system.
PTFE sealing caps provide resistance to high temperatures and strong acids. ➤ PTFE sealing caps provide resistance to high temperatures and strong acids.
Welded stainless steel gas collection hood offers corrosion-resistant construction for digestion environments. ➤ Welded stainless steel gas collection hood offers corrosion-resistant construction for digestion environments.
Combined furnace and waste gas collection configuration supports more controlled acid digestion workflows. ➤ Combined furnace and waste gas collection configuration supports more controlled acid digestion workflows.

Environmental Sample Digestion:Supports controlled acid digestion of soil, water, sludge, and other environmental samples before chemical analysis Environmental Sample Digestion
Supports controlled acid digestion of soil, water, sludge, and other environmental samples before chemical analysis
Food & Agricultural Testing:Used for preparing food, feed, crop, and agricultural samples for laboratory analysis and quality testing Food & Agricultural Testing
Used for preparing food, feed, crop, and agricultural samples for laboratory analysis and quality testing
Pharmaceutical Analysis:Supports controlled digestion and sample preparation procedures in pharmaceutical research and quality control laboratories Pharmaceutical Analysis
Supports controlled digestion and sample preparation procedures in pharmaceutical research and quality control laboratories
Chemical Laboratories:Provides repeatable high-temperature digestion for samples requiring controlled heating before instrumental analysis Chemical Laboratories
Provides repeatable high-temperature digestion for samples requiring controlled heating before instrumental analysis
Research & Academic Laboratories:Suitable for analytical research, method development, and laboratory teaching involving multi-sample digestion Research & Academic Laboratories
Suitable for analytical research, method development, and laboratory teaching involving multi-sample digestion
Multi-Sample Laboratory Processing:Processes multiple samples simultaneously while the connected waste gas collection hood helps manage acid fumes generated during digestion Multi-Sample Laboratory Processing
Processes multiple samples simultaneously while the connected waste gas collection hood helps manage acid fumes generated during digestion
