COD Digester With Analyzer LMD-302

Name: COD Digester With Analyzer LMD-302
Brand: Labotemp
SKU: LMD-302
Price: 3790.00 USD
Availability: InStock
Rating: 4.9 (688 reviews)

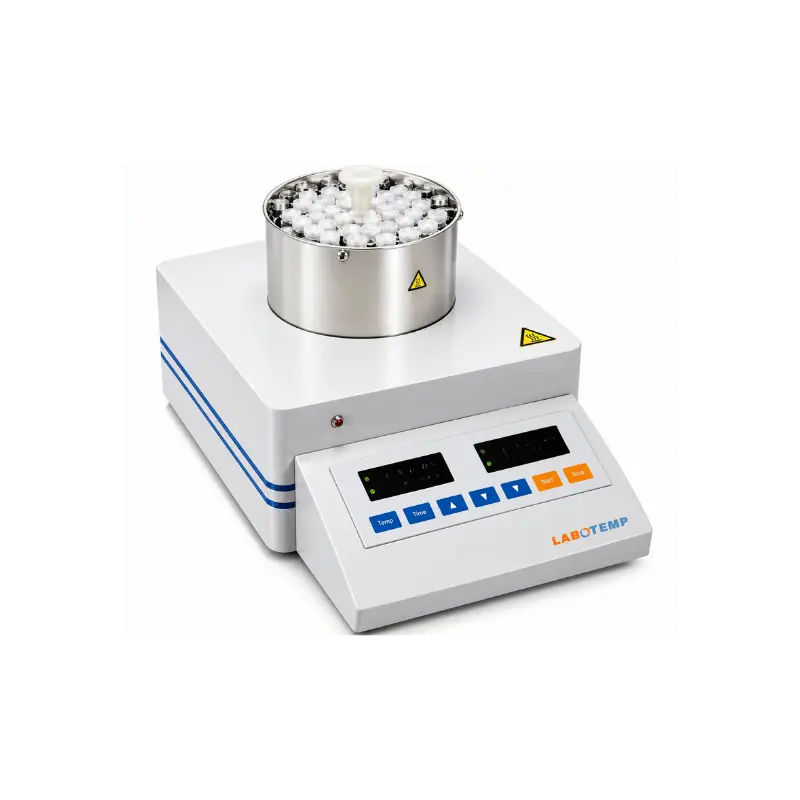

Labotemp COD Digester with Analyzer LMD 302 provides a complete solution for Chemical Oxygen Demand testing, with the COD digestion unit designed for controlled heating of prepared samples before COD measurement. The digester processes 21 samples simultaneously, with each sample placed in an individual round digestion vial measuring 16 × 100 mm. It provides an adjustable heating temperature from 100 to 165°C and heating time from 0 to 120 minutes, along with a transparent plastic protection shield for safer operation.

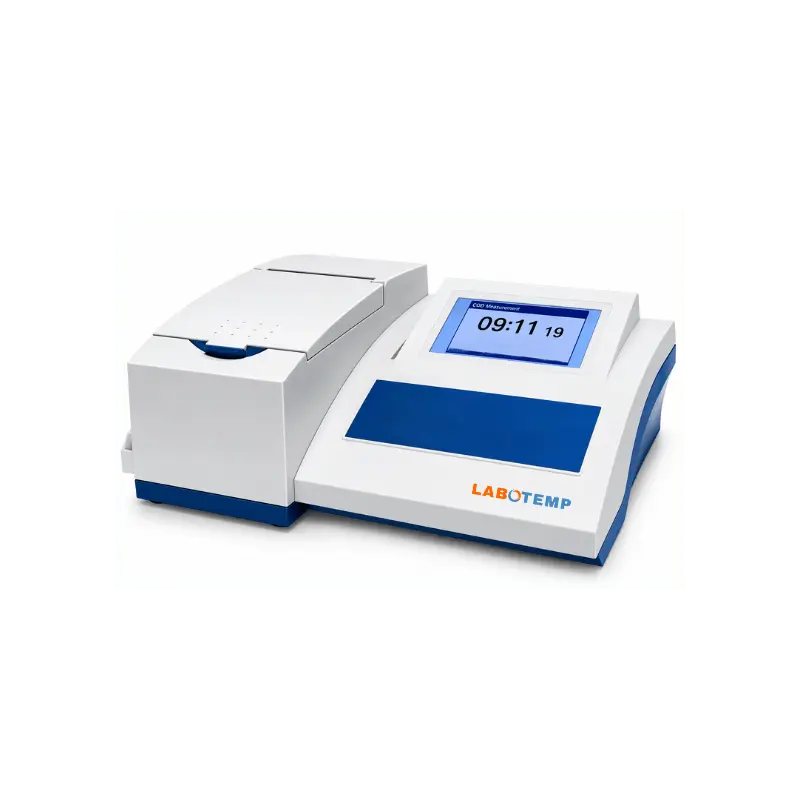

The supplied COD analyzer provides the measurement function after digestion and can also be operated independently from the digestion unit. It supports COD measurement ranges of 0 to 150 mg/L and 0 to 1500 mg/L, with two LED light sources, 2 point calibration, an LCD display, storage for up to 200 data sets, and USB data transfer. The system supports COD analysis according to EPA 410.4 and ISO 15705:2002, making LMD 302 suitable for laboratory water and wastewater analysis.

Why Choose Labotemp COD Digester with Analyzer LMD 302?

✓ 21 Sample Digestion: Processes 21 samples simultaneously, with each sample placed in a dedicated 16 × 100 mm round digestion vial.
✓ Controlled COD Digestion: Provides adjustable heating from 100 to 165°C and heating time from 0 to 120 minutes for controlled sample digestion.
✓ Complete Testing Solution: The supplied analyzer provides two COD measurement ranges, 2 point calibration, data storage for up to 200 sets, and USB data transfer.

$3790

Datasheet

Digester Specifications
Product Type : COD Digester Product Type	COD Digester
Sample Capacity : 21 samples Sample Capacity	21 samples
Digestion Vial Type : Round digestion vial Digestion Vial Type	Round digestion vial
Digestion Vial Size : 16 × 100 mm Digestion Vial Size	16 × 100 mm
Digestion Temperature : 100 to 165°C Digestion Temperature	100 to 165°C
Heating Time : 0 to 120 minutes Heating Time	0 to 120 minutes
Temperature Control : Digital automatic temperature control Temperature Control	Digital automatic temperature control
Protection : Transparent plastic protection shield Protection	Transparent plastic protection shield
Power Supply : 220 V and 110V / 50 Hz and 60 Hz Power Supply	220 V and 110V / 50 Hz and 60 Hz
Dimensions : 330 × 228 × 132 mm Dimensions	330 × 228 × 132 mm
Net Weight : 4 kg Net Weight	4 kg
Package Size : 575 × 435 × 285 mm Package Size	575 × 435 × 285 mm
Gross Weight : 5.5 kg Gross Weight	5.5 kg
Analyzer Specifications
Product Type- : COD Analyzer Product Type-	COD Analyzer
COD Measurement Range- : 0 to 150 mg/L, 0 to 1500 mg/L COD Measurement Range-	0 to 150 mg/L, 0 to 1500 mg/L
Accuracy- : ±8% Accuracy-	±8%
Repeatability- : ≤3% Repeatability-	≤3%
Fluctuation- : 6 mg/L at 20 minutes Fluctuation-	6 mg/L at 20 minutes
Light Source- : 2 LED light sources Light Source-	2 LED light sources
Calibration- : 2 point calibration Calibration-	2 point calibration
Display- : LCD Display-	LCD
Data Storage- : Up to 200 data sets Data Storage-	Up to 200 data sets
Data Transfer- : USB communication interface Data Transfer-	USB communication interface
Power Supply- : 220 V and 110V / 50 Hz and 60 Hz Power Supply-	220 V and 110V / 50 Hz and 60 Hz
Independent Operation : Yes Independent Operation	Yes
Dimensions- : 315 × 225 × 100 mm Dimensions-	315 × 225 × 100 mm
Net Weight- : 2 kg Net Weight-	2 kg
Package Size- : 370 × 305 × 330 mm Package Size-	370 × 305 × 330 mm
Gross Weight- : 4 kg Gross Weight-	4 kg

Integrated COD Digester & Analyzer ➤ Integrated COD Digester & Analyzer
21 sample capacity supports simultaneous digestion of multiple COD samples. ➤ 21 sample capacity supports simultaneous digestion of multiple COD samples.
Each sample is placed in an individual round digestion vial measuring 16 × 100 mm. ➤ Each sample is placed in an individual round digestion vial measuring 16 × 100 mm.
Adjustable digestion temperature from 100 to 165°C supports controlled sample heating. ➤ Adjustable digestion temperature from 100 to 165°C supports controlled sample heating.
Adjustable heating time from 0 to 120 minutes supports different COD digestion requirements. ➤ Adjustable heating time from 0 to 120 minutes supports different COD digestion requirements.
Digital temperature setting provides convenient control of digestion conditions. ➤ Digital temperature setting provides convenient control of digestion conditions.
Automatic temperature control maintains the selected digestion temperature during operation. ➤ Automatic temperature control maintains the selected digestion temperature during operation.
Transparent plastic protection shield helps protect the operator during digestion. ➤ Transparent plastic protection shield helps protect the operator during digestion.
COD analyzer provides measurement ranges of 0 to 150 mg/L and 0 to 1500 mg/L. ➤ COD analyzer provides measurement ranges of 0 to 150 mg/L and 0 to 1500 mg/L.
Two LED light sources support different COD testing ranges. ➤ Two LED light sources support different COD testing ranges.
2 point calibration supports COD measurement calibration. ➤ 2 point calibration supports COD measurement calibration.
LCD display provides convenient viewing of analyzer information and results. ➤ LCD display provides convenient viewing of analyzer information and results.
Data storage capacity of up to 200 data sets supports laboratory record management. ➤ Data storage capacity of up to 200 data sets supports laboratory record management.
USB communication interface allows stored analyzer data to be transferred to a computer. ➤ USB communication interface allows stored analyzer data to be transferred to a computer.
Digester and analyzer can be operated independently according to laboratory requirements. ➤ Digester and analyzer can be operated independently according to laboratory requirements.

Environmental Laboratories: Suitable for COD testing during laboratory based water quality analysis and environmental sample evaluation Environmental Laboratories
Suitable for COD testing during laboratory based water quality analysis and environmental sample evaluation
Water and Wastewater Laboratories: Supports digestion and COD measurement of water and wastewater samples Water and Wastewater Laboratories
Supports digestion and COD measurement of water and wastewater samples
Water Treatment Facilities: Suitable for routine COD testing used in water and wastewater treatment monitoring Water Treatment Facilities
Suitable for routine COD testing used in water and wastewater treatment monitoring
Environmental Monitoring: Supports laboratory workflows for assessing organic pollution levels in water samples Environmental Monitoring
Supports laboratory workflows for assessing organic pollution levels in water samples
Chemical and Industrial Laboratories: Useful for COD analysis where water quality and wastewater characterization form part of laboratory testing Chemical and Industrial Laboratories
Useful for COD analysis where water quality and wastewater characterization form part of laboratory testing

Digester Standard Accessories: Digester Standard Accessories
Test Tube Rack, for holding digestion vials during the digestion process. ➤ Test Tube Rack, for holding digestion vials during the digestion process.
21 Round Digestion Vials, 16 × 100 mm. ➤ 21 Round Digestion Vials, 16 × 100 mm.
Analyzer Standard Accessories: Analyzer Standard Accessories
COD Analyzer, 1 set. ➤ COD Analyzer, 1 set.
721 Cuvette, 4 pieces. ➤ 721 Cuvette, 4 pieces.
European Standard Power Cord, 1 piece. ➤ European Standard Power Cord, 1 piece.
USB Communication Cable, 1 piece. ➤ USB Communication Cable, 1 piece.
Instruction Manual, 1 piece. ➤ Instruction Manual, 1 piece.
Fuse Ø5 × 20 mm, 0.5 A, 2 pieces. ➤ Fuse Ø5 × 20 mm, 0.5 A, 2 pieces.
