Microwave Digester LMD-01

Name: Microwave Digester LMD-01
Brand: Labotemp
SKU: LMD-01
Price: 13710.00 USD
Availability: InStock
Rating: 4.8 (768 reviews)

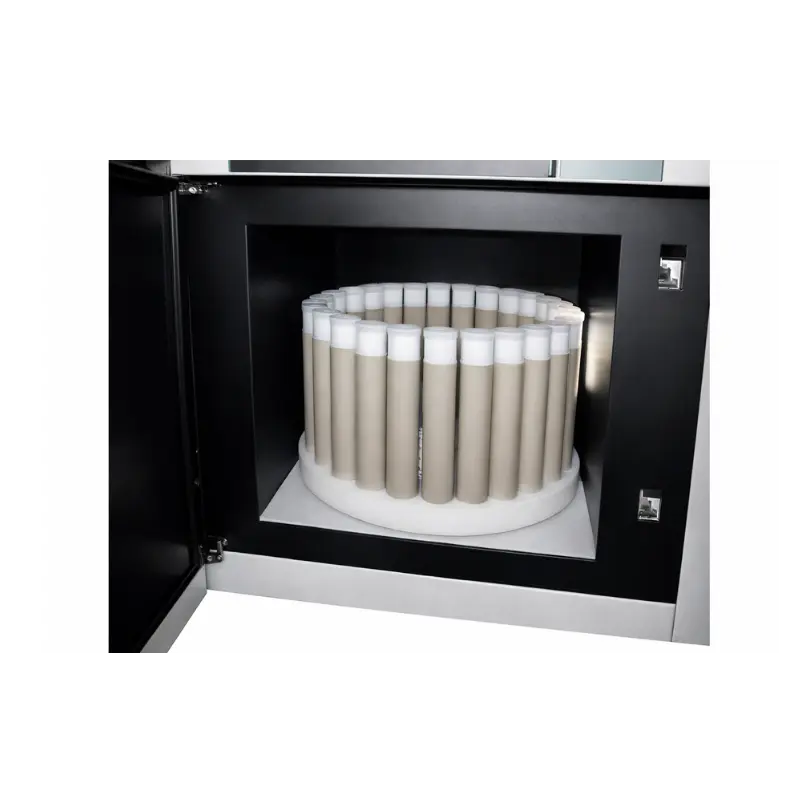

Labotemp Microwave Digestion System LMD-01 is a high-throughput solution designed for fast, safe, and controlled microwave digestion of laboratory samples under elevated temperature and pressure conditions. Equipped with a 16-position rotor, this advanced microwave digester is ideal for food, environmental, pharmaceutical, and research laboratories requiring consistent sample preparation. It features a 66L 316-grade stainless steel cavity with corrosion-resistant construction and an industrial magnetron with continuous frequency conversion control (0–1800W), ensuring uniform microwave distribution and reproducible digestion results.

Engineered for precision and safety, this intelligent digester incorporates non-contact infrared temperature control (0–350°C range, typical operation below 300°C) and real-time pressure monitoring (up to 10 MPa with automatic relief). The 360° continuous rotation system ensures uniform heating across all vessels, improving analytical consistency. A self-locking explosion-proof furnace door, multiple safety interlocks, and automatic fault protection enhance operator safety. With an efficient exhaust and air-cooling system, Siemens PLC control, and durable PTFE inner vessels with PEEK outer protection, the LMD-01 delivers stable performance, energy-efficient operation, and long-term reliability.

Why Choose Labotemp Microwave Digestion System LMD-01?
✓ Advanced safety system: Explosion-proof door with multi-level interlocks
✓ Precise control: Infrared temperature & real-time pressure monitoring
✓ Certified & reliable: Labotemp manufactured, ISO 13485:2016 & CE compliant

$13710

Datasheet User Manual

Number of Reaction Vessels : 16 vessels Number of Reaction Vessels	16 vessels
Power Supply : 220V 50 / 110V 60Hz, 15 A Power Supply	220V 50 / 110V 60Hz, 15 A
Vessel Capacity : 70 ml / 100 ml (optional) Vessel Capacity	70 ml / 100 ml (optional)
Microwave Output Power : 0 – 1800 W (automatic control) Microwave Output Power	0 – 1800 W (automatic control)
Temperature Range : 0 – 350°C (recommended ≤260°C) Temperature Range	0 – 350°C (recommended ≤260°C)
Temperature Accuracy : ±0.5°C Temperature Accuracy	±0.5°C
Pressure Range : 0 – 10 MPa (auto control up to 15 MPa) Pressure Range	0 – 10 MPa (auto control up to 15 MPa)
Microwave Control System : Non-pulse continuous automatic frequency conversion Microwave Control System	Non-pulse continuous automatic frequency conversion
Temperature Control System : Non-contact infrared sensor with real-time monitoring Temperature Control System	Non-contact infrared sensor with real-time monitoring
Pressure Control System : Real-time monitoring with automatic pressure relief Pressure Control System	Real-time monitoring with automatic pressure relief
Control System : Siemens PLC control Control System	Siemens PLC control
Display Interface : 8-inch TFT LCD touch screen Display Interface	8-inch TFT LCD touch screen
Microwave Uniformity : 3D waveguide system with uniform field distribution Microwave Uniformity	3D waveguide system with uniform field distribution
Turntable Design : 360° continuous rotation Turntable Design	360° continuous rotation
Cavity Material : 66 L, 316L stainless steel Cavity Material	66 L, 316L stainless steel
Inner Vessel Material : Imported TFM (modified PTFE) Inner Vessel Material	Imported TFM (modified PTFE)
Outer Vessel Material : Aerospace-grade PEEK Outer Vessel Material	Aerospace-grade PEEK
Explosion Protection : Self-locking explosion-proof door Explosion Protection	Self-locking explosion-proof door
Safety Features : Over-pressure protection, auto shutdown, alarm Safety Features	Over-pressure protection, auto shutdown, alarm
Cooling System : High-power exhaust air cooling Cooling System	High-power exhaust air cooling
Operating Temperature (System) : ≤300°C Operating Temperature (System)	≤300°C
Accessories Included : Temp sensor, vessels, turntable, venting tools Accessories Included	Temp sensor, vessels, turntable, venting tools
Packaging Dimensions (W×D×H) : 720 × 720 × 800 mm Packaging Dimensions (W×D×H)	720 × 720 × 800 mm
Gross Weight : 65 kg Gross Weight	65 kg
Net Weight : 50kg Net Weight	50kg
Acid removal apparatus (Net Weight) : 12kg Acid removal apparatus (Net Weight)	12kg
Acid removal apparatus (Gross Weight) : 20kg Acid removal apparatus (Gross Weight)	20kg
Acid removal apparatus (Packaging Dimension) : 250x250x300mm Acid removal apparatus (Packaging Dimension)	250x250x300mm

Uniform 360° Heating ➤ Uniform 360° Heating
Non-pulse continuous microwave frequency conversion control ➤ Non-pulse continuous microwave frequency conversion control
High-power output up to 1800 W for rapid digestion ➤ High-power output up to 1800 W for rapid digestion
16-position high-throughput digestion capacity ➤ 16-position high-throughput digestion capacity
Non-contact infrared temperature sensing with real-time monitoring ➤ Non-contact infrared temperature sensing with real-time monitoring
Accurate pressure control with automatic pressure relief system ➤ Accurate pressure control with automatic pressure relief system
Siemens PLC-based intelligent control system ➤ Siemens PLC-based intelligent control system
8-inch TFT LCD touch screen with real-time data display ➤ 8-inch TFT LCD touch screen with real-time data display
3D microwave field distribution for uniform heating ➤ 3D microwave field distribution for uniform heating
360° continuous rotation turntable for consistent digestion ➤ 360° continuous rotation turntable for consistent digestion
316L stainless steel large-volume corrosion-resistant cavity ➤ 316L stainless steel large-volume corrosion-resistant cavity
Imported TFM inner vessels with high chemical resistance ➤ Imported TFM inner vessels with high chemical resistance
Aerospace-grade PEEK outer vessels for high-pressure safety ➤ Aerospace-grade PEEK outer vessels for high-pressure safety
Self-locking explosion-proof door with pressure release mechanism ➤ Self-locking explosion-proof door with pressure release mechanism
Automatic shutdown and alarm system for overpressure conditions ➤ Automatic shutdown and alarm system for overpressure conditions
High-efficiency exhaust cooling system for continuous operation ➤ High-efficiency exhaust cooling system for continuous operation
PID-controlled temperature ramping and holding ➤ PID-controlled temperature ramping and holding
Automatic temperature and pressure tracking with curve display ➤ Automatic temperature and pressure tracking with curve display

Acid digestion of environmental, food, and pharmaceutical samples for trace element analysis ➤ Acid digestion of environmental, food, and pharmaceutical samples for trace element analysis
Sample preparation for ICP-OES, ICP-MS, and AAS workflows requiring controlled high-pressure digestion ➤ Sample preparation for ICP-OES, ICP-MS, and AAS workflows requiring controlled high-pressure digestion
Pharmaceutical QC and regulatory testing requiring precise temperature-pressure profiling ➤ Pharmaceutical QC and regulatory testing requiring precise temperature-pressure profiling
Material and chemical analysis of polymers, metals, and inorganic compounds ➤ Material and chemical analysis of polymers, metals, and inorganic compounds
High-throughput digestion in research, academic, and industrial laboratories with validated and repeatable conditions ➤ High-throughput digestion in research, academic, and industrial laboratories with validated and repeatable conditions

Temperature Sensor ➤ Temperature Sensor
PEEK outer tank ➤ PEEK outer tank
Turntable Bracket ➤ Turntable Bracket
PTFE inner tank ➤ PTFE inner tank

1. How does the Labotemp Microwave Digestion System LMD-01 work?

The LMD-01 uses controlled microwave energy to rapidly heat samples and digestion acids inside sealed vessels under elevated temperature and pressure. Its continuous frequency conversion, 3D microwave field distribution, and 360° rotating turntable promote uniform heating, while infrared temperature sensing and real-time pressure monitoring help maintain controlled digestion conditions.

2. How many samples can the LMD-01 process at one time?

The LMD-01 has a 16-position rotor, allowing up to 16 digestion vessels to be used in a run. The vessels must be arranged symmetrically on the turntable, and the manual requires at least half of the available positions to be occupied during operation.

3. Can the LMD-01 digest superalloys and geological samples?

Yes. The LMD-01 can be used for digestion of geological materials and superalloys such as Inconel and titanium, provided the appropriate digestion method is selected. Sample quantity, digestion acids and processing conditions should be determined according to the sample characteristics and established laboratory procedures.

4. How does the LMD-01 ensure uniform and repeatable digestion?

The system combines continuous microwave frequency conversion, 3D microwave field distribution and 360° continuous vessel rotation to promote uniform heating across the digestion vessels. Non-contact infrared temperature sensing provides real-time monitoring, while PID-controlled temperature ramping and automatic temperature-pressure tracking support reproducible digestion conditions.

5. What safety features does the LMD-01 provide during high-temperature and high-pressure digestion?

The LMD-01 incorporates a self-locking explosion-proof door, multiple safety interlocks, automatic pressure relief, over-pressure protection, automatic shutdown and alarm functions. After a digestion cycle, the system automatically enters cooling mode, and the furnace door can only be opened when the temperature is below 50°C and pressure is below 500 kPa.

6. Does the LMD-01 remove acid after microwave digestion?

Yes. The LMD-01 can be used with its acid removal apparatus for post-digestion acid removal. The manual specifies a typical acid-removal temperature of 120–170°C and an approximate processing time of 30–60 minutes, depending on the sample and acid volume. This helps prepare the digested sample for subsequent analysis.

7. How much does the Labotemp LMD-01 Microwave Digestion System cost?

The price of the LMD-01 typically starts at approximately $11,000 and may vary depending on the selected configuration, vessel option, accessories and order requirements. Customers should contact Labotemp for a quotation based on their required configuration and application.
