Tube Furnace 1700°C | 440 Mm Heating Zone FMT-17

Tube Furnace 1700°C | 440 Mm Heating Zone FMT-17

Name: Tube Furnace 1700°C | 440 Mm Heating Zone FMT-17
Brand: Labotemp
SKU: FMT-17
Price: 6744.00 USD
Availability: InStock
Rating: 4.8 (984 reviews)

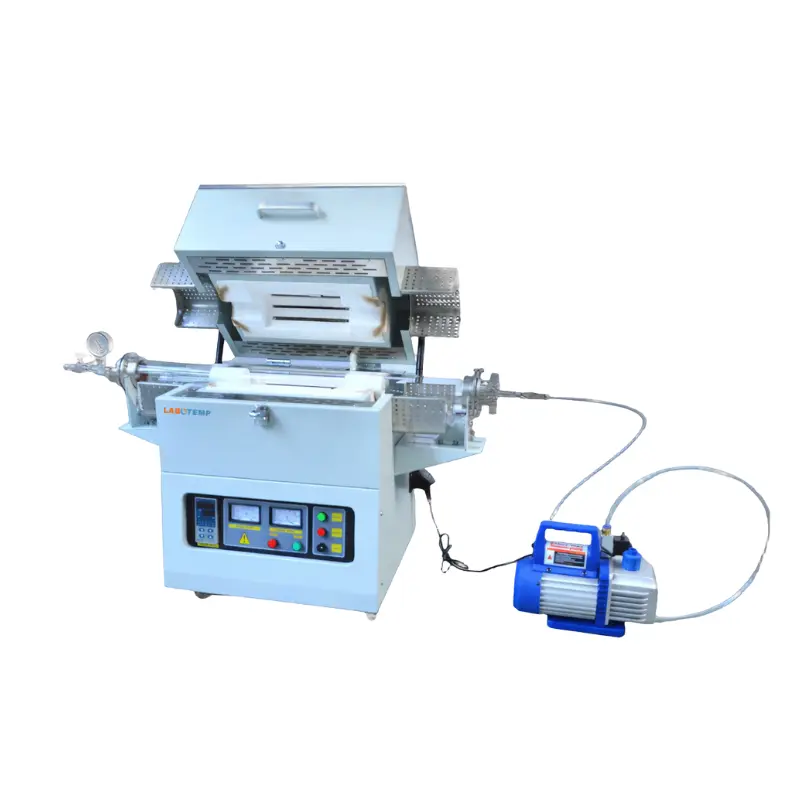

Labotemp High-Temperature Corundum Tube Furnace FMT-17 is a precision laboratory tube furnace rated to 1700°C (working ≤1550°C). It features a ∮40 mm corundum tube, 440 mm single heating zone and 1200 mm total tube length. MoSi₂ heating rods, B-type thermocouple, PID automatic control and 30-segment programmable time–temperature curves deliver ±1°C accuracy and ±5°C uniformity. Alumina insulation and ceramic-fiber chamber enable efficient 0–20°C/min ramps in a compact 794×590×800 mm footprint.

Designed and built by a specialist furnace manufacturer and supplied via authorised furnace suppliers, FMT-17 suits high-temperature synthesis, sintering, annealing, calcination, crystal growth, powder metallurgy and semiconductor diffusion. The horizontal tubular design supports controlled-atmosphere and vacuum configurations with optional touchscreen, PC software and safety interlocks—ideal as a lab furnace and high-temperature tubular furnace for research and production.

Why choose Labotemp Tube Furnace FMT-17?

✓ Ultra-High Temperature: Reliable operation to 1700°C.
✓ Precision & Control: PID regulation, B-type thermocouple and 30-segment profiling.
✓ Process-Ready Engineering: Optimized for demanding ceramic, metal and semiconductor applications.

$6744

Datasheet

Maximum Temperature : 1700°C Maximum Temperature	1700°C
Standard Heating Zone Length (mm) : 440 Standard Heating Zone Length (mm)	440
Chamber Size (mm) : 40×440 Chamber Size (mm)	40×440
Standard Tube Diameter (mm) : ∮40 Standard Tube Diameter (mm)	∮40
Total Length of Furnace Tube (mm) : 1200 Total Length of Furnace Tube (mm)	1200
External Size (mm) : 794×590×800 External Size (mm)	794×590×800
Working Temperature (℃) : ≤1550 Working Temperature (℃)	≤1550
Heating Rate : 0 ~ 20℃/min Heating Rate	0 ~ 20℃/min
Temperature Accuracy : ±1 Temperature Accuracy	±1
Temperature Uniformity : ±5 Temperature Uniformity	±5
Furnace Tube Material : Corundum Tube Furnace Tube Material	Corundum Tube
Heating Element : MoSi₂ Heating Rod Heating Element	MoSi₂ Heating Rod
Thermocouple Type : B Type Thermocouple Type	B Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Package Dimensions : 870×750×1220 Package Dimensions	870×750×1220
Net Weight : 170kg Net Weight	170kg
Gross Weight : 210kg Gross Weight	210kg

Alumina Insulation ➤ Alumina Insulation
1700°C maximum operating temperature ➤ 1700°C maximum operating temperature
PID automatic control via current limiting phase angle fired resistor ➤ PID automatic control via current limiting phase angle fired resistor
30 segments “time temperature curve” can be set arbitrarily ➤ 30 segments “time temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research ➤ Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
