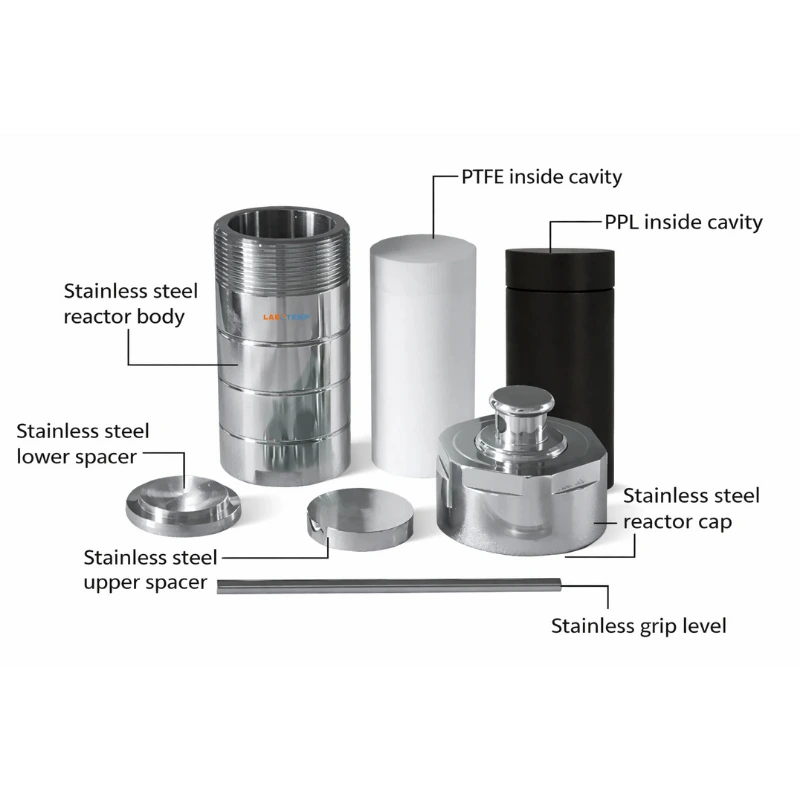

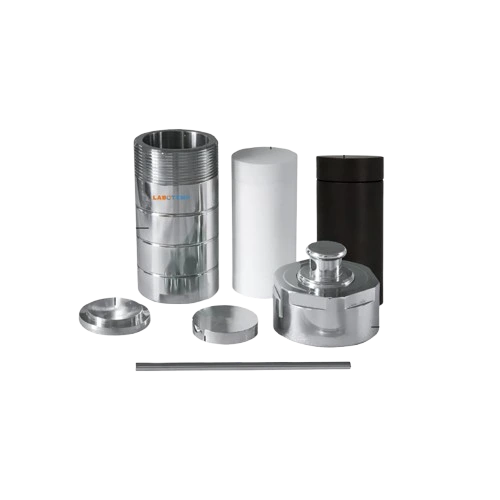

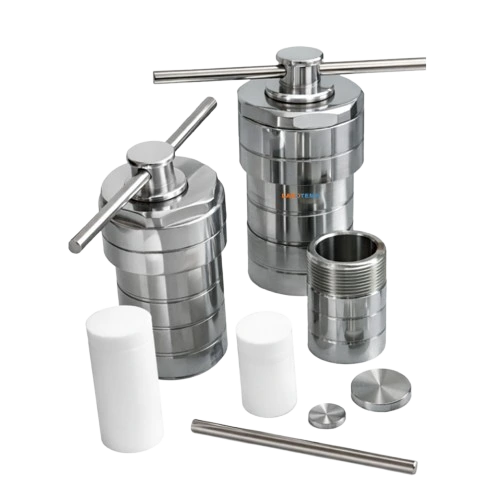

Labotemp Hydrothermal Reactor Autoclave HRA-05 is a high-pressure hydrothermal reactor designed for hydrothermal synthesis and catalytic hydrothermal reactions in chemical labs. This HRA-05 features a 300 mL capacity reactor with a robust 316 stainless steel autoclave reactor body and PTFE lining, delivering excellent resistance to strong acids, alkalis, and high-temperature sealed environments. Rated for 200 °C (250 °C max) and 3.0 MPa, it delivers rapid, nondestructive digestion of insoluble or volatile samples for hydrothermal synthesis and trace-element analysis.
Engineered for petrochemical, biomedical, material science, geological chemistry, environmental science, food testing, and inspection laboratories, the HRA-05 hydrothermal synthesis autoclave reactor replaces platinum crucibles while reducing contamination and analysis time. Its compact, safe, and easy-to-operate design ensures accurate data generation while maintaining laboratory safety. Fully compliant with ISO 13485 and CE standards, ensuring safe, reliable, and globally accepted laboratory operation.
Why Choose Labotemp Hydrothermal Reactor Autoclave HRA-05?
✓ High chemical purity: PTFE lining minimizes contamination for accurate results.
✓ Wide applicability: Suitable for hydrothermal synthesis, digestion, and diverse lab workflows.
✓ Rapid digestion: High-pressure, high-temperature design enables fast, nondestructive dissolution.
| General Specifications | |
|
Capacity : 300 ml Capacity |
300 ml |
|
Kettle Body Material : 316 Stainless Steel Kettle Body Material |
316 Stainless Steel |
| Sterilization Parameters | |
|
Maximum Temperature : 250°C Maximum Temperature |
250°C |
|
Maximum Pressure : 3.0 MPa Maximum Pressure |
3.0 MPa |
| Chamber Dimensions | |
|
Kettle Lid Height : 50 mm Kettle Lid Height |
50 mm |
|
Kettle Body Height : 157 mm Kettle Body Height |
157 mm |
|
Kettle Body Diameter : 93 mm Kettle Body Diameter |
93 mm |
|
Kettle Body Inner Diameter : 71 mm Kettle Body Inner Diameter |
71 mm |
|
Kettle Body Wall Thickness : 11 mm Kettle Body Wall Thickness |
11 mm |
|
Inner Diameter : 71 mm Inner Diameter |
71 mm |
| Physical Dimensions | |
|
Overall Height : 220 mm Overall Height |
220 mm |
|
Length of Grip Bar : 8 × 120 mm Length of Grip Bar |
8 × 120 mm |
|
Lined With High : 137 mm Lined With High |
137 mm |
|
Lining Height / Thickness : 7.5 mm Lining Height / Thickness |
7.5 mm |
|
Thickness of Lower Gasket : 10 mm Thickness of Lower Gasket |
10 mm |
|
Thickness of Upper Gasket : 10 mm Thickness of Upper Gasket |
10 mm |
| Packaging Information | |
|
Product Weight : 6.4 kg Product Weight |
6.4 kg |
|
Packing Dimension : 19.8 × 19.8 × 30.8 cm Packing Dimension |
19.8 × 19.8 × 30.8 cm |
|
Gross Weight : 8 kg Gross Weight |
8 kg |
Thickness of Upper Gasket: 8 mm
Thickness of Lower Gasket: 8 mm
Sterilization Parameters:
Product Weight: 0.95 kg
Upper Gasket Thickness: 10 mm
Reactor & Operating Performance:
PTFE Liner & Construction:
Product Weight: 1.45 kg
Sterilization Parameters:
Product Weight: 2.25 kg
Packaging Information:
Operating Temperature: 200°C
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 5.65 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.4 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.5 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 7.45 kg
Sealing Design: Leak Proof
Safety & Construction:
Safe Working Temperature: 220 °C
Recommended Heating and Cooling Rate: ≤5 °C/min
Wetted Material: Hastelloy
Venting System: Deflation / Vent Valve
Valve Material: 316L Stainless Steel
Temperature Monitoring: Temperature Probe
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 53 mm
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 64 mm
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 64 mm
