V Blender LVB-103

Name: V Blender LVB-103
Brand: Labotemp
SKU: LVB-103
Price: 3782.00 USD
Availability: InStock
Rating: 4.8 (891 reviews)

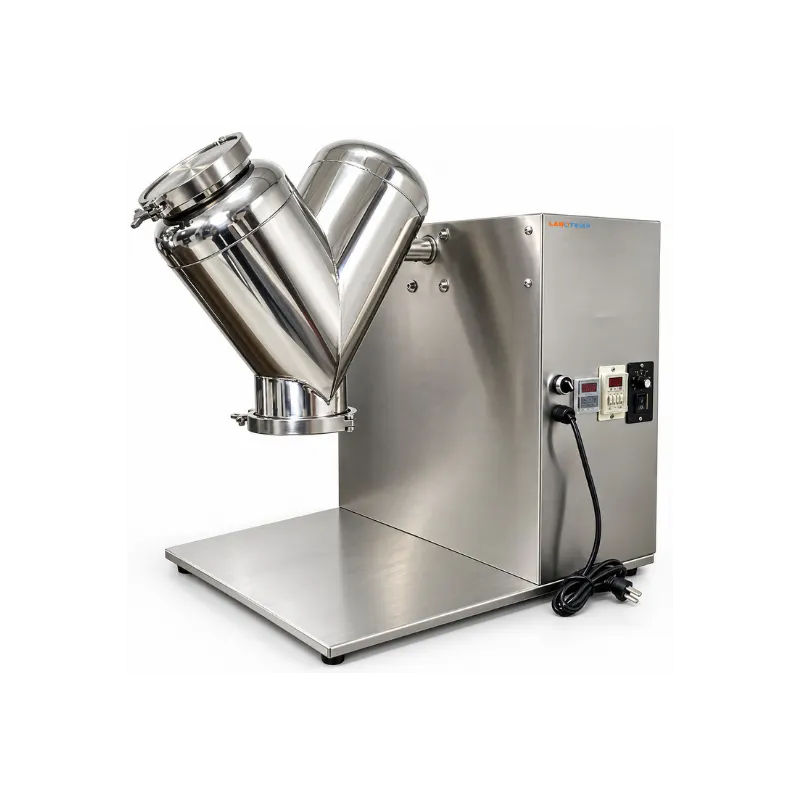

Labotemp V Blender LVB-103 provides controlled laboratory-scale mixing with a 15 L drum volume and 8 L working volume. Designed with a V-shaped mixing vessel, this laboratory mixer promotes material movement during rotation and provides a 0–30 r/min variable mixing speed for controlled blending. The 304 stainless steel drum provides the specified mixing vessel material, while the 201 stainless steel base and support frame provide structural support. The V-shaped configuration makes the LVB-103 suitable for applications requiring a V cone mixer or tumbling mixer arrangement.

This features timed automatic forward and reverse rotation, automatic stopping, and variable-speed operation for controlled mixing cycles. With a 168 mm drum diameter, and 920 × 525 × 780 mm machine dimensions, it provides a larger laboratory mixing capacity than the smaller LVB-101 and LVB-102 models. Its 8 L working volume makes it suitable for laboratory-scale research, formulation, and material blending workflows.

Why Choose Labotemp V Blender LVB-103?

✓ 0–30 r/min Variable Speed: Allows controlled adjustment of the mixing speed.
✓ 304 Stainless Steel Drum: Provides the specified stainless steel mixing vessel construction.
✓ Automated Mixing Cycles: Supports timed forward and reverse rotation with automatic stopping.

$3782

Datasheet

General Specifications
Product Type : Laboratory V-Type Mixer / V Blender Product Type	Laboratory V-Type Mixer / V Blender
Drum Volume : 15 L Drum Volume	15 L
Working Volume : 8 L Working Volume	8 L
Mixing Speed : 0–30 r/min Mixing Speed	0–30 r/min
Drum Material : 304 Stainless Steel Drum Material	304 Stainless Steel
Base & Support Frame Material : 201 Stainless Steel Base & Support Frame Material	201 Stainless Steel
Drum Diameter : 168 mm Drum Diameter	168 mm
Mixing Function : Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed Mixing Function	Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed
Electrical Specifications
Voltage : 220 V Voltage	220 V
Frequency : 50 Hz Frequency	50 Hz
Power : 300 W Power	300 W
Physical & Packaging Specifications
Machine Dimensions : 920 × 525 × 780 mm Machine Dimensions	920 × 525 × 780 mm
Net Weight : 43 kg Net Weight	43 kg
Package Dimensions : 590 × 520 × 700 mm Package Dimensions	590 × 520 × 700 mm
Package Weight : 53 kg Package Weight	53 kg

Automatic Stop Function ➤ Automatic Stop Function
15 L drum volume supports medium-scale laboratory batch mixing. ➤ 15 L drum volume supports medium-scale laboratory batch mixing.
8 L working volume provides practical capacity for controlled material blending. ➤ 8 L working volume provides practical capacity for controlled material blending.
V-shaped mixing vessel promotes material movement during rotation. ➤ V-shaped mixing vessel promotes material movement during rotation.
0–30 r/min variable mixing speed allows adjustment of the mixing process. ➤ 0–30 r/min variable mixing speed allows adjustment of the mixing process.
Timed automatic forward rotation supports controlled mixing cycles. ➤ Timed automatic forward rotation supports controlled mixing cycles.
Automatic reverse rotation provides bidirectional material movement during operation. ➤ Automatic reverse rotation provides bidirectional material movement during operation.
Automatic stop function ends the mixing cycle after the programmed operation. ➤ Automatic stop function ends the mixing cycle after the programmed operation.
304 stainless steel drum provides the specified mixing vessel construction. ➤ 304 stainless steel drum provides the specified mixing vessel construction.
201 stainless steel base and support frame provide structural support. ➤ 201 stainless steel base and support frame provide structural support.
168 mm drum diameter provides the specified vessel configuration. ➤ 168 mm drum diameter provides the specified vessel configuration.

Laboratory Powder Mixing: Suitable for laboratory-scale blending of compatible dry powders and materials Laboratory Powder Mixing
Suitable for laboratory-scale blending of compatible dry powders and materials
Granule Blending: Supports controlled mixing of compatible granular materials in laboratory workflows Granule Blending
Supports controlled mixing of compatible granular materials in laboratory workflows
Pharmaceutical Research: Suitable for formulation research and laboratory-scale blending of powders or granules Pharmaceutical Research
Suitable for formulation research and laboratory-scale blending of powders or granules
Chemical Research: Supports controlled mixing of compatible dry chemical materials during laboratory research Chemical Research
Supports controlled mixing of compatible dry chemical materials during laboratory research
Material Research: Suitable for experimental workflows involving blending and preparation of dry materials Material Research
Suitable for experimental workflows involving blending and preparation of dry materials
Research & Development: Useful for laboratory-scale formulation development and controlled batch mixing Research & Development
Useful for laboratory-scale formulation development and controlled batch mixing
