V Blender LVB-104

Name: V Blender LVB-104
Brand: Labotemp
SKU: LVB-104
Price: 3955.00 USD
Availability: InStock
Rating: 4.8 (859 reviews)

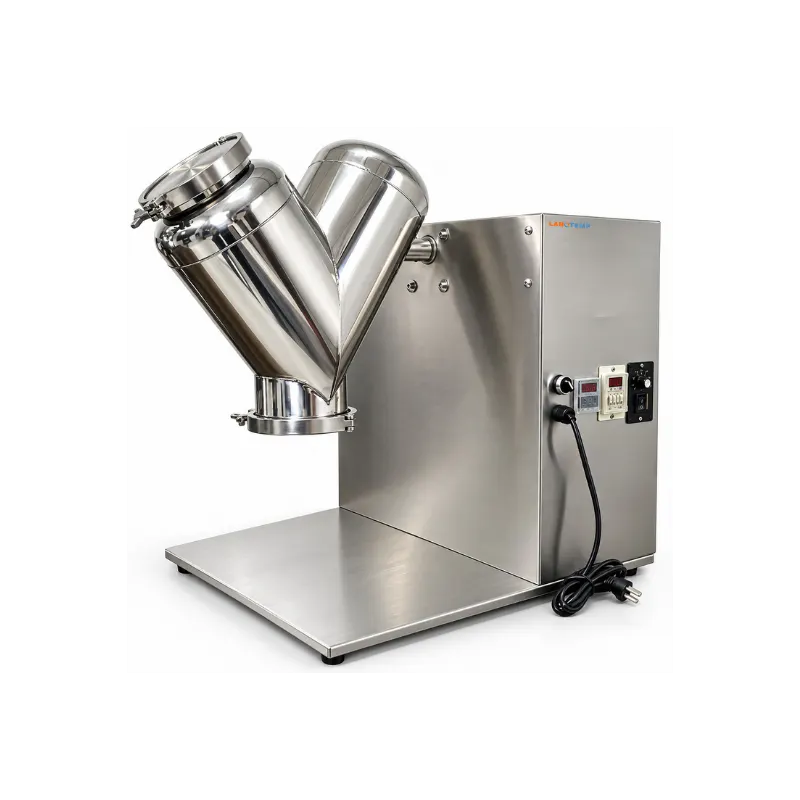

Labotemp V Blender LVB-104 delivers controlled laboratory-scale blending with a 20 L drum volume and 10 L working volume. Designed around a V-shaped mixing vessel, this laboratory V blender supports controlled material movement during rotation and provides a variable mixing speed of 0–30 r/min. The 304 stainless steel drum provides the specified material-contact vessel, while the 201 stainless steel base and support frame provide structural support for laboratory operation. The V-shaped configuration makes LVB-104 suitable for applications where a V shape mixer or twin shell blender design is preferred.

The V Blender LVB-104 incorporates timed forward and reverse rotation, adjustable intervals between directional changes, automatic stopping, and variable-speed operation for controlled mixing cycles. The operating controls allow users to set forward and reverse mixing periods as well as the total mixing time according to process requirements. With a 186 mm drum diameter, and compact 840 × 525 × 760 mm machine dimensions, LVB-104 provides a practical configuration for laboratory-scale powder, granular material, and small-batch mixing workflows.

Why Choose Labotemp V Blender LVB-104?

✓ 10 L Working Volume: Provides a practical capacity for larger laboratory-scale batches.
✓ Programmable Mixing Cycles: Allows forward and reverse mixing periods, directional intervals, and total mixing time to be configured.
✓ Automatic Stop Function: Stops the mixing operation after the programmed total mixing time is completed.

$3955

Datasheet

General Specifications
Product Type : Laboratory V-Type Mixer / V Blender Product Type	Laboratory V-Type Mixer / V Blender
Drum Volume : 20 L Drum Volume	20 L
Working Volume : 10 L Working Volume	10 L
Mixing Speed : 0–30 r/min Mixing Speed	0–30 r/min
Drum Material : 304 Stainless Steel Drum Material	304 Stainless Steel
Base & Support Frame Material : 201 Stainless Steel Base & Support Frame Material	201 Stainless Steel
Drum Diameter : 168 mm Drum Diameter	168 mm
Mixing Function : Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed Mixing Function	Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed
Electrical Specifications
Voltage : 220 V/ 110V Voltage	220 V/ 110V
Frequency : 50 Hz/ 60Hz Frequency	50 Hz/ 60Hz
Power : 200 W Power	200 W
Physical Specifications
Machine Dimensions : 840 × 525 × 760 mm Machine Dimensions	840 × 525 × 760 mm
Packaging Dimension : 590 x 540 x 700 mm Packaging Dimension	590 x 540 x 700 mm
Net Weight : 46Kg Net Weight	46Kg
Gross Weight : 56Kg Gross Weight	56Kg

186mm Drum Diameter ➤ 186mm Drum Diameter
0–30 r/min Variable Speed allows controlled adjustment of the mixing speed according to process requirements. ➤ 0–30 r/min Variable Speed allows controlled adjustment of the mixing speed according to process requirements.
20 L Drum Volume provides increased capacity for laboratory-scale batch material blending. ➤ 20 L Drum Volume provides increased capacity for laboratory-scale batch material blending.
10 L Working Volume supports controlled mixing of larger laboratory batches. ➤ 10 L Working Volume supports controlled mixing of larger laboratory batches.
V-Shaped Mixing Vessel supports material movement during drum rotation. ➤ V-Shaped Mixing Vessel supports material movement during drum rotation.
Timed Forward and Reverse Rotation allows forward and reverse mixing periods to be configured for controlled mixing cycles. ➤ Timed Forward and Reverse Rotation allows forward and reverse mixing periods to be configured for controlled mixing cycles.
Adjustable Direction Interval allows an interval to be set between forward and reverse rotation. ➤ Adjustable Direction Interval allows an interval to be set between forward and reverse rotation.
Adjustable Total Mixing Time allows the overall mixing duration to be configured according to process requirements. ➤ Adjustable Total Mixing Time allows the overall mixing duration to be configured according to process requirements.
Automatic Stop ends the mixing cycle after the programmed total mixing time. ➤ Automatic Stop ends the mixing cycle after the programmed total mixing time.
304 Stainless Steel Drum provides the specified stainless steel material-contact mixing vessel. ➤ 304 Stainless Steel Drum provides the specified stainless steel material-contact mixing vessel.
201 Stainless Steel Base and Support Frame provides structural support for the mixing system. ➤ 201 Stainless Steel Base and Support Frame provides structural support for the mixing system.
186 mm Drum Diameter provides the specified vessel configuration for the 20 L model. ➤ 186 mm Drum Diameter provides the specified vessel configuration for the 20 L model.

Pharmaceutical Research: Suitable for laboratory-scale blending of compatible powders and granular materials during formulation and development work Pharmaceutical Research
Suitable for laboratory-scale blending of compatible powders and granular materials during formulation and development work
Chemical Research: Supports controlled batch mixing of compatible dry materials in chemical laboratory workflows Chemical Research
Supports controlled batch mixing of compatible dry materials in chemical laboratory workflows
Material Research: Suitable for preparing and blending small batches of powders and granules for laboratory testing and research Material Research
Suitable for preparing and blending small batches of powders and granules for laboratory testing and research
Laboratory R&D: Supports small-batch material preparation and formulation trials where controlled rotational mixing is required Laboratory R&D
Supports small-batch material preparation and formulation trials where controlled rotational mixing is required
Powder Blending: Suitable for controlled mixing of compatible powdered materials in laboratory-scale processes Powder Blending
Suitable for controlled mixing of compatible powdered materials in laboratory-scale processes
Granular Material Mixing: Supports blending of compatible granular materials using controlled V-shaped vessel rotation Granular Material Mixing
Supports blending of compatible granular materials using controlled V-shaped vessel rotation
