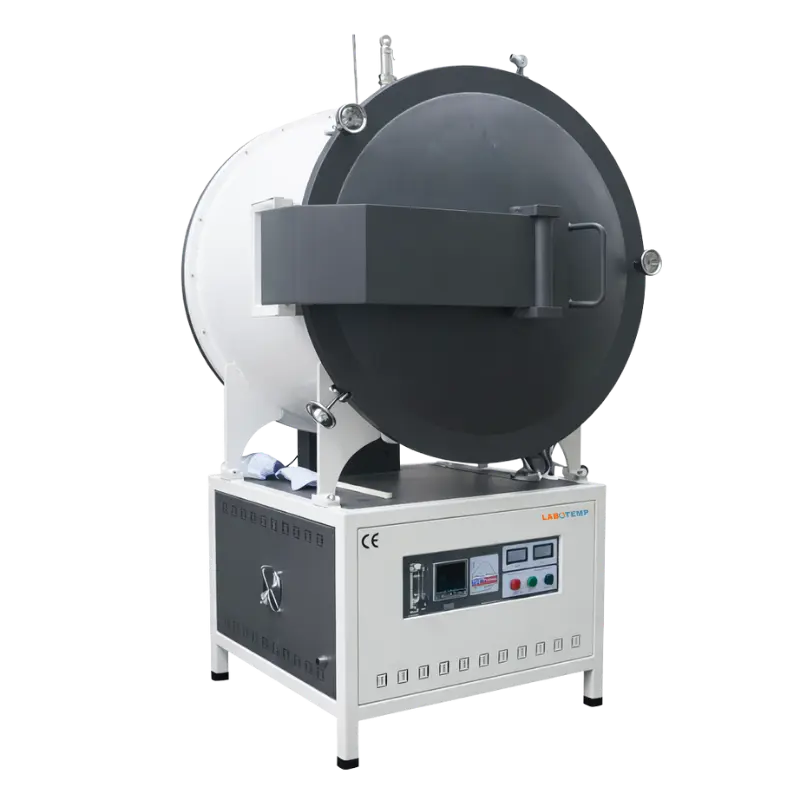

Labotemp Vacuum Furnace FVA-13 is an ultra-high-temperature laboratory vacuum furnace for precision heat treatment and materials research. It has a 12 L chamber (200×300×200 mm), a 1700°C max and 1600°C working range. Supports vacuum heat treatment, vacuum annealing, high-temperature sintering and controlled-atmosphere processing for ceramics, metal alloys, composites and powder metallurgy.
MoSi₂ rod heating elements deliver rapid response, energy efficiency, uniform distribution and long life. B-type platinum-rhodium thermocouple with Yudian or Shimaden controllers ensures precise, repeatable temperature control. Integrated data logging enables process monitoring and documentation. Developed by experienced vacuum furnace manufacturers, Labotemp provides dependable, high-efficiency furnace solutions trusted by aerospace, semiconductor, university, and industrial R&D laboratories.
Why Choose Labotemp Vacuum Furnace FVA-13?
✓ Ultra-High Temperature Capability: Reliable operation up to 1700°C.
✓ Precision Control & Logging: B-type control with data recording support.
✓ Efficient Heating: MoSi₂ elements for fast response and thermal stability.
✓ Safe & Reliable Design: Water cooling for long-term, high-temperature operation.
|
Model No. : FVA-13 Model No. |
FVA-13 |
|
Volume (L) : 12 Volume (L) |
12 |
|
Max Temp (°C) : 1700 Max Temp (°C) |
1700 |
|
Working Temp (°C) : 1600 Working Temp (°C) |
1600 |
|
Voltage : 220V Voltage |
220V |
|
Power (kW) : 6 Power (kW) |
6 |
|
Chamber Size (mm) : 200×300×200 Chamber Size (mm) |
200×300×200 |
|
Heating Element : MoSi₂ Rod Heating Element |
MoSi₂ Rod |
|
Thermocouple Type : B Type Thermocouple Type |
B Type |
|
Controller : Yudian / Shimaden Controller |
Yudian / Shimaden |
|
Cooling Requirement : Yes (Water Cooling) Cooling Requirement |
Yes (Water Cooling) |
|
Net weight : 500kg Net weight |
500kg |
|
Gross weight : 600kg Gross weight |
600kg |
