20L Vacuum Filter With Pump LVF-101

Name: 20L Vacuum Filter With Pump LVF-101
Brand: Labotemp
SKU: LVF-101
Price: 3964.00 USD
Availability: InStock
Rating: 4.7 (643 reviews)

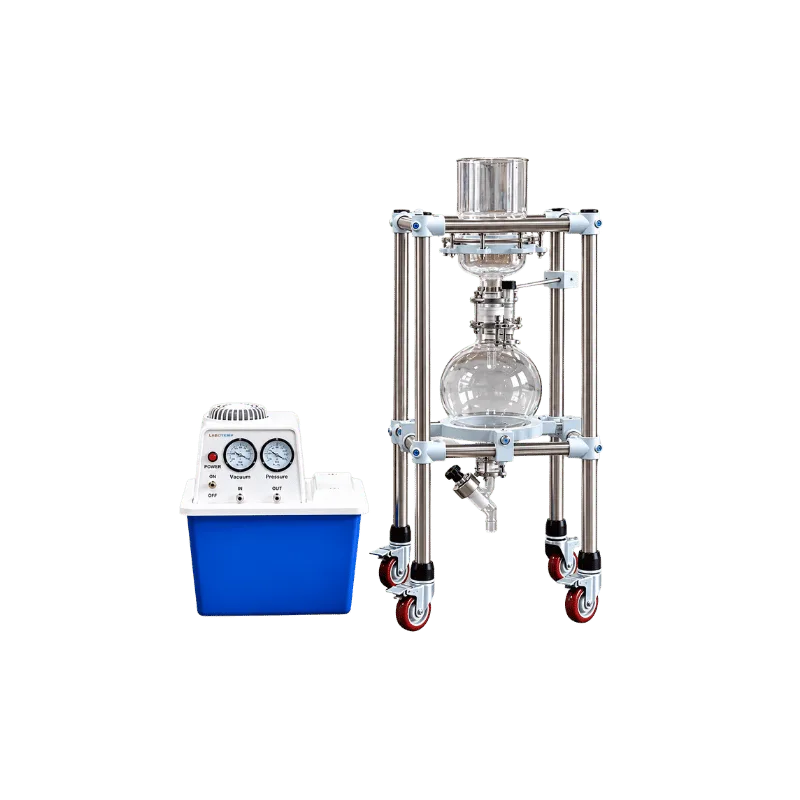

Labotemp 20L Vacuum Filter with Pump LVF-101 provides vacuum-assisted liquid-solid filtration for laboratory processes requiring faster filtration than gravity-based separation. The system combines a 20 L collecting bottle, G3.3 high-borosilicate glass filtration assembly, PTFE sieve plate, and SUS304 movable framework with a dedicated water-circulating vacuum pump. The vacuum filtration process draws liquid through filter paper or filter cloth while retaining particulate matter on the filtration medium.

The integrated water-circulating vacuum pump provides a stated pumping capacity of 100 L/min, with a 57 L water tank and 550 W motor, generating vacuum conditions for the filtration system. LVF-101 provides a maximum stated vacuum degree of −0.098 MPa, with a DN50 suction port, Ø35 exhaust port, DN25 discharge valve, and 300 mm discharge height from the ground. The pump also supports recirculated cooling-water operation for compatible reaction equipment, providing additional utility within laboratory workflows.

Why Choose Labotemp 20L Vacuum Filter with Pump LVF-101?

✓ 20L Filtration Capacity: Provides a 20 L collecting vessel for laboratory-scale liquid-solid filtration.
✓ Integrated Vacuum Pump: Includes a water-circulating vacuum pump with 100 L/min pumping capacity for generating vacuum conditions.
✓ High-Borosilicate Glass: Uses G3.3 high-borosilicate glass in the filtration assembly for laboratory filtration applications.

$3964

Datasheet

Filtration System
Product Type : Laboratory Vacuum Filter with Pump Product Type	Laboratory Vacuum Filter with Pump
Filter Capacity : 20 L Filter Capacity	20 L
Collecting Bottle : 20 L spherical collecting bottle Collecting Bottle	20 L spherical collecting bottle
Glass Material : G3.3 high-borosilicate glass Glass Material	G3.3 high-borosilicate glass
Filter Funnel Size : Ø240 × 280 mm Filter Funnel Size	Ø240 × 280 mm
Sieve Plate Material : PTFE Sieve Plate Material	PTFE
Sieve Plate Size : Ø230 mm Sieve Plate Size	Ø230 mm
Filtering Medium : Filter paper or filter cloth Filtering Medium	Filter paper or filter cloth
Suction Port : DN50 Suction Port	DN50
Exhaust Port : Ø35 mm Exhaust Port	Ø35 mm
Discharge Valve : DN25 Discharge Valve	DN25
Discharge Height from Ground : 300 mm Discharge Height from Ground	300 mm
Maximum Vacuum Degree : −0.098 MPa Maximum Vacuum Degree	−0.098 MPa
Frame Material : SUS304 movable framework Frame Material	SUS304 movable framework
Net Weight : 40 Kg Net Weight	40 Kg
Gross Weight : 68 Kg Gross Weight	68 Kg
Packaging Dimension : 610 x 610 x 1500 mm Packaging Dimension	610 x 610 x 1500 mm
Vacuum Pump
Pump Type : Water-Circulating Vacuum Pump Pump Type	Water-Circulating Vacuum Pump
Pumping Capacity : 100 L/min Pumping Capacity	100 L/min
Water Tank Capacity : 57 L Water Tank Capacity	57 L
Motor Power : 550 W Motor Power	550 W
Operation Voltage : 110 V/60 Hz; 220 V/60 Hz; 230 V/50 Hz; 240 V/50 Hz Operation Voltage	110 V/60 Hz; 220 V/60 Hz; 230 V/50 Hz; 240 V/50 Hz
Pump Frame Material : SS304 stainless steel Pump Frame Material	SS304 stainless steel
Mobility : Universal castors Mobility	Universal castors
Dimensions : 450 × 350 × 820 mm Dimensions	450 × 350 × 820 mm
Packaging Dimension (Vacuum Pump) : 550 x 450 x 910 mm Packaging Dimension (Vacuum Pump)	550 x 450 x 910 mm
Net Weight (Vacuum Pump) : 25 Kg Net Weight (Vacuum Pump)	25 Kg
Gross Weight (Vacuum Pump) : 40 kg Gross Weight (Vacuum Pump)	40 kg

100 L/min Pumping Capacity ➤ 100 L/min Pumping Capacity
20 L filtration capacity supports laboratory-scale liquid-solid separation. ➤ 20 L filtration capacity supports laboratory-scale liquid-solid separation.
Vacuum-assisted filtration accelerates liquid-solid separation compared with gravity filtration. ➤ Vacuum-assisted filtration accelerates liquid-solid separation compared with gravity filtration.
G3.3 high-borosilicate glass provides the specified filtration vessel construction. ➤ G3.3 high-borosilicate glass provides the specified filtration vessel construction.
PTFE Ø230 mm sieve plate supports the filtration medium. ➤ PTFE Ø230 mm sieve plate supports the filtration medium.
Filter paper or filter cloth can be used according to filtration requirements. ➤ Filter paper or filter cloth can be used according to filtration requirements.
−0.098 MPa maximum vacuum degree provides the specified vacuum level for filtration. ➤ −0.098 MPa maximum vacuum degree provides the specified vacuum level for filtration.
100 L/min pumping capacity supports vacuum generation through the integrated pump. ➤ 100 L/min pumping capacity supports vacuum generation through the integrated pump.
57 L water tank provides the water reservoir for circulating vacuum operation. ➤ 57 L water tank provides the water reservoir for circulating vacuum operation.
Water-circulating vacuum operation uses recycled water as the working fluid for vacuum generation. ➤ Water-circulating vacuum operation uses recycled water as the working fluid for vacuum generation.
SUS304 movable framework provides a stainless steel mobile support structure. ➤ SUS304 movable framework provides a stainless steel mobile support structure.
Universal castors support convenient movement of the vacuum filtration system. ➤ Universal castors support convenient movement of the vacuum filtration system.
DN50 suction port provides the specified vacuum connection. ➤ DN50 suction port provides the specified vacuum connection.
DN25 discharge valve supports controlled removal of collected filtrate. ➤ DN25 discharge valve supports controlled removal of collected filtrate.
Recirculated cooling-water function allows the vacuum pump to provide cooling water for compatible reaction equipment. ➤ Recirculated cooling-water function allows the vacuum pump to provide cooling water for compatible reaction equipment.
Multiple suction connections support individual or simultaneous air pumping through the pump. ➤ Multiple suction connections support individual or simultaneous air pumping through the pump.
Check valves help prevent recycled water from flowing back into connected equipment during accidental shutdown. ➤ Check valves help prevent recycled water from flowing back into connected equipment during accidental shutdown.
Stainless steel pump construction provides resistance to acid-base corrosion materials. ➤ Stainless steel pump construction provides resistance to acid-base corrosion materials.

Chemical Laboratories: Suitable for vacuum-assisted liquid-solid filtration during chemical experiments and laboratory material processing Chemical Laboratories
Suitable for vacuum-assisted liquid-solid filtration during chemical experiments and laboratory material processing
Solid-Liquid Separation: Supports separation of particulate solids from liquids using filter paper or filter cloth under vacuum conditions Solid-Liquid Separation
Supports separation of particulate solids from liquids using filter paper or filter cloth under vacuum conditions
Laboratory Filtration: Suitable for laboratory processes requiring faster filtration than conventional gravity filtration Laboratory Filtration
Suitable for laboratory processes requiring faster filtration than conventional gravity filtration
Chemical Research: Supports filtration processes involved in chemical experiments where controlled vacuum conditions are required Chemical Research
Supports filtration processes involved in chemical experiments where controlled vacuum conditions are required
Reaction Equipment Support: The integrated water-circulating vacuum pump can also provide recirculated cooling water for compatible reaction equipment Reaction Equipment Support
The integrated water-circulating vacuum pump can also provide recirculated cooling water for compatible reaction equipment
Material Processing: Suitable for laboratory-scale filtration of compatible solid-liquid mixtures where filtration speed depends on material characteristics, filter-medium pore size, sieve-plate size, and applied vacuum Material Processing
Suitable for laboratory-scale filtration of compatible solid-liquid mixtures where filtration speed depends on material characteristics, filter-medium pore size, sieve-plate size, and applied vacuum

Water-Circulating Vacuum Pump ➤ Water-Circulating Vacuum Pump
20 L Spherical Collecting Bottle ➤ 20 L Spherical Collecting Bottle
G3.3 High-Borosilicate Glass Filtration Assembly ➤ G3.3 High-Borosilicate Glass Filtration Assembly
PTFE Ø230 mm Sieve Plate ➤ PTFE Ø230 mm Sieve Plate
