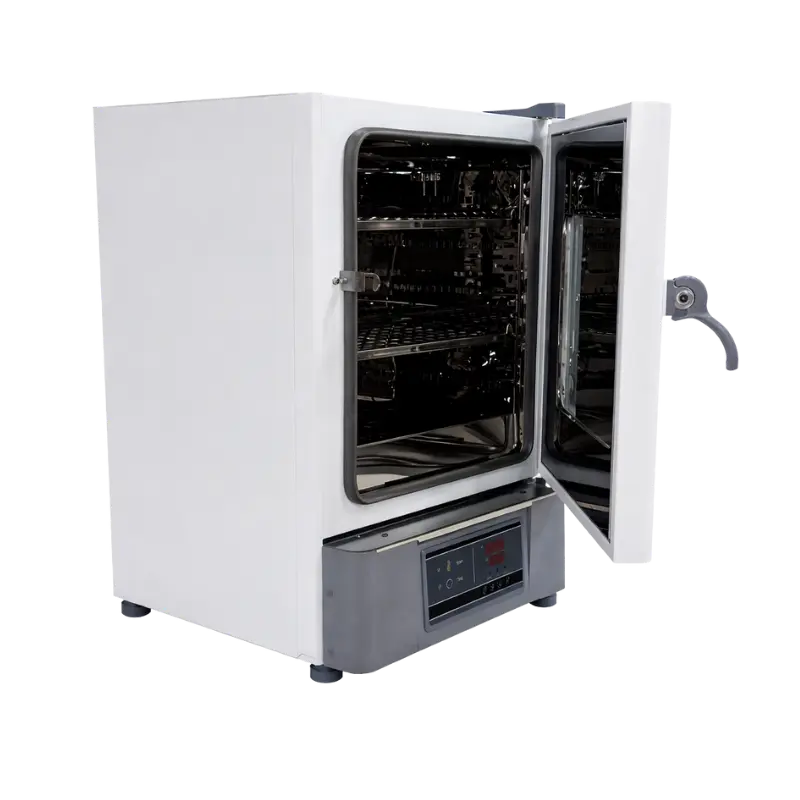

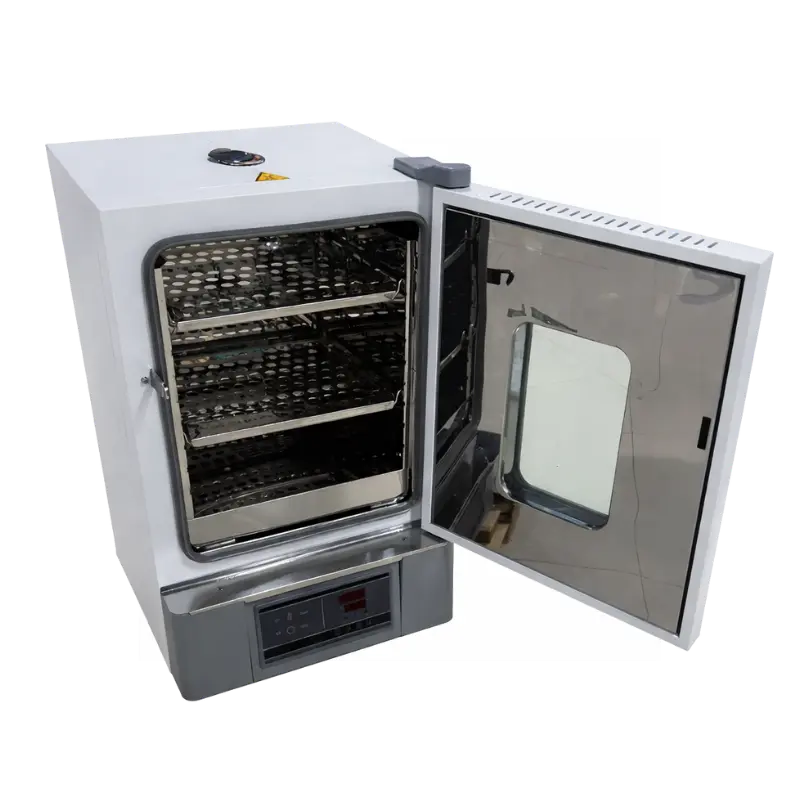

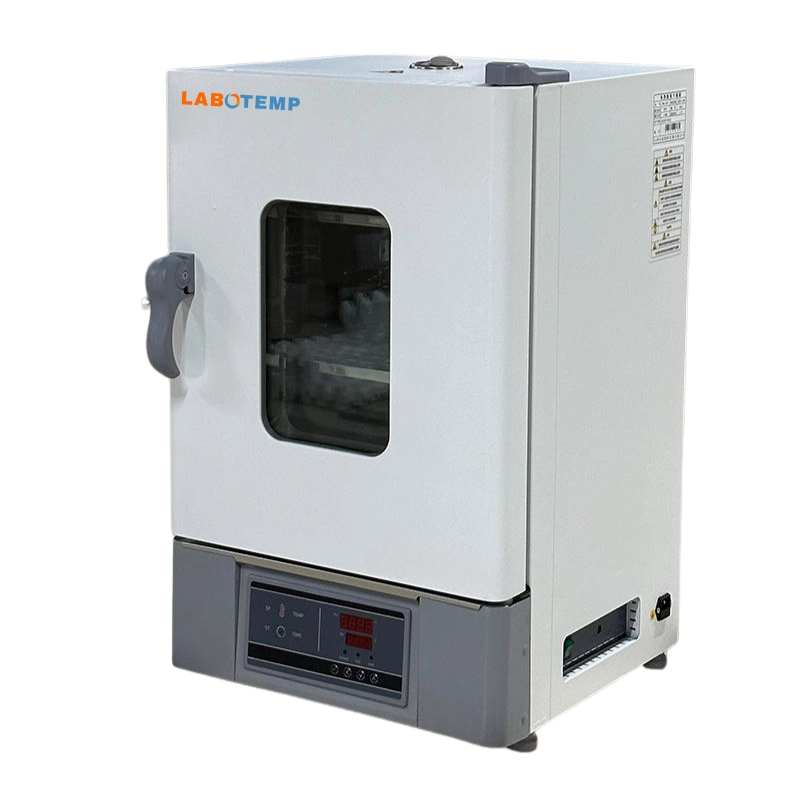

Labotemp Natural Convention Drying Oven FOV-13 is a precision natural convection oven designed for controlled heating, drying and thermal processing in research laboratories, testing facilities and industrial quality control environments. With a 45 L chamber capacity and a temperature operating range of RT+10 to 300 °C, the unit supports routine analytical work and industrial oven drying tasks requiring a dependable scientific oven or laboratory drying oven.

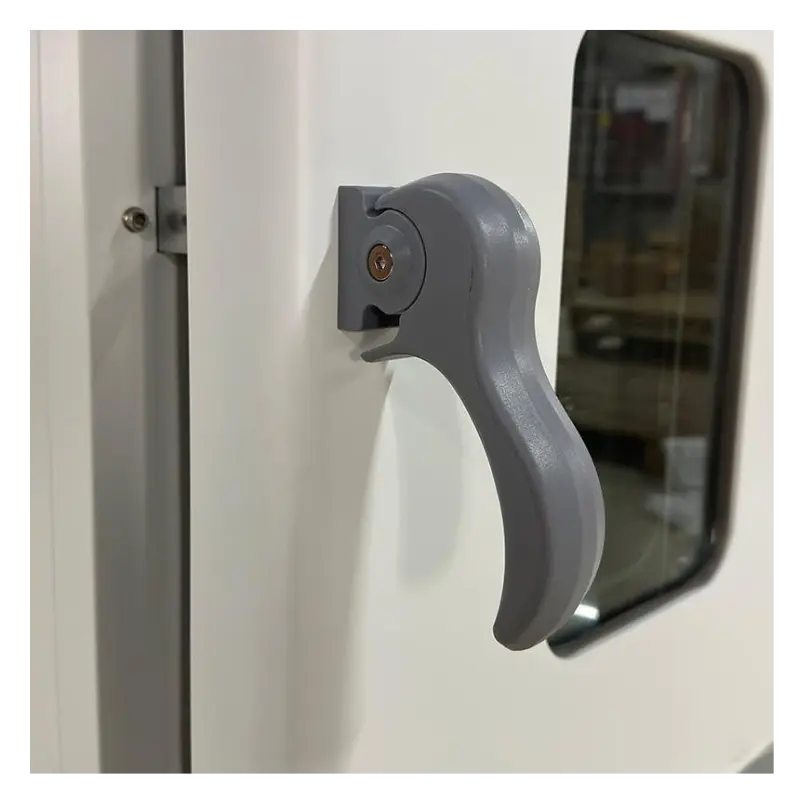

The unit features a mirror stainless steel interior with a chemically resistant cold-rolled steel exterior, providing durability and easy cleaning during daily laboratory use. A natural convection heating system with vertical air circulation maintains uniform temperature throughout the chamber for reliable thermal performance. Built-in over-temperature protection, temperature-limiting alarm and reinforced door locking design ensure safe and stable operation, while the counter-rotating base plate design enables convenient sample handling.
Why choose Labotemp Natural Convection Drying Oven FOV-13?
✓ Stable Chamber Heating: Natural convection circulation maintains consistent temperature throughout the chamber.
✓ Advanced Microprocessor Control: PID-based regulation enables precise temperature management and repeatable results.
✓ Integrated Safety Protection: Over-temperature cutoff and alarm system ensure secure and reliable operation.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 45 L Chamber Volume |
45 L |
|
Power Rating : 1.0 kW Power Rating |
1.0 kW |
|
Temperature Distribution Accuracy : ±3.0% Temperature Distribution Accuracy |
±3.0% |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled steel with chemical-resistant coating Exterior Material |
Cold-rolled steel with chemical-resistant coating |
|
Insulation Material : Alumina silicate fiber Insulation Material |
Alumina silicate fiber |
|
Heating Element : Finned stainless steel heating tube Heating Element |
Finned stainless steel heating tube |
|
Air Vent (Controller) : Ø28 mm × 1 (top) Air Vent (Controller) |
Ø28 mm × 1 (top) |
|
Temperature Control Method : Dual PID digital tube display Temperature Control Method |
Dual PID digital tube display |
|
Timer : 0–9999 minutes Timer |
0–9999 minutes |
|
Program Function : single-stage temperature control, 50 programs × 50 steps Program Function |
single-stage temperature control, 50 programs × 50 steps |
|
Sensor : Pt100 Sensor |
Pt100 |
|
Safety Device : Anti-rise device Safety Device |
Anti-rise device |
|
Internal Dimensions : 350×350×350mm Internal Dimensions |
350×350×350mm |
|
External Dimensions : 468×538×753mm External Dimensions |
468×538×753mm |
|
Package Dimensions : 592×618×880mm Package Dimensions |
592×618×880mm |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Number of Layers : 6 / 2 Number of Layers |
6 / 2 |
|
Partition Spacing : 40 mm Partition Spacing |
40 mm |
|
Power Supply : AC 220V / 50–60Hz 5.5A Power Supply |
AC 220V / 50–60Hz 5.5A |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Gross Weight : 37kg Gross Weight |
37kg |
|
Net Weight : 43kg Net Weight |
43kg |
