Blast Drying Oven FOV-11

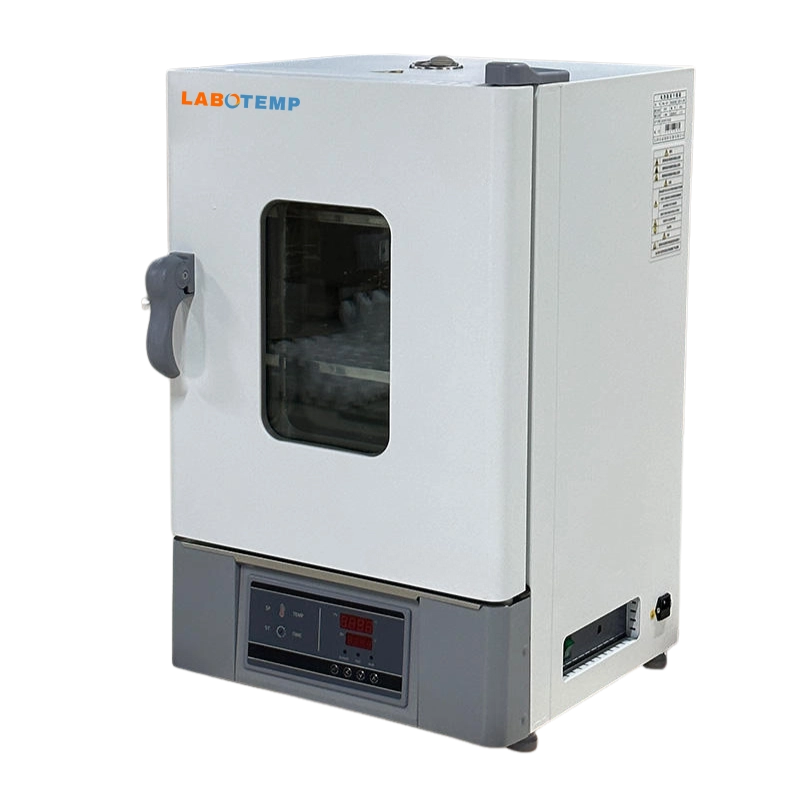

Labotemp Laboratory Blower Drying Oven
Labotemp Laboratory Blower Drying Oven
Labotemp Blast Drying Oven
Labotemp Blast Drying Oven
Labotemp Blast Drying Oven
Labotemp Blast Drying Oven

Blast Drying Oven FOV-11

Labotemp Blast Drying Oven FOV-11 is an ISO and CE compliant high-capacity industrial drying oven designed for controlled heating, drying and thermal processing in research facilities, manufacturing plants and quality control environments. This blast drying oven is suitable for applications such as oven drying, baking, wax melting, glassware drying and material conditioning where stable temperature and uniform airflow are essential. With a large 625 L chamber capacity and a temperature range of RT+10 to 300 °C, the unit supports demanding industrial and analytical processes requiring a reliable laboratory hot air oven or high temperature lab oven.

The unit features a mirror stainless steel inner chamber with a chemically resistant cold-rolled steel exterior, ensuring durability and easy maintenance. A dual-channel swirl air supply system with forced convection circulates heated air evenly across the chamber, improving temperature uniformity and drying efficiency. The advanced PID controller, available with digital display, LCD interface or touchscreen options, maintains precise heating with 0.1 °C resolution and ±1 °C stability for consistent results.

Why choose Labotemp Blast Drying Oven FOV-11?

✓ Large Capacity Chamber: 625 L interior supports high-volume drying operations.

✓ Uniform Heat Circulation: Dual-channel airflow improves temperature consistency.

✓ Accurate PID Control: Programmable controller ensures precise and repeatable heating.

$3510
Maximum Temperature 300°C
Chamber Volume 625 L
Power Rating 5.0 kW
Temperature Distribution Accuracy ±2.0%
Timer Range 0–9999 minutes
Program Control Up to 50 programs × 50 steps
Interior Material Mirror stainless steel
Exterior Material Cold-rolled plate with chemical-resistant coating
Insulation Material Silica fiber
Heater Type Stainless steel heating pipe / Nickel-cobalt alloy wire
Air Circulation Dual-channel forced convection, rear air duct, swirl air supply
Air Vent Ø28 mm × 2 (top)
Sensor Type Pt100
Safety Device Anti-temperature rise device (D-type optional
Fan Type Constant speed fan
Internal Dimensions (mm) 660×760×1250
External Dimensions (mm) 900×960×1840
Package Dimensions (mm) 1051×1060×1949
Temperature Resolution 0.1°C
Temperature Fluctuation ±1.0°C
Power Supply (50/60 Hz) AC380V / 7.6A
Partition Load Capacity 15 kg
Partition Layers / Standard Layers 7/2 layers
Partition Spacing 150 mm
Net / Gross Weight (kg) 113 / 137
  • ➤ Dual PID Control
  • ➤ Equipped with a digital dual PID control system for precise temperature regulation
  • ➤ Operates within a wide temperature range (RT+10°C to 300°C) for versatile laboratory use
  • ➤ Mirror stainless steel interior ensures durability and easy cleaning
  • ➤ Cold-rolled exterior with chemical-resistant coating for enhanced protection
  • ➤ Silica fiber insulation minimizes heat loss and improves energy efficiency
  • ➤ Uses stainless steel heating pipes for uniform and stable heating performance
  • ➤ Dual-channel swirl air supply provides even temperature distribution throughout the chamber
  • ➤ Features a digital display for easy temperature and time monitoring
  • ➤ Supports timed, scheduled, and automatic operation modes
  • ➤ Includes anti-rise safety protection for safe operation
  • ➤ Constant speed fan ensures stable airflow and consistent results
  • ➤ 7 adjustable layers with 150mm spacing for flexible sample placement
  • ➤ Used for precise drying, heating, sterilizing, and curing of samples in laboratories and research facilities
  • ➤ Thermal processing, temperature stability testing, and moisture removal in experimental setups

  • Dual PID Control
  • Equipped with a digital dual PID control system for precise temperature regulation
  • Operates within a wide temperature range (RT+10°C to 300°C) for versatile laboratory use
  • Mirror stainless steel interior ensures durability and easy cleaning
  • Cold-rolled exterior with chemical-resistant coating for enhanced protection
  • Silica fiber insulation minimizes heat loss and improves energy efficiency
  • Uses stainless steel heating pipes for uniform and stable heating performance
  • Dual-channel swirl air supply provides even temperature distribution throughout the chamber
  • Features a digital display for easy temperature and time monitoring
  • Supports timed, scheduled, and automatic operation modes
  • Includes anti-rise safety protection for safe operation
  • Constant speed fan ensures stable airflow and consistent results
  • 7 adjustable layers with 150mm spacing for flexible sample placement

Used for precise drying, heating, sterilizing, and curing of samples in laboratories and research facilities. Thermal processing, temperature stability testing, and moisture removal in experimental setups
