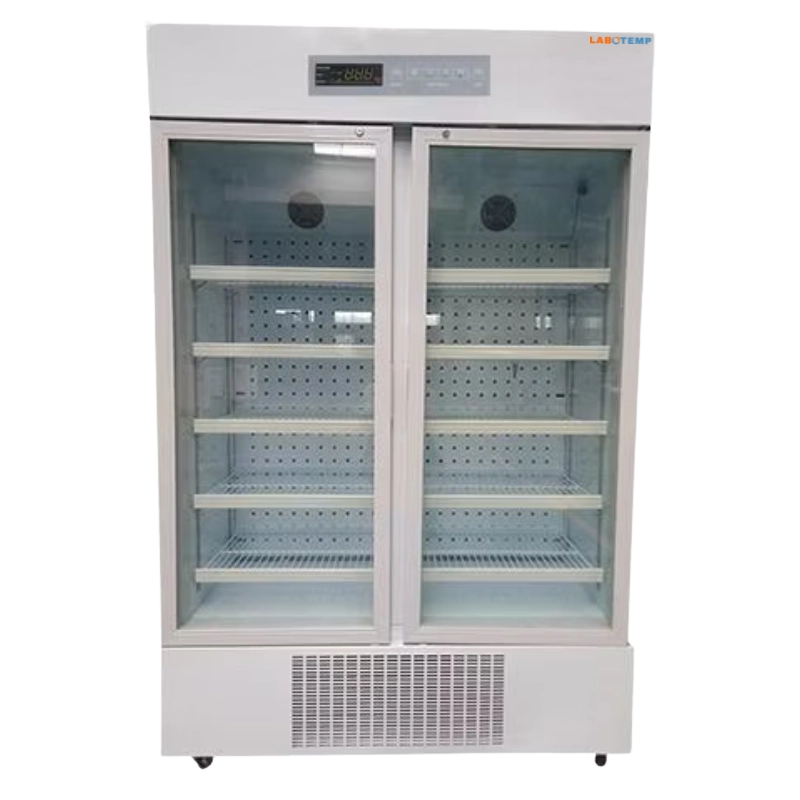

Labotemp Pharmaceutical & Vaccine Refrigerator PHR-04 is built for accurate and dependable medical cold storage. Featuring a 660L capacity and a 2–8°C temperature range, it ensures stable cooling for vaccines, medicines, and biological samples. Powered by a Secop compressor and fluorine-free refrigerant, it provides efficient and eco-friendly operation. The stainless-steel inner chamber ensures hygiene and long-lasting durability. Ideal for hospitals, laboratories, and pharmacies, this refrigerator delivers reliable performance for all temperature-sensitive medical applications.
Why Choose Labotemp Pharmaceutical & Vaccine Refrigerator PHR-04?
✓ Stable performance Reliable cooling in 16–32°C environments with steady 220V operation.
✓ Enhanced safety Multi-parameter audio/visual alarms for temperature, sensor, and door issues.
✓Uniform cooling Multi-directional airflow prevents hot and cold spots for consistent temperature.
✓ Energy-efficient Fluorine-free refrigerant and optimized airflow reduce energy use and operating costs.
|
Model : PHR-04 Model |
PHR-04 |
|
Capacity : 660/23.3 (L/cu.ft.) Capacity |
660/23.3 (L/cu.ft.) |
|
Temperature range : 2~8ºC, adjustable Temperature range |
2~8ºC, adjustable |
|
Compressor : Secop compressor Compressor |
Secop compressor |
|
Voltage : 220V 50Hz Voltage |
220V 50Hz |
|
Input power : 570 watt Input power |
570 watt |
|
Cooling type air : Air cooling Cooling type air |
Air cooling |
|
Thermostat : Electronic Thermostat |
Electronic |
|
Display : Digital display Display |
Digital display |
|
Exterior size : 1100x685x2080mm Exterior size |
1100x685x2080mm |
|
Inner size : 985x565x1593mm Inner size |
985x565x1593mm |
|
Net weight : 174kg Net weight |
174kg |
|
Exterior material : Galvanized sheet sprayed Exterior material |
Galvanized sheet sprayed |
|
Inner material : 304 stainless steel Inner material |
304 stainless steel |
|
Lock key : Yes Lock key |
Yes |
|
Control system : Microproceesor control Control system |
Microproceesor control |
|
Ambient temperature : 16-32°C Ambient temperature |
16-32°C |
|
Environmental Humidity : 20-80% Environmental Humidity |
20-80% |
|
Alarm : Audible and visual alarm for High and lowtemperature, Door Ajar Alarm |
Audible and visual alarm for High and lowtemperature, Door Ajar |
|
Gross Weight : 245kg Gross Weight |
245kg |
|
Package Size : 1160x745x2215mm Package Size |
1160x745x2215mm |
