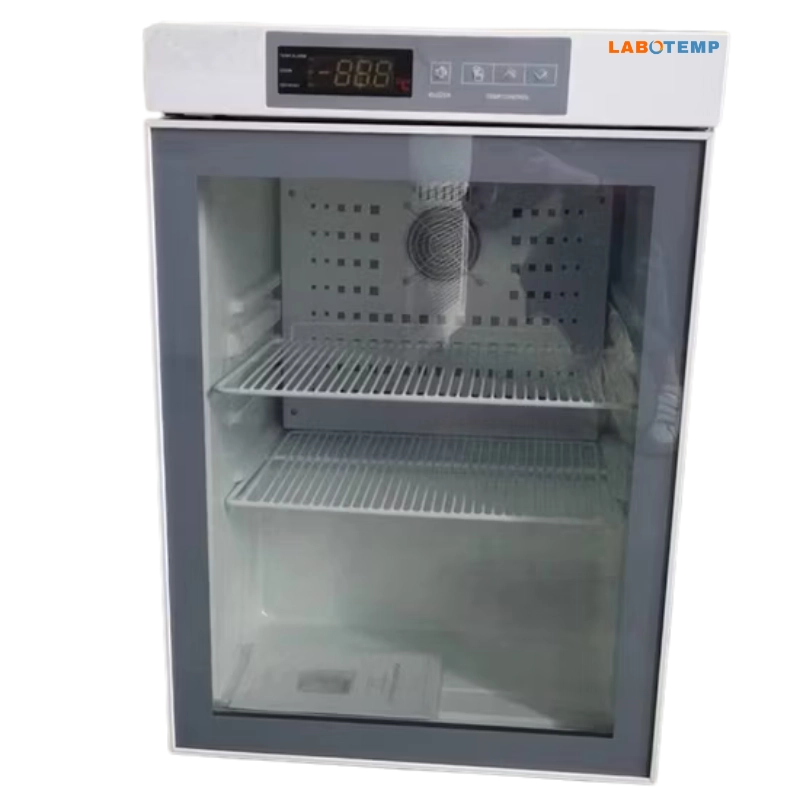

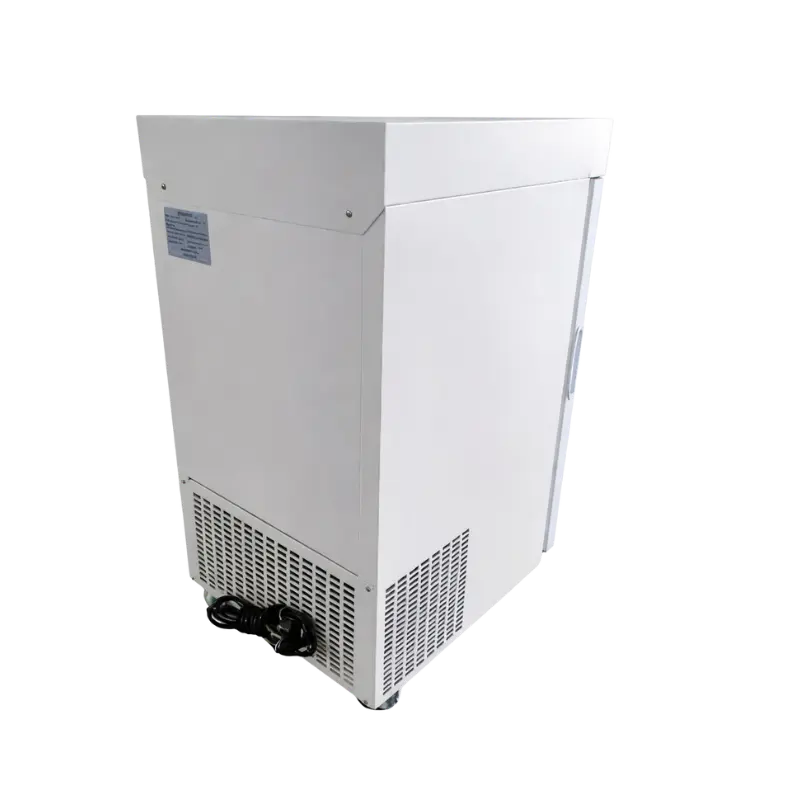

Labotemp PHR-02 is a 70L pharmaceutical and vaccine refrigerator designed for safe, precise 2–8°C storage. It ensures consistent cooling for vaccines, medicines, and laboratory samples. Equipped with a Secop compressor, fluorine-free refrigerant, and a 304 stainless-steel interior, it provides energy-efficient, hygienic, and durable performance. Ideal for hospitals, research labs, and pharmacies requiring reliable temperature control for sensitive medical materials.
Why Choose Labotemp Pharmaceutical & Vaccine Refrigerator PHR-02?
✓ Built for intensive use – Stainless-steel interior and durable exterior resist corrosion, chemicals, and daily wear.
✓ Trusted performance hardware – Secop compressor ensures long-term cooling stability with low energy use and minimal maintenance.
✓ Comprehensive protection – Audio-visual alarms warn of temperature fluctuations or door-ajar events to prevent spoilage.
✓ Dependable cold-chain assurance – Maintains stable 2–8°C conditions essential for vaccine potency and pharmaceutical safety.
|
Model : PHR-02 Model |
PHR-02 |
|
Capacity : 70/2.47 (L/cu.ft.) Capacity |
70/2.47 (L/cu.ft.) |
|
Temperature range : 2~8°C Temperature range |
2~8°C |
|
Compressor : Secop compressor Compressor |
Secop compressor |
|
Voltage : 220V, 110V 50/60Hz Voltage |
220V, 110V 50/60Hz |
|
Input power : 220watt Input power |
220watt |
|
Temperature adjust unit : 0.1°C Temperature adjust unit |
0.1°C |
|
Cooling type air : Air cooling Cooling type air |
Air cooling |
|
Thermostat : Electronic Thermostat |
Electronic |
|
Display : Digital display Display |
Digital display |
|
Exterior size : 450*550*860mm Exterior size |
450*550*860mm |
|
Inner size : 370*460*640mm Inner size |
370*460*640mm |
|
Net weight : 39kg Net weight |
39kg |
|
Exterior material : Galvanized sheet sprayed Exterior material |
Galvanized sheet sprayed |
|
Inner material : 304 stainless steel Inner material |
304 stainless steel |
|
Lock key : Yes Lock key |
Yes |
|
Control system : Microproceesor control Control system |
Microproceesor control |
|
Ambient temperature : 16-32°C Ambient temperature |
16-32°C |
|
Environmental Humidity : 20-80% Environmental Humidity |
20-80% |
|
Alarm : Audible and visual alarm for High and lowtemperature, Door Ajar Alarm |
Audible and visual alarm for High and lowtemperature, Door Ajar |
|
Gross Weight : 53kg Gross Weight |
53kg |
|
Package size : 520x625x1025 mm Package size |
520x625x1025 mm |
Voltage : 220 V 50 Hz
Thermostat : Electronic
Temperature range: +2°C to +8°C
Temperature adjust unit : 0.1°C
Voltage : 220V, 110V 50/60Hz
Thermostat : Electronic
Temperature range : 2~8°C
Temperature adjust unit : 0.1°C
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2~8ºC, adjustable
Package Size: 1160x745x2215mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2-8°C , adjustable
Packaging Size : 590*670*1470mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2 - 8 ºC, adjustable
Refrigerant : R134A/R404A
Voltage : 220V 50Hz/110V 60Hz
Thermostat : Electronic
Temperature range : 2-8°C, adjustable
Package Size: 1860x805x2005mm
Voltage: 220V / 50Hz
Temperature Range: 1~8°C
Remote Alarm: Yes
Refrigeration System: Fan cooling
Voltage / Frequency: 220V/110V, 50/60 Hz
Temperature Range: 2 ~ 8 °C
Shipping Weight: 280 kg
Shipping Volume: 3.48 CBM
Voltage / Frequency: 220V/110V, 50/60 Hz
Test Hole: 1
Temperature Range: 2 ~ 8 °C
Shipping Weight: 105 kg
Voltage / Frequency: 220V / 50Hz
Temperature Range: 2–8 °C
Temperature Controller: Microprocessor Control
Refrigerant: R600a, CFC Free
Voltage / Frequency: 220V / 50Hz
Temperature Range (°C): 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a CFC Free
Volume: 345 L
Voltage: 220V 50Hz/60Hz
Temperature Setting: 5°C ±3°C
Temperature Range: 2–8°C
Temperature Range: 2 ~ 8°C
Sound Emission: 55 dB
Shipping Size (W × D × H): 1940 × 880 × 2035 mm
Shelves Quantity: 12 Shelves
Test Hole (Qty / Diameter): 1 / 25 mm
Temperature Range: 2 ~ 8°C
Sound Emission: 52 dB
Shipping Size (W × D × H): 1280 × 670 × 1950 mm
Voltage and Frequency: 220V±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Temperature: 2 ~ 8°C
Refrigeration System: Fan cooling
Rated Power: 490W
Product Size : 1200 × 650 × 1890mm
Voltage: 220V ±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a, CFC Free
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 10°C
Temperature Controller: Microprocessor
Shelves: 5 (Up to 4 additional shelves available)
Test Hole (Qty / Φ mm): 1 / 25
Temperature Range: 2~8°C
Sound Emission: 53 dB
Shipping Size (W×D×H): 1280 × 900 × 1950 mm
Temperature Sensor: NTC
Temperature Range: 2°C to 8°C
Temperature Controller: Microprocessor Controller
Sound Emission: 50 dB
Temperature Range: 2°C to 8°C
Temperature Controller: Electronic
Shelf Quantity: 7
Sensor: NTC
Voltage / Frequency: 220 V / 50 Hz
Temperature Range: +2°C to +8°C
Temperature Display Accuracy: 0.1°C
Temperature Control: Precise microprocessor-based control with 0.1°C resolution
Warm and Cold Alarms: Setpoint ±1°C
Temperature Range: 2°C to 8°C
Temperature Control Capability: ±1°C
Storage Volume: 25 L
Voltage and Frequency: 220 V, 50 Hz
Thermostat: Electronic
Temperature Range: 2°C to 8°C, Adjustable
Storage Capacity: 130 L
