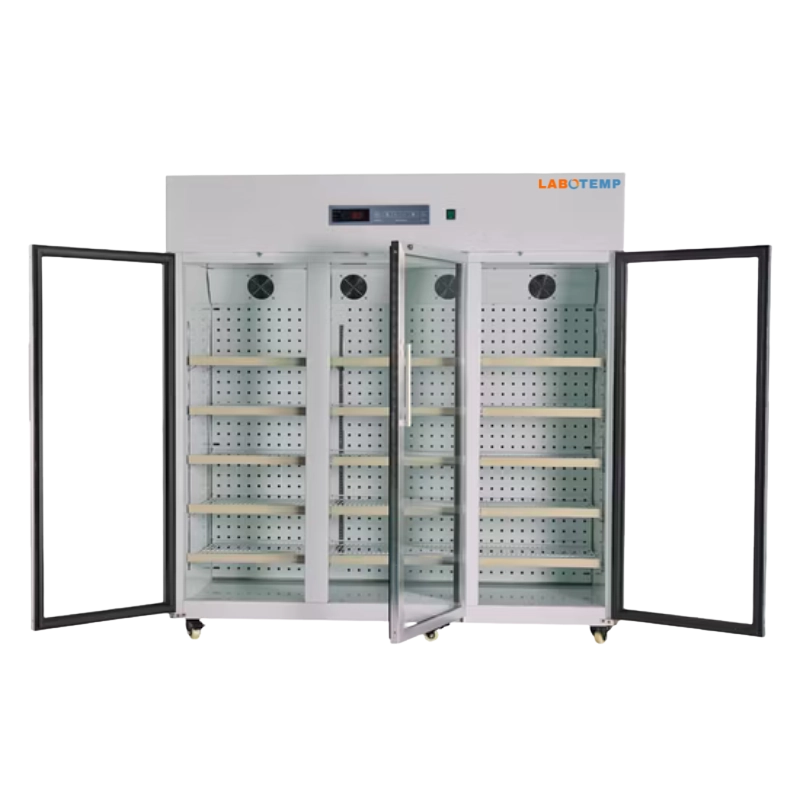

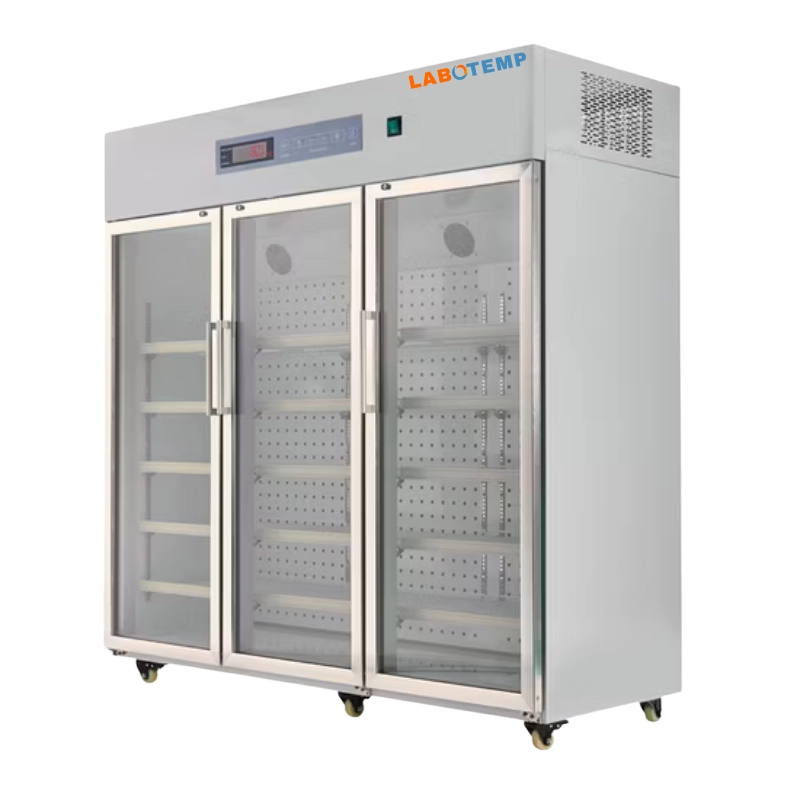

Labotemp Pharmaceutical And Vaccine Refrigerator PHR-07 is a high-capacity 1360L pharmaceutical and vaccine refrigerator designed for reliable 1–8°C medical storage. It ensures stable, uniform cooling for vaccines, medicines, and biological samples. With a digital temperature display, air-cooling system, and advanced alarm protection, it delivers accurate monitoring, consistent performance, and strong safety. Its 304 stainless-steel interior ensures durability and hygiene, making it ideal for hospitals, laboratories, and pharmaceutical facilities.
Why Choose Labotemp Pharmaceutical & Vaccine Refrigerator PHR-07?
✓Trusted medical storage stable 1–8°C cooling protects high-value vaccines and pharmaceuticals.
✓ Optimized airflow advanced air-cooling ensures uniform temperatures in all chamber zones.
✓ High-capacity stability large 1360L chamber maintains consistent performance under heavy use.
✓ Enhanced safety audible and visual alarms provide immediate alerts for temperature deviations.
|
Model : PHR-07 Model |
PHR-07 |
|
Capacity : 1360L Capacity |
1360L |
|
Temperature Range : 1~8°C Temperature Range |
1~8°C |
|
Voltage : 220V / 50Hz Voltage |
220V / 50Hz |
|
Power Consumption : 8.6 kWh/24h Power Consumption |
8.6 kWh/24h |
|
Rated Power : 850 W Rated Power |
850 W |
|
Electrocution Protection Type : Class I Electrocution Protection Type |
Class I |
|
Climate : N Type Climate |
N Type |
|
Noise Level : 55 dBA Noise Level |
55 dBA |
|
Insulation Layer Thickness : 45 mm Insulation Layer Thickness |
45 mm |
|
Dip Plastic Grid : 5 Dip Plastic Grid |
5 |
|
External dimensions : 1892 × 740 × 2070 mm External dimensions |
1892 × 740 × 2070 mm |
|
Internal Size : 1750 × 590 × 1490 mm Internal Size |
1750 × 590 × 1490 mm |
|
Refrigeration System : Fan cooling Refrigeration System |
Fan cooling |
|
Defrost Type : Manual Defrost Type |
Manual |
|
Compressor : HUAYI Compressor |
HUAYI |
|
Remote Alarm : Yes Remote Alarm |
Yes |
|
Controller : HUALIN Controller |
HUALIN |
|
Door Type : Heating glass door Door Type |
Heating glass door |
|
Packaging Size : 740 × 710 × 2110 mm Packaging Size |
740 × 710 × 2110 mm |
|
Gross Weight : 298kg Gross Weight |
298kg |
Voltage : 220 V 50 Hz
Thermostat : Electronic
Temperature range: +2°C to +8°C
Temperature adjust unit : 0.1°C
Voltage : 220V, 110V 50/60Hz
Thermostat : Electronic
Temperature range : 2~8°C
Temperature adjust unit : 0.1°C
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2~8ºC, adjustable
Package Size: 1160x745x2215mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2-8°C , adjustable
Packaging Size : 590*670*1470mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2 - 8 ºC, adjustable
Refrigerant : R134A/R404A
Voltage : 220V 50Hz/110V 60Hz
Thermostat : Electronic
Temperature range : 2-8°C, adjustable
Package Size: 1860x805x2005mm
Voltage: 220V / 50Hz
Temperature Range: 1~8°C
Remote Alarm: Yes
Refrigeration System: Fan cooling
Voltage / Frequency: 220V/110V, 50/60 Hz
Temperature Range: 2 ~ 8 °C
Shipping Weight: 280 kg
Shipping Volume: 3.48 CBM
Voltage / Frequency: 220V/110V, 50/60 Hz
Test Hole: 1
Temperature Range: 2 ~ 8 °C
Shipping Weight: 105 kg
Voltage / Frequency: 220V / 50Hz
Temperature Range: 2–8 °C
Temperature Controller: Microprocessor Control
Refrigerant: R600a, CFC Free
Voltage / Frequency: 220V / 50Hz
Temperature Range (°C): 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a CFC Free
Volume: 345 L
Voltage: 220V 50Hz/60Hz
Temperature Setting: 5°C ±3°C
Temperature Range: 2–8°C
Temperature Range: 2 ~ 8°C
Sound Emission: 55 dB
Shipping Size (W × D × H): 1940 × 880 × 2035 mm
Shelves Quantity: 12 Shelves
Test Hole (Qty / Diameter): 1 / 25 mm
Temperature Range: 2 ~ 8°C
Sound Emission: 52 dB
Shipping Size (W × D × H): 1280 × 670 × 1950 mm
Voltage and Frequency: 220V±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Temperature: 2 ~ 8°C
Refrigeration System: Fan cooling
Rated Power: 490W
Product Size : 1200 × 650 × 1890mm
Voltage: 220V ±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a, CFC Free
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 10°C
Temperature Controller: Microprocessor
Shelves: 5 (Up to 4 additional shelves available)
Test Hole (Qty / Φ mm): 1 / 25
Temperature Range: 2~8°C
Sound Emission: 53 dB
Shipping Size (W×D×H): 1280 × 900 × 1950 mm
Temperature Sensor: NTC
Temperature Range: 2°C to 8°C
Temperature Controller: Microprocessor Controller
Sound Emission: 50 dB
Temperature Range: 2°C to 8°C
Temperature Controller: Electronic
Shelf Quantity: 7
Sensor: NTC
Voltage / Frequency: 220 V / 50 Hz
Temperature Range: +2°C to +8°C
Temperature Display Accuracy: 0.1°C
Temperature Control: Precise microprocessor-based control with 0.1°C resolution
Warm and Cold Alarms: Setpoint ±1°C
Temperature Range: 2°C to 8°C
Temperature Control Capability: ±1°C
Storage Volume: 25 L
Voltage and Frequency: 220 V, 50 Hz
Thermostat: Electronic
Temperature Range: 2°C to 8°C, Adjustable
Storage Capacity: 130 L
