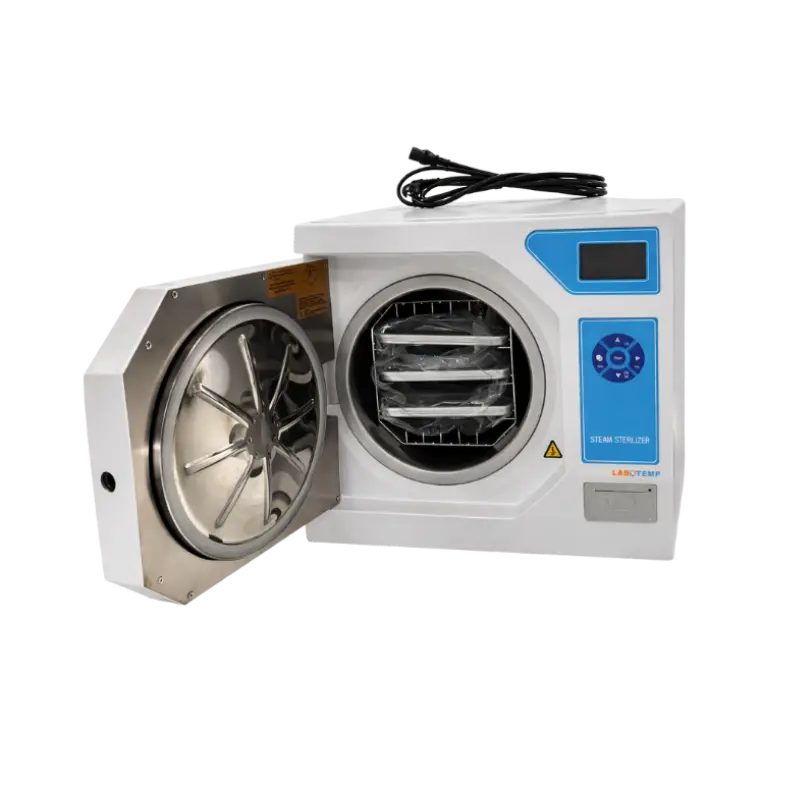

Benchtop Autoclave BTA-01

Name: Benchtop Autoclave BTA-01
Brand: Labotemp
SKU: BTA-01
Rating: 4.6 (795 reviews)

Labotemp Benchtop Autoclave BTA-01 is a compact and reliable Class N mini autoclave designed for fast and effective sterilization of medical instruments, laboratory tools and dental equipment. With an 8L stainless steel chamber, built-in steam generator and precise microcomputer control, this benchtop autoclave delivers saturated steam at 121°C and 134°C to ensure complete elimination of bacteria, viruses and spores. Its sealed chamber and Class N autoclave compliance make it ideal for clinics, dental practices, laboratories and healthcare facilities requiring dependable autoclave sterilization in a compact tabletop sterilizer format.

Engineered for safe and efficient operation, this tabletop steam sterilizer features automatic sterilization cycles, rapid steam generation and multiple safety protections including over-temperature, over-pressure and low water level protection.This space-efficient mini autoclave is ideal for surgical equipment sterilization, dental autoclave use and routine laboratory sterilization where consistent performance and safety are essential.

Why choose Labotemp Benchtop Autoclave BTA-01?
✓ Class N Sterilization Standard: Reliable sterilization of medical, dental and lab instruments.
✓Advanced Safety Protection: Multiple automatic protections ensure safe operation.
✓ ISO & CE Certified Compliance: Meets international safety and quality standards for medical sterilizers.

Catalog

Model : BTA-01 Model	BTA-01
Capacity : 8L Capacity	8L
Rated Working Temperature : 134°C Rated Working Temperature	134°C
Voltage : 220V 110V, 50Hz/60Hz Voltage	220V 110V, 50Hz/60Hz
Power : 2KW Power	2KW
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Design Temperature : 139°C Design Temperature	139°C
Design Pressure : 0.25 MPa Design Pressure	0.25 MPa
Chamber Volume : Φ170 × 320 mm Chamber Volume	Φ170 × 320 mm
Outer Dimension : 455 × 580 × 400 mm Outer Dimension	455 × 580 × 400 mm
Packing Size (L × W × H) : 650 × 500 × 450 mm Packing Size (L × W × H)	650 × 500 × 450 mm
Net Weight : 42kg Net Weight	42kg
Gross Weight : 45kg Gross Weight	45kg

Compact 8L Design
➤ Compact 8L Design
Microcomputer controlled sterilization system for accurate operation
➤ Microcomputer controlled sterilization system for accurate operation
Adjustable sterilization temperatures of 121°C and 134°C
➤ Adjustable sterilization temperatures of 121°C and 134°C
Built-in rapid steam generation system for efficient sterilization
➤ Built-in rapid steam generation system for efficient sterilization
Automatic sterilization cycle with user-friendly touch button control
➤ Automatic sterilization cycle with user-friendly touch button control
Safety interlocking door mechanism for secure operation
➤ Safety interlocking door mechanism for secure operation
Equipped with over-temperature and over-pressure protection system
➤ Equipped with over-temperature and over-pressure protection system
Low water level and anti-dry burning protection for enhanced safety
➤ Low water level and anti-dry burning protection for enhanced safety
Automatic cold air discharge and automatic steam exhaust after sterilization
➤ Automatic cold air discharge and automatic steam exhaust after sterilization
Audible buzzer indication with automatic stop function after cycle completion
➤ Audible buzzer indication with automatic stop function after cycle completion
Standard test interface provided for routine testing and validation
➤ Standard test interface provided for routine testing and validation
European Class N standard compliant design
➤ European Class N standard compliant design

BTA-01 is suitable for sterilization of dental instruments, surgical tools, laboratory glassware, microbiology media and reusable medical devices in clinics, hospitals, diagnostic laboratories, research centers and academic institutions
➤ BTA-01 is suitable for sterilization of dental instruments, surgical tools, laboratory glassware, microbiology media and reusable medical devices in clinics, hospitals, diagnostic laboratories, research centers and academic institutions
Ideal for routine Class N sterilization processes requiring compact operation, automatic cycle control and reliable saturated steam sterilization
➤ Ideal for routine Class N sterilization processes requiring compact operation, automatic cycle control and reliable saturated steam sterilization

Compact 8L Design
Microcomputer controlled sterilization system for accurate operation
Adjustable sterilization temperatures of 121°C and 134°C
Built-in rapid steam generation system for efficient sterilization
Automatic sterilization cycle with user-friendly touch button control
Safety interlocking door mechanism for secure operation
Equipped with over-temperature and over-pressure protection system
Low water level and anti-dry burning protection for enhanced safety
Automatic cold air discharge and automatic steam exhaust after sterilization
Audible buzzer indication with automatic stop function after cycle completion
Standard test interface provided for routine testing and validation
European Class N standard compliant design

BTA-01 is suitable for sterilization of dental instruments, surgical tools, laboratory glassware, microbiology media and reusable medical devices in clinics, hospitals, diagnostic laboratories, research centers and academic institutions. Ideal for routine Class N sterilization processes requiring compact operation, automatic cycle control and reliable saturated steam sterilization.
