Specifications
Maximum Capacity :
4 × 750 ml
Maximum Capacity
4 × 750 ml
Maximum Speed :
6000 rpm
Maximum Speed
6000 rpm
Maximum RCF :
6080 × g
Maximum RCF
6080 × g
Noise Level :
≤58 dB(A)
Noise Level
≤58 dB(A)
Voltage :
AC 220 V
Voltage
AC 220 V
Frequency :
50 Hz
Frequency
50 Hz
Current :
10 A
Current
10 A
Power :
770 W
Power
770 W
Motor Type :
Frequency converter motor
Motor Type
Frequency converter motor
Control System :
Microprocessor control
Control System
Microprocessor control
Display :
7-inch LCD display
Display
7-inch LCD display
Timer Range :
0 – 99 min 59 sec adjustable
Timer Range
0 – 99 min 59 sec adjustable
Acceleration / Deceleration :
1 – 10 levels
Acceleration / Deceleration
1 – 10 levels
Speed Accuracy :
±10 r/min
Speed Accuracy
±10 r/min
Dimensions (L×W×H) :
600 × 470 × 370 mm
Dimensions (L×W×H)
600 × 470 × 370 mm
Weight (without rotor) :
50 kg
Weight (without rotor)
50 kg
Features

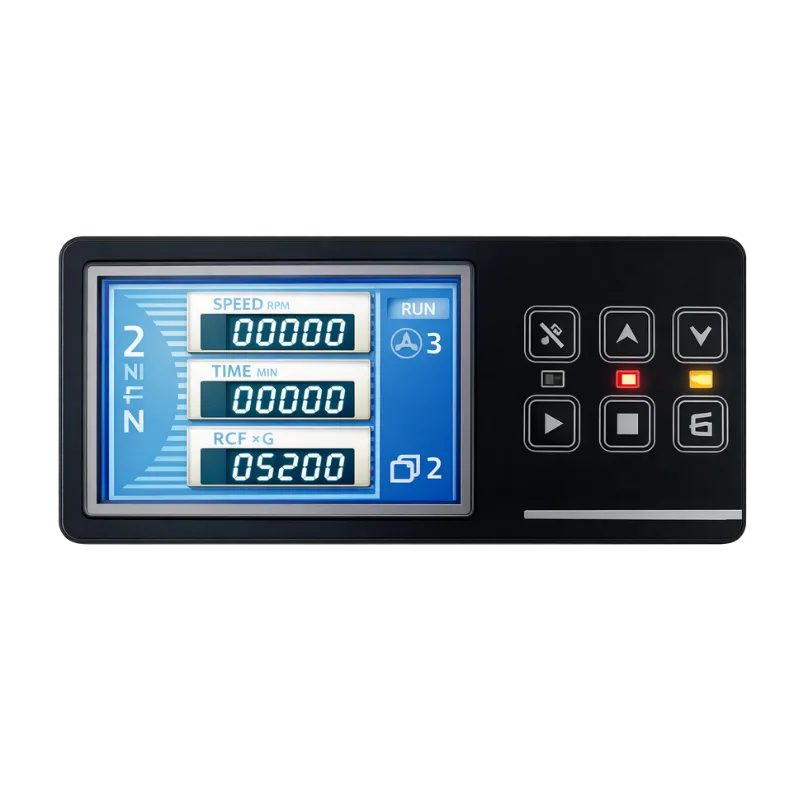

Advanced LCD Interface
➤ Advanced LCD Interface
Intelligent microprocessor control with simultaneous parameter display
➤ Intelligent microprocessor control with simultaneous parameter display
Frequency conversion AC motor for stable and maintenance-free operation
➤ Frequency conversion AC motor for stable and maintenance-free operation
High-strength steel body with powder-coated finish
➤ High-strength steel body with powder-coated finish
304 stainless steel chamber resistant to chemicals and easy cleaning
➤ 304 stainless steel chamber resistant to chemicals and easy cleaning
Aluminum alloy angle rotor and stainless steel swing-out rotor compatibility
➤ Aluminum alloy angle rotor and stainless steel swing-out rotor compatibility
Autoclavable rotors and buckets for contamination control
➤ Autoclavable rotors and buckets for contamination control
Corrosion-resistant internal components for long service life
➤ Corrosion-resistant internal components for long service life
Smooth tube insertion and removal with precision rotor design
➤ Smooth tube insertion and removal with precision rotor design
LED/LCD display with clear visibility of operating parameters
➤ LED/LCD display with clear visibility of operating parameters
Real-time parameter modification during operation
➤ Real-time parameter modification during operation
Automatic RPM/RCF conversion for ease of use
➤ Automatic RPM/RCF conversion for ease of use
Up to 30 programmable memory settings
➤ Up to 30 programmable memory settings
Last-run parameter recall for repetitive workflows
➤ Last-run parameter recall for repetitive workflows
Adjustable acceleration/deceleration (10 levels each)
➤ Adjustable acceleration/deceleration (10 levels each)
Automatic lid locking and holding during operation
➤ Automatic lid locking and holding during operation
Viewing port for monitoring and calibration
➤ Viewing port for monitoring and calibration
Low noise operation ≤58 dB
➤ Low noise operation ≤58 dB
Active imbalance detection with automatic shutdown
➤ Active imbalance detection with automatic shutdown
Lid interlock system for safe centrifugation
➤ Lid interlock system for safe centrifugation
Controlled lid opening with smooth operation
➤ Controlled lid opening with smooth operation
Emergency lid release in case of power failure
➤ Emergency lid release in case of power failure
Applications
Routine separation of blood, serum, and plasma in clinical laboratories
➤ Routine separation of blood, serum, and plasma in clinical laboratories
Sample processing in hospitals, blood banks, and diagnostic centers
➤ Sample processing in hospitals, blood banks, and diagnostic centers
Cell sedimentation and separation of biological fluids
➤ Cell sedimentation and separation of biological fluids
Pharmaceutical laboratories for routine QC and sample preparation
➤ Pharmaceutical laboratories for routine QC and sample preparation
Research and academic labs handling medium-volume samples
➤ Research and academic labs handling medium-volume samples
Food and environmental testing for liquid sample clarification
➤ Food and environmental testing for liquid sample clarification
Veterinary labs for biological sample processing
➤ Veterinary labs for biological sample processing
Preparation of cellular components for downstream biochemical analysis
➤ Preparation of cellular components for downstream biochemical analysis
Advanced LCD Interface Intelligent microprocessor control with simultaneous parameter display Frequency conversion AC motor for stable and maintenance-free operation High-strength steel body with powder-coated finish 304 stainless steel chamber resistant to chemicals and easy cleaning Aluminum alloy angle rotor and stainless steel swing-out rotor compatibility Autoclavable rotors and buckets for contamination control Corrosion-resistant internal components for long service life Smooth tube insertion and removal with precision rotor design LED/LCD display with clear visibility of operating parameters Real-time parameter modification during operation Automatic RPM/RCF conversion for ease of use Up to 30 programmable memory settings Last-run parameter recall for repetitive workflows Adjustable acceleration/deceleration (10 levels each) Automatic lid locking and holding during operation Viewing port for monitoring and calibration Low noise operation ≤58 dB Active imbalance detection with automatic shutdown Lid interlock system for safe centrifugation Controlled lid opening with smooth operation Emergency lid release in case of power failure
Routine separation of blood, serum, and plasma in clinical laboratories Sample processing in hospitals, blood banks, and diagnostic centers Cell sedimentation and separation of biological fluids Pharmaceutical laboratories for routine QC and sample preparation Research and academic labs handling medium-volume samples Food and environmental testing for liquid sample clarification Veterinary labs for biological sample processing Preparation of cellular components for downstream biochemical analysis

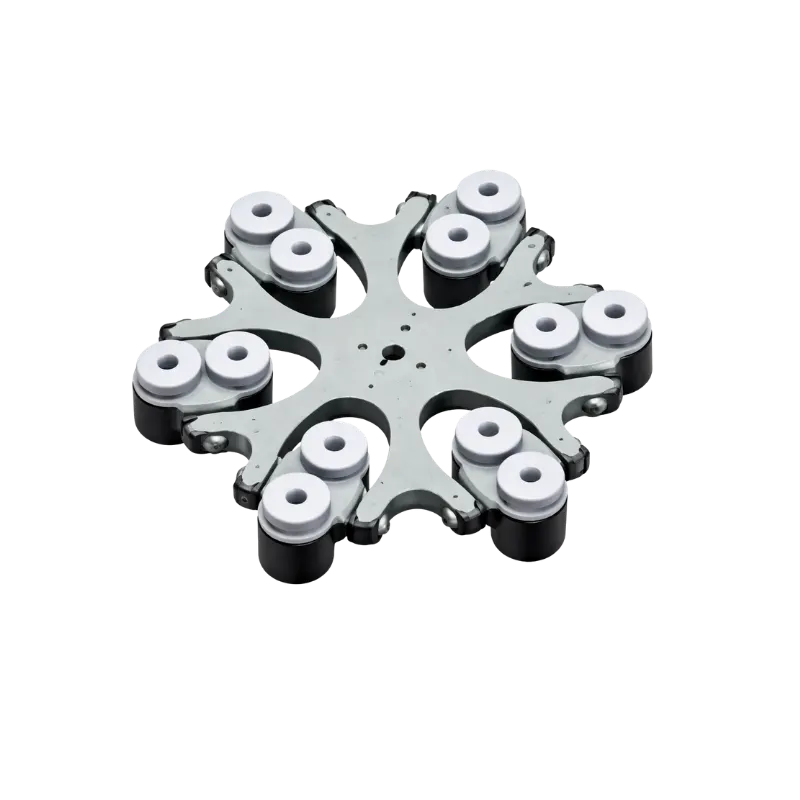

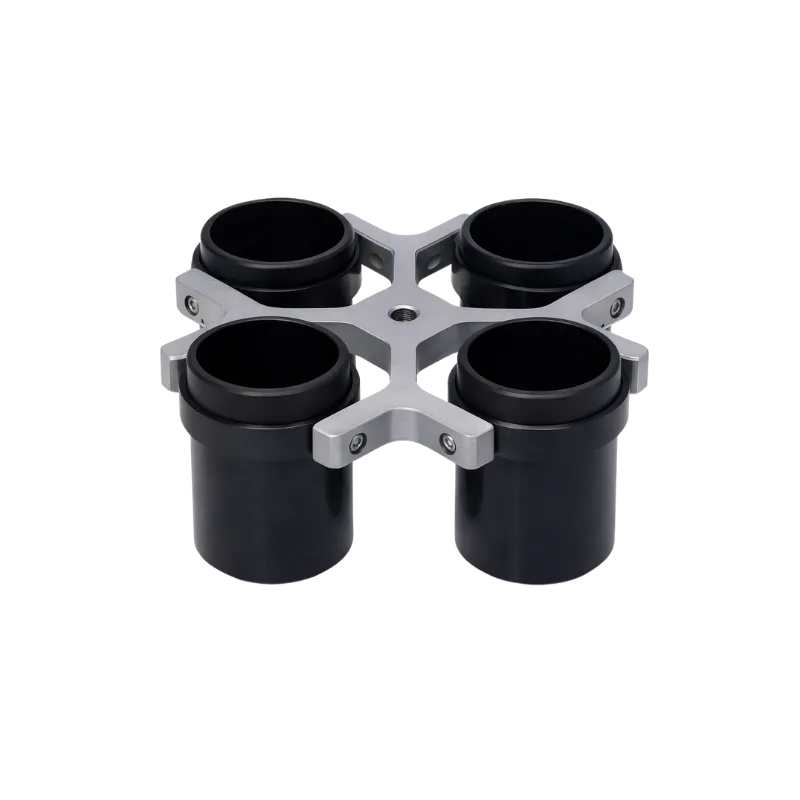

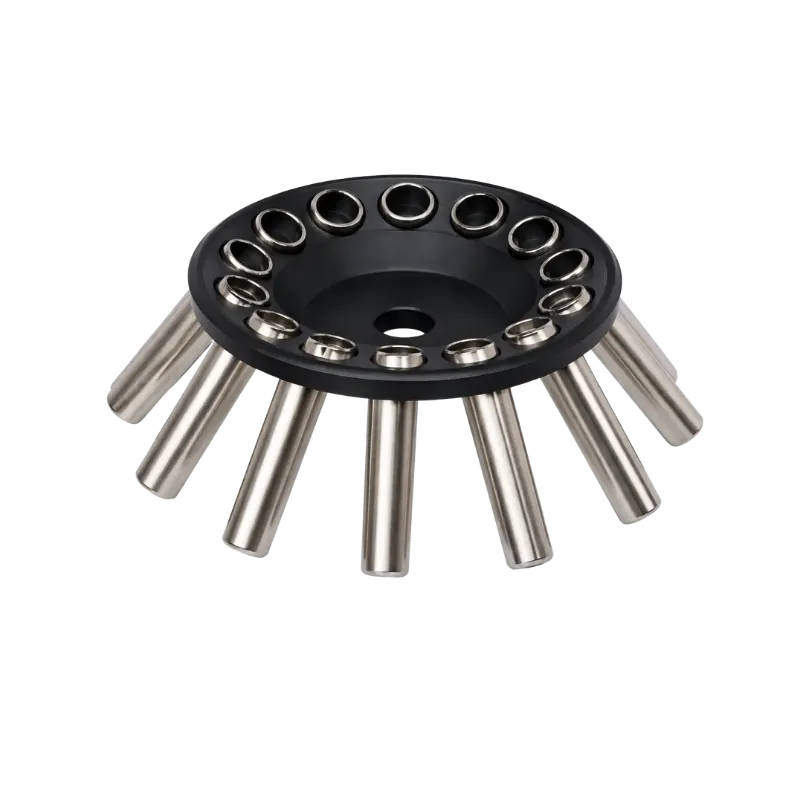

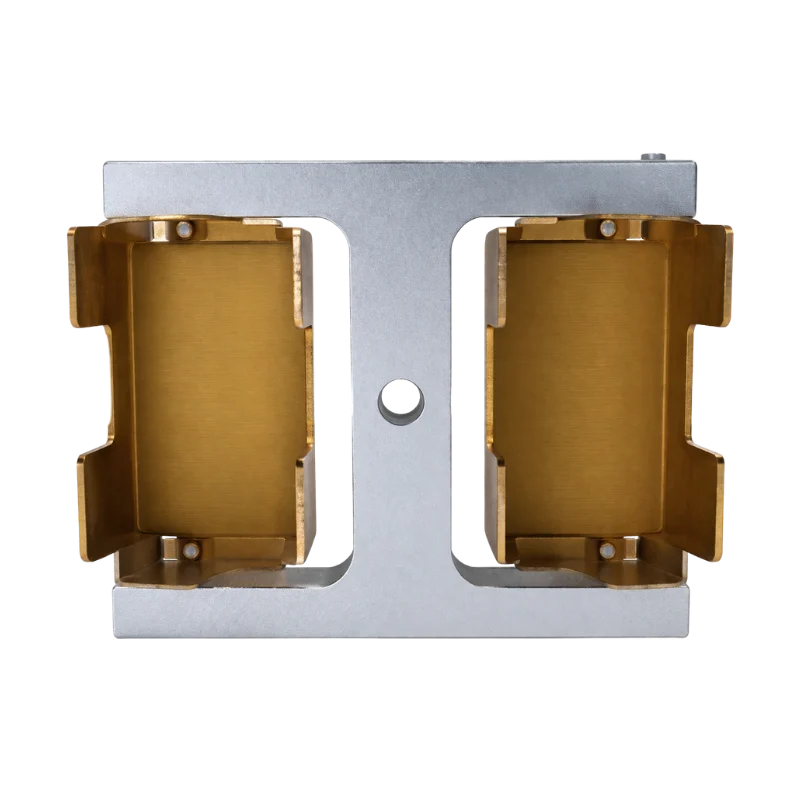

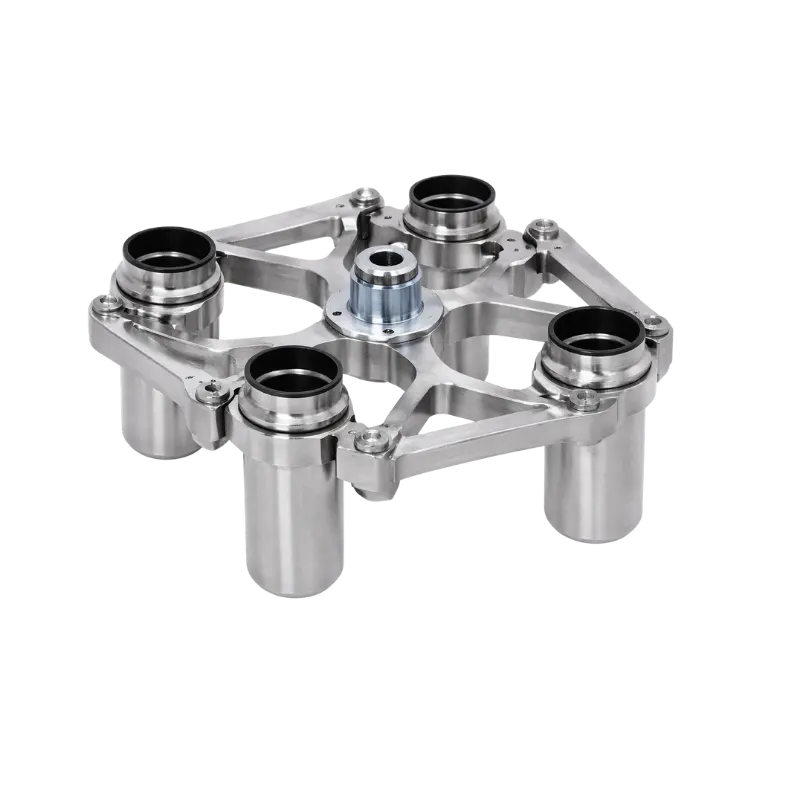

No. Rotor / Adapter Max Capacity Max Speed Max RCF Tube Type 1 Angle Rotor with Adapter 12 × 5/10/15 ml; Adapter: 12 × 2 ml 6000 r/min 6080 × g PP / PC Tubes 2 Swing Rotor with Frame & Adapter 4 × 100 ml / 4 × 50 ml; Adapter: 4 × 15/10 ml 5000 r/min 4752 × g PP / PC Tubes 3 Swing Rotor with Frame & Adapter 4 × 2 × 100 ml / 4 × 2 × 50 ml; Adapter: 4 × 2 × 15/10 ml 4000 r/min 3041 × g PP / PC / Vacuum Blood Tubes 4 Swing Bucket 72 × 2–5 ml 4000 r/min 2773 × g Vacuum Blood Collection Tube 5 Swing Bucket with Adapter 4 × 250 ml; Adapter: 4 × 25×5/2 ml / 4 × 12×15/10 ml / 4 × 4×50 ml / 4 × 1×100 ml 4000 r/min 3354 × g PP / PC Tubes 6 Swing Bucket with Adapter 4 × 500 ml; Adapter: multiple configurations 4000 r/min 3354 × g PP / PC Tubes 7 Swing Bucket with Adapter 4 × 750 ml; Adapter: multiple configurations 4000 r/min 3443 × g PP / PC Tubes 8 Microplate Rotor with Adapter 2 × 2 × 96 hole; Adapter: 2 × 32 × 1.5 ml 4200 r/min 3057 × g PP / PC Tubes 9 Swing Rotor 6 × 2 × 30 ml 4500 r/min 3170 × g Specialized Tubes
