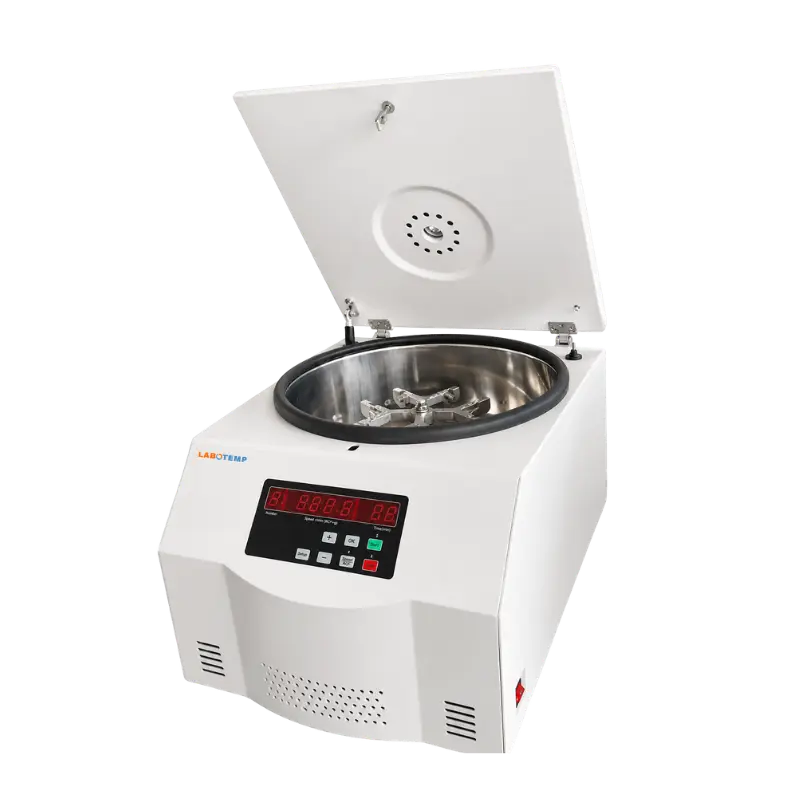

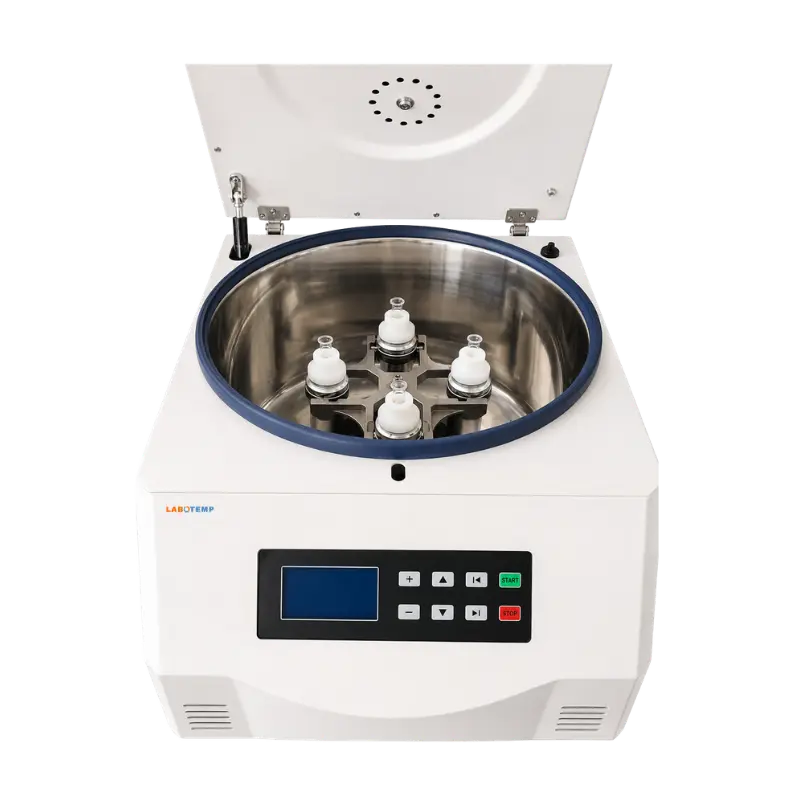

Labotemp Milk Testing Centrifuge LLC-602 features a 3000 rpm maximum speed, 2012 × g RCF, 4 × 50 ml Babcock flask capacity, and a durable swing rotor design for accurate dairy analysis applications. Designed for milk testing laboratories, dairy processing facilities, food quality control centers, and agricultural research institutes, this specialized centrifuge supports the Babcock method for determining milk fat content and related physical and chemical parameters. The constant-speed operation, digital control interface, and programmable timer up to 99 minutes help ensure consistent separation performance and reliable analytical results.
Built for dependable daily operation, the LLC-602 combines a cold-rolled steel exterior with a stainless steel chamber for durability, corrosion resistance, and easy cleaning. The high-brightness digital display allows simple parameter setting and monitoring, while memory recovery functionality helps retain settings following unexpected power interruptions. For enhanced safety, the centrifuge incorporates electronic and mechanical door-lock protection, automatic stop when the lid is opened, and imbalance detection to prevent unsafe operation. Imported motor bearings reduce noise and extend service life, making this milk testing centrifuge a reliable long-term solution for routine dairy quality testing and laboratory workflows.
Why Choose Labotemp Milk Testing Centrifuge LLC-602?
✓ Babcock Testing Ready: Designed specifically for milk fat analysis using Babcock flasks
✓ Stable Separation Performance: Constant-speed operation ensures reliable and repeatable results
✓ Advanced Safety Protection: Dual door-lock system with automatic stop and imbalance detection
| General Specifications | |
|
Product Type : Table Type Centrifuge for Babcock Flasks Product Type |
Table Type Centrifuge for Babcock Flasks |
|
Maximum Centrifugal Radius : 200 mm Maximum Centrifugal Radius |
200 mm |
|
Maximum Speed : 3000 rpm Maximum Speed |
3000 rpm |
|
Maximum RCF : 2012 × g Maximum RCF |
2012 × g |
|

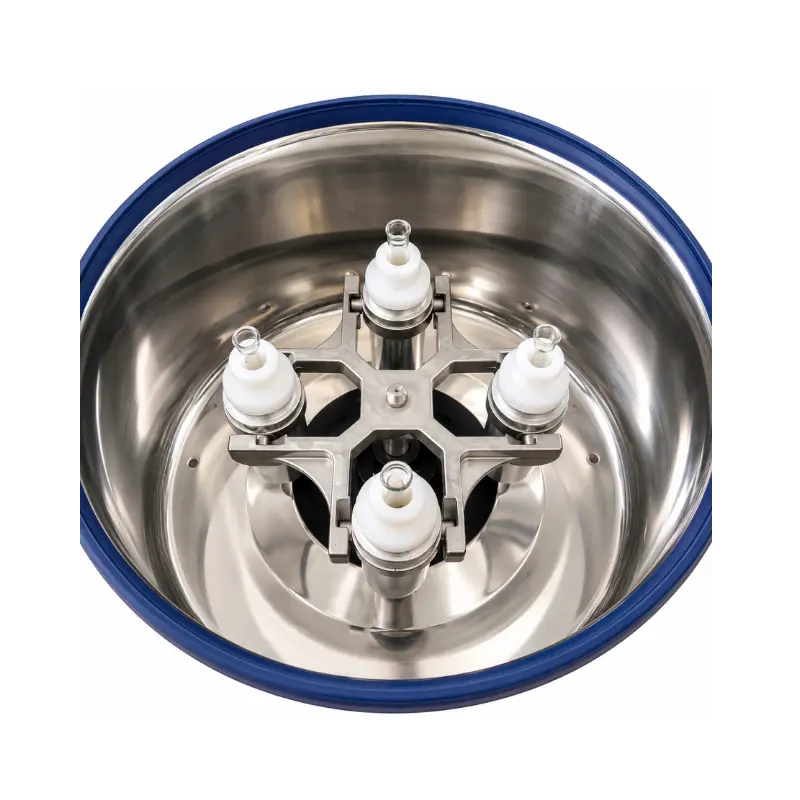

Rotor Type : Swing Rotor Rotor Type |
Swing Rotor |
|
Number of Buckets : 4 × 50 mL / 4 pcs of Babcock Flasks Number of Buckets |
4 × 50 mL / 4 pcs of Babcock Flasks |
|
Timer Range : 0 – 99 min Timer Range |
0 – 99 min |
|
Display : High-brightness digital display Display |
High-brightness digital display |
|
Control : Touch-key setting and adjustment Control |
Touch-key setting and adjustment |
|
Speed Control : Timing, constant speed, and stop alarm Speed Control |
Timing, constant speed, and stop alarm |
|
Memory Function : Parameter memory and data recovery after power failure Memory Function |
Parameter memory and data recovery after power failure |
| Electrical & Construction | |
|
Power Supply : AC 220V / 110V, 50/60 Hz, 10 A Power Supply |
AC 220V / 110V, 50/60 Hz, 10 A |
|
Motor : Imported bearing motor for reduced noise and longer service life Motor |
Imported bearing motor for reduced noise and longer service life |
|
Chamber Material : Stainless steel Chamber Material |
Stainless steel |
|
Air Duct Design : Uniform temperature distribution Air Duct Design |
Uniform temperature distribution |
|
Door Lock : Electronic door lock + mechanical door lock Door Lock |
Electronic door lock + mechanical door lock |
|
Safety Protection : Automatic stop on door opening and imbalance protection Safety Protection |
Automatic stop on door opening and imbalance protection |
| Packaging Information | |
|
Dimensions (W × D × H) : 490 × 400 × 370 mm Dimensions (W × D × H) |
490 × 400 × 370 mm |
|
Package Size : 740 × 590 × 570 mm Package Size |
740 × 590 × 570 mm |
|
Gross Weight : 66 kg Gross Weight |
66 kg |
