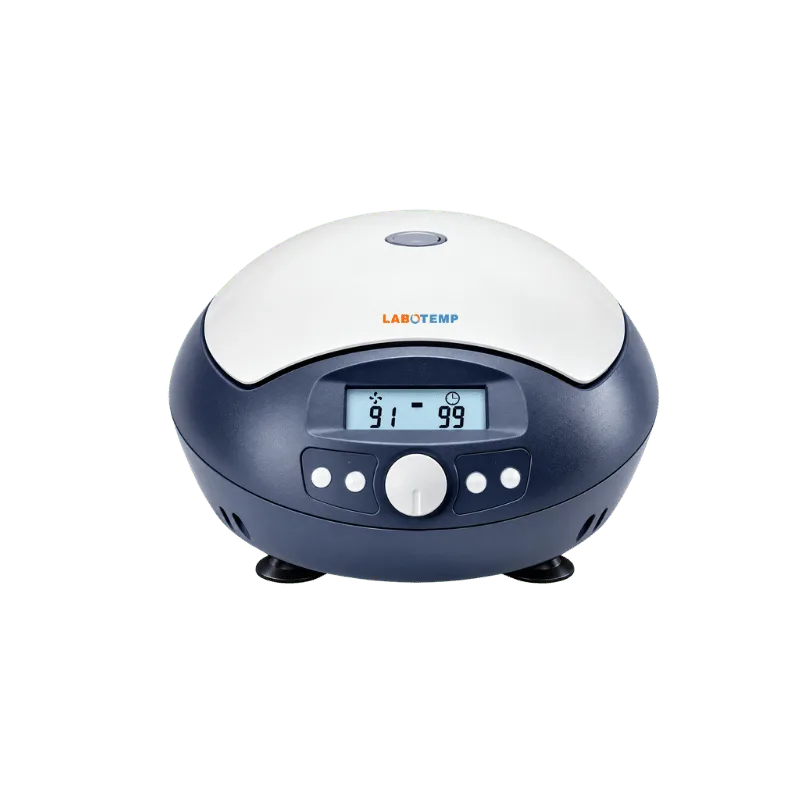

High Speed Micro Centrifuge LLC-306

Name: High Speed Micro Centrifuge LLC-306
Brand: Labotemp
SKU: LLC-306
Price: 3037.00 USD
Availability: InStock
Rating: 4.7 (962 reviews)

Labotemp High Speed Micro Centrifuge LLC-306 delivers rapid and controlled centrifugation for small-volume laboratory samples, with a maximum speed of 15,000 rpm and maximum relative centrifugal force of 15,100 × g. Designed for microcentrifuge applications, the LLC-306 accommodates 0.2 mL, 0.5 mL, 1.5 mL, and 2 mL tubes with up to 12 positions, making it suitable for nucleic acid processing, plasmid extraction, DNA/RNA sample preparation, sedimentation of biological components, and biochemical or chemical analysis of microsamples.

The LLC-306 uses a brushless DC motor for rapid acceleration and smooth operation, with a speed range of 500–15,000 rpm and 100 rpm increments. Its compact 255 × 245 × 140 mm design and ≤54 dB noise level support convenient benchtop operation. Run times can be set from 30 seconds to 99 minutes or continuous operation, while door interlock, overspeed detection, over-temperature detection, and automatic internal diagnosis provide integrated safety monitoring. The centrifuge also features an LCD display, speed/RCF switching, short-time run function, and sound-alert function.

Why Choose Labotemp High Speed Micro Centrifuge LLC-306?

✓ 15,000 rpm Maximum Speed: Provides high-speed centrifugation with up to 15,100 × g RCF.
✓ 12-Position Rotor: Supports 0.2 mL, 0.5 mL, 1.5 mL, and 2 mL microcentrifuge tubes.
✓ Integrated Safety System: Includes door interlock, overspeed detection, over-temperature detection, and automatic internal diagnosis.

$3037

Datasheet

Centrifugation Performance
Product Type : High Speed Micro Centrifuge Product Type	High Speed Micro Centrifuge
Maximum Speed : 15,000 rpm Maximum Speed	15,000 rpm
Speed Range : 500–15,000 rpm Speed Range	500–15,000 rpm
Speed Increment : 100 rpm Speed Increment	100 rpm
Maximum RCF : 15,100 × g Maximum RCF	15,100 × g
RCF Increment : 100 × g RCF Increment	100 × g
Speed Accuracy : ±20 rpm Speed Accuracy	±20 rpm
Rotor Capacity : 0.2 mL / 0.5 mL / 1.5 mL / 2 mL × 12 Rotor Capacity	0.2 mL / 0.5 mL / 1.5 mL / 2 mL × 12
Run Time : 30 sec–99 min / Continuous Run Time	30 sec–99 min / Continuous
Acceleration / Braking Time : 11 sec / 9 sec Acceleration / Braking Time	11 sec / 9 sec
Motor, Control & Safety
Driving Motor : Brushless DC Motor Driving Motor	Brushless DC Motor
Display : LCD Display	LCD
Other Functions : Speed/RCF Switch, Short-Time Run Function, Sound-Alert Function Other Functions	Speed/RCF Switch, Short-Time Run Function, Sound-Alert Function
Safety Devices : Door Interlock, Over-Speed Detection, Over-Temperature Detection, Automatic Internal Diagnosis Safety Devices	Door Interlock, Over-Speed Detection, Over-Temperature Detection, Automatic Internal Diagnosis
Electrical & Physical Specifications
Power Supply : Single-Phase, AC 100–240 V, 50/60 Hz, 3 A Power Supply	Single-Phase, AC 100–240 V, 50/60 Hz, 3 A
Power : 100 W Power	100 W
Noise Level : ≤54 dB Noise Level	≤54 dB
Dimensions (D × W × H) : 255 × 245 × 140 mm Dimensions (D × W × H)	255 × 245 × 140 mm
Packaging Dimension : 350 x 350 x 270 mm Packaging Dimension	350 x 350 x 270 mm
Weight : 6 kg Weight	6 kg
Gross Weight : 6.5 Kg Gross Weight	6.5 Kg

15,000 rpm Maximum Speed ➤ 15,000 rpm Maximum Speed
Maximum RCF of 15,100 × g provides high centrifugal force for microsample processing. ➤ Maximum RCF of 15,100 × g provides high centrifugal force for microsample processing.
Speed range of 500–15,000 rpm allows adjustable centrifugation conditions. ➤ Speed range of 500–15,000 rpm allows adjustable centrifugation conditions.
100 rpm speed increments provide controlled speed adjustment. ➤ 100 rpm speed increments provide controlled speed adjustment.
±20 rpm speed accuracy supports consistent centrifugation. ➤ ±20 rpm speed accuracy supports consistent centrifugation.
Rotor capacity supports 0.2 mL, 0.5 mL, 1.5 mL, and 2 mL tubes with up to 12 positions. ➤ Rotor capacity supports 0.2 mL, 0.5 mL, 1.5 mL, and 2 mL tubes with up to 12 positions.
Brushless DC motor provides rapid acceleration and smooth operation. ➤ Brushless DC motor provides rapid acceleration and smooth operation.
11-second acceleration and 9-second braking support quick centrifugation cycles. ➤ 11-second acceleration and 9-second braking support quick centrifugation cycles.
Run time can be set from 30 seconds to 99 minutes or continuous operation. ➤ Run time can be set from 30 seconds to 99 minutes or continuous operation.
LCD display provides convenient viewing of operating parameters. ➤ LCD display provides convenient viewing of operating parameters.
Speed and RCF switching allows selection of the preferred centrifugation parameter. ➤ Speed and RCF switching allows selection of the preferred centrifugation parameter.
Short-time run function supports quick sample spins. ➤ Short-time run function supports quick sample spins.
Sound-alert function provides an audible operating indication. ➤ Sound-alert function provides an audible operating indication.
Door interlock helps prevent operation when the lid is not properly secured. ➤ Door interlock helps prevent operation when the lid is not properly secured.
Over-speed detection provides protection against excessive rotor speed. ➤ Over-speed detection provides protection against excessive rotor speed.
Over-temperature detection supports operating safety. ➤ Over-temperature detection supports operating safety.
Automatic internal diagnosis monitors the centrifuge during operation. ➤ Automatic internal diagnosis monitors the centrifuge during operation.
≤54 dB noise level supports relatively quiet benchtop operation. ➤ ≤54 dB noise level supports relatively quiet benchtop operation.
Compact 255 × 245 × 140 mm design suits space-conscious laboratory setups. ➤ Compact 255 × 245 × 140 mm design suits space-conscious laboratory setups.

Molecular Biology: Suitable for routine microcentrifugation during molecular biology workflows Molecular Biology
Suitable for routine microcentrifugation during molecular biology workflows
Nucleic Acid Purification: Supports sample processing during DNA and RNA purification procedures Nucleic Acid Purification
Supports sample processing during DNA and RNA purification procedures
Plasmid Extraction: Suitable for centrifugation steps involved in plasmid extraction workflows Plasmid Extraction
Suitable for centrifugation steps involved in plasmid extraction workflows
DNA/RNA Sample Preparation: Supports separation and preparation of small-volume DNA and RNA samples DNA/RNA Sample Preparation
Supports separation and preparation of small-volume DNA and RNA samples
Biological Component Sedimentation: Suitable for sedimentation of biological components from microsamples Biological Component Sedimentation
Suitable for sedimentation of biological components from microsamples
Biochemical Analysis: Supports centrifugation steps during biochemical analysis of microsamples Biochemical Analysis
Supports centrifugation steps during biochemical analysis of microsamples
Chemical Analysis: Suitable for laboratory chemical analysis involving small-volume samples Chemical Analysis
Suitable for laboratory chemical analysis involving small-volume samples
Research Laboratories: Provides high-speed microcentrifugation for routine laboratory research and sample preparation Research Laboratories
Provides high-speed microcentrifugation for routine laboratory research and sample preparation

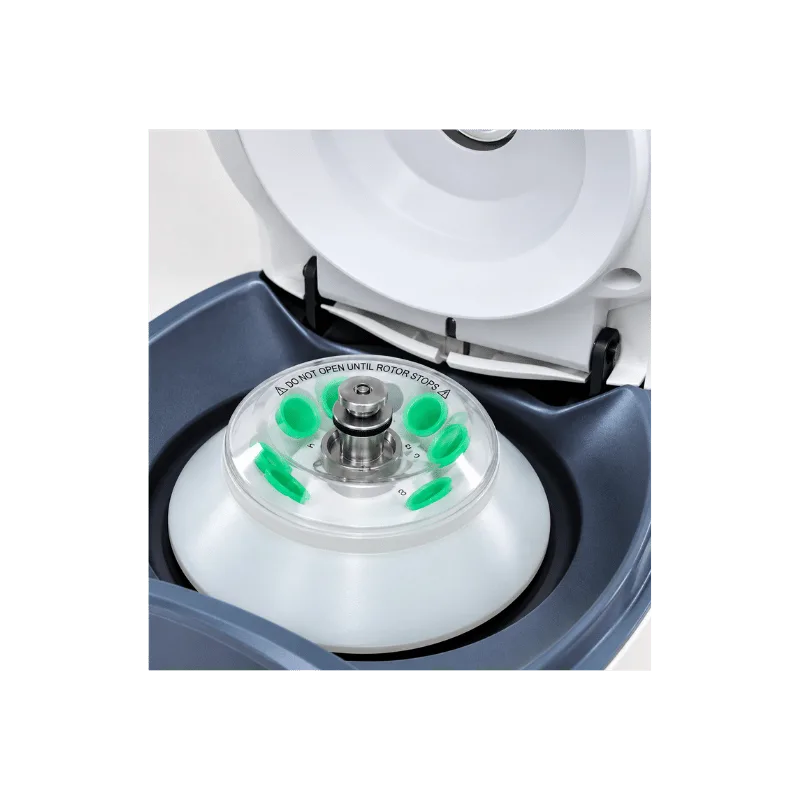

A12-2P Plastic Rotor Set- capacity 12 × 2 mL ➤ A12-2P Plastic Rotor Set- capacity 12 × 2 mL

Accessory	Cat. No.	Description
A12-2P Plastic Rotor Set	19400010	Plastic rotor set for LLC-306, maximum speed 15,000 rpm, capacity 12 × 2 mL
A02P2 Rotor Adapter	19500001	2 mL to 0.2 mL rotor adapter, 24 pcs/pack; used with compatible 2 mL rotors
A05P2 Rotor Adapter	19500002	2 mL to 0.5 mL rotor adapter, 24 pcs/pack; used with compatible 2 mL rotors
