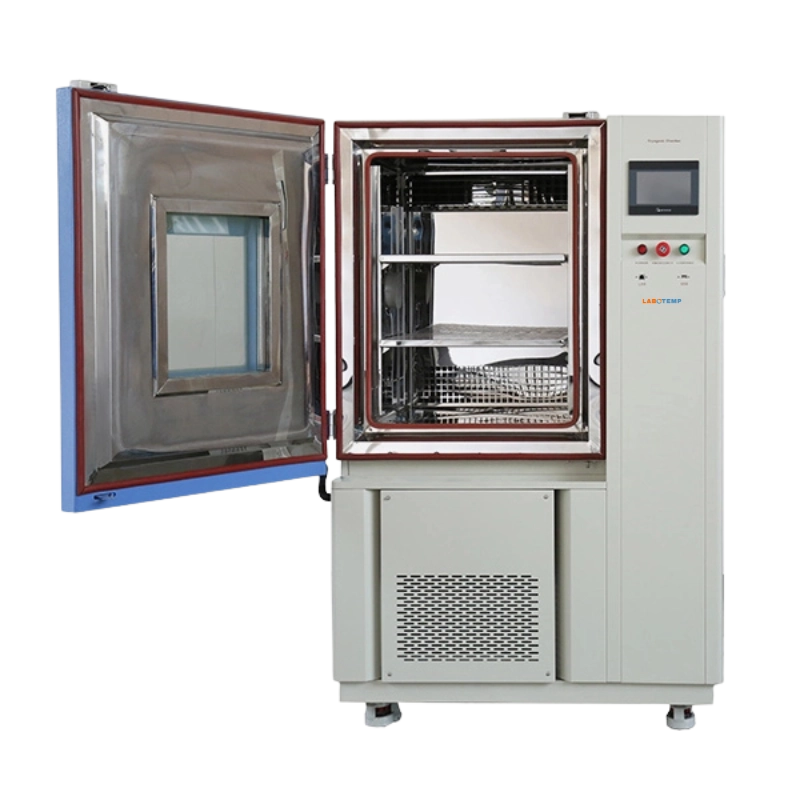

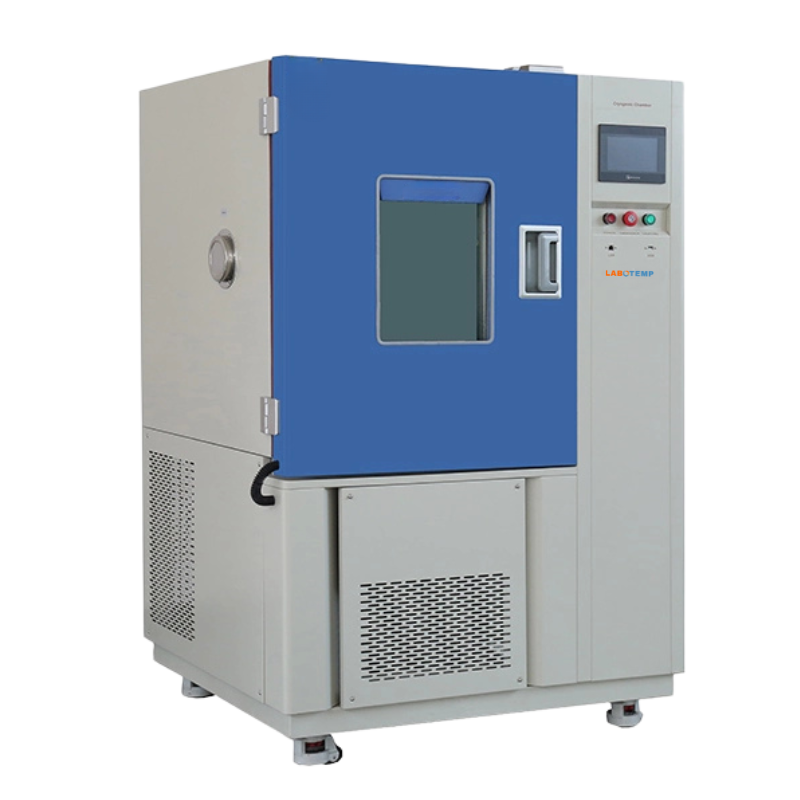

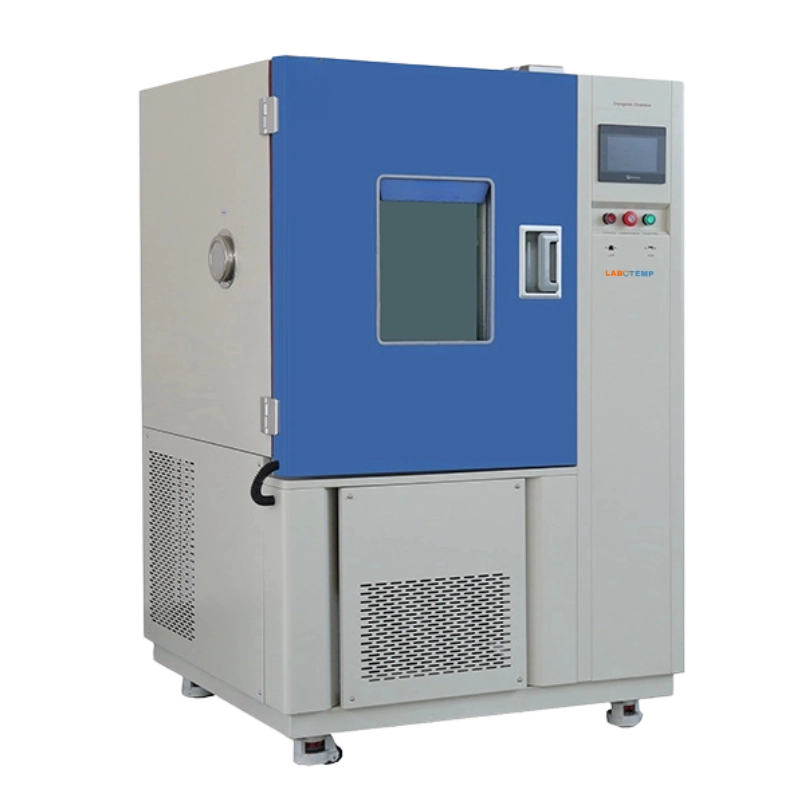

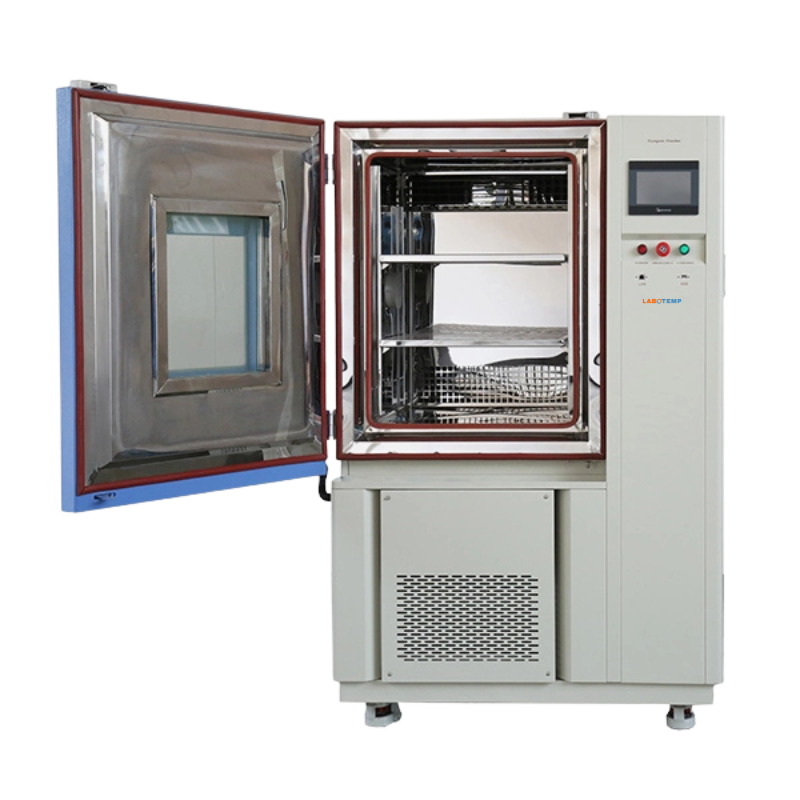

Cryogenic Chamber CTC-01

Name: Cryogenic Chamber CTC-01
Brand: Labotemp
SKU: CTC-01
Rating: 4.9 (851 reviews)

Labotemp Cryogenic Chamber CTC-01 is engineered for precise ultra-low temperature testing from –120°C to +150°C, making it ideal for aerospace, electronics, military, and advanced material research. Built with a durable SUS304 stainless-steel interior, polyurethane insulation, and a cascade refrigeration system, it ensures stable, uniform cooling without liquid nitrogen. The programmable LCD touchscreen controller, safety protections, and multiple chamber volumes deliver accuracy, reliability, and long-term performance for demanding laboratory environments.

$38280

Temperature Range	-120℃ ~ +150℃
Interior Volume	100L
Power Supply	380V 50Hz
Internal Dimension (mm)	700×800×900
Overall Dimension (mm)	1200×1340×2020
Temperature Fluctuation	±0.5°C
Temperature Deviation	±2.0°C
Cooling Rate	1°C / min
Heating Rate	3°C / min
Cooling System	Mechanical compression refrigeration system
Refrigerating Unit	Cascade compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection, PC Link
Temperature Sensor	PTR Platinum Resistance PT100Ω / MV A-class
Air Circulation	Centrifugal wind fan
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole (Φ50) with plug; 2 shelves
Maximum Noise	65 dBA
Safety Device	Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection
Net Weight	480kg
Gross Weight	578kg

➤ Tecumseh Cascade
➤ Temperature range: -120°C to +150°C with stable control (±0
➤ 5°C fluctuation)
➤ Fast heating and cooling rates: 3°C/min and 1°C/min
➤ Cascade refrigeration system with mechanical compression for deep cooling
➤ SUS304 stainless steel interior and durable coated steel exterior
➤ LCD touchscreen controller with Ethernet connectivity
➤ Multiple safety protections: over-temperature, over-current, high-pressure, and earth-leakage
➤ High-quality insulation with polyurethane foam
➤ Observation window with interior lighting
➤ Comes with 1 cable hole (50mm) and 2 shelves

➤ Used for temperature cycling, thermal shock, and extreme environment testing of electronic components, batteries, aerospace and automotive parts in research labs, quality control, manufacturing, defense, semiconductor, and industrial testing fields

Tecumseh Cascade
Temperature range: -120°C to +150°C with stable control (±0.5°C fluctuation)
Fast heating and cooling rates: 3°C/min and 1°C/min
Cascade refrigeration system with mechanical compression for deep cooling
SUS304 stainless steel interior and durable coated steel exterior
LCD touchscreen controller with Ethernet connectivity
Multiple safety protections: over-temperature, over-current, high-pressure, and earth-leakage
High-quality insulation with polyurethane foam
Observation window with interior lighting
Comes with 1 cable hole (50mm) and 2 shelves

Used for temperature cycling, thermal shock, and extreme environment testing of electronic components, batteries, aerospace and automotive parts in research labs, quality control, manufacturing, defense, semiconductor, and industrial testing fields.
