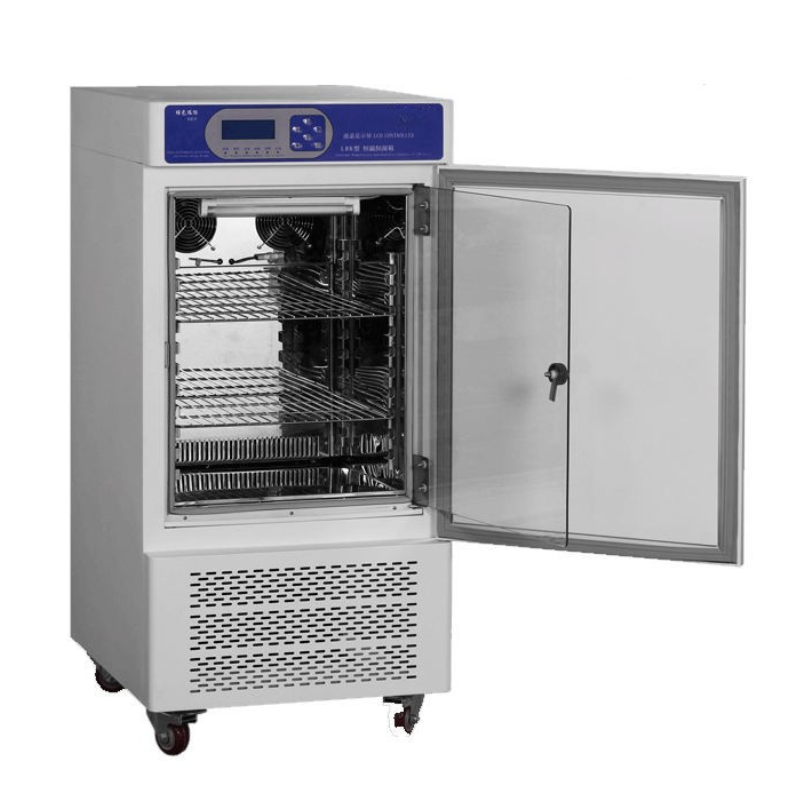

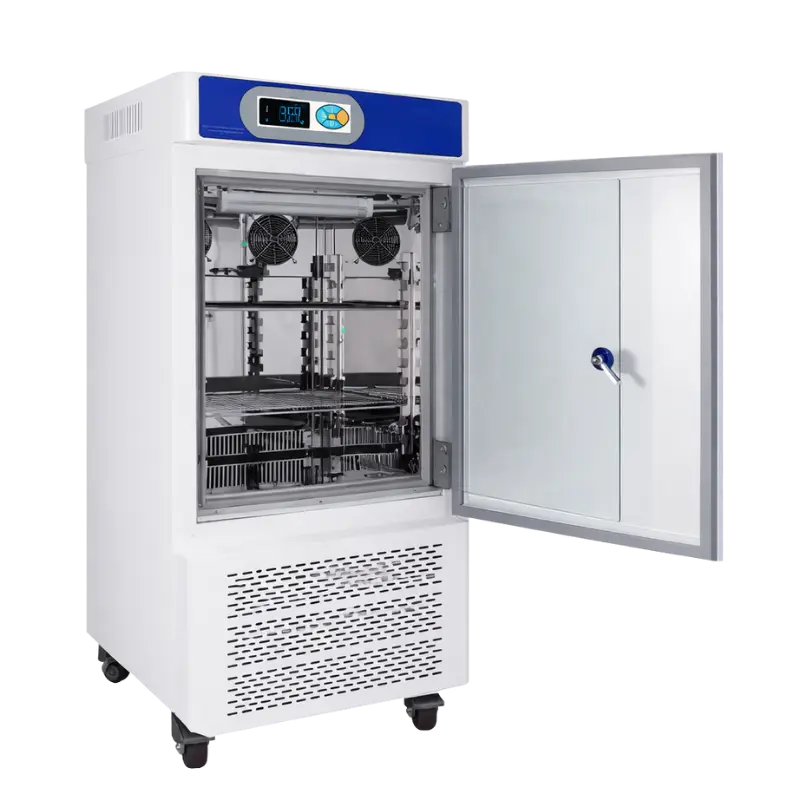

Labotemp Temperature and Humidity Chamber THC-02 is an advanced constant temperature and humidity chamber engineered for precise environmental chamber temperature humidity control in laboratories and industrial testing. With a temperature range of 0°C to 65°C and humidity control from 40% to 95% RH, this temperature humidity test chamber enables reliable temperature and humidity testing for product validation and stability analysis. Intelligent PID control, balanced refrigeration, and SUS304 stainless steel construction ensure uniform chamber humidity and accurate performance, making it ideal for high temperature high humidity test and controlled humidity chamber applications.
This humidity environmental chamber is widely used as a stability chamber temperature and humidity solution in pharmaceuticals, electronics, agriculture, and research facilities. The built-in humidification system and uniform airflow ensure consistent environmental chamber humidity control for long-term testing.
Why Choose Labotemp Temperature and Humidity Chamber THC-02?
✓ Manufactured by Experts: Built by trusted environmental chamber manufacturers for reliable performance.
✓ ISO and CE Compliant: Meets ISO and CE standards for safe and accurate testing.
✓ Precise Stability: Advanced PID control ensures uniform temperature and humidity conditions.
|
Temperature Range : 0–65 / H~90℃ Temperature Range |
0–65 / H~90℃ |
|
Volume : 100L Volume |
100L |
|
Power : 0.6kW Power |
0.6kW |
|
Voltage : 220V 50Hz Voltage |
220V 50Hz |
|
Inner Size (H×W×D) : 580×450×380 Inner Size (H×W×D) |
580×450×380 |
|
Overall Dimension (H×W×D) : 1100×590×620 Overall Dimension (H×W×D) |
1100×590×620 |
|
Accuracy : ±0.1℃ Accuracy |
±0.1℃ |
|
Volatility : ±0.5% Volatility |
±0.5% |
|
Humidity Range : 40%–95% Humidity Range |
40%–95% |
|
Humidity Fluctuation : ±2% Humidity Fluctuation |
±2% |
|
Timing Range : 0–999 M/H Timing Range |
0–999 M/H |
|
Packing Size (H×W×D) : 1220×670×700mm Packing Size (H×W×D) |
1220×670×700mm |
|
Net Weight : 83kg Net Weight |
83kg |
|
Gross Weight : 100kg Gross Weight |
100kg |
Volume: 50L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 100L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 150L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 250L
Voltage: 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 350L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 800L
Voltage : 220V
Volatility : ±1%
Timing Range: 0–999 M/H
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120℃ ~ +150℃
Temperature Fluctuation: ±0.5°C
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120°C ~ +150°C
Temperature Fluctuation: ±0.5°C
Temperature heating speed: 3°C/min in average (without loading)
Temperature cooling speed: 1°C/min in average (without loading)
Package Size: 1300x1500x1950mm
Net Weight : 680kg
Total Power: 0.75 kW
Motor Brand: Taiwan Yutian
Model No.: CTC-04
Lowest Temperature: -190 °C
Temperature Range: +30° C to -196° C
Temperature Control Accuracy: ±2° C
Specimen Capacity: More than 60 specimens
Remarks: Cold room volume can be customized according to customer requirements
