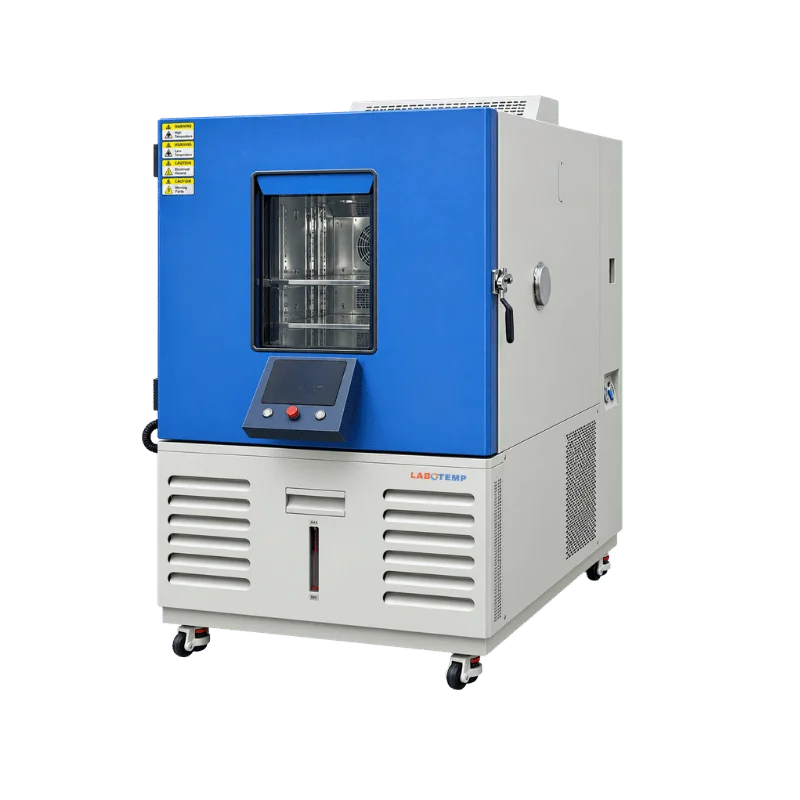

High-Low Temperature Humidity Test Chamber THC-07

Name: High-Low Temperature Humidity Test Chamber THC-07
Brand: Labotemp
SKU: THC-07
Price: 46843.00 USD
Availability: InStock
Rating: 4.9 (927 reviews)

Labotemp High-Low Temperature Humidity Test Chamber THC-07 provides controlled temperature and humidity conditions for environmental stress testing, thermal cycling, cold resistance evaluation, and storage condition simulation. With an 1800 L capacity, −70°C to +180°C temperature range, 10–98% RH humidity range, and average ramp rates of 3°C/min heating and 1.5°C/min cooling, the chamber supports extended climatic and thermal test profiles. Its 1220 × 1220 × 1220 mm interior and 1000 W heat load capacity accommodate powered test samples, making it suitable for use as a climatic test chamber.

This Temperature Humidity Test Chamber features ±0.5°C temperature fluctuation, ±2.0°C spatial deviation, and ±2.5% RH humidity deviation. The refrigeration system uses a Copeland compressor with R449A and R508B refrigerants, an air-cooled condenser, and centrifugal-fan air circulation. A stainless-steel surface evaporation humidifier with automatic water inlet and drainage supports humidity control, while the 7-inch programmable touchscreen controller provides PID and SSR control, 100 programs with 99 segments, USB data export, and Ethernet remote monitoring.

Why Choose Labotemp High-Low Temperature Humidity Test Chamber THC-07?

✓ Wide Temperature and Humidity Range: Provides −70°C to +180°C and 10–98% RH for high-temperature, ultra-low-temperature, and climatic cycling tests.

✓ 1800 L Test Space: SUS304 mirror stainless-steel interior, 100 mm polyurethane insulation, two adjustable shelves, and two Φ100 mm cable ports.

✓ Programmable Multi-Segment Control: 100 programs × 99 segments, real-time data logging, ten safety protections, and power-failure memory and recovery.

$46843

Datasheet

General Specifications
Product Type : Temperature & Humidity Test Chamber Product Type	Temperature & Humidity Test Chamber
Useful Volume : 1800 L Useful Volume	1800 L
Internal Dimensions (D × W × H) : 1220 × 1220 × 1220 mm Internal Dimensions (D × W × H)	1220 × 1220 × 1220 mm
Overall Dimensions (D × W × H) : 2300 × 1500 × 2300 mm Overall Dimensions (D × W × H)	2300 × 1500 × 2300 mm
Power Supply : 208 V ±10%, 60 Hz, 3-Phase Power Supply	208 V ±10%, 60 Hz, 3-Phase
Maximum Noise : ≤65 dBA Maximum Noise	≤65 dBA
Temperature Test Performance
Temperature Range : -70°C to +180°C Temperature Range	-70°C to +180°C
Average Cooling Rate : 1.5°C/min Average Cooling Rate	1.5°C/min
Average Heating Rate : 3°C/min Average Heating Rate	3°C/min
Average Temperature Fluctuation : ±0.5°C Average Temperature Fluctuation	±0.5°C
Average Temperature Deviation : ±2.0°C Average Temperature Deviation	±2.0°C
Heat Load : 1000 W Heat Load	1000 W
Temperature & Humidity Test Performance
Climate Test Temperature Range : +10°C to +95°C Climate Test Temperature Range	+10°C to +95°C
Cooling Rate : 1.5°C/min Cooling Rate	1.5°C/min
Heating Rate : 3°C/min Heating Rate	3°C/min
Average Temperature Fluctuation- : ±0.5°C Average Temperature Fluctuation-	±0.5°C
Average Temperature Deviation- : ±2.0°C Average Temperature Deviation-	±2.0°C
Humidity Range : 10–98% RH Humidity Range	10–98% RH
Humidity Deviation : ±2.5% RH Humidity Deviation	±2.5% RH
Heat Load- : 1000 W Heat Load-	1000 W
Refrigeration & Heating System
Cooling System : Mechanical Compression Cooling System	Mechanical Compression
Refrigerating Unit : Copeland Compressor Refrigerating Unit	Copeland Compressor
Refrigerant : R449A, R508B Refrigerant	R449A, R508B
Heating System : Nichrome Wire Heater Heating System	Nichrome Wire Heater
Air Circulation : Centrifugal Fan Air Circulation	Centrifugal Fan
Airflow Design : Top-Air-Supply and Bottom-Air-Return Airflow Design	Top-Air-Supply and Bottom-Air-Return
Humidity System
Humidifier : External Isolation, Stainless Steel Surface Evaporation Humidifier	External Isolation, Stainless Steel Surface Evaporation
Dehumidification : Evaporator Dehumidification	Evaporator
Humidity Sensor : Dry and Wet Bulb Humidity Sensor Humidity Sensor	Dry and Wet Bulb Humidity Sensor
Water Tank Capacity : 12 L Water Tank Capacity	12 L
Water Supply : Manual Filling and Automatic Water Inlet Water Supply	Manual Filling and Automatic Water Inlet
Drainage : Automatic Water Outlet / Drain Connection Drainage	Automatic Water Outlet / Drain Connection
Water Protection : Water Shortage and Overflow Protection Water Protection	Water Shortage and Overflow Protection
Sensor & Control System
Temperature Sensor : PT100 Platinum Resistance, Class A Temperature Sensor	PT100 Platinum Resistance, Class A
Temperature Sensor Accuracy : 0.001°C Temperature Sensor Accuracy	0.001°C
Controller : 7-Inch Color LCD Touchscreen, Programmable Controller	7-Inch Color LCD Touchscreen, Programmable
Control Method : PID + SSR Control Method	PID + SSR
Programming Capacity : Up to 100 Programs Programming Capacity	Up to 100 Programs
Segments per Program : Up to 99 Segments Segments per Program	Up to 99 Segments
Data Logging : Real-Time Data Logging Data Logging	Real-Time Data Logging
Data Export : USB Data Export	USB
Remote Connectivity : Ethernet PC Link Remote Connectivity	Ethernet PC Link
Power Failure Function : Memory & Recovery Power Failure Function	Memory & Recovery
Construction
Interior Material : SUS304 Stainless Steel, Mirror Finish Interior Material	SUS304 Stainless Steel, Mirror Finish
Exterior Material : Powder-Coated Steel Plate Exterior Material	Powder-Coated Steel Plate
Insulation : 100 mm Polyurethane Foam + Insulation Cotton Insulation	100 mm Polyurethane Foam + Insulation Cotton
Observation Window : Double-Layer Insulating Glass with Heating Film Observation Window	Double-Layer Insulating Glass with Heating Film
Interior Lighting : Built-In LED Light Interior Lighting	Built-In LED Light
Shelves : 2 × SUS304 Stainless Steel Shelves Shelves	2 × SUS304 Stainless Steel Shelves
Shelf Load Capacity : 25 kg per Shelf Shelf Load Capacity	25 kg per Shelf
Shelf Adjustment : Height Adjustable and Removable Shelf Adjustment	Height Adjustable and Removable
Cable Ports : 2 × Ø100 mm Cable Ports	2 × Ø100 mm
Door : Single Left-Hinged Door Door	Single Left-Hinged Door
Door Seal : Multi-Lip Silicone Gasket Door Seal	Multi-Lip Silicone Gasket
Door Lock : Cam-Lock / Compression-Type Handle Door Lock	Cam-Lock / Compression-Type Handle
Safety Protection
Temperature Protection : Independent Over-Temperature Protection Temperature Protection	Independent Over-Temperature Protection
Low-Temperature Protection : Anti-Freeze Protection Low-Temperature Protection	Anti-Freeze Protection
Refrigeration Protection : High-Pressure and Low-Pressure Protection Refrigeration Protection	High-Pressure and Low-Pressure Protection
Humidifier Protection : Dry-Running Protection Humidifier Protection	Dry-Running Protection
Overflow Protection : Overflow / Water Accumulation Alarm Overflow Protection	Overflow / Water Accumulation Alarm
Electrical Protection : Overcurrent Protection Electrical Protection	Overcurrent Protection
Fan Protection : Fan Overload / Stall Protection Fan Protection	Fan Overload / Stall Protection
Electrical Safety : Earth Leakage Protection Electrical Safety	Earth Leakage Protection
Power Failure : Memory & Recovery Power Failure	Memory & Recovery
Packaging
Package Dimensions : 2500 × 1700 × 2500 mm Package Dimensions	2500 × 1700 × 2500 mm
Gross Weight : 1200 kg Gross Weight	1200 kg
Crate Type : Export-Grade Plywood with Forklift Pockets Crate Type	Export-Grade Plywood with Forklift Pockets

-70°C to +180°C Temperature Range ➤ -70°C to +180°C Temperature Range
1800 L chamber capacity provides a large controlled environment for temperature and humidity testing. ➤ 1800 L chamber capacity provides a large controlled environment for temperature and humidity testing.
-70°C to +180°C temperature range supports a wide variety of environmental and thermal testing applications. ➤ -70°C to +180°C temperature range supports a wide variety of environmental and thermal testing applications.
10–98% RH humidity range supports controlled humidity testing across a broad range of conditions. ➤ 10–98% RH humidity range supports controlled humidity testing across a broad range of conditions.
Average cooling rate of 1.5°C/min supports controlled temperature reduction. ➤ Average cooling rate of 1.5°C/min supports controlled temperature reduction.
Average heating rate of 3°C/min supports controlled temperature increase. ➤ Average heating rate of 3°C/min supports controlled temperature increase.
±0.5°C average temperature fluctuation supports stable temperature conditions during testing. ➤ ±0.5°C average temperature fluctuation supports stable temperature conditions during testing.
±2.0°C average temperature deviation supports temperature uniformity across the workspace. ➤ ±2.0°C average temperature deviation supports temperature uniformity across the workspace.
±2.5% RH humidity deviation supports controlled humidity conditions. ➤ ±2.5% RH humidity deviation supports controlled humidity conditions.
Mechanical compression refrigeration system provides temperature control. ➤ Mechanical compression refrigeration system provides temperature control.
Copeland compressor supports the refrigeration system. ➤ Copeland compressor supports the refrigeration system.
R449A and R508B refrigerants are specified for the cooling system. ➤ R449A and R508B refrigerants are specified for the cooling system.
Nichrome wire heater provides controlled heating. ➤ Nichrome wire heater provides controlled heating.
Centrifugal fan provides continuous air circulation and uniform air distribution. ➤ Centrifugal fan provides continuous air circulation and uniform air distribution.
Top-air-supply and bottom-air-return airflow design helps minimize temperature stratification. ➤ Top-air-supply and bottom-air-return airflow design helps minimize temperature stratification.
External stainless-steel surface evaporation humidifier provides controlled humidification. ➤ External stainless-steel surface evaporation humidifier provides controlled humidification.
Evaporator-based dehumidification removes moisture from the chamber air. ➤ Evaporator-based dehumidification removes moisture from the chamber air.
12 L integrated water tank supports extended humidity testing operation. ➤ 12 L integrated water tank supports extended humidity testing operation.
Automatic water inlet and outlet connections support connection to laboratory water and drainage systems. ➤ Automatic water inlet and outlet connections support connection to laboratory water and drainage systems.
7-inch programmable color LCD touchscreen provides control and monitoring of chamber conditions. ➤ 7-inch programmable color LCD touchscreen provides control and monitoring of chamber conditions.
PID and SSR control algorithms support stable temperature and humidity regulation. ➤ PID and SSR control algorithms support stable temperature and humidity regulation.
Supports up to 100 programs with up to 99 segments per program. ➤ Supports up to 100 programs with up to 99 segments per program.
Real-time data logging and graph generation support monitoring of test conditions. ➤ Real-time data logging and graph generation support monitoring of test conditions.
USB data export supports transfer of recorded test data. ➤ USB data export supports transfer of recorded test data.
Ethernet connectivity supports PC linking and remote monitoring and program modification. ➤ Ethernet connectivity supports PC linking and remote monitoring and program modification.
PT100 Class A temperature sensor provides high-resolution temperature measurement. ➤ PT100 Class A temperature sensor provides high-resolution temperature measurement.
Independent over-temperature and low-temperature protection provides additional operating safety. ➤ Independent over-temperature and low-temperature protection provides additional operating safety.
Refrigerant high-pressure and low-pressure protection helps protect the refrigeration system. ➤ Refrigerant high-pressure and low-pressure protection helps protect the refrigeration system.
Humidifier dry-running protection and water-shortage protection support safe humidity-system operation. ➤ Humidifier dry-running protection and water-shortage protection support safe humidity-system operation.
Overflow and water-accumulation alarm provides an alert for excess water conditions. ➤ Overflow and water-accumulation alarm provides an alert for excess water conditions.
Power-failure memory and recovery helps retain operating conditions after power interruption. ➤ Power-failure memory and recovery helps retain operating conditions after power interruption.
SUS304 mirror-finish stainless-steel interior provides a smooth, corrosion-resistant test space. ➤ SUS304 mirror-finish stainless-steel interior provides a smooth, corrosion-resistant test space.
100 mm insulation combines polyurethane foam and insulation cotton for thermal retention. ➤ 100 mm insulation combines polyurethane foam and insulation cotton for thermal retention.
Double-layer insulating observation window with heating film helps prevent condensation. ➤ Double-layer insulating observation window with heating film helps prevent condensation.
Built-in LED lighting provides visibility of samples inside the chamber. ➤ Built-in LED lighting provides visibility of samples inside the chamber.
Two adjustable and removable SUS304 stainless-steel shelves support flexible sample placement, with each shelf rated for a 25 kg distributed load. ➤ Two adjustable and removable SUS304 stainless-steel shelves support flexible sample placement, with each shelf rated for a 25 kg distributed load.
Two Ø100 mm cable ports allow sensor wires and power cables to enter the test space while maintaining chamber sealing. ➤ Two Ø100 mm cable ports allow sensor wires and power cables to enter the test space while maintaining chamber sealing.
Left-hinged airtight door with multi-lip silicone gasket helps minimize thermal leakage. ➤ Left-hinged airtight door with multi-lip silicone gasket helps minimize thermal leakage.
Cam-lock or compression-type door handles provide secure and even sealing. ➤ Cam-lock or compression-type door handles provide secure and even sealing.

Temperature & Humidity Cycling Tests: Suitable for evaluating materials and products under controlled temperature and humidity changes Temperature & Humidity Cycling Tests
Suitable for evaluating materials and products under controlled temperature and humidity changes
Thermal Cycle Testing: Supports repeated temperature changes to assess product performance under thermal cycling conditions Thermal Cycle Testing
Supports repeated temperature changes to assess product performance under thermal cycling conditions
High-Temperature & Ultra-Low-Temperature Testing: Suitable for testing products and materials across the chamber's wide temperature range High-Temperature & Ultra-Low-Temperature Testing
Suitable for testing products and materials across the chamber's wide temperature range
Cold Resistance Evaluation: Supports assessment of material and product performance under low-temperature conditions Cold Resistance Evaluation
Supports assessment of material and product performance under low-temperature conditions
Storage Condition Simulation: Used to simulate controlled temperature and humidity conditions for evaluating storage-related performance Storage Condition Simulation
Used to simulate controlled temperature and humidity conditions for evaluating storage-related performance
Calibration Procedures: Suitable for controlled environmental conditions during applicable calibration procedures Calibration Procedures
Suitable for controlled environmental conditions during applicable calibration procedures
Automotive Testing: Supports environmental testing of automotive components and materials under controlled temperature and humidity conditions Automotive Testing
Supports environmental testing of automotive components and materials under controlled temperature and humidity conditions
Aerospace Testing: Suitable for environmental simulation and temperature-humidity testing of aerospace-related components Aerospace Testing
Suitable for environmental simulation and temperature-humidity testing of aerospace-related components
Electronics & Battery Testing: Supports environmental testing of electronic components and battery-related products under controlled conditions Electronics & Battery Testing
Supports environmental testing of electronic components and battery-related products under controlled conditions
Pharmaceutical & Material Testing: Suitable for temperature and humidity simulation during applicable pharmaceutical and material testing workflows Pharmaceutical & Material Testing
Suitable for temperature and humidity simulation during applicable pharmaceutical and material testing workflows

Stainless Steel Sample Shelf — 2 ➤ Stainless Steel Sample Shelf — 2
Power Cable — 1 ➤ Power Cable — 1
Drain Hose — 1 ➤ Drain Hose — 1

Extended Temperature Range: –86°C minimum; +180°C+ maximum Extended Temperature Range
–86°C minimum; +180°C+ maximum
Rapid Ramp Rates: Up to 15°C/min cooling/heating Rapid Ramp Rates
Up to 15°C/min cooling/heating
Linear Ramp Control ➤ Linear Ramp Control
Capacitive Humidity Sensor ➤ Capacitive Humidity Sensor
