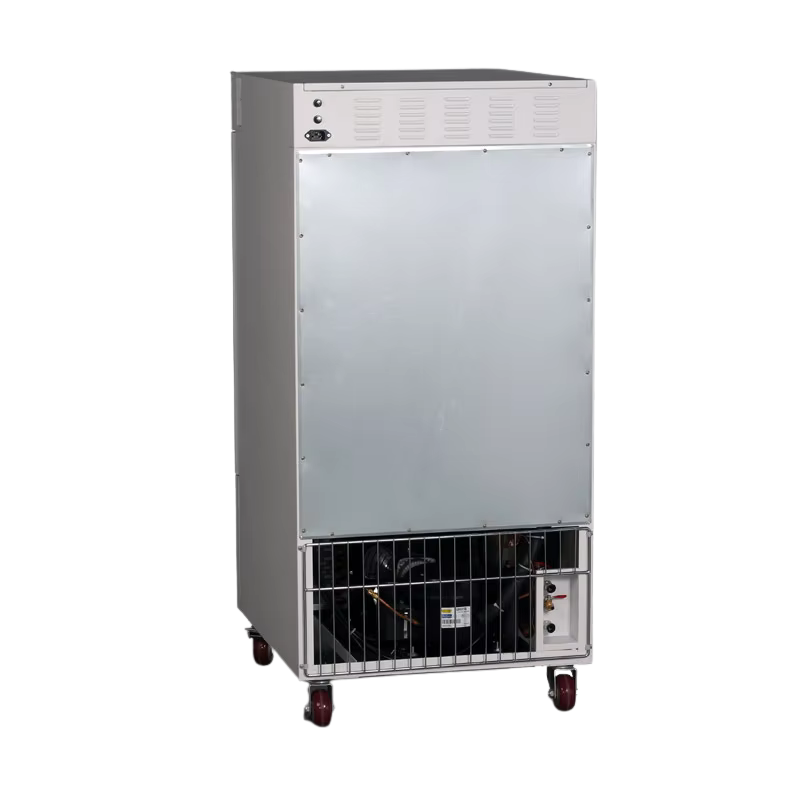

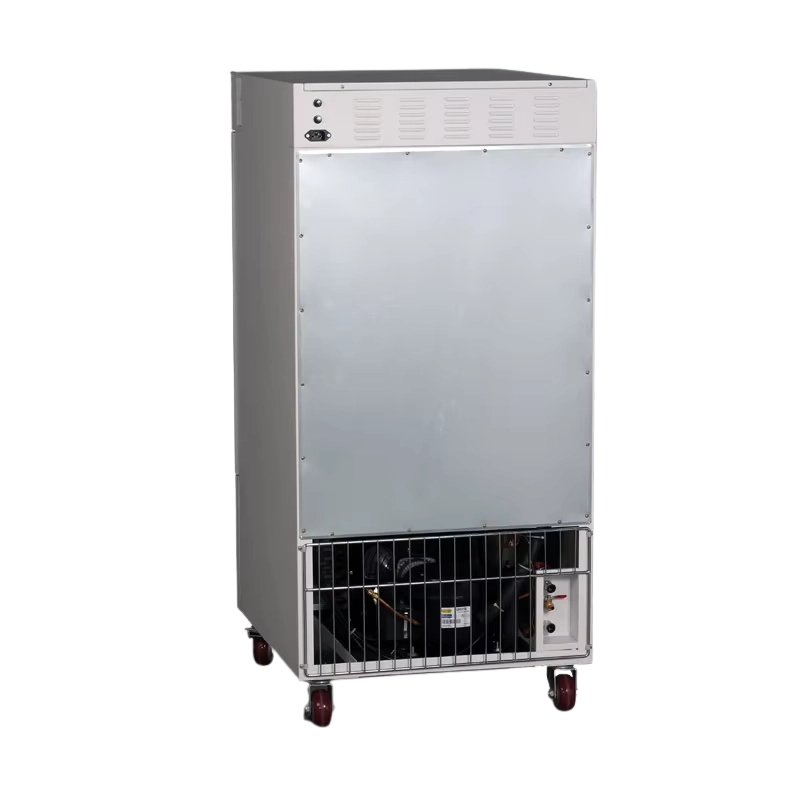

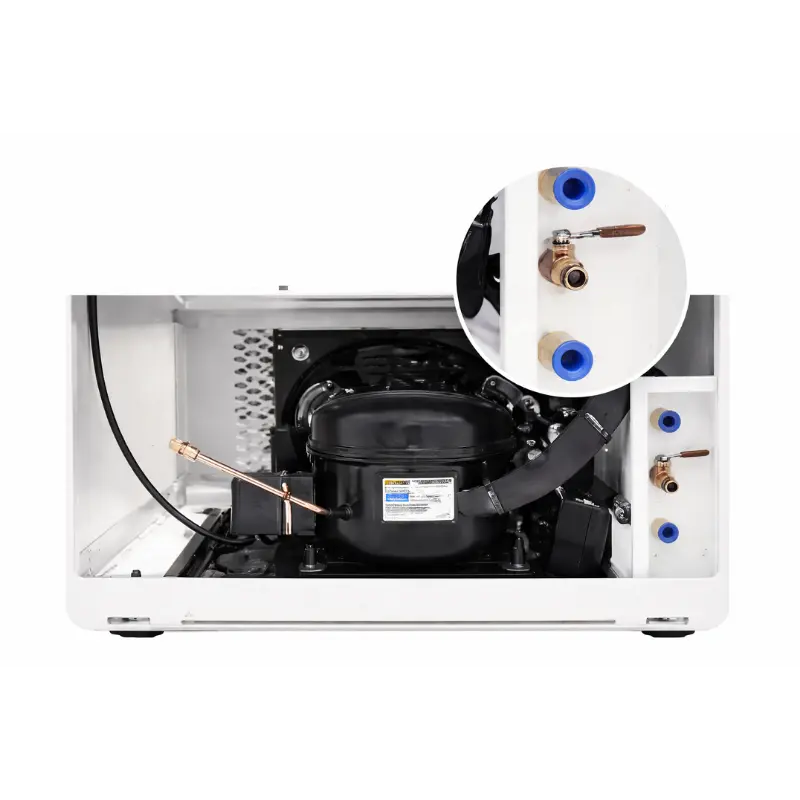

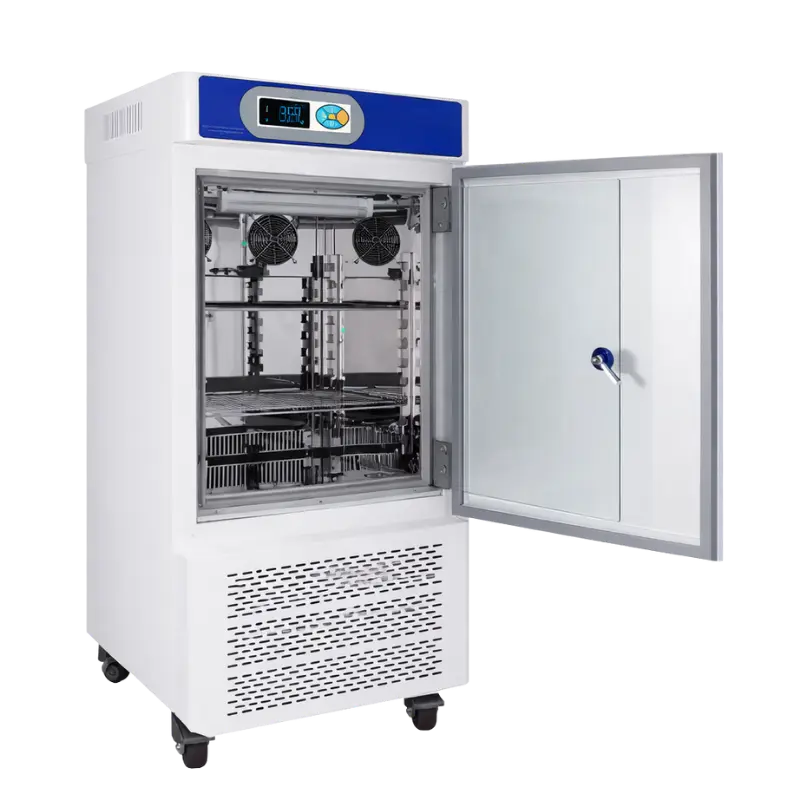

Labotemp Temperature and Humidity Chamber THC-06, produced by leading climate chamber manufacturer, is designed for precise environmental chamber temperature humidity control in high-volume laboratory and industrial testing. With a temperature range of 0°C to 65°C (up to 90°C for sterilization) and humidity range of 40% to 95% RH, this temperature and humidity chamber ensures accurate simulation for stability studies and product reliability testing. The advanced PID controller, balanced refrigeration system, and intelligent humidification unit deliver consistent chamber humidity and temperature stability, while fluorine-free refrigerant improves efficiency and environmental safety.
Engineered for laboratories, research centers, and industrial facilities, this environmental chamber provides stable temperature and humidity conditions for accurate testing and sample conditioning. ISO and CE compliant, it is manufactured and supplied by trusted environmental chamber manufacturers and environmental chamber suppliers, ensuring dependable performance.
Why Choose Labotemp Temperature and Humidity Chamber THC-06 ?
✓ Large Capacity Testing: Supports bulk samples with uniform environmental conditions.
✓ Sterilization Support: Enables high-temperature sterilization up to 90°C.

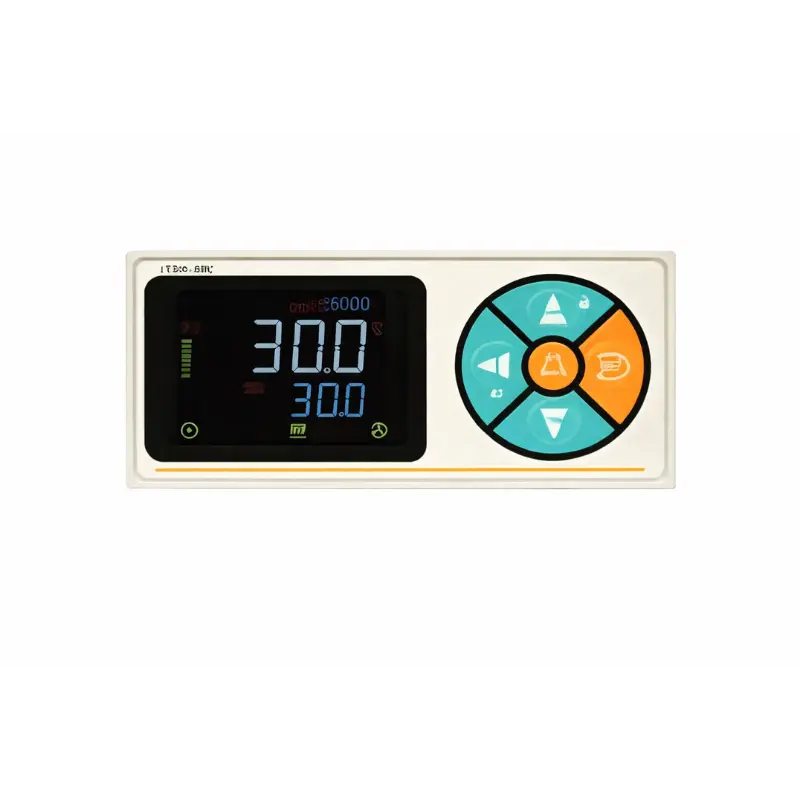

✓ Smart Control System: Programmable controller with RS485 for accurate monitoring.
|
Temperature Range : 0–65 / H~90℃ Temperature Range |
0–65 / H~90℃ |
|
Volume : 800L Volume |
800L |
|
Power : 3.3kW Power |
3.3kW |
|
Voltage : 220V Voltage |
220V |
|
Inner Size (H×W×D) : 1200×1050×650 Inner Size (H×W×D) |
1200×1050×650 |
|
Overall Dimension (H×W×D) : 1845×1195×985 Overall Dimension (H×W×D) |
1845×1195×985 |
|
Volatility : ±1% Volatility |
±1% |
|
Humidity Range : 40%–95% Humidity Range |
40%–95% |
|
Humidity Fluctuation : ±3% Humidity Fluctuation |
±3% |
|
Timing Range : 0–999 M/H Timing Range |
0–999 M/H |
|
Packing Size (H×W×D) : 1970×1280×1070 Packing Size (H×W×D) |
1970×1280×1070 |
|
Net Weight : 200kg Net Weight |
200kg |
|
Gross Weight : 300kg Gross Weight |
300kg |
Volume: 50L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 100L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 150L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 250L
Voltage: 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 350L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 800L
Voltage : 220V
Volatility : ±1%
Timing Range: 0–999 M/H
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120℃ ~ +150℃
Temperature Fluctuation: ±0.5°C
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120°C ~ +150°C
Temperature Fluctuation: ±0.5°C
Temperature heating speed: 3°C/min in average (without loading)
Temperature cooling speed: 1°C/min in average (without loading)
Package Size: 1300x1500x1950mm
Net Weight : 680kg
Total Power: 0.75 kW
Motor Brand: Taiwan Yutian
Model No.: CTC-04
Lowest Temperature: -190 °C
Temperature Range: +30° C to -196° C
Temperature Control Accuracy: ±2° C
Specimen Capacity: More than 60 specimens
Remarks: Cold room volume can be customized according to customer requirements
