Vertical Autoclave VEA-08

Name: Vertical Autoclave VEA-08
Brand: Labotemp
SKU: VEA-08
Price: 3132.00 USD
Availability: InStock
Rating: 4.9 (979 reviews)

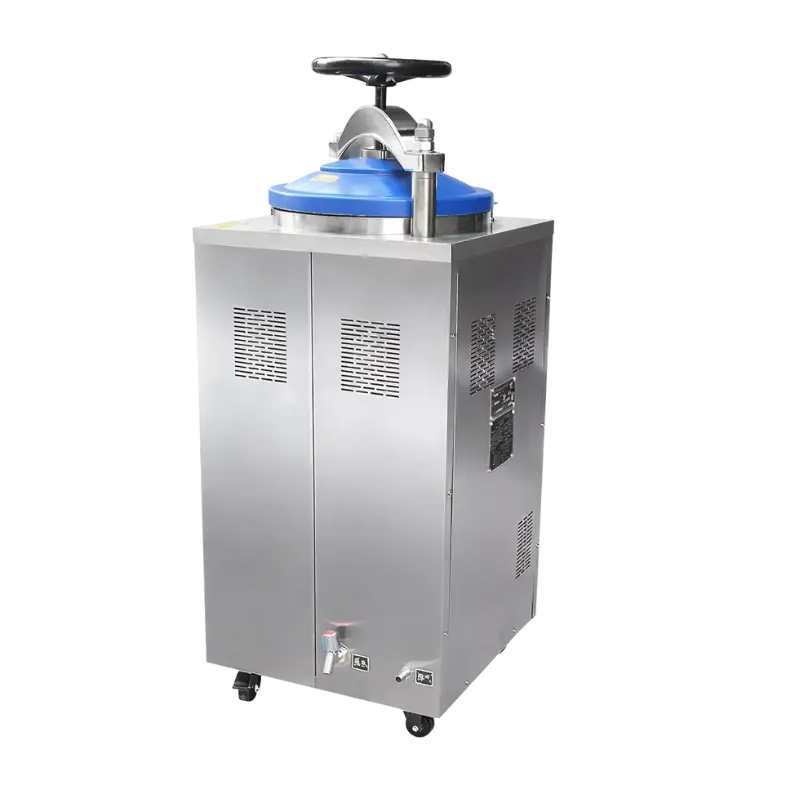

Labotemp Vertical Autoclave Sterilizer VEA-08 is a 35 liter autoclave machine with built in drying function, developed for laboratories, diagnostic centers, and small medical units requiring efficient sterilization and moisture reduction in one cycle. The unit features a stainless steel chamber and hand wheel quick opening structure for secure sealing and stable operation at a rated working pressure of 0.22 MPa. With a sterilization temperature range of 116°C to 134°C and adjustable cycle time from 4 to 120 minutes, it is suitable for glassware, culture media, surgical instruments, and wrapped materials that benefit from post sterilization drying.

The system operates with microcomputer automatic control and digital display for precise parameter setting. Safety interlocking device, over temperature protection, over pressure self discharge, low water level cutoff, and anti dry heating safeguards ensure secure performance. Automatic cold air discharge and steam exhaust help reduce residual moisture, improving turnaround time. Optional external printer and automatic water system support daily laboratory workflow.

Why Choose Labotemp Vertical Autoclave VEA-08?

✓ Built In Drying: Helps to minimize instrument moisture after sterilization
✓ Enhanced Safety Control: Interlock and multi layer protection for secure operation
✓ Compact Efficiency: Ideal for small labs requiring sterilization with drying support

$3132

Datasheet

General Specifications
Rated Working Temperature : 134°C Rated Working Temperature	134°C
Design Temperature : 139°C Design Temperature	139°C
Chamber Capacity : 35 Liters Chamber Capacity	35 Liters
Power Consumption : 3.5 kW Power Consumption	3.5 kW
Voltage / Frequency : AC 220 V, 50 Hz Voltage / Frequency	AC 220 V, 50 Hz
Sterilization Parameters
Sterilization Temperature Range : 116°C–134°C Sterilization Temperature Range	116°C–134°C
Sterilization Time Range : 4–120 minutes Sterilization Time Range	4–120 minutes
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Design Pressure : 0.25 MPa Design Pressure	0.25 MPa
Chamber Dimensions
Chamber Size : Ø350 × 400 mm Chamber Size	Ø350 × 400 mm
Bucket Size : Ø330 × 320 mm Bucket Size	Ø330 × 320 mm
Basket Size : Ø320 × 350 mm Basket Size	Ø320 × 350 mm
Control & Safety
Control System : Microcomputer automatic control Control System	Microcomputer automatic control
Display : Digital display with touch buttons Display	Digital display with touch buttons
Safety System : Interlock system with multi-level protection Safety System	Interlock system with multi-level protection
Protection Features : Over-temperature, over-pressure release, low water level, anti-dry burning Protection Features	Over-temperature, over-pressure release, low water level, anti-dry burning
Operation Alert : Buzzer with automatic stop Operation Alert	Buzzer with automatic stop
Operation
Material : High-quality stainless steel chamber Material	High-quality stainless steel chamber
Air Exhaust System : Automatic cold air discharge Air Exhaust System	Automatic cold air discharge
Steam Exhaust : Automatic after sterilization Steam Exhaust	Automatic after sterilization
Physical Dimensions
External Dimensions : 480 × 480 × 1000 mm External Dimensions	480 × 480 × 1000 mm
Packing Dimensions : 580 × 630 × 1130 mm Packing Dimensions	580 × 630 × 1130 mm
Gross Weight : 79 kg Gross Weight	79 kg
Net Weight : 58 kg Net Weight	58 kg

Microcomputer control ➤ Microcomputer control

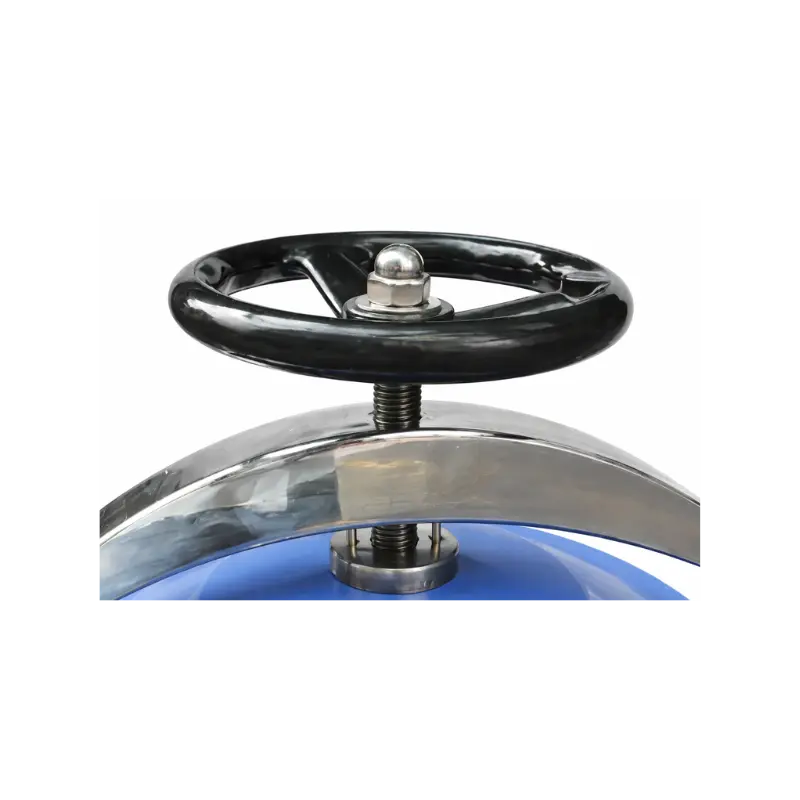

Quick Opening Mechanism – Handwheel type door with smooth translation structure for easy and secure operation ➤ Quick Opening Mechanism – Handwheel type door with smooth translation structure for easy and secure operation
Durable Stainless Steel Construction – High-quality corrosion-resistant chamber ensures long service life and hygiene compliance ➤ Durable Stainless Steel Construction – High-quality corrosion-resistant chamber ensures long service life and hygiene compliance
Microcomputer Control System – Intelligent automatic control with flexible sterilization parameter settings ➤ Microcomputer Control System – Intelligent automatic control with flexible sterilization parameter settings
Digital User Interface – Clear digital display with responsive touch button operation for precise monitoring ➤ Digital User Interface – Clear digital display with responsive touch button operation for precise monitoring
Integrated Safety Interlock System – Prevents operation under unsafe pressure or temperature conditions ➤ Integrated Safety Interlock System – Prevents operation under unsafe pressure or temperature conditions
Multi-Level Protection System – Includes over-temperature protection, over-pressure auto release, low water level protection, and anti-dry burning safety ➤ Multi-Level Protection System – Includes over-temperature protection, over-pressure auto release, low water level protection, and anti-dry burning safety
Self-Expanding Sealing Design – Ensures tight chamber sealing during sterilization cycles ➤ Self-Expanding Sealing Design – Ensures tight chamber sealing during sterilization cycles
Automatic Air Purging – Efficient removal of cold air for improved sterilization performance ➤ Automatic Air Purging – Efficient removal of cold air for improved sterilization performance
Automatic Steam Exhaust System – Controlled steam release after cycle completion ➤ Automatic Steam Exhaust System – Controlled steam release after cycle completion
End-of-Cycle Alert System – Buzzer notification with automatic shutdown for user convenience ➤ End-of-Cycle Alert System – Buzzer notification with automatic shutdown for user convenience

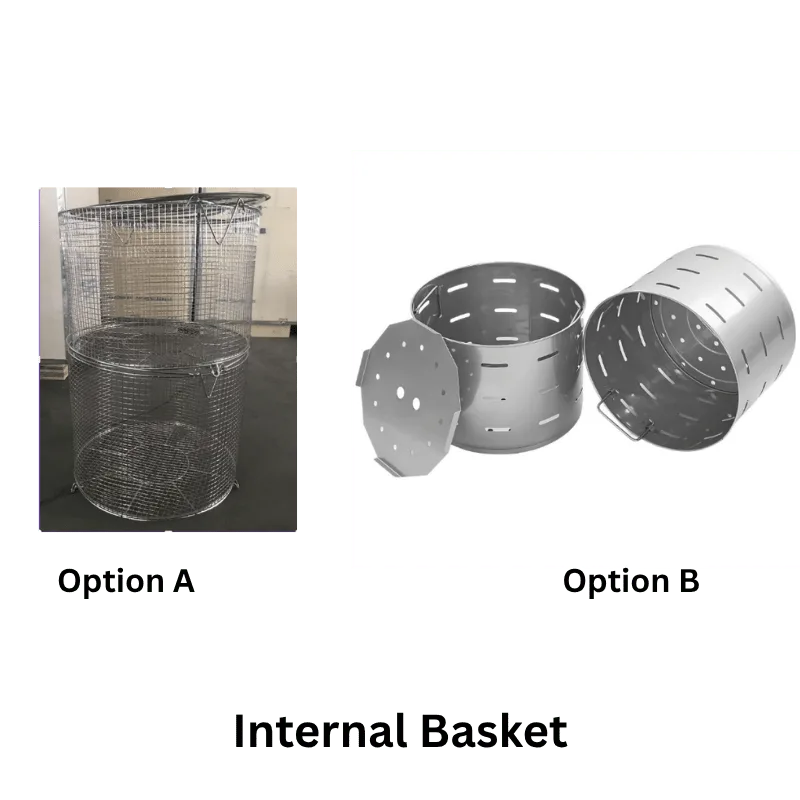

Flexible Loading Options – Supplied with stainless steel bucket or basket for different sterilization needs ➤ Flexible Loading Options – Supplied with stainless steel bucket or basket for different sterilization needs
Drying Function – Enhances post-sterilization drying efficiency for better sample handling ➤ Drying Function – Enhances post-sterilization drying efficiency for better sample handling

Used for sterilization of culture media, glassware, surgical instruments, and laboratory waste in research labs, hospitals, and diagnostic centers ➤ Used for sterilization of culture media, glassware, surgical instruments, and laboratory waste in research labs, hospitals, and diagnostic centers
Supports pharmaceutical QC and microbiology workflows requiring 116–134°C steam cycles ➤ Supports pharmaceutical QC and microbiology workflows requiring 116–134°C steam cycles
Suitable for academic labs, biotech facilities, and GMP-aligned environments needing controlled, documented sterilization with safety compliance ➤ Suitable for academic labs, biotech facilities, and GMP-aligned environments needing controlled, documented sterilization with safety compliance
