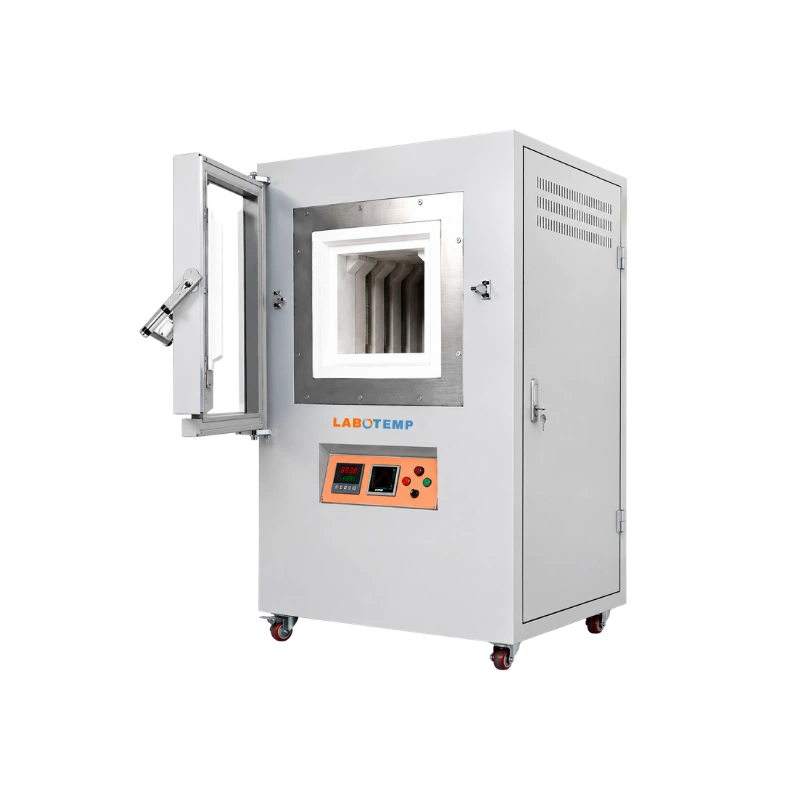

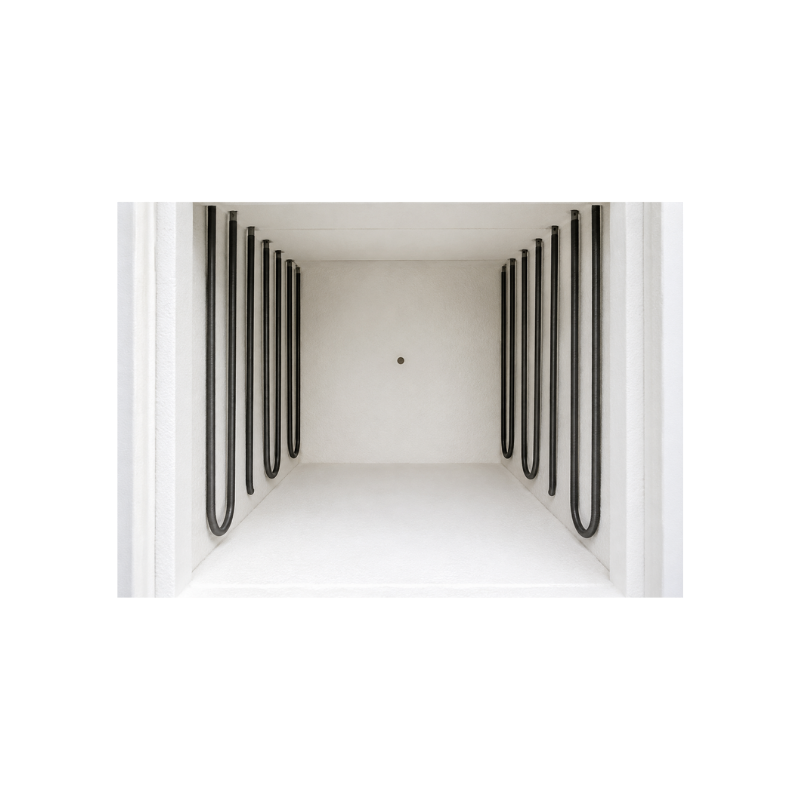

Labotemp Muffle Furnace FMU-25 is a chamber furnace with MoSi₂ heating elements capable of operation up to 1700°C. The 64 L chamber is suitable for applications such as hardening, tempering, normalizing, stress relieving, calcination, ceramic processing, and heat treatment of steel parts. Powerful MoSi₂ heaters are positioned vertically on two sides of the chamber to provide effective heating, while the cubical, brick-insulated construction supports thermal stability during extended high-temperature operation. The furnace is particularly suited to industrial laboratories, research facilities, materials testing, and production environments requiring controlled high-temperature processing.
Reliable temperature control is provided by a precision PID controller with a K-type thermocouple and accuracy of ±1°C. The rugged construction incorporates fan cooling to help maintain a lower external surface temperature, while overheat protection shuts the furnace down if the temperature exceeds the acceptable range or the thermocouple malfunctions. Power-failure protection automatically resumes operation after power is restored, supporting process continuity. With CE certification and an 80 kW, three-phase 380 V power supply, this high-efficiency furnace is built for demanding laboratory and industrial workloads where dependable performance and long-term reliability matter.
Why Choose Labotemp Muffle Furnace FMU-25?
✓ High-Temperature Capability: Operation up to 1700°C with powerful MoSi₂ heating elements.
✓ Large Working Volume: 64 L chamber for larger heat-treatment loads.
✓ Precise Control: PID temperature control with ±1°C accuracy.
| General Specifications | |
|
Maximum Temperature : 1700°C Maximum Temperature |
1700°C |
|
Chamber Capacity : 64 L Chamber Capacity |
64 L |
|
Chamber Size (W × D × H) : 400 × 400 × 400 mm Chamber Size (W × D × H) |
400 × 400 × 400 mm |
|
Heating Elements : MoSi₂ Heating Elements |
MoSi₂ |
|
Heating Element Arrangement : Vertical, Two-Side Heating Heating Element Arrangement |
Vertical, Two-Side Heating |
|
Chamber Construction : Cubical Brick-Insulated Chamber Construction |
Cubical Brick-Insulated |
|
Temperature Controller : Digital PID Controller Temperature Controller |
Digital PID Controller |
|
Temperature Sensor : Thermocouple Temperature Sensor |
Thermocouple |
|
Temperature Control Accuracy : ±1°C Temperature Control Accuracy |
±1°C |
|
Cooling System : Fan Cooling Cooling System |
Fan Cooling |
| Electrical & Construction | |
|
Power Supply : 415 V, 50 Hz Power Supply |
415 V, 50 Hz |
|
Power : 18 kW Power |
18 kW |
|
Phase : Three Phase Phase |
Three Phase |
|
Safety Protection : Over-Temperature Protection Safety Protection |
Over-Temperature Protection |
|
Power Failure Protection : Automatic Operation Recovery Power Failure Protection |
Automatic Operation Recovery |
