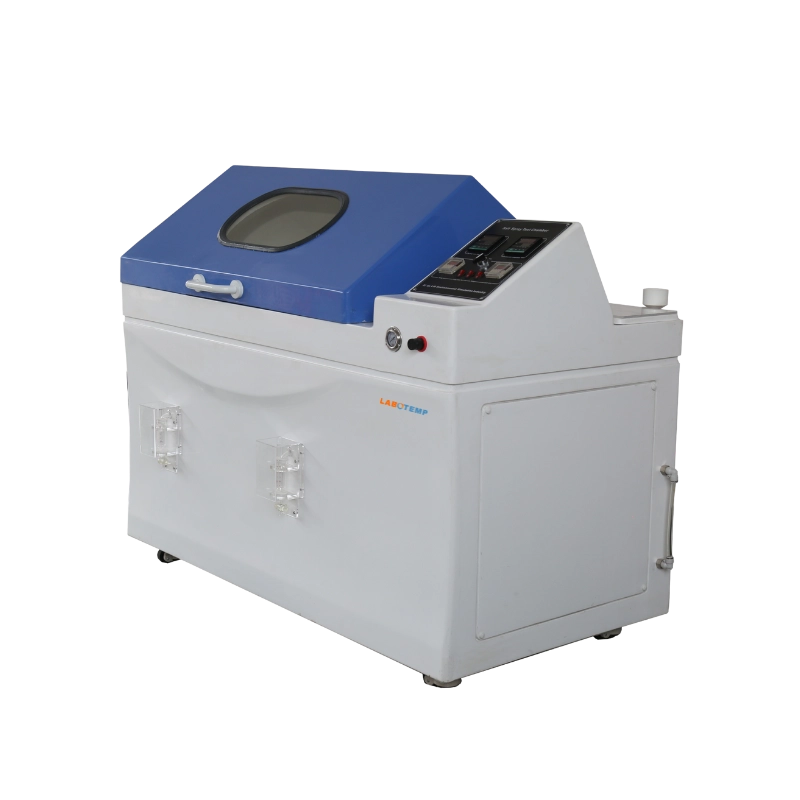

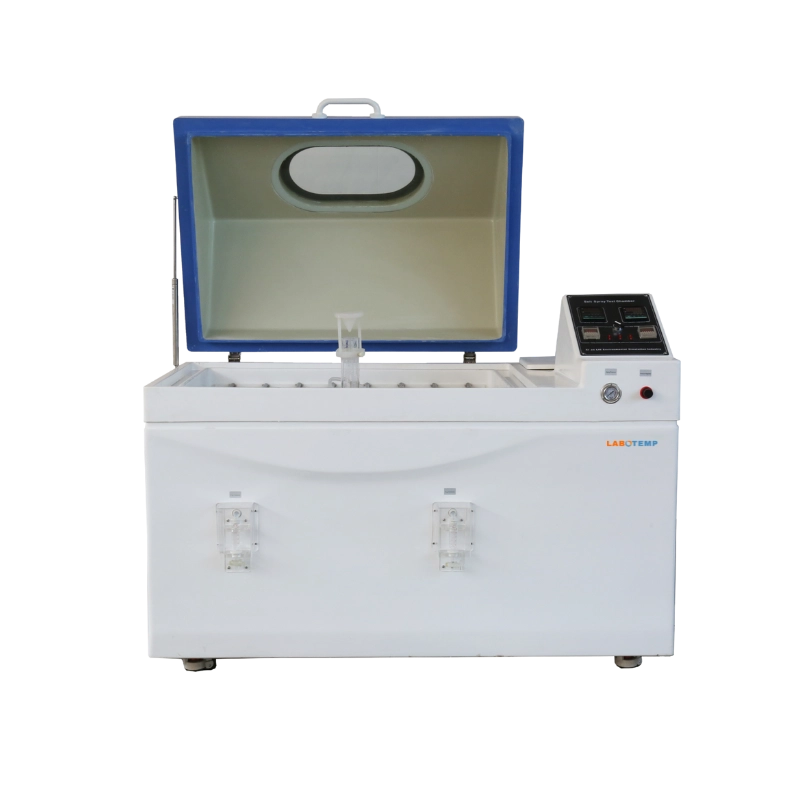

Salt Spray Test Chamber SSC-02

Name: Salt Spray Test Chamber SSC-02
Brand: Labotemp
SKU: SSC-02
Rating: 4.5 (930 reviews)

Labotemp Salt Spray Test Chamber SSC-02 is a professional salt spray tester for accelerated corrosion resistance evaluation of metal components, coatings and plated parts. It is designed for accurate cyclic corrosion test and accelerated corrosion resistance evaluation of metal components, coatings and plated parts. The salt fog test chamber delivers controlled deposition of 1–2 ml per 80 cm² per hour with stable PID temperature control (ambient to +60 °C) and 95–98% RH. Built in corrosion-resistant FRP and fully compliant with ISO and CE standards, it offers durable, standards-grade performance.

Widely used across automotive, aerospace, electronics and coatings industries, the SSC-02 supports continuous and periodic spray to simulate real-world saline environments. Integrated safety protections and simple PID operation ensure repeatable, auditable results and low maintenance. Manufactured and supplied by trusted Labotemp, a reliable salt spray test chamber manufacturer.

Why choose Labotemp Salt Spray Test Chamber SSC-02 ?
✓ Accurate Salt Fog Control: Uniform salt fog generation and verified deposition ensure reliable corrosion test results.
✓ Reliable and Durable Construction: FRP structure ensures long lasting performance in corrosive testing environments.
✓ Flexible Corrosion Testing: Supports continuous and periodic spray for standard and cyclic corrosion test applications.

$6744

Temperature Range : +60°C Temperature Range	+60°C
Interior Volume : 320L Interior Volume	320L
Internal Dimensions (mm) : 1000×640×500 Internal Dimensions (mm)	1000×640×500
Overall Dimensions (mm) : 1850×960×1350 Overall Dimensions (mm)	1850×960×1350
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 95% ~ 98% RH Humidity Range	95% ~ 98% RH
Salt Fog Deposition : 1 ~ 2 ml / 80 cm² · h Salt Fog Deposition	1 ~ 2 ml / 80 cm² · h
Spray Type : Continuous / Periodic Spray Type	Continuous / Periodic
Salt Fog Collected : Fog collector and fog measure cylinder Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating : Saturated air barrel Air Preheating	Saturated air barrel
Spraying System : Atomizer tower and Spray nozzles Spraying System	Atomizer tower and Spray nozzles
Controller : PID controller Controller	PID controller
Safety Device : Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material : Glass fiber reinforced plastics Material	Glass fiber reinforced plastics
Voltage : 220, 60Hz Voltage	220, 60Hz
Net Weight : 128kg Net Weight	128kg
Gross Weight : 253kg Gross Weight	253kg

FRP Corrosion Proof
➤ FRP Corrosion Proof
Continuous or periodic salt spray testing for corrosion evaluation
➤ Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation
➤ PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
➤ Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation
➤ Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution
➤ Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance
➤ Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing
➤ 95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
➤ Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate
➤ Fog collector and measuring cylinder for monitoring deposition rate
Internal volumes ranging from 110L to 1600L, suitable for different test sample sizes
➤ Internal volumes ranging from 110L to 1600L, suitable for different test sample sizes

Used in Corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments
➤ Used in Corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments

FRP Corrosion Proof
Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate
Internal volumes ranging from 110L to 1600L, suitable for different test sample sizes

Used in Corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments

Spray nozzle
Measuring cylinder
Solid-state relay
Contactor
Heating tube of Saturated barrel
