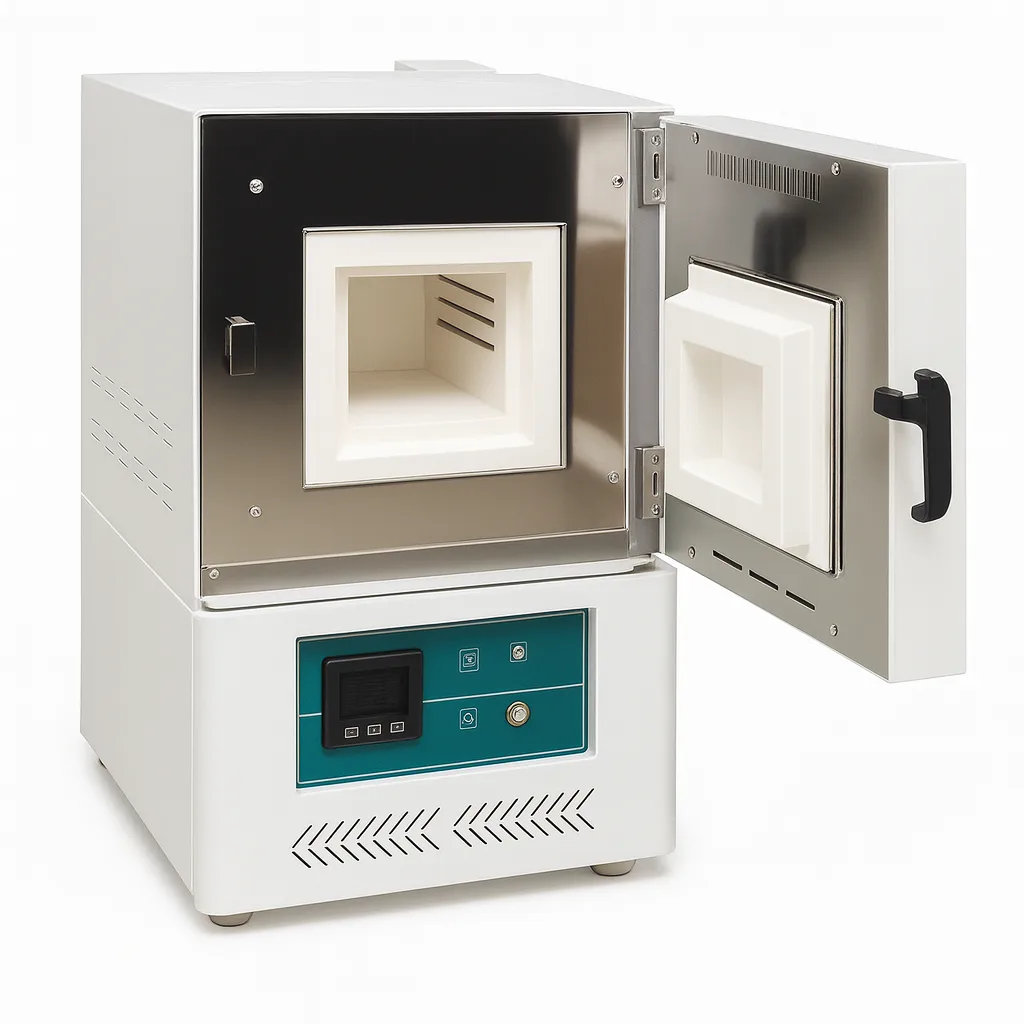

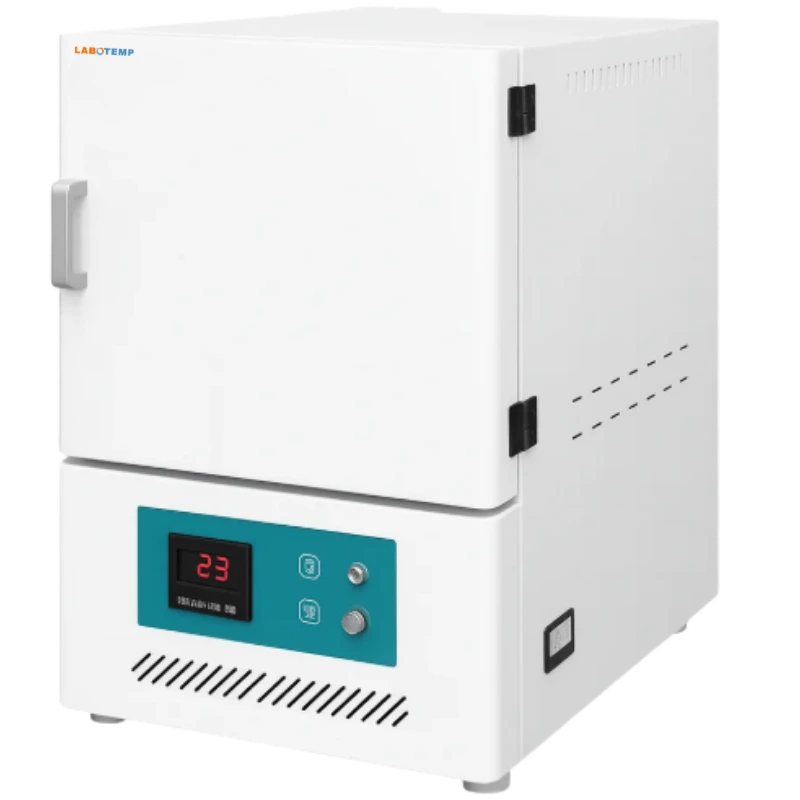

Labotemp Muffle Furnace FMU-09 is an ISO & CE-certified high-temperature electric muffle furnace engineered for laboratory and industrial use up to 1600°C (1500°C continuous). The large 20 L lab muffle furnace pairs a polycrystalline mullite fiber chamber and alumina insulation with a cold-rolled steel shell and powerful MoSi₂ rod heating (12 kW) to deliver rapid rise times (<40 min), uniform temperature and long service life. A 7″ touchscreen programmable PID controller with S-type sensor provides 1°C resolution and ±1°C accuracy for repeatable thermal cycles.
As a high-efficiency furnace and high-temperature laboratory furnace, FMU-09 is ideal for ceramic sintering, metallurgy, crystal growth, annealing, ashing, thermal analysis and material testing in universities, research institutes and industrial R&D. Designed by an established furnace manufacturer and supplied through Labotemp’s distributor network, this digital muffle furnace combines industrial muffle furnace performance with lab-grade control, documentation and technical support.
Why choose Muffle Furnace FMU-09?
✓ Certified performance: ISO & CE compliance for lab safety.
✓ Rapid & uniform heating: MoSi₂ rods; <40 min to temp.
✓ Precise control: 7″ touchscreen PID, S-type sensor (±1°C).
✓ Large capacity: 20 L chamber for higher throughput.
|
Model NO. : FMU-09 Model NO. |
FMU-09 |
|
Volume : 20 L Volume |
20 L |
|
Temperature Range : 1600℃ (1500℃ continuous) Temperature Range |
1600℃ (1500℃ continuous) |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 380V Current Rating |
AC 380V |
|
Power Rating : 12kW Power Rating |
12kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : Polycrystalline Mullite fiber Chamber Material |
Polycrystalline Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : Alumina fiber Insulation Layer |
Alumina fiber |
|
Heater : MoSi₂ Rod Heater |
MoSi₂ Rod |
|
Exhaust Hole : ODφ22 IDφ18 Exhaust Hole |
ODφ22 IDφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or program Operation Function |
Constant temp or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : S-type Sensor |
S-type |
|
Safety Device : Overtemperature; leakage; door-opening protection Safety Device |
Overtemperature; leakage; door-opening protection |
|
Chamber Size (mm) : 300×260×260 Chamber Size (mm) |
300×260×260 |
|
Exterior Size (mm) : 750×925×1210 Exterior Size (mm) |
750×925×1210 |
|
Packing Size (mm) : 910×1105×1420 Packing Size (mm) |
910×1105×1420 |
|
NW/GW (kg) : 175/195 NW/GW (kg) |
175/195 |
|
Optional Type : Air inlet Optional Type |
Air inlet |
