Salt Spray Test Chamber SSC-04

Name: Salt Spray Test Chamber SSC-04
Brand: Labotemp
SKU: SSC-04
Rating: 4.6 (962 reviews)

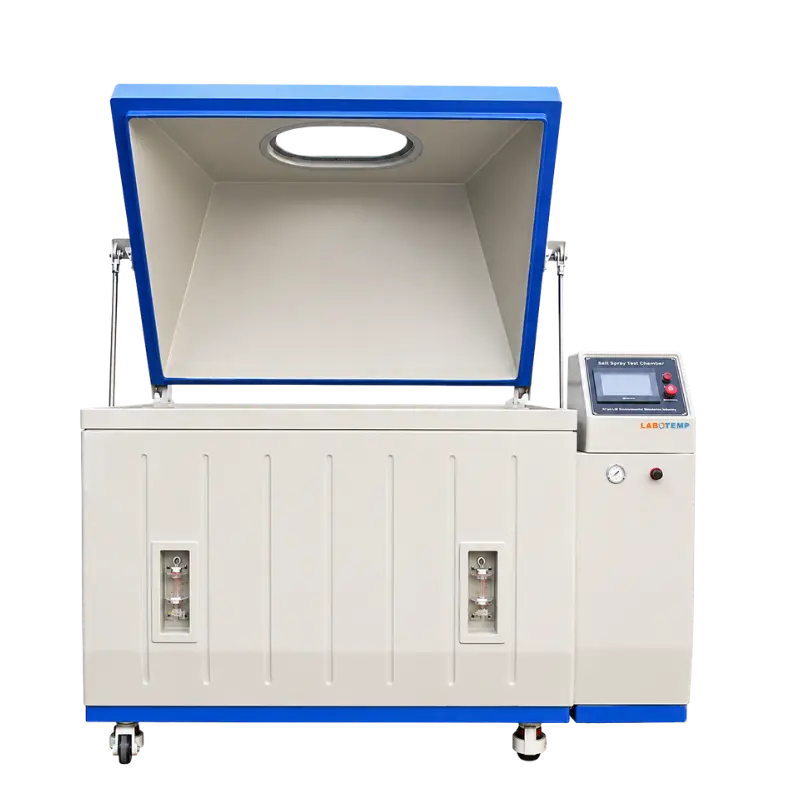

Labotemp Salt Spray Tester SSC-04 is a professional salt fog test chamber with a 780 L interior designed for accelerated corrosion evaluation of metal parts, coatings and assemblies. The unit produces a controlled salt fog deposition of 1 to 2 ml per 80 cm² per hour under precise PID temperature control from ambient to plus 60°C and maintains 95 to 98 percent relative humidity. Built in corrosion resistant glass FRP SSC-04 functions as a reliable salt spray test chamber and corrosion test chamber for lab and production quality control.

This Salt Spray Chamber supports both standard and cyclic corrosion test profiles to simulate real world saline atmospheres. Integrated safety protections including humidifier dry combustion protection, over temperature protection, water shortage protection, over current protection and earth leakage protection protect samples and operators during long test cycles.

Why choose Labotemp Salt Spray Tester SSC-04?
✓ Accurate Deposition: Controlled 1 to 2 ml per 80 cm² per hour for repeatable corrosion testing.
✓ Large Capacity: 780 L interior volume to handle multiple or large specimens for batch testing.
✓ Standards Compliance: Designed for ISO and CE regulated testing environments with verified deposition.

$11981

Temperature Range : +60°C Temperature Range	+60°C
Interior Volume : 780L Interior Volume	780L
Internal Dimensions (mm) : 1000×1300×600 Internal Dimensions (mm)	1000×1300×600
Overall Dimensions (mm) : 2000×1300×1600 Overall Dimensions (mm)	2000×1300×1600
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 95% ~ 98% RH Humidity Range	95% ~ 98% RH
Salt Fog Deposition : 1 ~ 2 ml / 80 cm² · h Salt Fog Deposition	1 ~ 2 ml / 80 cm² · h
Spray Type : Continuous / Periodic Spray Type	Continuous / Periodic
Salt Fog Collected : Fog collector and fog measure cylinder Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating : Saturated air barrel Air Preheating	Saturated air barrel
Spraying System : Atomizer tower and Spray nozzles Spraying System	Atomizer tower and Spray nozzles
Controller : PID controller Controller	PID controller
Safety Device : Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material : Glass fiber reinforced plastics Material	Glass fiber reinforced plastics
Voltage : 220, 60Hz Voltage	220, 60Hz
Net Weight : 306kg Net Weight	306kg
Gross Weight : 404kg Gross Weight	404kg

PID controller
➤ PID controller
Continuous or periodic salt spray testing for corrosion evaluation
➤ Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation
➤ PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
➤ Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation
➤ Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution
➤ Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance
➤ Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing
➤ 95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
➤ Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate
➤ Fog collector and measuring cylinder for monitoring deposition rate

Used in corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments
➤ Used in corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments

PID controller
Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate

Used in corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments

Spray nozzle
Measuring cylinder
Solid-state relay
Contactor
Heating tube of Saturated barrel
