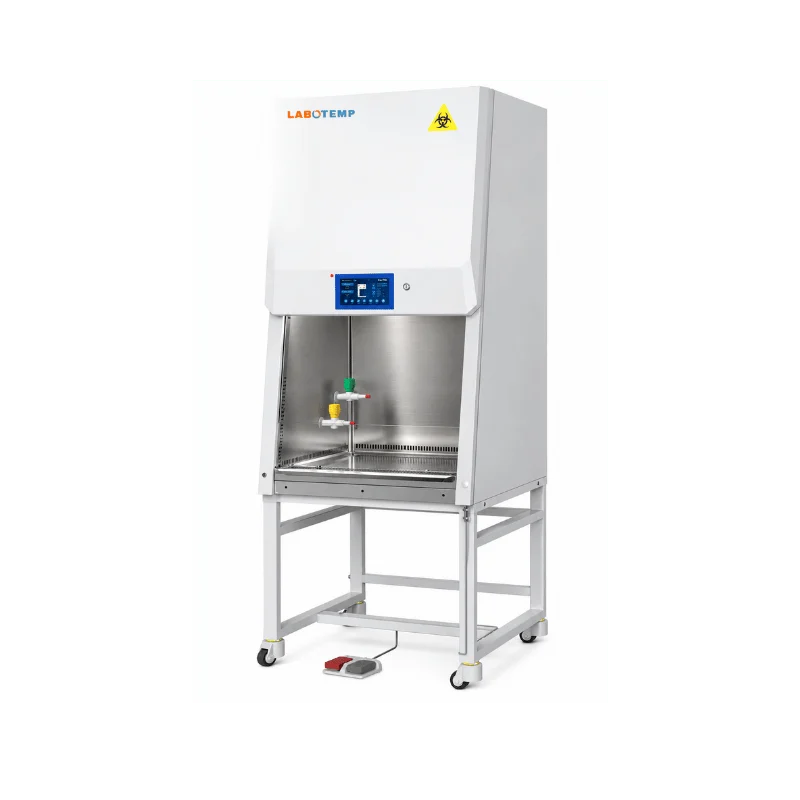

Class II Type A2 Biosafety Cabinet LBS-201

Class II Type A2 Biosafety Cabinet LBS-201

Name: Class II Type A2 Biosafety Cabinet LBS-201
Brand: Labotemp
SKU: LBS-201
Price: 2000.00 USD
Availability: InStock
Rating: 4.7 (885 reviews)

Labotemp Class II Type A2 Biosafety Cabinet LBS-201 features a 70% air recirculation and 30% air exhaust system, with a downflow velocity of 0.35 ± 0.025 m/s and inflow velocity of 0.52 ± 0.025 m/s. Dual H14 HEPA filters provide ≥99.995% filtration efficiency at 0.3 μm, supporting a Class 100 (ISO 14644-1 Class 5) clean work area. With a maximum power consumption of 350 W, the cabinet provides controlled airflow and efficient operation for routine laboratory work while supporting consistent working conditions during extended laboratory procedures.

The cabinet combines a 7-inch LCD touchscreen, real-time air velocity monitoring, motorized front window and removable 304 stainless-steel work surface for convenient operation and cleaning. UV sterilization with timer, power-failure memory, audio-visual alarms and interlock functions help maintain safe working conditions. The negative-pressure work area helps minimize leakage of contaminated air, making the cabinet suitable for microbiology, cell culture, molecular biology, sample handling and other biological laboratory procedures where controlled and protected workspace conditions are required.

Why Choose Labotemp Class II Type A2 Biosafety Cabinet LBS-201?

✓ Class II A2 Airflow: Controlled 70% recirculation and 30% exhaust for biological laboratory work
✓ High-Efficiency Filtration: Dual H14 HEPA filters provide effective particle filtration
✓ Practical Safety & Maintenance: Motorized window, alarms, UV timer and removable stainless-steel work surface simplify daily operation

Data Sheet

Cabinet Specifications
Product Type : Class II A2 Biological Safety Cabinet Product Type	Class II A2 Biological Safety Cabinet
Internal Size (W×D×H) : 610 × 550 × 600 mm Internal Size (W×D×H)	610 × 550 × 600 mm
External Size (W×D×H) : 710 × 760 × 1430 mm (Without base stand); 710 × 760 × 2050 mm (With base stand) External Size (W×D×H)	710 × 760 × 1430 mm (Without base stand); 710 × 760 × 2050 mm (With base stand)
Max. Opening : 370 mm Max. Opening	370 mm
Work Surface Height : 750 mm Work Surface Height	750 mm
Vibration of Work Surface : ≤2 μm Vibration of Work Surface	≤2 μm
Airflow & Filtration

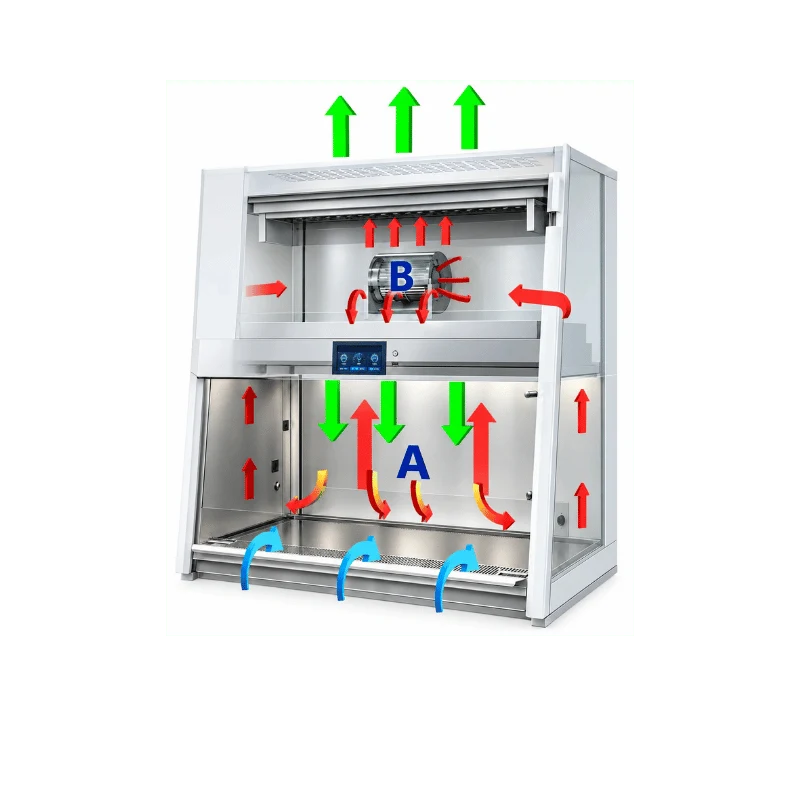

Airflow Mode : 70% air recirculation, 30% air exhaust Airflow Mode	70% air recirculation, 30% air exhaust
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity	0.35 ± 0.025 m/s
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity	0.52 ± 0.025 m/s
Inflow Air Volume : 240 m³/h (141 CFM) Inflow Air Volume	240 m³/h (141 CFM)
Downflow Air Volume : 560 m³/h (330 CFM) Downflow Air Volume	560 m³/h (330 CFM)
Exhaust Air Volume : 240 m³/h (141 CFM) Exhaust Air Volume	240 m³/h (141 CFM)
HEPA Filter : 2 pcs H14 HEPA filter, ≥99.995% efficiency at 0.3 μm HEPA Filter	2 pcs H14 HEPA filter, ≥99.995% efficiency at 0.3 μm
Cleanliness Grade : Class 100 (ISO 14644.1 Class 5) Cleanliness Grade	Class 100 (ISO 14644.1 Class 5)
Control & Safety
Display : 7-inch LCD Touch Screen Display	7-inch LCD Touch Screen
Alarm : Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height Alarm	Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height
Front Window : Motorized, toughened glass Front Window	Motorized, toughened glass
UV Lamp : 15 W × 1; emission of 253.7 nm; UV life indicator; UV timer UV Lamp	15 W × 1; emission of 253.7 nm; UV life indicator; UV timer
Interlock Function : UV lamp and front window; UV lamp and blower/LED lamp; blower and front window Interlock Function	UV lamp and front window; UV lamp and blower/LED lamp; blower and front window
Power Failure : Memory function Power Failure	Memory function
Air Velocity Monitoring : Real-time monitoring and display Air Velocity Monitoring	Real-time monitoring and display
Construction & Electrical
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body	Electro-galvanized steel with antimicrobial powder coating
Work Surface : 304 stainless steel Work Surface	304 stainless steel
LED Lamp : 10 W × 2 LED Lamp	10 W × 2
Maximum Consumption : 350 W (Not including socket consumption) Maximum Consumption	350 W (Not including socket consumption)
Power Supply : AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz Power Supply	AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz
Illumination : ≥900 Lux Illumination	≥900 Lux
Sound Emission : ≤65 dB(A) Sound Emission	≤65 dB(A)
Net Weight : 130 kg (Without base stand); 140 kg (With base stand) Net Weight	130 kg (Without base stand); 140 kg (With base stand)
Gross Weight : 165 kg (Without base stand); 175 kg (With base stand) Gross Weight	165 kg (Without base stand); 175 kg (With base stand)
Shipping Size (W×D×H) : 850 × 990 × 1640 mm Shipping Size (W×D×H)	850 × 990 × 1640 mm
Shipping Volume : 1.4 m³ Shipping Volume	1.4 m³

Dual H14 HEPA Filters ➤ Dual H14 HEPA Filters
Uses a 70% air recirculation and 30% air exhaust system for controlled airflow within the cabinet. ➤ Uses a 70% air recirculation and 30% air exhaust system for controlled airflow within the cabinet.
Maintains a controlled downflow velocity of 0.35 ± 0.025 m/s and inflow velocity of 0.52 ± 0.025 m/s. ➤ Maintains a controlled downflow velocity of 0.35 ± 0.025 m/s and inflow velocity of 0.52 ± 0.025 m/s.
Features a 7-inch LCD touchscreen for convenient operation and real-time monitoring of cabinet parameters and system status. ➤ Features a 7-inch LCD touchscreen for convenient operation and real-time monitoring of cabinet parameters and system status.
Uses an air velocity sensor for continuous airflow monitoring and precise control. ➤ Uses an air velocity sensor for continuous airflow monitoring and precise control.
Features a motorized toughened-glass front window with safety interlocks for controlled operation. ➤ Features a motorized toughened-glass front window with safety interlocks for controlled operation.
Includes UV sterilization with a 253.7 nm UV lamp, UV life indicator and adjustable UV timing function. ➤ Includes UV sterilization with a 253.7 nm UV lamp, UV life indicator and adjustable UV timing function.
Provides audio-visual alarms for abnormal airflow velocity, HEPA filter failure, UV lamp failure and unsafe front-window height. ➤ Provides audio-visual alarms for abnormal airflow velocity, HEPA filter failure, UV lamp failure and unsafe front-window height.
Includes power-failure memory function to retain operating settings after power interruption. ➤ Includes power-failure memory function to retain operating settings after power interruption.
Features a removable 304 stainless-steel work surface for easier cleaning and disinfection. ➤ Features a removable 304 stainless-steel work surface for easier cleaning and disinfection.
Uses negative-pressure airflow around the work area to help prevent contaminated-air leakage. ➤ Uses negative-pressure airflow around the work area to help prevent contaminated-air leakage.
Includes foot switch control for convenient front-window adjustment while reducing airflow disturbance caused by arm movement. ➤ Includes foot switch control for convenient front-window adjustment while reducing airflow disturbance caused by arm movement.
Provides ≥900 Lux illumination with dual LED lamps for clear visibility during laboratory procedures. ➤ Provides ≥900 Lux illumination with dual LED lamps for clear visibility during laboratory procedures.
Designed with multiple safety interlocks between the UV lamp, blower, LED lamps and front window. ➤ Designed with multiple safety interlocks between the UV lamp, blower, LED lamps and front window.
Optional upgraded LED lighting is available for enhanced workspace illumination. ➤ Optional upgraded LED lighting is available for enhanced workspace illumination.

Microbiology Laboratories: Suitable for handling biological samples and routine microbiological procedures requiring a controlled and protected work area Microbiology Laboratories
Suitable for handling biological samples and routine microbiological procedures requiring a controlled and protected work area
Cell Culture: Supports cell culture preparation and handling where controlled airflow and particle filtration are required Cell Culture
Supports cell culture preparation and handling where controlled airflow and particle filtration are required
Molecular Biology: Suitable for sample preparation and other molecular biology procedures involving biological materials Molecular Biology
Suitable for sample preparation and other molecular biology procedures involving biological materials
Biological Sample Handling: Provides a protected workspace for handling potentially contaminated biological samples and laboratory materials Biological Sample Handling
Provides a protected workspace for handling potentially contaminated biological samples and laboratory materials
Clinical Laboratories: Suitable for routine clinical laboratory procedures involving biological specimens that require controlled working conditions Clinical Laboratories
Suitable for routine clinical laboratory procedures involving biological specimens that require controlled working conditions
Research Laboratories: Supports general biological research workflows involving sample handling, preparation and processing Research Laboratories
Supports general biological research workflows involving sample handling, preparation and processing

Air Velocity Sensor ➤ Air Velocity Sensor
LCD Touch Screen ➤ LCD Touch Screen
LED Lamp ×2 ➤ LED Lamp ×2
UV Lamp ×1 ➤ UV Lamp ×1
Explosion-Proof/Waterproof Socket ×1 ➤ Explosion-Proof/Waterproof Socket ×1
Motorized Front Window ➤ Motorized Front Window
Footmaster Caster ➤ Footmaster Caster
Foot Switch ➤ Foot Switch
Removable Shallow-Plate Stainless-Steel Work Surface ➤ Removable Shallow-Plate Stainless-Steel Work Surface
Magnetic File Folde ➤ Magnetic File Folde

Base Stand ➤ Base Stand
Gas Tap ➤ Gas Tap
Water Tap ➤ Water Tap
Pressure Sensor ➤ Pressure Sensor
IV Bar With Hooks ➤ IV Bar With Hooks
ULPA Filter ➤ ULPA Filter
Upgraded LED Lamp ➤ Upgraded LED Lamp
DC Blower ➤ DC Blower
