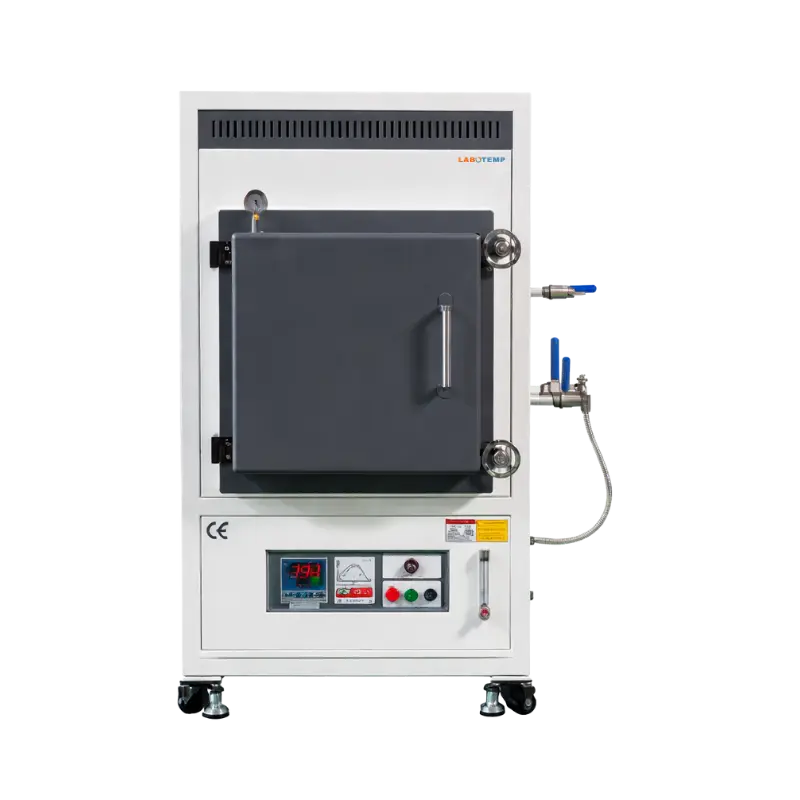

Vacuum Furnace FVA-15

Name: Vacuum Furnace FVA-15
Brand: Labotemp
SKU: FVA-15
Price: 13250.00 USD
Availability: InStock
Rating: 4.8 (861 reviews)

Labotemp Vacuum Furnace FVA-15 delivers high temperature thermal processing up to 1600°C continuous operation for material synthesis, heat treatment, sintering, annealing, and research requiring controlled vacuum or inert gas atmospheres. Featuring a 36 L chamber with 300 × 400 × 300 mm internal dimensions, the furnace combines high quality MoSi₂ heating elements, high temperature alumina ceramic fiber insulation, and a B type thermocouple to provide stable and uniform heating with ±1°C temperature precision. Its 13 kW heating system and 380 V three phase power supply make it suitable for demanding laboratory and industrial material processing applications.

The FVA-15 features a double shell structure with cooling fan, reliable sealing, gas inlet and outlet ports, and water inlet and outlet connections for compatible cooling systems. An LCD touch screen temperature controller supports programmable heating profiles, while the vacuum chamber can operate with a vacuum level of up to 20,000 Pa as specified. The side opening furnace door, stainless steel sealing components, mechanical vacuum gauge, air outlet, and float flow meter provide practical control during operation. Optional vacuum systems, water chiller, gas supply system, digital vacuum gauge, and paperless recorder allow the furnace to be configured for specific processing requirements.

Why Choose Labotemp Vacuum Furnace FVA-15?

✓ 1600°C Continuous Operation: Supports demanding high temperature material processing and research.
✓ Precise Programmable Control: LCD touch screen controller with B type thermocouple enables accurate temperature management.
✓ Vacuum & Gas Atmosphere Capability: Supports controlled processing with vacuum and inert gas environments.

$13250

Datasheet

Furnace & Operating Performance
Furnace Type : Vacuum Atmosphere Furnace Furnace Type	Vacuum Atmosphere Furnace
Chamber Type : Box Chamber, Side Door Opening Chamber Type	Box Chamber, Side Door Opening
Chamber Volume : 36 L Chamber Volume	36 L
Inner Chamber Dimensions (W × D × H) : 300 × 400 × 300 mm Inner Chamber Dimensions (W × D × H)	300 × 400 × 300 mm
Maximum Temperature : 1700 °C Maximum Temperature	1700 °C
Continuous Operating Temperature : 1600 °C Continuous Operating Temperature	1600 °C
Temperature Precision : ±1 °C Temperature Precision	±1 °C
Heating Rate : ≤15 °C/min Heating Rate	≤15 °C/min
Recommended Heating Rate : 6 to 8 °C/min Recommended Heating Rate	6 to 8 °C/min
Heating & Chamber Construction
Heating Element : High Quality Molybdenum Disilicide (MoSi₂) Heating Element	High Quality Molybdenum Disilicide (MoSi₂)
Heating Element Arrangement : 8 MoSi₂ Rod Heaters Heating Element Arrangement	8 MoSi₂ Rod Heaters
Chamber Material : High Temperature Polycrystalline Alumina Ceramic Fiber Plate Chamber Material	High Temperature Polycrystalline Alumina Ceramic Fiber Plate
Insulation Material : High Quality Thermal Insulation Material Insulation Material	High Quality Thermal Insulation Material
Furnace Shell : Cold Rolled Round Steel Sheet Furnace Shell	Cold Rolled Round Steel Sheet
Furnace Structure : Double Shell Structure with Cooling System Furnace Structure	Double Shell Structure with Cooling System
Door Type : Side Opening Door Type	Side Opening
Sealing System : High Temperature Sealing System Sealing System	High Temperature Sealing System
Inner Insulation Door : Yes Inner Insulation Door	Yes
Temperature Control
Temperature Controller : LCD Touch Screen Controller Temperature Controller	LCD Touch Screen Controller
Programmable Curves : 15 Program Curves Programmable Curves	15 Program Curves
Segments per Program : 30 Segments per Program	30
Total Programmable Segments : 450 Total Programmable Segments	450
Thermocouple : B Type Thermocouple	B Type
Temperature Protection : Overheat Protection Temperature Protection	Overheat Protection
Thermocouple Protection : Thermocouple Break Alarm Thermocouple Protection	Thermocouple Break Alarm
Electronic Components : High Quality DELIXI Electrical Parts Electronic Components	High Quality DELIXI Electrical Parts
Vacuum & Gas System
Vacuum Level : ≤ 20,000 Pa Vacuum Level	≤ 20,000 Pa
Vacuum Port : Yes Vacuum Port	Yes
Gas Inlet : Yes Gas Inlet	Yes
Gas Outlet : Yes Gas Outlet	Yes
Gas Compatibility : Argon, Nitrogen and Other Gases Gas Compatibility	Argon, Nitrogen and Other Gases
Vacuum Gauge : Mechanical Vacuum Gauge Vacuum Gauge	Mechanical Vacuum Gauge
Cooling & Utilities
Cooling Water Inlet : Yes Cooling Water Inlet	Yes
Cooling Water Outlet : Yes Cooling Water Outlet	Yes
Cooling Fan : Built In Cooling Fan	Built In
Power Supply : 380 V, Three Phase, 50/60 Hz Power Supply	380 V, Three Phase, 50/60 Hz
Rated Power : 13 kW Rated Power	13 kW
Net Weight : 900Kg Net Weight	900Kg
Gross Weight : 1000Kg Gross Weight	1000Kg

Low-Oxidation Heat ➤ Low-Oxidation Heat
36 L chamber provides practical working space for high temperature material processing ➤ 36 L chamber provides practical working space for high temperature material processing
Maximum temperature of 1700°C supports demanding thermal treatment and material research applications ➤ Maximum temperature of 1700°C supports demanding thermal treatment and material research applications
Continuous operating temperature of 1600°C enables extended high temperature processing ➤ Continuous operating temperature of 1600°C enables extended high temperature processing
High quality MoSi₂ heating elements provide reliable high temperature heating performance ➤ High quality MoSi₂ heating elements provide reliable high temperature heating performance
Eight MoSi₂ rod heaters provide distributed heating across the furnace chamber ➤ Eight MoSi₂ rod heaters provide distributed heating across the furnace chamber
High temperature alumina ceramic fiber insulation helps improve thermal insulation and energy efficiency ➤ High temperature alumina ceramic fiber insulation helps improve thermal insulation and energy efficiency
Double shell furnace structure with cooling fan helps maintain safer external surface temperatures ➤ Double shell furnace structure with cooling fan helps maintain safer external surface temperatures
LCD touch screen controller supports convenient temperature setting and programmable operation ➤ LCD touch screen controller supports convenient temperature setting and programmable operation
15 programmable temperature curves with 30 segments per program provide flexible heating profile control ➤ 15 programmable temperature curves with 30 segments per program provide flexible heating profile control
450 total programmable segments support complex multi stage heating processes ➤ 450 total programmable segments support complex multi stage heating processes
B type thermocouple provides temperature measurement for high temperature operation ➤ B type thermocouple provides temperature measurement for high temperature operation
±1°C temperature precision supports controlled and repeatable thermal processing ➤ ±1°C temperature precision supports controlled and repeatable thermal processing
Vacuum port and gas inlet and outlet connections support controlled atmosphere processing ➤ Vacuum port and gas inlet and outlet connections support controlled atmosphere processing
Compatible with argon, nitrogen, and other suitable gases for atmosphere controlled applications ➤ Compatible with argon, nitrogen, and other suitable gases for atmosphere controlled applications
Sealed furnace structure helps maintain controlled internal conditions during vacuum or gas operation ➤ Sealed furnace structure helps maintain controlled internal conditions during vacuum or gas operation
Mechanical vacuum gauge provides convenient monitoring of chamber vacuum conditions ➤ Mechanical vacuum gauge provides convenient monitoring of chamber vacuum conditions
Water inlet and outlet connections support compatible water cooling systems ➤ Water inlet and outlet connections support compatible water cooling systems
Side opening furnace door provides convenient access to the working chamber ➤ Side opening furnace door provides convenient access to the working chamber
High temperature sealing gasket supports reliable chamber sealing during operation ➤ High temperature sealing gasket supports reliable chamber sealing during operation
Overheat protection and thermocouple break alarm provide additional operational safety ➤ Overheat protection and thermocouple break alarm provide additional operational safety
Built in air outlet and float flow meter support practical atmosphere and cooling system operation ➤ Built in air outlet and float flow meter support practical atmosphere and cooling system operation
Optional vacuum system, digital vacuum gauge, gas supply system, water chiller, and paperless recorder allow application specific configuration ➤ Optional vacuum system, digital vacuum gauge, gas supply system, water chiller, and paperless recorder allow application specific configuration

Material Synthesis: Suitable for high temperature synthesis and processing of advanced materials under controlled thermal conditions Material Synthesis
Suitable for high temperature synthesis and processing of advanced materials under controlled thermal conditions
Sintering & Annealing: Used for thermal treatment, sintering, and annealing processes requiring temperatures up to 1600°C Sintering & Annealing
Used for thermal treatment, sintering, and annealing processes requiring temperatures up to 1600°C
Ceramic Research: Suitable for processing ceramic materials and other high temperature refractory materials Ceramic Research
Suitable for processing ceramic materials and other high temperature refractory materials
Powder Metallurgy: Supports high temperature treatment and sintering of metal powders and related materials Powder Metallurgy
Supports high temperature treatment and sintering of metal powders and related materials
Heat Treatment: Used for controlled heating processes where precise and repeatable temperature profiles are required Heat Treatment
Used for controlled heating processes where precise and repeatable temperature profiles are required
Vacuum Processing: Suitable for material processing under controlled vacuum conditions to support atmosphere sensitive applications Vacuum Processing
Suitable for material processing under controlled vacuum conditions to support atmosphere sensitive applications
Inert Gas Processing: Supports heat treatment and material synthesis under argon, nitrogen, and other suitable controlled gas atmospheres Inert Gas Processing
Supports heat treatment and material synthesis under argon, nitrogen, and other suitable controlled gas atmospheres
Materials Science Research: Suitable for laboratory research involving thermal processing, material development, and high temperature characterization Materials Science Research
Suitable for laboratory research involving thermal processing, material development, and high temperature characterization
Research & Development: Useful for universities, research institutes, and industrial laboratories developing and testing materials requiring high temperature processing Research & Development
Useful for universities, research institutes, and industrial laboratories developing and testing materials requiring high temperature processing
Laboratory Thermal Processing: Supports programmable multi stage heating cycles for research and production related thermal treatment workflows Laboratory Thermal Processing
Supports programmable multi stage heating cycles for research and production related thermal treatment workflows

High Temperature Gloves ➤ High Temperature Gloves
Crucible Tongs ➤ Crucible Tongs
Operation Manual ➤ Operation Manual

Pump unit- Rotary pump 2XZ-4, 220V single phase 50Hz ➤ Pump unit- Rotary pump 2XZ-4, 220V single phase 50Hz
Water Chiller - CA-02 (220V single phase 50Hz) ➤ Water Chiller - CA-02 (220V single phase 50Hz)
Digital Vacuum Gauge ➤ Digital Vacuum Gauge
One-channel gas flow meter rate- 60-600ml/min ➤ One-channel gas flow meter rate- 60-600ml/min
