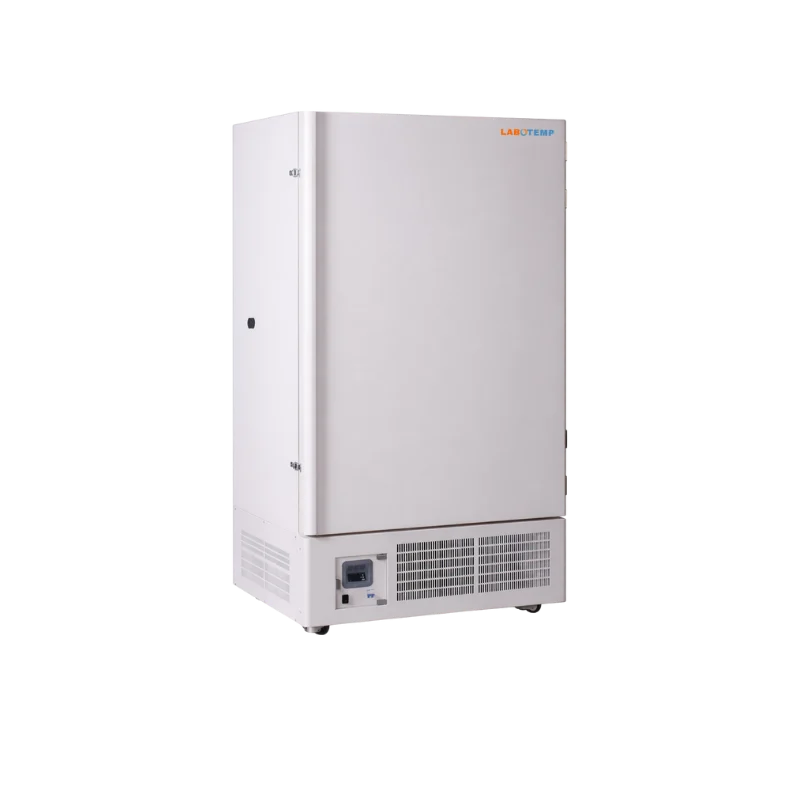

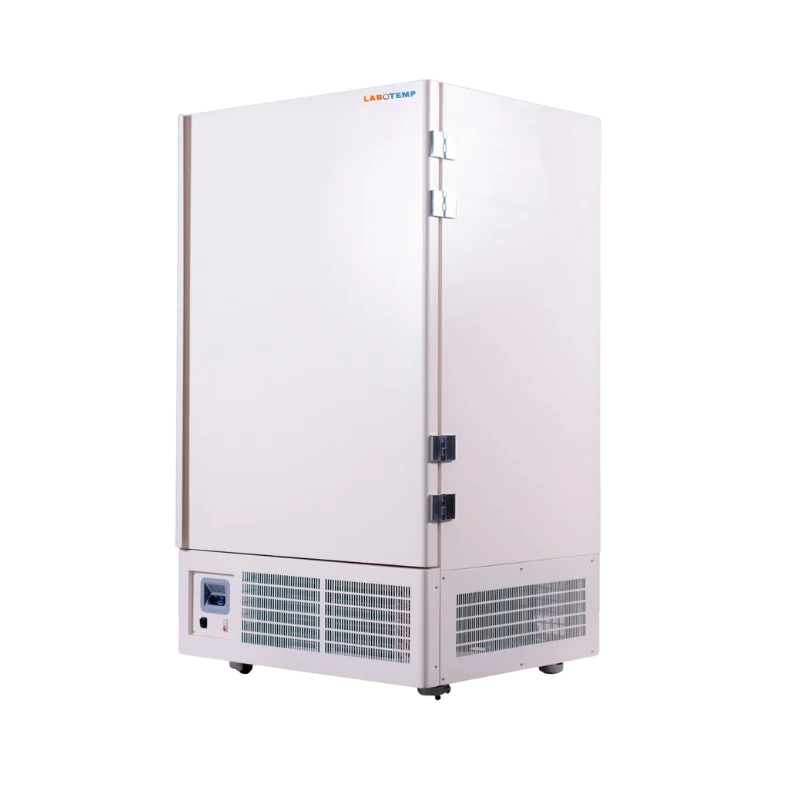

Labotemp Ultra Low Temperature Freezer ULF-21, from a trusted ULT freezer manufacturer, is a high-capacity vertical ultra low freezer for reliable −40°C to −86°C storage in biomedical research labs, hospitals, biobanks and pharmaceutical facilities. With 938 L capacity, dual Secop compressors and microprocessor control with LED, this ULT freezer maintains 0.1°C accuracy to protect vaccines, enzymes, plasma and sensitive samples.
Engineered for continuous use, the ULF-21 uses direct refrigeration with HFC refrigerant and copper heat exchangers for uniform cooling. A unibody frame with 120 mm rigid polyurethane insulation, 304 stainless interior and anti-bacterial coated exterior ensures hygiene, durability and thermal efficiency. Four inner doors, three stainless shelves, a lockable outer door, balance port and four casters enable organized, secure and mobile operation, backed by multi-level audible/visual alarms for R&D.
Why Choose Labotemp ULT Freezer ULF-21?
✓ High-capacity performance: 938 L with dual compressors for stable cooling.
✓ Precision monitoring: Microprocessor control with 0.1°C accuracy and LED.
✓ Advanced safety: Multi-level alarms, lockable design and insulated construction.
|
Model : ULF-21 Model |
ULF-21 |
|
Capacity : 938L Capacity |
938L |
|
Temperature Range : -40~-86ºC Temperature Range |
-40~-86ºC |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Compressor : Secop (2 sets) Compressor |
Secop (2 sets) |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Consumption : 1150w Consumption |
1150w |
|
Power consumption : 16.8 kw.h/24h Power consumption |
16.8 kw.h/24h |
|
Type : Vertical Type |
Vertical |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
External Size (W*D*H)mm : 1240*1000*2000mm External Size (W*D*H)mm |
1240*1000*2000mm |
|
Internal Size (W*D*H)mm : 1000*700*1335mm Internal Size (W*D*H)mm |
1000*700*1335mm |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) Structure |
Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Caster : 4 casters Caster |
4 casters |
|
Insulation thickness : 120 mm Insulation thickness |
120 mm |
|
Inner Door : 4 Inner Door |
4 |
|
Shelf : 3 pcs,304 stainless steel Shelf |
3 pcs,304 stainless steel |
|
Balance hole : 1, φ18mm Balance hole |
1, φ18mm |
|
Package size (W*D*H)mm : 1325*1070*2170mm Package size (W*D*H)mm |
1325*1070*2170mm |
|
Net Weight : 320 kg Net Weight |
320 kg |
|
Gross Weight : 405 kg Gross Weight |
405 kg |
