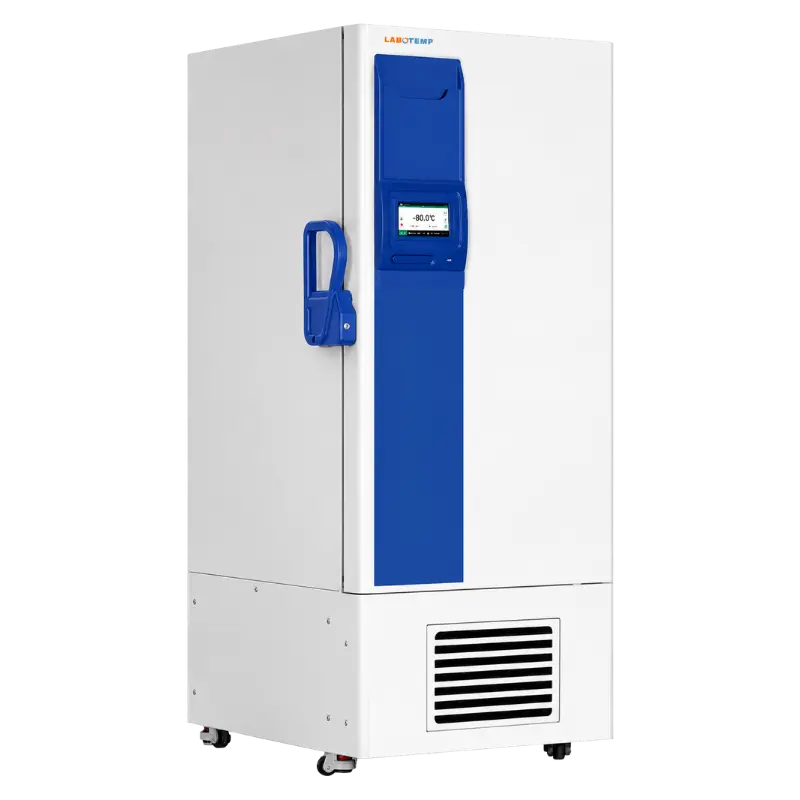

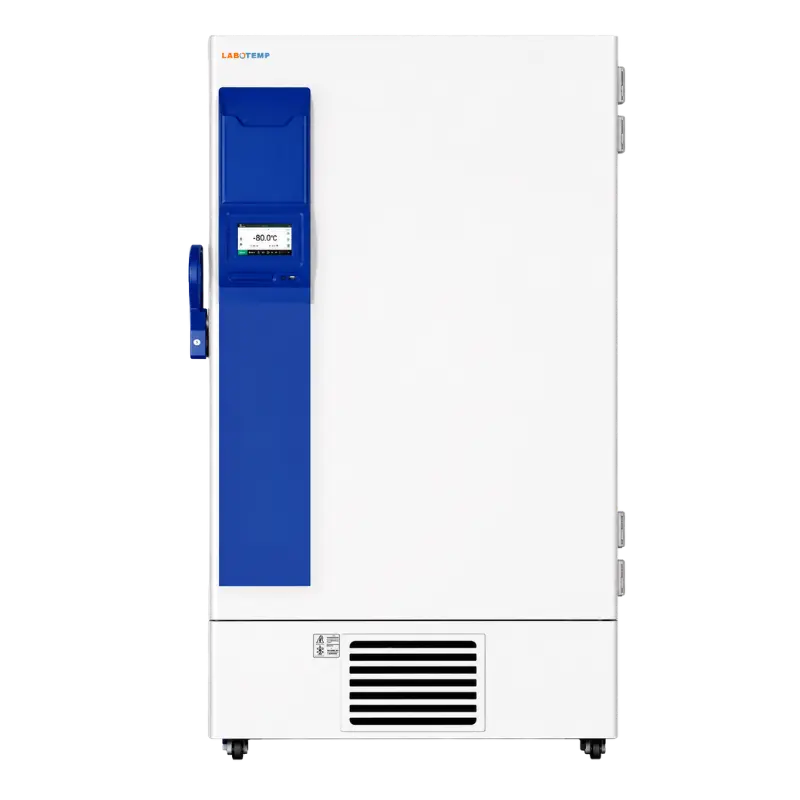

Ultra Low Temperature (ULT) Freezer -86°C ULF-30

Name: Ultra Low Temperature (ULT) Freezer -86°C ULF-30
Brand: Labotemp
SKU: ULF-30
Price: 8999.00 USD
Availability: InStock
Rating: 4.9 (603 reviews)

Labotemp Ultra Low Temperature Freezer ULF 30 provides high capacity ultra low temperature storage for long term preservation of temperature sensitive materials. With a 728 L chamber and an adjustable temperature range from −40°C to −86°C, this ULT freezer supports the storage of vaccines, viruses, germs, biological tissues, organs, medicines, reagents, and other sensitive materials. The 7 inch touch screen display provides convenient temperature monitoring, while the stainless steel inner chamber supports easy cleaning and organized laboratory storage.

Designed by Labotemp as a ULT freezer manufacturer, the ULF 30 combines microprocessor control, PTC temperature sensing, dual SECOP compressors, and direct cooling for dependable ultra low temperature operation. VIP vacuum insulation panels and PURF insulation help maintain the cold environment, while the 72 hour built in backup battery supports the controller and temperature data during power failure. High and low temperature, power failure, sensor error, controller error, door ajar, abnormal voltage, abnormal ambient temperature, battery, and condenser filter alarms provide multiple layers of operational protection.

Why Choose Labotemp Ultra Low Temperature Freezer ULF 30?

✓ Large 728 L Capacity: Provides spacious storage for high volume laboratory sample preservation.
✓ 72 Hour Backup Protection: Built in backup battery supports the controller and temperature data during power failure.
✓ Advanced Monitoring and Alarms: 7 inch touch screen control with multiple audible and visual alarms helps monitor freezer operation and sample protection.

$8999

Datasheet

Main Performance
Temperature Range : −40°C to −86°C Temperature Range	−40°C to −86°C
Ambient Temperature : 10°C to 32°C Ambient Temperature	10°C to 32°C
Capacity : 728 L / 25.71 Cu. Ft. Capacity	728 L / 25.71 Cu. Ft.
Noise Level : 53 dB Noise Level	53 dB
Cold Rack Maximum Loading : 254D Rack, 18 pcs; 264D Rack, 6 pcs Cold Rack Maximum Loading	254D Rack, 18 pcs; 264D Rack, 6 pcs
2 Inch Cold Box Maximum Loading : 504 pcs 2 Inch Cold Box Maximum Loading	504 pcs
0.5 to 2 ml Vial Maximum Loading : 50,400 pcs 0.5 to 2 ml Vial Maximum Loading	50,400 pcs
Control and Electrical
Controller and Display : Microprocessor, 7 Inch Touch Screen Controller and Display	Microprocessor, 7 Inch Touch Screen
Sensor : PTC Sensor	PTC
Voltage and Frequency : 220V ±10%, 50Hz Voltage and Frequency	220V ±10%, 50Hz
Power Consumption : 1400 W Power Consumption	1400 W
Electric Current : 10.37 A Electric Current	10.37 A
Daily Energy Consumption : 23.44 kWh/24h Daily Energy Consumption	23.44 kWh/24h
Alarm and Protection
High and Low Temperature Alarm : Yes High and Low Temperature Alarm	Yes
Power Failure Alarm : Yes, 72h Power Failure Alarm	Yes, 72h
Sensor Error Alarm : Yes Sensor Error Alarm	Yes
Controller Error Alarm : Yes Controller Error Alarm	Yes
Door Ajar Alarm : Yes Door Ajar Alarm	Yes
Abnormal Voltage Alarm : Yes Abnormal Voltage Alarm	Yes
Abnormal Ambient Temperature Alarm : Yes Abnormal Ambient Temperature Alarm	Yes
Battery Error Alarm : Yes Battery Error Alarm	Yes
Condenser Error and Filter Clean Alarm : Yes Condenser Error and Filter Clean Alarm	Yes
Refrigeration System
Refrigeration and Defrost Type : Direct Cooling, Manual Refrigeration and Defrost Type	Direct Cooling, Manual
Compressor : SECOP, 2 pcs Compressor	SECOP, 2 pcs
Refrigerant : R4001, 370 g Refrigerant	R4001, 370 g
Cabinet Construction
External and Internal Door Configuration : Foamed Solid Door × 1, Foamed Solid Door × 2 External and Internal Door Configuration	Foamed Solid Door × 1, Foamed Solid Door × 2
Adjustable Shelves : 3 Adjustable Shelves	3
Exterior and Interior Cabinet Material : Coated Steel, Stainless Steel Exterior and Interior Cabinet Material	Coated Steel, Stainless Steel
Insulation Material : PURF, Ø100 mm, and Vacuum Insulation Panel, VIP Insulation Material	PURF, Ø100 mm, and Vacuum Insulation Panel, VIP
Door Lock : Yes Door Lock	Yes
Test Holes : 2 Test Holes	2
Casters : 4 Casters	4
Connectivity and Optional Accessories
USB Data Download Port : Yes USB Data Download Port	Yes
Remote Alarm Port : Yes Remote Alarm Port	Yes
RS485 Port : Yes RS485 Port	Yes
Dimensions and Weight
Internal Dimensions, W × D × H : 963 × 571 × 1350 mm Internal Dimensions, W × D × H	963 × 571 × 1350 mm
External Dimensions, W × D × H : 1248 × 975 × 1995 mm External Dimensions, W × D × H	1248 × 975 × 1995 mm
Packaging Dimensions, W × D × H : 1330 × 1020 × 2200 mm Packaging Dimensions, W × D × H	1330 × 1020 × 2200 mm
Net Weight : 316 kg Net Weight	316 kg
Gross Weight : 392 kg Gross Weight	392 kg
Packaging : Plywood Box with Pallet Packaging	Plywood Box with Pallet

7 inch Touch Screen Display ➤ 7 inch Touch Screen Display
Microprocessor based control system for precise freezer operation ➤ Microprocessor based control system for precise freezer operation
PTC temperature sensor for temperature monitoring ➤ PTC temperature sensor for temperature monitoring
728 L storage capacity for high volume ultra low temperature storage ➤ 728 L storage capacity for high volume ultra low temperature storage
Stainless steel inner chamber for easy cleaning and laboratory use ➤ Stainless steel inner chamber for easy cleaning and laboratory use
Dual SECOP compressors for the refrigeration system ➤ Dual SECOP compressors for the refrigeration system
Direct cooling refrigeration system with manual defrost ➤ Direct cooling refrigeration system with manual defrost
PURF insulation combined with VIP vacuum insulation panel for thermal insulation ➤ PURF insulation combined with VIP vacuum insulation panel for thermal insulation
72 hour built in backup battery for controller operation and temperature data retention during power failure ➤ 72 hour built in backup battery for controller operation and temperature data retention during power failure
Visual and audible alarms for high and low temperature conditions ➤ Visual and audible alarms for high and low temperature conditions
Power failure alarm with 72 hour backup support ➤ Power failure alarm with 72 hour backup support
Sensor error and controller error alarms for operational monitoring ➤ Sensor error and controller error alarms for operational monitoring
Door ajar alarm to alert users when the freezer door remains open ➤ Door ajar alarm to alert users when the freezer door remains open
Abnormal voltage and ambient temperature alarms ➤ Abnormal voltage and ambient temperature alarms
Battery error and condenser filter clean alarms ➤ Battery error and condenser filter clean alarms
Safety door lock to help prevent unauthorized access ➤ Safety door lock to help prevent unauthorized access
Three adjustable shelves for organized sample storage ➤ Three adjustable shelves for organized sample storage
USB data download port for transferring stored temperature data ➤ USB data download port for transferring stored temperature data
Remote alarm port and RS485 communication port ➤ Remote alarm port and RS485 communication port
Four casters for convenient movement and positioning ➤ Four casters for convenient movement and positioning
Two test holes for external temperature monitoring or other compatible connections ➤ Two test holes for external temperature monitoring or other compatible connections

Biological Research Laboratories: Suitable for long term storage of biological samples, genetic materials, proteins, and laboratory specimens requiring ultra low temperatures Biological Research Laboratories
Suitable for long term storage of biological samples, genetic materials, proteins, and laboratory specimens requiring ultra low temperatures
Biobanks: Supports long term preservation of valuable biological specimens and research samples under controlled ultra low temperature conditions Biobanks
Supports long term preservation of valuable biological specimens and research samples under controlled ultra low temperature conditions
Pharmaceutical Laboratories: Suitable for storing temperature sensitive pharmaceutical materials, biological products, research compounds, and laboratory reagents Pharmaceutical Laboratories
Suitable for storing temperature sensitive pharmaceutical materials, biological products, research compounds, and laboratory reagents
Biotechnology Laboratories: Supports storage of cell cultures, microbial materials, genetic samples, and other temperature sensitive biotechnology materials Biotechnology Laboratories
Supports storage of cell cultures, microbial materials, genetic samples, and other temperature sensitive biotechnology materials
Medical and Clinical Laboratories: Suitable for preserving clinical samples, biological specimens, and other temperature sensitive materials requiring ultra low temperature storage Medical and Clinical Laboratories
Suitable for preserving clinical samples, biological specimens, and other temperature sensitive materials requiring ultra low temperature storage
Vaccine Storage: Provides ultra low temperature storage capacity for vaccines and other temperature sensitive biological products where such storage conditions are specified Vaccine Storage
Provides ultra low temperature storage capacity for vaccines and other temperature sensitive biological products where such storage conditions are specified
Research Institutes and Universities: Suitable for long term storage of samples used in molecular biology, genetics, microbiology, pharmaceutical research, and life science research Research Institutes and Universities
Suitable for long term storage of samples used in molecular biology, genetics, microbiology, pharmaceutical research, and life science research
