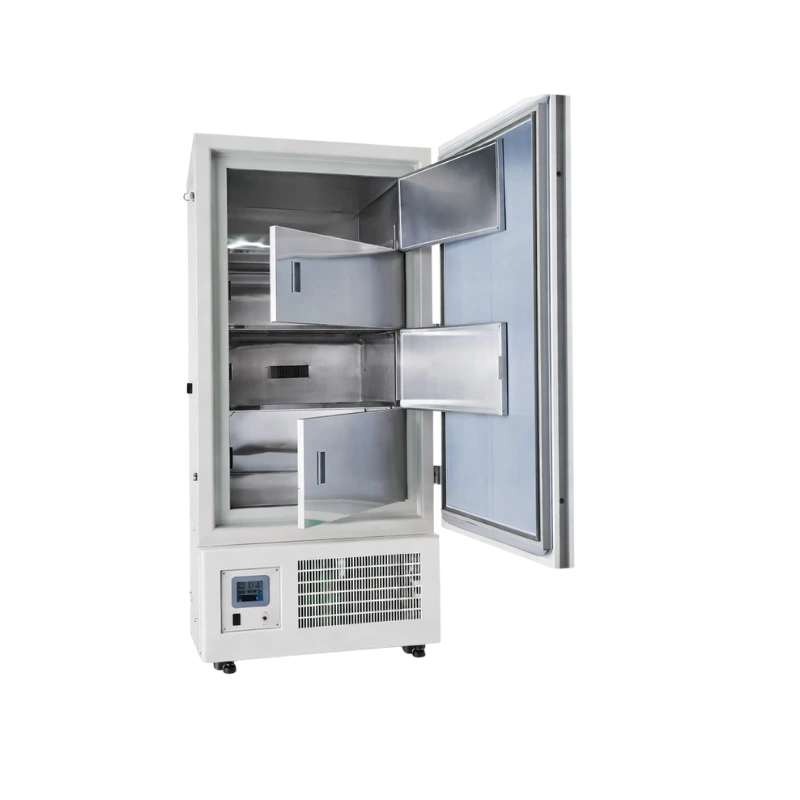

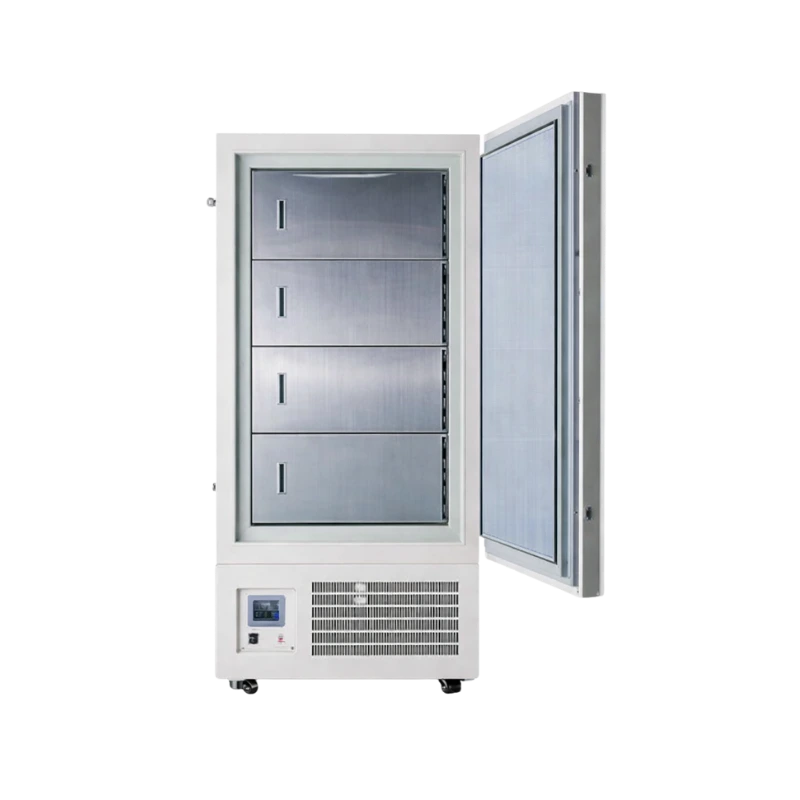

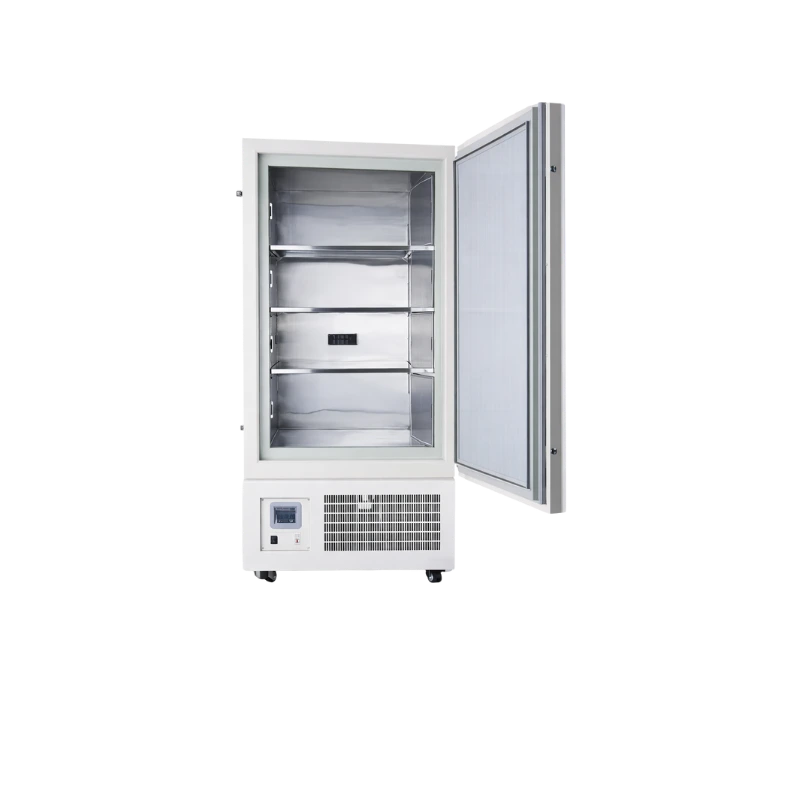

Labotemp Ultra Low Temperature Freezer ULF-13, manufactured by Labotemp, is a robust vertical ULT freezer engineered for dependable −86°C storage and precision sample protection. This 308 L upright ultra low freezer delivers stable ultra low freezer temperature performance via a SECOP compressor, condensing fan and microprocessor electronic control with digital display. Ideal for laboratories, hospitals and research institutes, it secures vaccines, enzymes, plasma and sensitive biosamples. Lab-grade tested.
Constructed with a 304 stainless-steel interior, galvanized powder-sprayed exterior, lockable door and rigid unibody structure, the ULF-13 offers hygienic, long-life operation and reliable traceability. With ambient tolerance of 16–32°C, precise thermostat control and alarm notifications for high/low temperature and door-ajar events, this ultra cold freezer or ultra low deep freezer balances performance and compliance for critical cold-chain storage.
Why Choose Labotemp ULT Freezer ULF-13?
✓ Precision: Microprocessor temperature control at −86°C.
✓ Durability: SECOP compressor, stainless interior, durable exterior.
✓ Protection: Multi-level audible/visual alarms and secure lockable access.
|
Model : ULF-13 Model |
ULF-13 |
|
Capacity : 308L Capacity |
308L |
|
Temperature range : -86°C,adjustable Temperature range |
-86°C,adjustable |
|
Compressor : SECOP Compressor |
SECOP |
|
Voltage : 220V 50Hz Voltage |
220V 50Hz |
|
Input power : 580W Input power |
580W |
|
Condensing fan : Chinese brand fan Condensing fan |
Chinese brand fan |
|
Cooling type : Air cooling Cooling type |
Air cooling |
|
Thermostat : Electronic Thermostat |
Electronic |
|
Display : Digital display Display |
Digital display |
|
Exterior size : 890*760*1810mm Exterior size |
890*760*1810mm |
|
Interior size : 570*485*1140mm Interior size |
570*485*1140mm |
|
Exterior material : Galvanized sheet sprayed Exterior material |
Galvanized sheet sprayed |
|
Interior material : 304 stainless steel Interior material |
304 stainless steel |
|
lock key : yes lock key |
yes |
|
Control system : Microproceesor control Control system |
Microproceesor control |
|
Ambient temperature : 16-32°C Ambient temperature |
16-32°C |
|
Environmental Humidity : 20-80% Environmental Humidity |
20-80% |
|
Alarm : Audible and visual alarm for High and lowtemperature, Door Ajar Alarm |
Audible and visual alarm for High and lowtemperature, Door Ajar |
|
Package size : 950x980x1885mm Package size |
950x980x1885mm |
|
Net Weight : 160kg Net Weight |
160kg |
|
Gross Weight : 195kg Gross Weight |
195kg |
Type: Vertical
Temp.Range: -40~-86ºC
Temp. Accuracy: 0.1 ºC
Shelf : 1 pcs
Type : Vertical
Temperature Range: -40~ -86ºC
Temperature Accuracy : 0.1 ºC
Shelf : 1 pcs
Type: Horizontal type
Thermostat brand: KELD
Temperature Range: -60~-86ºC, adjustable
Temperature Accuracy: 0.1 ºC
Type : Vertical
Temperature Range: -60~-86ºC
Temperature Accuracy : 0.1 ºC
Temp. Test Port: 1, φ30mm
Type : Vertical
Temperature Range : -40~ -86ºC
Temperature Accuracy : 0.1 ºC
Structure: Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Type : Horizontal type
Thermostat brand : KELD
Temperature Range: -60~-86ºC, adjustable
Temperature Accuracy: 0.1 ºC
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : -86°C,adjustable
Package size: 950x980x1885mm
Type : Vertical
Temperature Range : -40~ -86ºC
Temperature Accuracy : 0.1 ºC
Structure: Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Type : Vertical
Temperature Test Port : 1, φ25mm
Temperature Range : -40~ -86ºC
Temperature Accuracy : 0.1 ºC
Type: Horizontal type
Thermostat brand : KELD
Temperature Range: -60~-86ºC, adjustable
Temperature Accuracy : 0.1 ºC
Type: Vertical
Temperature Range: -40~-86 Degree
Temperature Accuracy: 0.1 ºC
Structure: Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Type: Vertical
Temperature Range : -40~ -86ºC
Temperature Accuracy: 0.1 ºC
Structure: Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Type : Vertical
Temperature Range : -40~ -86ºC
Temperature Accuracy: 0.1 ºC
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Type: Vertical (Upright Ultra-Low Temperature Freezer)
Temperature Range: -40°C ~ -86°C
Temperature Accuracy: 0.1°C
Structure: Unibody design & mono-assembly foaming (rigid polyurethane insulation)
Type : Vertical
Temperature Range : -40~-86ºC
Temperature Accuracy : 0.1 ºC
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Volume: 25 L
Temperature Range: +18°C to –86°C
Temperature Control Accuracy: Target temperature ±2°C
Steady-State Power Consumption: 75 W
Temperature Range: -40° to -86 °C
Refrigerant: Mixed
Power Supply: 220 V / 50 Hz
Power: 400 W
Voltage and Frequency: 220V ±10%, 50Hz
USB Data Download Port: Yes
Test Holes: 2
Temperature Range: -40°C to -86°C
Test Hole: 2
Temperature stability : +/- 5°C
Temperature Range: -40°C to -86°C
Temperature Accuracy: 0.1°C
Temperature Sensor: PTC
Temperature Range: -86°C
Temperature Control: Digital Controller
Refrigeration System: Single-stage
Voltage / Frequency: 220V ±10%, 50Hz
Test Hole: 1
Temperature Range: -60 ~ -86 °C
Shipping Size (W×D×H): 1500 × 830 × 1080 mm
Temperature Range: -40°C to -86°C
Sound Emission: 53 dB
Shipping Size (W×D×H): 1330 × 1020 × 2200 mm
Shelves Quantity: 3
Voltage: 220V50Hz/110V60Hz
Type: Chest/Deep Freezer
Transport Package: Plywood Box
Thermostat: Keld Brand
Voltage: 220V/50Hz
Type : Horizontal
Thickness of foaming layer: 100mm
Temperature Range: -40°c to -80°c, Adjustable
Voltage: DC 12V / 24V
Type: Box Type
Thickness of foaming layer : 100mm
Temperature display : Digital Data Display
Voltage : 220V50Hz/ 110v 60Hz
Type : Horizontal
Thickness of foaming layer : 100mm
Temperature range : -40°C to -80°C, adjustable
Voltage: 220V50Hz/ 110v 60Hz
Type : Horizontal
Thickness of foaming layer : 100mm
Temperature range: -40°C to -80°C, adjustable
Voltage: 220V/50Hz
Type : Horizontal
Thickness of foaming layer : 100mm
Temperature range: -40°C to -80°C, adjustable
Voltage: 220V/50Hz
Type : Horizontal
Thickness of foaming layer : 150mm
Temperature range: -86°C to -105°C, Adjustable
Voltage : 220V/50Hz
Type : Horizontal
Thickness of foaming layer : 150mm
Temperature range : -86°C to -105°C, Adjustable
Voltage : 220V/50Hz
Type : Horizontal
Thickness of foaming layer : 150mm
Temperature range: -86°C to -105°C, Adjustable
Temperature Sensor(Quick-Freezing Unit): PT100
Temperature Sensor(Plasma Blast Freezer ): PT1000
Temperature Range(Quick-Freezing Unit): -80°C to Room Temperature
Temperature Range(Plasma Blast Freezer ): -40°C to -86°C
