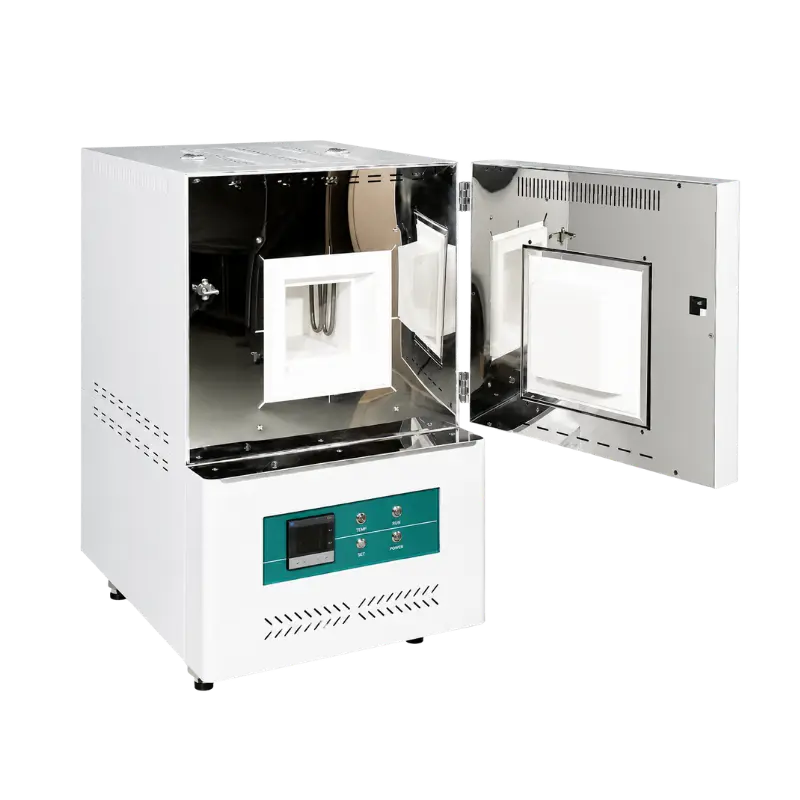

Labotemp Muffle Furnace FMU-21 is a high-temperature electric muffle furnace engineered for demanding thermal processing, material analysis, sintering, ash determination, and heat-treatment applications in research laboratories, universities, industrial facilities, and mining operations. This laboratory furnace offers a maximum operating temperature of 1700°C with a recommended continuous working temperature of 1650°C, making it suitable for advanced ceramic, metallurgical, and inorganic material testing. The 6.7 L chamber is constructed with high-temperature-resistant polycrystalline mullite fiber insulation, ensuring excellent thermal efficiency, rapid heat-up performance, and reduced energy consumption. Combined with high-purity silicon molybdenum heating elements and intelligent PID control, the furnace delivers stable temperature uniformity and precise heating accuracy of ±1°C for reliable and repeatable results.
Designed for long-term laboratory use, the FMU-21 features a programmable microcomputer controller with fixed-value and multi-step program operation modes, allowing accurate process control for complex heating profiles. The robust cold-rolled steel exterior, vacuum-formed insulation structure, and double-shell ventilation design help maintain lower external surface temperatures while improving operational safety. Additional protection systems including over-temperature alarms, leakage protection, sensor fault detection, and automatic power interruption when the door opens enhance user safety and equipment reliability.
Why Choose Labotemp Muffle Furnace FMU-21?
✓ 1700°C High-Temperature Capability: Suitable for advanced sintering, calcination, and material testing applications.
✓ Energy-Efficient Insulation Design: Polycrystalline mullite fiber chamber reduces heat loss and improves thermal efficiency.
✓ Comprehensive Safety Protection: Features over-temperature alarms, leakage protection, sensor monitoring, and door-open power cutoff.
|
Capacity : 6.7 L Capacity |
6.7 L |
|
Temperature Range : 1700°C Temperature Range |
1700°C |
|
Power Supply : AC220V / 50Hz Power Supply |
AC220V / 50Hz |
|
Heating Power : 9 kW Heating Power |
9 kW |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Temperature Resolution Ratio : 1°C Temperature Resolution Ratio |
1°C |
|
Temperature Rise Time : ≤140 min Temperature Rise Time |
≤140 min |
|
Heating Element : High-temperature resistant silicon molybdenum rod Heating Element |
High-temperature resistant silicon molybdenum rod |
|
Temperature Control Mode : Intelligent microcomputer PID control Temperature Control Mode |
Intelligent microcomputer PID control |
|
Setting Method : Standard: 4-key settings; P Type: 5-key settings; PL Type: Touch operation Setting Method |
Standard: 4-key settings; P Type: 5-key settings; PL Type: Touch operation |
|
Timer : Standard: 0–9999 min; P Type: 0–99 h 59 min; PL Type: 0–9999 min Timer |
Standard: 0–9999 min; P Type: 0–99 h 59 min; PL Type: 0–9999 min |
|
Operation Function : Fixed value running or program running Operation Function |
Fixed value running or program running |
|
Sensor : Type B Thermocouple Sensor |
Type B Thermocouple |
|
Chamber Material : High-temperature resistant polycrystalline mullite fiber Chamber Material |
High-temperature resistant polycrystalline mullite fiber |
|
Exterior Material : Cold-rolled steel plate with surface spray treatment Exterior Material |
Cold-rolled steel plate with surface spray treatment |
|
Chamber Size (W×D×H) : 300 × 150 × 150 mm Chamber Size (W×D×H) |
300 × 150 × 150 mm |
|
Net Weight : 110kg Net Weight |
110kg |
|
Gross Weight : 130kg Gross Weight |
130kg |
|
Packing Dimensions (W×D×H) : 910 × 985 × 1310 mm Packing Dimensions (W×D×H) |
910 × 985 × 1310 mm |
