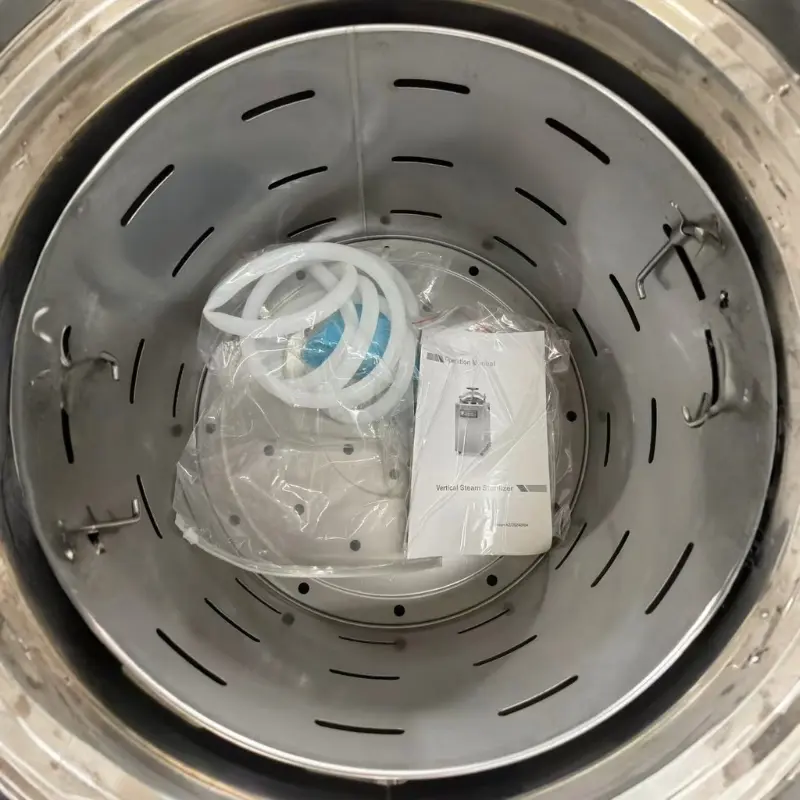

Labotemp Vertical Autoclave VEA-04 is a compact 35 liter Automatic Vertical Steam Sterilizer designed for laboratories, research institutes, and small clinical facilities requiring advanced sterilization control. Unlike standard gravity units, this autoclave sterilizer features three-time pre-vacuum technology to enhance air removal and improve steam penetration for wrapped instruments, laboratory glassware, and critical tools. Operating within a temperature range of 116°C to 134°C and a rated working pressure of 0.22 MPa, it delivers stable thermal performance supported by a 3.5 kW heating system for consistent cycle reliability.
Built by an experienced autoclave manufacturer, this model integrates microcomputer automatic control with an LED touch screen for precise parameter management. Automatic water supply, external steam generator, cold air discharge, and automatic exhaust optimize efficiency while reducing manual intervention. Safety interlocking, over-temperature protection, over-pressure self-discharge, and low water level safeguards ensure secure operation. Its energy-efficient design and durable stainless steel chamber support long-term daily laboratory use with dependable performance.
Why Choose Labotemp Vertical Autoclave VEA-04
✓ Three-Time Pre-Vacuum: Improved steam penetration for reliable sterilization of wrapped and complex loads
✓ Intelligent Automation: LED touch control with automatic water and steam management for simplified operation
✓ Engineered for Reliability: Stable temperature control and multi-layer safety protection for consistent long-term use
| General Specifications | |
|
Volume : 35 L Volume |
35 L |
|
Working Temperature : 134°C Working Temperature |
134°C |
|
Power : 3.5 kW Power |
3.5 kW |
|
Voltage : AC 220 V, 50 Hz Voltage |
AC 220 V, 50 Hz |
| Sterilization Parameters | |
|
Design Temperature : 139°C Design Temperature |
139°C |
|
Sterilization Temperature Setting Range : 116°C–134°C Sterilization Temperature Setting Range |
116°C–134°C |
|
Design Pressure : 0.25 MPa Design Pressure |
0.25 MPa |
|
Rated Working Pressure : 0.22 MPa Rated Working Pressure |
0.22 MPa |
| Chamber Dimensions | |
|
Chamber Size : 350 × 400 Chamber Size |
350 × 400 |
|
Bucket Dimension : 330 × 320 Bucket Dimension |
330 × 320 |
|

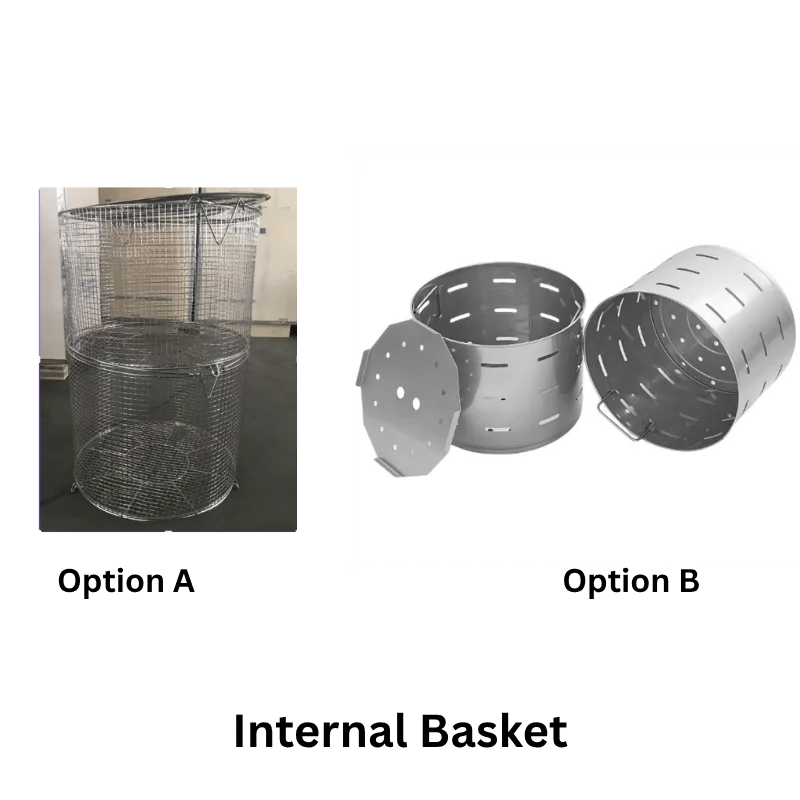

Basket Dimension : 320 × 350 Basket Dimension |
320 × 350 |
| Operation | |
|
Air Removal : Vacuum pump Air Removal |
Vacuum pump |
|
Automatic Water Filling : Automatic water (standard) Automatic Water Filling |
Automatic water (standard) |
| Physical Dimensions | |
|
Outer Dimension (L × W × H) : 696 × 496 × 940 Outer Dimension (L × W × H) |
696 × 496 × 940 |
|
Packing Size (L × W × H) : 790 × 610 × 1130 Packing Size (L × W × H) |
790 × 610 × 1130 |
|
Gross Weight : 130 kg Gross Weight |
130 kg |
|
Net Weight : 115 kg Net Weight |
115 kg |
