Class II Type A2 Biosafety Cabinet LBS-202

Type 2 Biological safety cabinet with side window

Class II Type A2 Biosafety Cabinet LBS-202

Name: Class II Type A2 Biosafety Cabinet LBS-202
Brand: Labotemp
SKU: LBS-202
Price: 2000.00 USD
Availability: InStock
Rating: 5 (622 reviews)

Labotemp Class II Type A2 Biosafety Cabinet LBS-202 is designed to provide a controlled and protected workspace for microbiology, cell culture, molecular biology, sample handling and other biological laboratory procedures. Its 70% air recirculation and 30% air exhaust airflow system maintains controlled downflow and inflow velocities of 0.35 ± 0.025 m/s and 0.52 ± 0.025 m/s, respectively. Two H14 HEPA filters provide ≥99.995% efficiency at 0.3 μm, supporting a Class 100 (ISO 14644.1 Class 5) work environment. With maximum power consumption of 350 W, the cabinet offers efficient operation for routine laboratory use.

The biological safety hood Class II features two side windows for improved visibility, a 7-inch LCD touchscreen for monitoring airflow, temperature, filter and UV lamp status, and a motorized toughened-glass front window for convenient operation. The removable 304 stainless-steel work surface simplifies cleaning and disinfection, while the negative-pressure work area helps minimize contaminated-air leakage. UV sterilization with timer, power-failure memory, audio-visual alarms and multiple interlocks further support safe and reliable operation.

Why Choose Labotemp Class II Type A2 Biosafety Cabinet LBS-202?

✓ Side-Window Visibility: Two side windows provide improved observation of the work area
✓ High-Efficiency Filtration: Dual H14 HEPA filters deliver ≥99.995% filtration efficiency
✓ Controlled & Efficient Airflow: 70% recirculation, 30% exhaust with 350 W maximum consumption

Data Sheet

Cabinet Specifications
Internal Size (W×D×H) : 610 × 550 × 600 mm Internal Size (W×D×H)	610 × 550 × 600 mm
External Size (W×D×H) : 710 × 760 × 1430 mm (Without base stand); 710 × 760 × 2050 mm (With base stand) External Size (W×D×H)	710 × 760 × 1430 mm (Without base stand); 710 × 760 × 2050 mm (With base stand)
Maximum Opening : 370 mm Maximum Opening	370 mm
Work Surface Height : 750 mm Work Surface Height	750 mm
Side Window : Two side windows Side Window	Two side windows
Airflow & Filtration
Airflow Mode : 70% air recirculation, 30% air exhaust Airflow Mode	70% air recirculation, 30% air exhaust
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity	0.35 ± 0.025 m/s
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity	0.52 ± 0.025 m/s
Inflow Air Volume : 240 m³/h (141 CFM) Inflow Air Volume	240 m³/h (141 CFM)
Downflow Air Volume : 560 m³/h (330 CFM) Downflow Air Volume	560 m³/h (330 CFM)
Exhaust Air Volume : 240 m³/h (141 CFM) Exhaust Air Volume	240 m³/h (141 CFM)
HEPA Filter : 2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm HEPA Filter	2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm
Cleanliness Grade : Class 100 (ISO 14644.1 Class 5) Cleanliness Grade	Class 100 (ISO 14644.1 Class 5)
Control, Safety & Construction
Display : 7-inch LCD Touch Screen Display	7-inch LCD Touch Screen
Air Velocity Monitoring : Air velocity sensor with real-time monitoring and display Air Velocity Monitoring	Air velocity sensor with real-time monitoring and display
Alarm : Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height Alarm	Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body	Electro-galvanized steel with antimicrobial powder coating
Work Surface : 304 stainless steel Work Surface	304 stainless steel
Front Window : Motorized, toughened glass Front Window	Motorized, toughened glass
UV Lamp : 15 W ×1, 253.7 nm, UV life indicator and UV timer UV Lamp	15 W ×1, 253.7 nm, UV life indicator and UV timer
LED Lamp : 10 W ×2 LED Lamp	10 W ×2
Illumination : ≥900 Lux Illumination	≥900 Lux
Sound Emission : ≤65 dB(A) Sound Emission	≤65 dB(A)
Vibration of Work Surface : ≤2 μm Vibration of Work Surface	≤2 μm
Electrical & Physical Specifications
Maximum Consumption : 350 W (excluding socket consumption) Maximum Consumption	350 W (excluding socket consumption)
Power Supply : AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz Power Supply	AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz
Net Weight : 130 kg (Without base stand); 140 kg (With base stand) Net Weight	130 kg (Without base stand); 140 kg (With base stand)
Gross Weight : 165 kg (Without base stand); 175 kg (With base stand) Gross Weight	165 kg (Without base stand); 175 kg (With base stand)
Shipping Size (W×D×H) : 850 × 990 × 1640 mm Shipping Size (W×D×H)	850 × 990 × 1640 mm
Shipping Volume : 1.4 m³ Shipping Volume	1.4 m³

Two Side Windows ➤ Two Side Windows

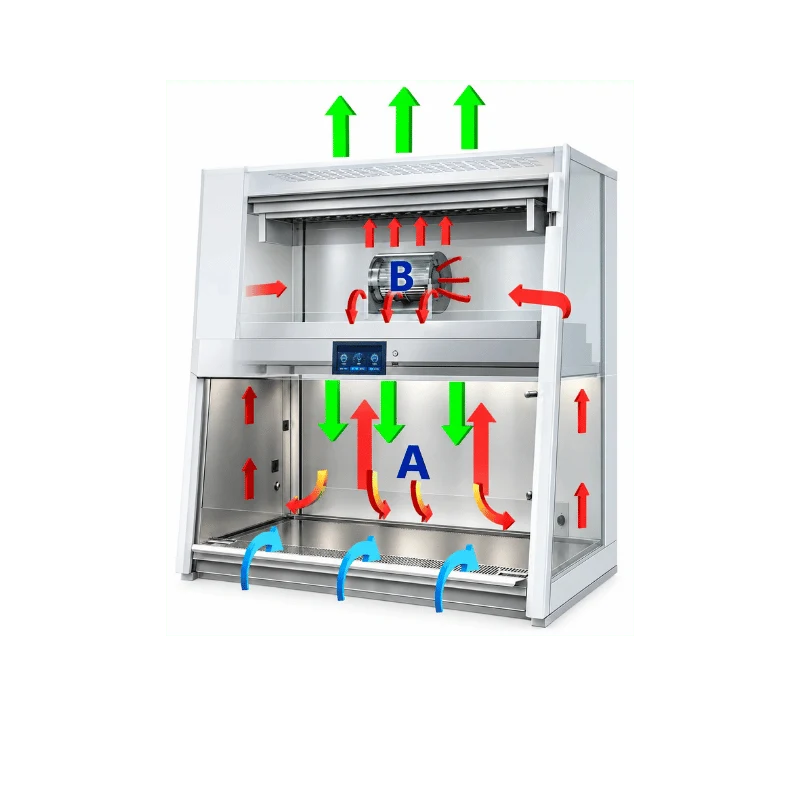

Class II A2 airflow system provides controlled protection for biological laboratory procedures. ➤ Class II A2 airflow system provides controlled protection for biological laboratory procedures.
Two side windows provide improved visibility and observation of the work area. ➤ Two side windows provide improved visibility and observation of the work area.
Uses 70% air recirculation and 30% air exhaust for controlled airflow management. ➤ Uses 70% air recirculation and 30% air exhaust for controlled airflow management.
Equipped with dual H14 HEPA filters providing ≥99.995% filtration efficiency at 0.3 μm. ➤ Equipped with dual H14 HEPA filters providing ≥99.995% filtration efficiency at 0.3 μm.
Maintains a Class 100 (ISO 14644.1 Class 5) clean work area. ➤ Maintains a Class 100 (ISO 14644.1 Class 5) clean work area.
Features a 7-inch LCD touchscreen for real-time display of front window status, air velocity, temperature, filter and UV lamp life, and system working status. ➤ Features a 7-inch LCD touchscreen for real-time display of front window status, air velocity, temperature, filter and UV lamp life, and system working status.
Air velocity sensor provides real-time airflow monitoring and precise control. ➤ Air velocity sensor provides real-time airflow monitoring and precise control.
Motorized toughened-glass front window provides convenient adjustment during operation. ➤ Motorized toughened-glass front window provides convenient adjustment during operation.
Negative-pressure work area helps prevent air leakage and improve biosafety. ➤ Negative-pressure work area helps prevent air leakage and improve biosafety.
UV sterilization function with a 253.7 nm UV lamp and adjustable timing function supports workspace decontamination. ➤ UV sterilization function with a 253.7 nm UV lamp and adjustable timing function supports workspace decontamination.
Power-failure memory function helps retain operating settings during power interruptions. ➤ Power-failure memory function helps retain operating settings during power interruptions.
Audio and visual alarms indicate abnormal airflow velocity, HEPA filter failure, UV lamp failure and unsafe front-window height. ➤ Audio and visual alarms indicate abnormal airflow velocity, HEPA filter failure, UV lamp failure and unsafe front-window height.
Safety interlocks coordinate the UV lamp, front window, blower and LED lamp for safer operation. ➤ Safety interlocks coordinate the UV lamp, front window, blower and LED lamp for safer operation.
Removable 304 stainless-steel work surface allows convenient cleaning and disinfection. ➤ Removable 304 stainless-steel work surface allows convenient cleaning and disinfection.
Standard foot switch allows front-window adjustment while helping reduce airflow turbulence caused by arm movement. ➤ Standard foot switch allows front-window adjustment while helping reduce airflow turbulence caused by arm movement.
Optional upgraded LED lamp provides enhanced illumination with RG0, anti-glare and high color-rendering features.  ➤ Optional upgraded LED lamp provides enhanced illumination with RG0, anti-glare and high color-rendering features.

Microbiology Laboratories: Suitable for handling biological samples and performing routine microbiological procedures under controlled and protected working conditions Microbiology Laboratories
Suitable for handling biological samples and performing routine microbiological procedures under controlled and protected working conditions
Cell Culture Laboratories: Supports cell culture preparation, handling and related procedures requiring a clean and controlled workspace Cell Culture Laboratories
Supports cell culture preparation, handling and related procedures requiring a clean and controlled workspace
Molecular Biology Laboratories: Suitable for biological sample preparation and molecular biology procedures involving potentially contaminated materials Molecular Biology Laboratories
Suitable for biological sample preparation and molecular biology procedures involving potentially contaminated materials
Clinical Laboratories: Supports routine handling and processing of biological specimens where operator and work-area protection are required Clinical Laboratories
Supports routine handling and processing of biological specimens where operator and work-area protection are required
Research Laboratories: Suitable for biological research workflows involving sample handling, preparation and processing Research Laboratories
Suitable for biological research workflows involving sample handling, preparation and processing
Biological Sample Handling: Provides a controlled workspace for handling biological materials while supporting protection of the operator, samples and laboratory environment Biological Sample Handling
Provides a controlled workspace for handling biological materials while supporting protection of the operator, samples and laboratory environment
Medical & Biotechnology Facilities: Suitable for laboratories and facilities performing routine biological procedures that require Class II A2 containment and HEPA-filtered airflow Medical & Biotechnology Facilities
Suitable for laboratories and facilities performing routine biological procedures that require Class II A2 containment and HEPA-filtered airflow

Side Window ➤ Side Window
Air Velocity Sensor ➤ Air Velocity Sensor
7-inch LCD Touch Screen ➤ 7-inch LCD Touch Screen
LED Lamp ×2 ➤ LED Lamp ×2
UV Lamp ×1 ➤ UV Lamp ×1
Explosion-Proof/Waterproof Socket ×1 ➤ Explosion-Proof/Waterproof Socket ×1
Motorized Front Window ➤ Motorized Front Window
Footmaster Caster ➤ Footmaster Caster
Foot Switch ➤ Foot Switch
Removable Shallow-Plate Stainless Steel Work Surface ➤ Removable Shallow-Plate Stainless Steel Work Surface
Magnetic File Folder ➤ Magnetic File Folder

Base Stand ➤ Base Stand
Gas Tap ➤ Gas Tap
Water Tap ➤ Water Tap
Pressure Sensor ➤ Pressure Sensor
IV Bar With Hooks ➤ IV Bar With Hooks
ULPA Filter ➤ ULPA Filter
Upgraded LED Lamp ➤ Upgraded LED Lamp
DC Blower ➤ DC Blower
