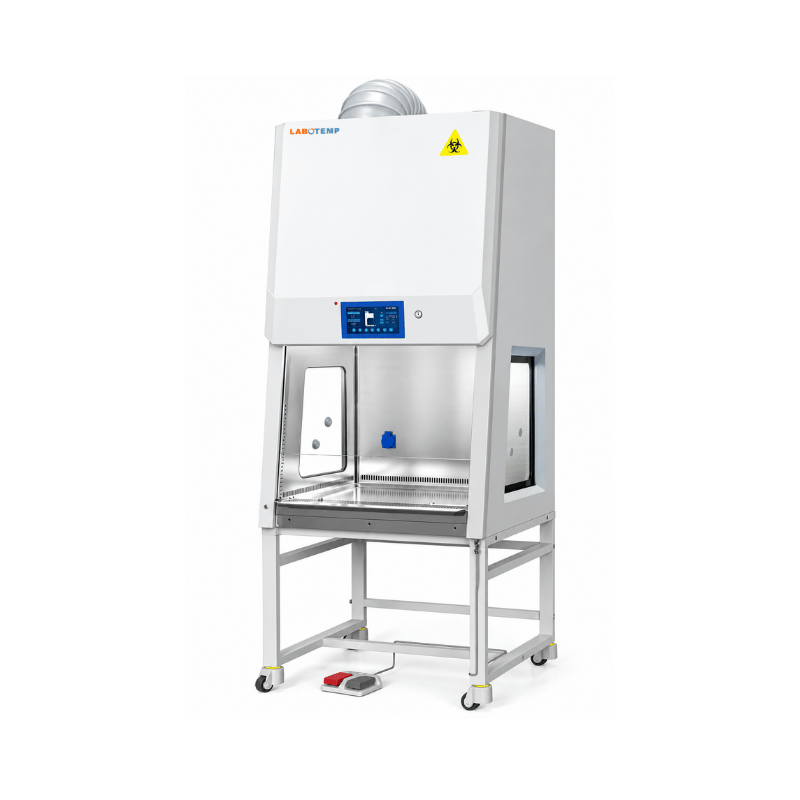

Biosafety Cabinet Class 2 Type B2 LBS-302

Biosafety Cabinet Class 2 Type B2 LBS-302

Name: Biosafety Cabinet Class 2 Type B2 LBS-302
Brand: Labotemp
SKU: LBS-302
Price: 5696.00 USD
Availability: InStock
Rating: 4.8 (877 reviews)

Labotemp Biosafety Cabinet Class 2 Type B2 LBS-302 is a high-performance biological safety cabinet designed to provide protection for operators, samples, and the surrounding environment during biological laboratory procedures. Featuring a 100% air exhaust system and negative-pressure work area, this cabinet directs cabinet air through HEPA filtration for external exhaust. The biosafety cabinet with window configuration provides a side window for improved visibility while maintaining controlled working conditions. It is suitable for biological safety laboratories and applications involving appropriate volatile chemicals and radioactive materials.

The LBS-302 features a 610 × 550 × 600 mm internal workspace, dual H14 HEPA filters with ≥99.995% efficiency at 0.3 μm, and a 7-inch LCD touchscreen for real-time monitoring of airflow velocity, front-window status, temperature, filter and UV lamp life, and system working status. The motorized front window includes control and travel-limit protection, while the removable 304 stainless steel work surface facilitates cleaning and disinfection. UV sterilization with timer, air velocity sensing, audio-visual alarms, safety interlocks, power-failure memory, standard exhaust blower, and 9 m exhaust duct provide convenient operation and controlled exhaust management.

Why Choose Labotemp Biosafety Cabinet Class 2 Type B2 LBS-302?

✓ Biosafety Cabinet With Window: Side window improves visibility into the working area.
✓ Advanced Monitoring: 7-inch LCD touchscreen and air velocity sensor enable real-time system monitoring.
✓ Complete Exhaust Configuration: Includes exhaust blower and 9 m exhaust duct as standard.

$5696

Datasheet

Cabinet Specifications
Product Type : Class II Type B2 Biological Safety Cabinet Product Type	Class II Type B2 Biological Safety Cabinet
Internal Size (W×D×H) : 610 × 550 × 600 mm Internal Size (W×D×H)	610 × 550 × 600 mm
External Size (W×D×H) : 710 × 760 × 2050 mm External Size (W×D×H)	710 × 760 × 2050 mm
Maximum Opening : 370 mm Maximum Opening	370 mm
Work Surface Height : 750 mm Work Surface Height	750 mm
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body	Electro-galvanized steel with antimicrobial powder coating
Work Surface : 304 stainless steel Work Surface	304 stainless steel
Front Window : Motorized, toughened glass Front Window	Motorized, toughened glass
Side Window : Included Side Window	Included
Airflow & Filtration System
Airflow Mode : 100% Air Exhaust Airflow Mode	100% Air Exhaust
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity	0.35 ± 0.025 m/s
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity	0.52 ± 0.025 m/s
Inflow Air Volume : 240 m³/h (141 CFM) Inflow Air Volume	240 m³/h (141 CFM)
Downflow Air Volume : 560 m³/h (330 CFM) Downflow Air Volume	560 m³/h (330 CFM)
Exhaust Air Volume : 800 m³/h (471 CFM) Exhaust Air Volume	800 m³/h (471 CFM)
HEPA Filter : 2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm HEPA Filter	2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm
Cleanliness Grade : Class 100 (ISO 14644.1 Class 5) Cleanliness Grade	Class 100 (ISO 14644.1 Class 5)
Control & Safety System
Display : 7-inch LCD Touch Screen Display	7-inch LCD Touch Screen
Alarm : Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height Alarm	Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height
Air Velocity Monitoring : Air velocity sensor with real-time monitoring and display Air Velocity Monitoring	Air velocity sensor with real-time monitoring and display
UV Lamp : 15 W × 1, 253.7 nm, UV life indicator and UV timer UV Lamp	15 W × 1, 253.7 nm, UV life indicator and UV timer
LED Lamp : 10 W × 2 LED Lamp	10 W × 2
Safety Interlock : UV lamp/front window; UV lamp/blower & LED lamp; blower/front window Safety Interlock	UV lamp/front window; UV lamp/blower & LED lamp; blower/front window
Power-Failure Memory : Included Power-Failure Memory	Included
Front Window Operation : Motorized with control and travel-limit protection Front Window Operation	Motorized with control and travel-limit protection
UV Sterilization : UV sterilization and timing function UV Sterilization	UV sterilization and timing function
Electrical & Performance
Maximum Consumption : 350 W, excluding socket consumption Maximum Consumption	350 W, excluding socket consumption
Power Supply : AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz Power Supply	AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz
Illumination : ≥900 Lux Illumination	≥900 Lux
Sound Emission : ≤65 dB(A) Sound Emission	≤65 dB(A)
Vibration of Work Surface : ≤2 μm Vibration of Work Surface	≤2 μm
Weight & Shipping
Net Weight : 140 kg (Main Unit); 65 kg (Exhaust Blower) Net Weight	140 kg (Main Unit); 65 kg (Exhaust Blower)
Gross Weight : 175 kg (Main Unit); 80 kg (Exhaust Blower) Gross Weight	175 kg (Main Unit); 80 kg (Exhaust Blower)
Shipping Size – Main Unit (W×D×H) : 850 × 990 × 1640 mm Shipping Size – Main Unit (W×D×H)	850 × 990 × 1640 mm
Shipping Size – Exhaust Blower : 730 × 660 × 500 mm Shipping Size – Exhaust Blower	730 × 660 × 500 mm
Shipping Volume : 1.62 m³ Shipping Volume	1.62 m³

UV Sterilization & Timer ➤ UV Sterilization & Timer

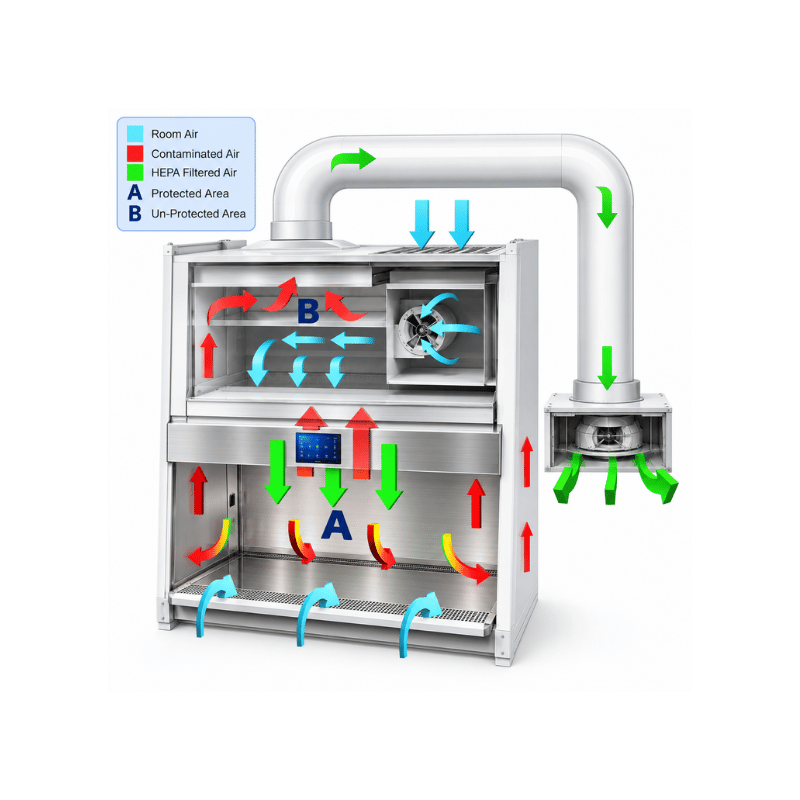

100% air exhaust system provides complete external exhaust without internal air recirculation. ➤ 100% air exhaust system provides complete external exhaust without internal air recirculation.
Negative-pressure work area helps prevent contaminated air leakage and supports biosafety. ➤ Negative-pressure work area helps prevent contaminated air leakage and supports biosafety.
Dual H14 HEPA filters provide ≥99.995% filtration efficiency at 0.3 μm. ➤ Dual H14 HEPA filters provide ≥99.995% filtration efficiency at 0.3 μm.
Side window provides improved visibility of the working area. ➤ Side window provides improved visibility of the working area.
7-inch LCD touchscreen enables real-time monitoring of front window status, airflow velocity, temperature, filter and UV lamp life, and system working status. ➤ 7-inch LCD touchscreen enables real-time monitoring of front window status, airflow velocity, temperature, filter and UV lamp life, and system working status.
Air velocity sensor provides real-time airflow monitoring and precise control. ➤ Air velocity sensor provides real-time airflow monitoring and precise control.
Motorized front window features control and travel-limit protection for convenient operation. ➤ Motorized front window features control and travel-limit protection for convenient operation.
UV sterilization and timing functions support scheduled cabinet decontamination. ➤ UV sterilization and timing functions support scheduled cabinet decontamination.
Audio and visual alarms indicate abnormal airflow velocity, HEPA filter failure, UV lamp failure, and unsafe front-window height. ➤ Audio and visual alarms indicate abnormal airflow velocity, HEPA filter failure, UV lamp failure, and unsafe front-window height.
Safety interlocks coordinate the UV lamp, front window, blower, and LED lamp. ➤ Safety interlocks coordinate the UV lamp, front window, blower, and LED lamp.
Power-failure memory retains operating information after power interruption. ➤ Power-failure memory retains operating information after power interruption.
Standard foot switch allows convenient up-and-down adjustment of the motorized front window. ➤ Standard foot switch allows convenient up-and-down adjustment of the motorized front window.
Removable 304 stainless steel work surface facilitates cleaning and disinfection. ➤ Removable 304 stainless steel work surface facilitates cleaning and disinfection.
Standard exhaust blower and 9 m exhaust duct support the 100% external exhaust configuration. ➤ Standard exhaust blower and 9 m exhaust duct support the 100% external exhaust configuration.
Optional upgraded LED lamp provides RG0 blue-light protection, anti-glare eye protection, and high color rendering. ➤ Optional upgraded LED lamp provides RG0 blue-light protection, anti-glare eye protection, and high color rendering.
Optional gas tap, water tap, pressure sensor, IV bar with hooks, ULPA filter, and DC blower allow flexible configuration.  ➤ Optional gas tap, water tap, pressure sensor, IV bar with hooks, ULPA filter, and DC blower allow flexible configuration.

Biological Safety Laboratories: Suitable for laboratory procedures requiring protection of operators, samples, and the surrounding environment from biological hazards Biological Safety Laboratories
Suitable for laboratory procedures requiring protection of operators, samples, and the surrounding environment from biological hazards
Microbiology Laboratories: Used for handling and processing biological samples under controlled airflow and negative-pressure conditions Microbiology Laboratories
Used for handling and processing biological samples under controlled airflow and negative-pressure conditions
Biotechnology & Research Laboratories: Supports biological research, sample handling, and experimental procedures involving potentially hazardous biological materials Biotechnology & Research Laboratories
Supports biological research, sample handling, and experimental procedures involving potentially hazardous biological materials
Pharmaceutical Laboratories: Suitable for laboratory processes involving biological materials where controlled containment and protection are required Pharmaceutical Laboratories
Suitable for laboratory processes involving biological materials where controlled containment and protection are required
Clinical & Diagnostic Laboratories: Used for handling and processing biological specimens in controlled laboratory environments Clinical & Diagnostic Laboratories
Used for handling and processing biological specimens in controlled laboratory environments
Volatile Chemical Applications: The 100% external exhaust configuration is suitable for appropriate applications involving volatile chemical hazards alongside biological work Volatile Chemical Applications
The 100% external exhaust configuration is suitable for appropriate applications involving volatile chemical hazards alongside biological work
Radioactive Material Applications: Suitable for certain biological procedures involving radioactive nuclides where a fully exhausted cabinet configuration is required Radioactive Material Applications
Suitable for certain biological procedures involving radioactive nuclides where a fully exhausted cabinet configuration is required
Quality Control Laboratories: Supports controlled sample handling and laboratory procedures where operator, product, and environmental protection are required Quality Control Laboratories
Supports controlled sample handling and laboratory procedures where operator, product, and environmental protection are required

Side Window ➤ Side Window
Base Stand ➤ Base Stand
Air Velocity Sensor ➤ Air Velocity Sensor
LCD Touch Screen ➤ LCD Touch Screen
LED Lamp ×2 ➤ LED Lamp ×2
UV Lamp ×1 ➤ UV Lamp ×1
Explosion-Proof/Waterproof Socket ×1 ➤ Explosion-Proof/Waterproof Socket ×1
Motorized Front Window ➤ Motorized Front Window
Footmaster Caster ➤ Footmaster Caster
Foot Switch ➤ Foot Switch
Removable Shallow-Plate Stainless Steel Work Surface ➤ Removable Shallow-Plate Stainless Steel Work Surface
Exhaust Blower ➤ Exhaust Blower
9 m Exhaust Duct (Φ305 mm) ➤ 9 m Exhaust Duct (Φ305 mm)
Magnetic File Folder ➤ Magnetic File Folder
