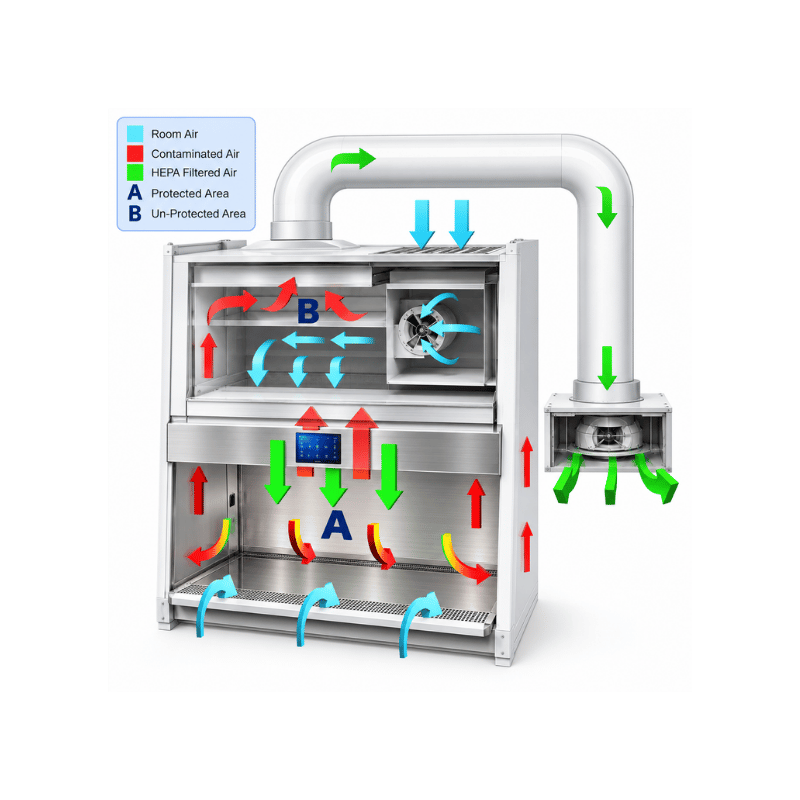

Labotemp Biosafety Cabinet Class 2 Type B2 LBS-301 is a high-performance biological safety hood class 2 designed to provide protection for operators, samples, and the laboratory environment during biological and other hazardous laboratory procedures. It features a 100% air exhaust system, with contaminated air passing through HEPA filtration before being exhausted externally, while the work area operates under negative pressure. This configuration is suitable for biological safety laboratories and applications involving appropriate volatile chemicals and radioactive nuclides.
The cabinet provides a 610 × 550 × 600 mm working area with a motorized toughened-glass front window, 304 stainless steel removable work surface, and dual H14 HEPA filters with ≥99.995% efficiency at 0.3 μm. A 7-inch LCD touchscreen provides real-time monitoring of airflow, front-window status, temperature, filter and UV lamp life, and system status. The LBS-301 also incorporates an air velocity sensor, UV sterilization with timer, audio-visual alarms, safety interlocks, power-failure memory, and a standard exhaust blower with 9 m exhaust duct. These integrated functions support convenient operation, monitoring, cleaning, and routine laboratory workflows.
Why Choose Labotemp Biosafety Cabinet Class 2 Type B2?
✓ Effective Filtration: Dual H14 HEPA filters provide ≥99.995% filtration efficiency at 0.3 μm.
✓ Advanced Monitoring: 7-inch LCD touchscreen and air velocity sensor support real-time system monitoring.
✓ Complete Exhaust System: Standard exhaust blower and 9 m exhaust duct support external air discharge.
| Cabinet Specifications | |
|
Product Type : Class II Type B2 Biological Safety Cabinet Product Type |
Class II Type B2 Biological Safety Cabinet |
|
Internal Size (W×D×H) : 610 × 550 × 600 mm Internal Size (W×D×H) |
610 × 550 × 600 mm |
|
External Size (W×D×H) : 710 × 760 × 2050 mm External Size (W×D×H) |
710 × 760 × 2050 mm |
|
Maximum Opening : 370 mm Maximum Opening |
370 mm |
|
Work Surface Height : 750 mm Work Surface Height |
750 mm |
|
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body |
Electro-galvanized steel with antimicrobial powder coating |
|
Work Surface : 304 stainless steel Work Surface |
304 stainless steel |
|
Front Window : Motorized, toughened glass Front Window |
Motorized, toughened glass |
|
Side Window : Included as standard Side Window |
Included as standard |
| Airflow & Filtration | |
|
Airflow Mode : 100% Air Exhaust Airflow Mode |
100% Air Exhaust |
|
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity |
0.35 ± 0.025 m/s |
|
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity |
0.52 ± 0.025 m/s |
|
Inflow Air Volume : 240 m³/h (141 CFM) Inflow Air Volume |
240 m³/h (141 CFM) |
|
Downflow Air Volume : 560 m³/h (330 CFM) Downflow Air Volume |
560 m³/h (330 CFM) |
|
Exhaust Air Volume : 800 m³/h (471 CFM) Exhaust Air Volume |
800 m³/h (471 CFM) |
|
HEPA Filter : 2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm HEPA Filter |
2 pcs H14 HEPA filters, ≥99.995% efficiency at 0.3 μm |
|
Cleanliness Grade : Class 100 (ISO 14644.1 Class 5) Cleanliness Grade |
Class 100 (ISO 14644.1 Class 5) |
| Control & Safety | |
|
Display : 7-inch LCD Touch Screen Display |
7-inch LCD Touch Screen |
|
Alarm : Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height Alarm |
Abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height |
|
UV Lamp : 15 W × 1, 253.7 nm, UV life indicator and UV timer UV Lamp |
15 W × 1, 253.7 nm, UV life indicator and UV timer |
|
LED Lamp : 10 W × 2 LED Lamp |
10 W × 2 |
|
Illumination : ≥900 Lux Illumination |
≥900 Lux |
|
Safety Interlock : UV lamp/front window; UV lamp/blower/LED lamp; blower/front window Safety Interlock |
UV lamp/front window; UV lamp/blower/LED lamp; blower/front window |
|
Power-Failure Memory : Included Power-Failure Memory |
Included |
|
Air Velocity Monitoring : Air velocity sensor with real-time monitoring and display Air Velocity Monitoring |
Air velocity sensor with real-time monitoring and display |
|
Exhaust System : Exhaust blower with 9 m exhaust duct, Φ305 mm Exhaust System |
Exhaust blower with 9 m exhaust duct, Φ305 mm |
| Electrical & Physical Specifications | |
|
Maximum Consumption : 350 W, excluding socket consumption Maximum Consumption |
350 W, excluding socket consumption |
|
Power Supply : AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz Power Supply |
AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz |
|
Sound Emission : ≤65 dB(A) Sound Emission |
≤65 dB(A) |
|
Vibration of Work Surface : ≤2 μm Vibration of Work Surface |
≤2 μm |
|
Net Weight : 140 kg (Main Unit); 65 kg (Exhaust Blower) Net Weight |
140 kg (Main Unit); 65 kg (Exhaust Blower) |
|
Gross Weight : 175 kg (Main Unit); 80 kg (Exhaust Blower) Gross Weight |
175 kg (Main Unit); 80 kg (Exhaust Blower) |
|
Shipping Size – Main Unit (W×D×H) : 850 × 990 × 1640 mm Shipping Size – Main Unit (W×D×H) |
850 × 990 × 1640 mm |
|
Shipping Size – Exhaust Blower : 730 × 660 × 500 mm Shipping Size – Exhaust Blower |
730 × 660 × 500 mm |
|
Shipping Volume : 1.62 m³ Shipping Volume |
1.62 m³ |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Angle Rotor + Adapter | 12 × 5–10–15 ml; Adapter: 12 × 2 ml | 6000 r/min | 6080 × g | PP / PC tube |
| 2 | Swing Rotor (Steel frame) | 4 × 100 ml / 4 × 50 ml; Adapter: 4 × 15/10 ml | 5000 r/min | 4752 × g | PP / PC tube |
| 3 | Swing Rotor + Adapter + Rack | 4 × 2 × 100 ml / 4 × 2 × 50 ml; Adapter: 4 × 2 × 15/10 ml; Rack: 4 × 12 × 5/2 ml | 4000 r/min | 3041 × g | PP/PC tube / Vacuum blood collection tube |
| 4 | Swing Bucket | 72 × 2–5 ml | 4000 r/min | 2773 × g | Vacuum blood collection tube |
| 5 | Swing Bucket + Adapters | 4 × 400 ml; Adapter: 4 × 16 × 5/2 ml / 4 × 9 × 15/10 ml / 4 × 4 × 50 ml / 4 × 1 × 100 ml | 4000 r/min | 3049 × g | PP / PC tube / Vacuum blood collection tubes |
| 6 | Swing Bucket + Adapters | 4 × 250 ml; Adapter: 4 × 9 × 5/2 ml / 4 × 5 × 15/10 ml / 4 × 1 × 50 ml / 4 × 1 × 100 ml / 4 × 9 × 1.5 ml | 4000 r/min | 3049 × g | PP / PC tube |
| 7 | Microplate Rotor + Adapter | 2 × 2 × 96 well; Adapter: 2 × 32 × 1.5 ml | 4200 r/min | 3057 × g | Square cup / PP-PC tube |
| Program | Speed | Centrifuge Time |
|---|---|---|
| CGF | 2600 rpm | 2 min |
| A-PRF | 2300 rpm | 4 min |
| I-PRF | 2600 rpm | 4 min |
