Class II Type A2 Biosafety Cabinet LBS-204

Class II Type A2 Biosafety Cabinet LBS-204

Name: Class II Type A2 Biosafety Cabinet LBS-204
Brand: Labotemp
SKU: LBS-204
Price: 8699.00 USD
Availability: InStock
Rating: 4.9 (975 reviews)

Labotemp Class II Type A2 Biosafety Cabinet LBS-204 is a high-capacity biological safety cabinet designed for laboratories requiring an extended working area and enhanced air filtration. It provides a 1600 × 626 × 600 mm internal workspace and uses a 70% air recirculation and 30% air exhaust system, with a downflow velocity of 0.35 ± 0.025 m/s and inflow velocity of 0.52 ± 0.025 m/s. Dual ULPA filters provide ≥99.9995% efficiency at 0.1–0.3 μm, supporting a Class 10 (ISO 14644.1 Class 4) clean work area. With 599 m³/h inflow and exhaust airflow and 1262 m³/h downflow, the cabinet is suited to demanding biological laboratory workflows.

The biosafety hood Class 2 features two side glass windows for convenient observation, a 7-inch LCD touchscreen for real-time monitoring of airflow, temperature, filter and UV lamp status, and a motorized anti-UV toughened-glass front window that can fully open up to 45° for easier loading and cleaning. The 304 stainless-steel work surface, negative-pressure work area, UV sterilization with timer, power-failure memory, audio-visual alarms and interlock functions support safe and reliable daily operation. Optional electric height adjustment, a built-in 21.5-inch touchscreen and USB, HDMI and DP interfaces allow the cabinet to be configured for advanced laboratory requirements.

Why Choose Labotemp Class II Type A2 Biosafety Cabinet LBS-204?

✓ Extra-Large Working Area: 1600 mm wide internal workspace for larger laboratory workflows
✓ Enhanced Filtration: Dual ULPA filters provide ≥99.9995% efficiency at 0.1–0.3 μm
✓ Class 10 Cleanliness: ISO 14644.1 Class 4 work area for enhanced air cleanliness

$8699

Datasheet

Cabinet Specifications
Product Type : Class II Type A2 Biosafety Cabinet Product Type	Class II Type A2 Biosafety Cabinet
Internal Size (W×D×H) : 1600 × 626 × 600 mm Internal Size (W×D×H)	1600 × 626 × 600 mm
External Size (W×D×H) : 1800 × 780 × 2130 mm External Size (W×D×H)	1800 × 780 × 2130 mm
Tested Opening : Safety height 200 mm (8") Tested Opening	Safety height 200 mm (8")
Maximum Opening : 600 mm Maximum Opening	600 mm
Work Surface Height : 800 mm Work Surface Height	800 mm
Side Window : Two side glass windows Side Window	Two side glass windows
Front Window : Motorized, toughened glass ≥6 mm, anti-UV; fully opens up to 45° Front Window	Motorized, toughened glass ≥6 mm, anti-UV; fully opens up to 45°
Airflow & Filtration

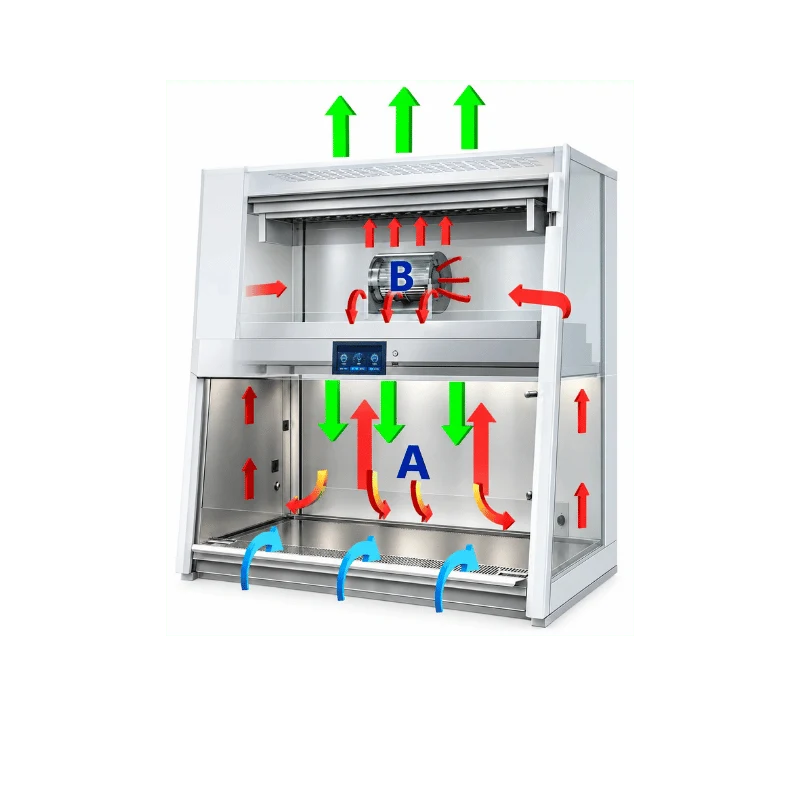

Airflow Mode : 70% air recirculation, 30% air exhaust Airflow Mode	70% air recirculation, 30% air exhaust
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity	0.35 ± 0.025 m/s
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity	0.52 ± 0.025 m/s
Inflow Air Volume : 599 m³/h (352.6 CFM) Inflow Air Volume	599 m³/h (352.6 CFM)
Downflow Air Volume : 1262 m³/h (742.8 CFM) Downflow Air Volume	1262 m³/h (742.8 CFM)
Exhaust Air Volume : 599 m³/h (352.6 CFM) Exhaust Air Volume	599 m³/h (352.6 CFM)
ULPA Filter : 2 pcs, ≥99.9995% efficiency at 0.1–0.3 μm, with filter life indicator ULPA Filter	2 pcs, ≥99.9995% efficiency at 0.1–0.3 μm, with filter life indicator
Cleanliness Grade : Class 10 (ISO 14644.1 Class 4) Cleanliness Grade	Class 10 (ISO 14644.1 Class 4)
Control, Safety & Construction
Display : 7-inch LCD Touch Screen Display	7-inch LCD Touch Screen
Alarm : Abnormal airflow velocity, ULPA filter failure, UV lamp failure, front window at unsafe height Alarm	Abnormal airflow velocity, ULPA filter failure, UV lamp failure, front window at unsafe height
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body	Electro-galvanized steel with antimicrobial powder coating
Work Surface : 304 stainless steel Work Surface	304 stainless steel
UV Lamp : 40 W ×1, 253.7 nm, UV life indicator and UV timer UV Lamp	40 W ×1, 253.7 nm, UV life indicator and UV timer
LED Lamp : 60 W ×1 + 40 W ×1 LED Lamp	60 W ×1 + 40 W ×1
Illumination : ≥1000 Lux Illumination	≥1000 Lux
Sound Emission : ≤65 dB(A) Sound Emission	≤65 dB(A)
Safety Interlock : UV lamp, fan and front sash Safety Interlock	UV lamp, fan and front sash
Electrical & Physical Specifications
Maximum Consumption : 850 W (excluding socket loading power consumption) Maximum Consumption	850 W (excluding socket loading power consumption)
Power Supply : AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz Power Supply	AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz
Net Weight : 370 kg Net Weight	370 kg
Gross Weight : 421 kg Gross Weight	421 kg
Shipping Size (W×D×H) : 1910 × 1190 × 1710 mm Shipping Size (W×D×H)	1910 × 1190 × 1710 mm
Shipping Volume : 3.6 m³ Shipping Volume	3.6 m³

ISO Class 4 Cleanliness ➤ ISO Class 4 Cleanliness
Class II Type A2 biological safety cabinet with 70% air recirculation and 30% exhaust airflow configuration. ➤ Class II Type A2 biological safety cabinet with 70% air recirculation and 30% exhaust airflow configuration.
Dual ULPA filtration system with ≥99.9995% efficiency for particles in the 0.1–0.3 μm range. ➤ Dual ULPA filtration system with ≥99.9995% efficiency for particles in the 0.1–0.3 μm range.
Class 10 cleanliness level according to ISO 14644.1 Class 4. ➤ Class 10 cleanliness level according to ISO 14644.1 Class 4.
Large 1600 × 626 × 600 mm internal working area for high-capacity laboratory workflows. ➤ Large 1600 × 626 × 600 mm internal working area for high-capacity laboratory workflows.
Two side windows made of anti-UV toughened glass for improved visibility into the work zone. ➤ Two side windows made of anti-UV toughened glass for improved visibility into the work zone.
Motorized front window made of ≥6 mm anti-UV toughened glass with opening up to 45°. ➤ Motorized front window made of ≥6 mm anti-UV toughened glass with opening up to 45°.
Maintains controlled airflow with 0.35 ± 0.025 m/s downflow and 0.52 ± 0.025 m/s inflow velocity. ➤ Maintains controlled airflow with 0.35 ± 0.025 m/s downflow and 0.52 ± 0.025 m/s inflow velocity.
7-inch LCD touchscreen for convenient monitoring and operation of cabinet functions. ➤ 7-inch LCD touchscreen for convenient monitoring and operation of cabinet functions.
Air velocity sensor for monitoring airflow conditions during operation. ➤ Air velocity sensor for monitoring airflow conditions during operation.
Electric air valve control for controlled exhaust airflow management. ➤ Electric air valve control for controlled exhaust airflow management.
304 stainless steel work surface designed for laboratory use and easy cleaning. ➤ 304 stainless steel work surface designed for laboratory use and easy cleaning.
UV lamp with 253.7 nm wavelength and integrated UV life indicator and timer. ➤ UV lamp with 253.7 nm wavelength and integrated UV life indicator and timer.
LED lighting system providing illumination of ≥1000 Lux for the work area. ➤ LED lighting system providing illumination of ≥1000 Lux for the work area.
Audio-visual alarms for abnormal airflow, ULPA filter failure, UV lamp failure and unsafe front-window height. ➤ Audio-visual alarms for abnormal airflow, ULPA filter failure, UV lamp failure and unsafe front-window height.
Safety interlocks coordinate the UV lamp, blower and front window for safer operation. ➤ Safety interlocks coordinate the UV lamp, blower and front window for safer operation.
Power-failure memory function retains operating settings after power interruption. ➤ Power-failure memory function retains operating settings after power interruption.
Negative-pressure working zone helps maintain containment within the cabinet. ➤ Negative-pressure working zone helps maintain containment within the cabinet.
Foot switch enables convenient operation of the motorized front window. ➤ Foot switch enables convenient operation of the motorized front window.
Optional electric height-adjustable base stand supports ergonomic workstation positioning. ➤ Optional electric height-adjustable base stand supports ergonomic workstation positioning.
Optional 21.5-inch touchscreen and USB, HDMI and DP interfaces enable expanded control and connectivity. ➤ Optional 21.5-inch touchscreen and USB, HDMI and DP interfaces enable expanded control and connectivity.
Optional anti-pinch hand function provides additional protection during front-window operation. ➤ Optional anti-pinch hand function provides additional protection during front-window operation.

Base Stand ➤ Base Stand
Air Velocity Sensor ➤ Air Velocity Sensor
ULPA Filter ➤ ULPA Filter
LCD Touch Screen ➤ LCD Touch Screen
LED Lamp ×2 ➤ LED Lamp ×2
UV Lamp ×1 ➤ UV Lamp ×1
Waterproof Socket ×2 ➤ Waterproof Socket ×2
Motorized Front Window ➤ Motorized Front Window
Two Side Windows ➤ Two Side Windows
Footmaster Caster ➤ Footmaster Caster
Foot Switch ➤ Foot Switch
Electric Air Valve Control ➤ Electric Air Valve Control
Magnetic File Folder ➤ Magnetic File Folder

Built-in 21.5-inch Touch Screen ➤ Built-in 21.5-inch Touch Screen
USB, HDMI, DP Internet Port and PC Interface with Keyboard Support Stand ➤ USB, HDMI, DP Internet Port and PC Interface with Keyboard Support Stand
Electric Height Adjustable Base Stand ➤ Electric Height Adjustable Base Stand
Gas Tap ➤ Gas Tap
Water Tap ➤ Water Tap
Arm Rest ➤ Arm Rest
Upgraded LED Lamp ➤ Upgraded LED Lamp
Anti-Pinch Hand Function of Front Window ➤ Anti-Pinch Hand Function of Front Window
DC Blower ➤ DC Blower
