Class II Type A2 Biosafety Cabinet LBS-203

Class II Type A2 Biosafety Cabinet LBS-203

Name: Class II Type A2 Biosafety Cabinet LBS-203
Brand: Labotemp
SKU: LBS-203
Price: 8622.00 USD
Availability: InStock
Rating: 4.7 (980 reviews)

Labotemp Class II Type A2 Biosafety Cabinet LBS-203 is a high-capacity biological safety cabinet designed for laboratories requiring a larger protected working area and enhanced particle filtration. It uses a 70% air recirculation and 30% air exhaust system, with downflow velocity of 0.35 ± 0.025 m/s and inflow velocity of 0.52 ± 0.025 m/s. Two ULPA filters provide ≥99.9995% efficiency at 0.1–0.3 μm, supporting a Class 10 (ISO 14644.1 Class 4) clean work area. With a 1300 × 626 × 600 mm internal workspace, the cabinet is suitable for larger biological workflows and extended laboratory procedures.

The biological safety hood Class 2 features two side windows for improved observation, a 7-inch LCD touchscreen for monitoring airflow, temperature, filter and UV lamp status, and a motorized toughened-glass front window that can fully open up to 45° for easier loading and cleaning. The removable 304 stainless-steel work surface, negative-pressure work area, UV sterilization with timer, power-failure memory and audio-visual alarms support safe and convenient daily operation. Optional electric height-adjustable base stand, 21.5-inch touchscreen and connectivity interfaces provide additional flexibility for advanced laboratory setups.

Why Choose Labotemp Class II Type A2 Biosafety Cabinet LBS-203?

✓ Enhanced Filtration: Dual ULPA filters provide ≥99.9995% efficiency at 0.1–0.3 μm
✓ Large Working Area: 1300 × 626 × 600 mm internal workspace for larger workflows
✓ Flexible Configuration: Two side windows, 45° front-window opening and optional electric height-adjustable stand

$8622

Datasheet

Cabinet Specifications
Product Type : Class II Type A2 Biosafety Cabinet Product Type	Class II Type A2 Biosafety Cabinet
Internal Size (W×D×H) : 1300 × 626 × 600 mm Internal Size (W×D×H)	1300 × 626 × 600 mm
External Size (W×D×H) : 1500 × 780 × 2130 mm External Size (W×D×H)	1500 × 780 × 2130 mm
Tested Opening : Safety height 200 mm (8") Tested Opening	Safety height 200 mm (8")
Maximum Opening : 600 mm Maximum Opening	600 mm
Work Surface Height : 800 mm Work Surface Height	800 mm
Side Window : Two side glass windows Side Window	Two side glass windows
Front Window : Motorized, toughened glass ≥6 mm, anti-UV; fully opens up to 45° Front Window	Motorized, toughened glass ≥6 mm, anti-UV; fully opens up to 45°
Airflow & Filtration

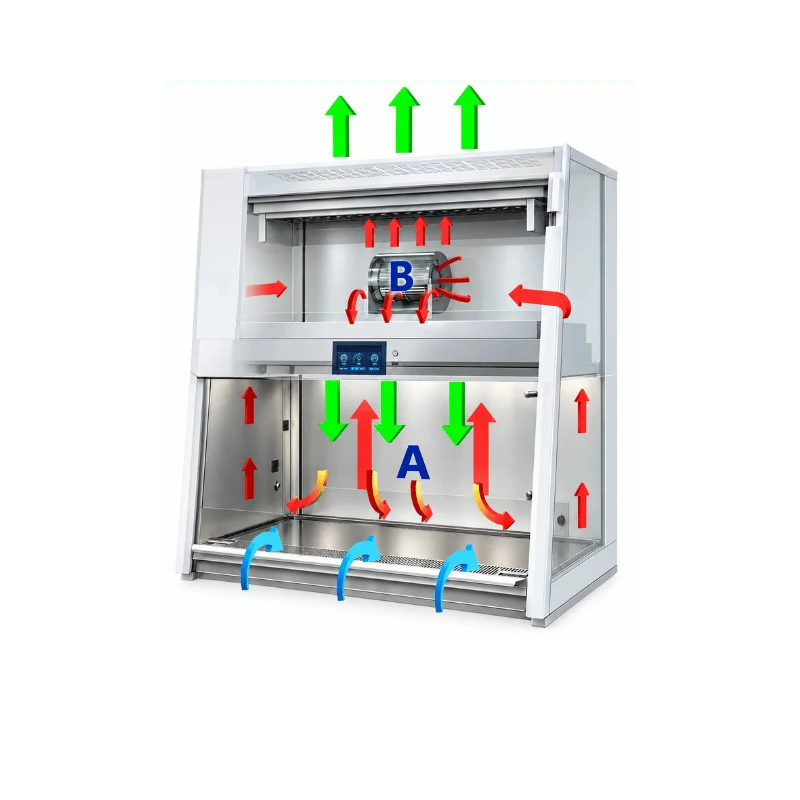

Airflow Mode : 70% air recirculation, 30% air exhaust Airflow Mode	70% air recirculation, 30% air exhaust
Downflow Velocity : 0.35 ± 0.025 m/s Downflow Velocity	0.35 ± 0.025 m/s
Inflow Velocity : 0.52 ± 0.025 m/s Inflow Velocity	0.52 ± 0.025 m/s
Inflow Air Volume : 524 m³/h (309 CFM) Inflow Air Volume	524 m³/h (309 CFM)
Downflow Air Volume : 1058 m³/h (623 CFM) Downflow Air Volume	1058 m³/h (623 CFM)
Exhaust Air Volume : 524 m³/h (309 CFM) Exhaust Air Volume	524 m³/h (309 CFM)
ULPA Filter : 2 pcs, ≥99.9995% efficiency at 0.1–0.3 μm, with filter life indicator ULPA Filter	2 pcs, ≥99.9995% efficiency at 0.1–0.3 μm, with filter life indicator
Cleanliness Grade : Class 10 (ISO 14644.1 Class 4) Cleanliness Grade	Class 10 (ISO 14644.1 Class 4)
Control, Safety & Construction
Display : 7-inch LCD Touch Screen Display	7-inch LCD Touch Screen
Alarm : Abnormal airflow velocity, ULPA filter failure, UV lamp failure, front window at unsafe height Alarm	Abnormal airflow velocity, ULPA filter failure, UV lamp failure, front window at unsafe height
Main Body : Electro-galvanized steel with antimicrobial powder coating Main Body	Electro-galvanized steel with antimicrobial powder coating
Work Surface : 304 stainless steel Work Surface	304 stainless steel
UV Lamp : 30 W ×1, 253.7 nm, UV life indicator and UV timer UV Lamp	30 W ×1, 253.7 nm, UV life indicator and UV timer
LED Lamp : 24 W ×2 LED Lamp	24 W ×2
Illumination : ≥1000 Lux Illumination	≥1000 Lux
Sound Emission : ≤65 dB(A) Sound Emission	≤65 dB(A)
Safety Interlock : UV lamp, fan and front sash Safety Interlock	UV lamp, fan and front sash
Electrical & Physical Specifications
Maximum Consumption : 750 W (excluding socket loading power consumption) Maximum Consumption	750 W (excluding socket loading power consumption)
Fan Power : 650 W Fan Power	650 W
Power Supply : AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz Power Supply	AC220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz
Net Weight : 290 kg Net Weight	290 kg
Gross Weight : 356 kg Gross Weight	356 kg
Shipping Size (W×D×H) : 1610 × 1080 × 1710 mm Shipping Size (W×D×H)	1610 × 1080 × 1710 mm
Shipping Volume : 3 m³ Shipping Volume	3 m³

Dual ULPA Filters ➤ Dual ULPA Filters
Provides a Class II A2 airflow system with 70% air recirculation and 30% air exhaust for controlled biological laboratory work. ➤ Provides a Class II A2 airflow system with 70% air recirculation and 30% air exhaust for controlled biological laboratory work.
Equipped with dual ULPA filters providing ≥99.9995% filtration efficiency at 0.1–0.3 μm. ➤ Equipped with dual ULPA filters providing ≥99.9995% filtration efficiency at 0.1–0.3 μm.
Maintains a Class 10 (ISO 14644.1 Class 4) clean work area for applications requiring enhanced air cleanliness. ➤ Maintains a Class 10 (ISO 14644.1 Class 4) clean work area for applications requiring enhanced air cleanliness.
Features two side glass windows for convenient observation of the work area from multiple angles. ➤ Features two side glass windows for convenient observation of the work area from multiple angles.
7-inch LCD touchscreen provides real-time monitoring of front window status, air velocity, temperature, filter life, UV lamp life and system working status. ➤ 7-inch LCD touchscreen provides real-time monitoring of front window status, air velocity, temperature, filter life, UV lamp life and system working status.
Air velocity sensor provides real-time airflow monitoring and precise control of downflow velocity. ➤ Air velocity sensor provides real-time airflow monitoring and precise control of downflow velocity.
Motorized front window with double protection from control and travel limits provides convenient operation. ➤ Motorized front window with double protection from control and travel limits provides convenient operation.
Front window can be fully opened up to 45° for easier loading, unloading and cleaning. ➤ Front window can be fully opened up to 45° for easier loading, unloading and cleaning.
Negative-pressure work area helps minimize leakage and supports biosafety during biological procedures. ➤ Negative-pressure work area helps minimize leakage and supports biosafety during biological procedures.
UV sterilization function with a 253.7 nm UV lamp, UV life indicator and timer supports routine workspace decontamination. ➤ UV sterilization function with a 253.7 nm UV lamp, UV life indicator and timer supports routine workspace decontamination.
Memory function retains operating information in case of power failure. ➤ Memory function retains operating information in case of power failure.
Audio-visual alarms indicate abnormal airflow velocity, ULPA filter failure, UV lamp failure and unsafe front-window height. ➤ Audio-visual alarms indicate abnormal airflow velocity, ULPA filter failure, UV lamp failure and unsafe front-window height.
Interlock functions coordinate the UV lamp, blower, LED lamp and front window for safer operation. ➤ Interlock functions coordinate the UV lamp, blower, LED lamp and front window for safer operation.
Removable 304 stainless-steel work surface facilitates cleaning and disinfection. ➤ Removable 304 stainless-steel work surface facilitates cleaning and disinfection.
Electric air valve control supports convenient airflow adjustment and system operation. ➤ Electric air valve control supports convenient airflow adjustment and system operation.
Optional electric height-adjustable base stand allows the working height to be adapted to laboratory requirements. ➤ Optional electric height-adjustable base stand allows the working height to be adapted to laboratory requirements.
Optional built-in 21.5-inch touchscreen with USB, HDMI and DP connectivity provides expanded control and interface options.  ➤ Optional built-in 21.5-inch touchscreen with USB, HDMI and DP connectivity provides expanded control and interface options.

Microbiology Laboratories: Suitable for handling biological samples and routine microbiological procedures requiring controlled airflow and a protected working environment Microbiology Laboratories
Suitable for handling biological samples and routine microbiological procedures requiring controlled airflow and a protected working environment
Cell Culture Laboratories: Supports cell culture preparation, handling and processing where a clean, controlled workspace is required Cell Culture Laboratories
Supports cell culture preparation, handling and processing where a clean, controlled workspace is required
Molecular Biology Laboratories: Suitable for sample preparation and biological procedures involving materials that require protected handling conditions Molecular Biology Laboratories
Suitable for sample preparation and biological procedures involving materials that require protected handling conditions
Clinical Laboratories: Supports routine handling and processing of biological specimens under controlled and filtered airflow conditions Clinical Laboratories
Supports routine handling and processing of biological specimens under controlled and filtered airflow conditions
Biotechnology Laboratories: Suitable for biological research, sample handling and preparation workflows requiring Class II A2 protection Biotechnology Laboratories
Suitable for biological research, sample handling and preparation workflows requiring Class II A2 protection
Research Laboratories: Provides a larger working area for biological research procedures involving sample preparation, handling and processing Research Laboratories
Provides a larger working area for biological research procedures involving sample preparation, handling and processing
Pharmaceutical Laboratories: Suitable for biological laboratory procedures requiring enhanced air cleanliness and controlled working conditions Pharmaceutical Laboratories
Suitable for biological laboratory procedures requiring enhanced air cleanliness and controlled working conditions
Large-Scale Biological Workflows: The 1300 mm wide internal workspace provides additional working area for procedures involving larger equipment, multiple samples or extended laboratory setups Large-Scale Biological Workflows
The 1300 mm wide internal workspace provides additional working area for procedures involving larger equipment, multiple samples or extended laboratory setups

Base Stand ➤ Base Stand
Air Velocity Sensor ➤ Air Velocity Sensor
ULPA Filter ➤ ULPA Filter
LCD Touch Screen ➤ LCD Touch Screen
LED Lamp ×2 ➤ LED Lamp ×2
UV Lamp ×1 ➤ UV Lamp ×1
Waterproof Socket ×2 ➤ Waterproof Socket ×2
Motorized Front Window ➤ Motorized Front Window
Two Side Windows ➤ Two Side Windows
Footmaster Caster ➤ Footmaster Caster
Foot Switch ➤ Foot Switch
Electric Air Valve Control ➤ Electric Air Valve Control
Magnetic File Folder ➤ Magnetic File Folder

Built-in 21.5-inch Touch Screen ➤ Built-in 21.5-inch Touch Screen
USB, HDMI, DP Internet Port and PC Interface with Keyboard Support Stand ➤ USB, HDMI, DP Internet Port and PC Interface with Keyboard Support Stand
Electric Height Adjustable Base Stand ➤ Electric Height Adjustable Base Stand
Gas Tap ➤ Gas Tap
Water Tap ➤ Water Tap
Arm Rest ➤ Arm Rest
Upgraded LED Lamp ➤ Upgraded LED Lamp
Anti-Pinch Hand Function for Front Window ➤ Anti-Pinch Hand Function for Front Window
DC Blower ➤ DC Blower
