Hydrothermal Reactor HRA-13

Name: Hydrothermal Reactor HRA-13
Brand: Labotemp
SKU: HRA-13
Price: 2440.00 USD
Availability: InStock
Rating: 4.8 (942 reviews)

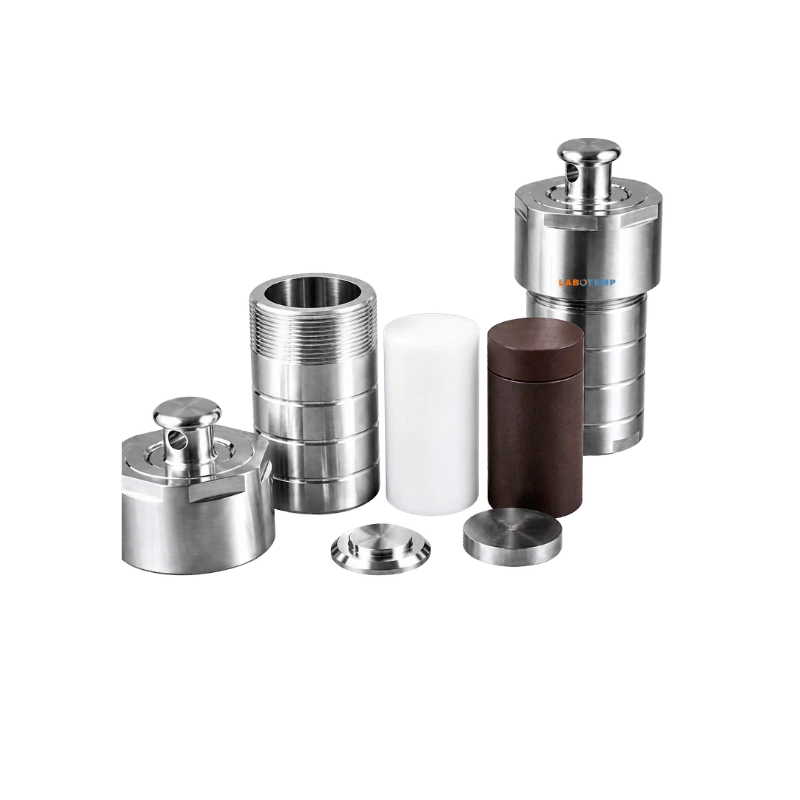

Labotemp Hydrothermal Reactor Autoclave HRA-13 provides a 250 mL PTFE-lined reaction vessel designed for controlled hydrothermal reaction and pressure-based laboratory processes. Constructed with a 304 stainless steel vessel and a PTFE liner, the reactor combines chemical-resistant lining with a robust stainless-steel outer vessel. The 250 mL configuration features a 65 × 135 mm PTFE liner, threaded cap tightening, and a maximum pressure rating of ≤3 MPa.

The HRA-13 supports controlled heating with a PTFE maximum temperature of ≤220°C and a PPL maximum temperature of ≤260°C, while its temperature rise and fall rate remains at ≤5°C/min. With a compact 107 × 205 mm outer dimension and 6.1 kg net weight, the reactor provides a practical solution for laboratory-scale hydrothermal reaction and pressure digestion workflows requiring a PTFE-lined vessel.

Why Choose Labotemp Hydrothermal Reactor Autoclave HRA-13?

✓ 250 mL Reaction Capacity: Provides a practical vessel size for laboratory-scale hydrothermal processes.
✓ PTFE-Lined Construction: Uses a PTFE liner within a 304 stainless steel vessel for chemical-resistant reaction handling
✓ Controlled Temperature Performance: Features a PTFE maximum temperature of ≤220°C, PPL maximum temperature of ≤260°C, and temperature rise/fall rate of ≤5°C/min.

$2440

Datasheet

General Specifications
Product Type : Hydrothermal Reactor Autoclave Product Type	Hydrothermal Reactor Autoclave
Capacity : 250 mL Capacity	250 mL
Vessel Material : 304 Stainless Steel Vessel Material	304 Stainless Steel
Liner Material : Polytetrafluoroethylene (PTFE) Liner Material	Polytetrafluoroethylene (PTFE)
Liner Size : 65 × 135 mm Liner Size	65 × 135 mm
Clamping Method : Threaded Cap Tightening Clamping Method	Threaded Cap Tightening
Rod Specification : 8 × 200 mm Rod Specification	8 × 200 mm
Temperature & Pressure
Maximum Pressure : ≤3 MPa Maximum Pressure	≤3 MPa
PTFE Maximum Temperature : ≤220°C PTFE Maximum Temperature	≤220°C
PPL Maximum Temperature : ≤260°C PPL Maximum Temperature	≤260°C
Temperature Rise and Fall Rate : ≤5°C/min Temperature Rise and Fall Rate	≤5°C/min
Physical Specifications
Outer Dimension : 107 × 205 mm Outer Dimension	107 × 205 mm
Net Weight : 6.1 kg Net Weight	6.1 kg

Threaded Cap Tightening ➤ Threaded Cap Tightening
250 mL reaction capacity supports laboratory-scale hydrothermal reaction processes. ➤ 250 mL reaction capacity supports laboratory-scale hydrothermal reaction processes.
304 stainless steel vessel provides a robust outer reactor structure. ➤ 304 stainless steel vessel provides a robust outer reactor structure.
PTFE lining provides a chemically resistant reaction-contact surface. ➤ PTFE lining provides a chemically resistant reaction-contact surface.
65 × 135 mm PTFE liner provides the specified internal liner dimensions. ➤ 65 × 135 mm PTFE liner provides the specified internal liner dimensions.
Threaded cap tightening provides a secure method for closing the reactor vessel. ➤ Threaded cap tightening provides a secure method for closing the reactor vessel.
Maximum pressure rating of ≤3 MPa supports controlled high-pressure reactions. ➤ Maximum pressure rating of ≤3 MPa supports controlled high-pressure reactions.
PTFE maximum temperature of ≤220°C supports elevated-temperature reaction conditions. ➤ PTFE maximum temperature of ≤220°C supports elevated-temperature reaction conditions.
PPL maximum temperature of ≤260°C provides an additional high-temperature specification for the vessel configuration. ➤ PPL maximum temperature of ≤260°C provides an additional high-temperature specification for the vessel configuration.
Temperature rise and fall rate of ≤5°C/min supports controlled thermal operation. ➤ Temperature rise and fall rate of ≤5°C/min supports controlled thermal operation.
8 × 200 mm rod specification forms part of the reactor assembly. ➤ 8 × 200 mm rod specification forms part of the reactor assembly.
Compact 107 × 205 mm outer dimensions support practical laboratory placement. ➤ Compact 107 × 205 mm outer dimensions support practical laboratory placement.

Hydrothermal Synthesis: Suitable for laboratory-scale reactions performed under elevated temperature and pressure conditions Hydrothermal Synthesis
Suitable for laboratory-scale reactions performed under elevated temperature and pressure conditions
Pressure Digestion: Can be used for controlled digestion and treatment of samples in a sealed reactor environment Pressure Digestion
Can be used for controlled digestion and treatment of samples in a sealed reactor environment
Materials Research: Suitable for laboratory research involving hydrothermal processing of materials Materials Research
Suitable for laboratory research involving hydrothermal processing of materials
Chemical Research: Supports controlled chemical reactions requiring a PTFE-lined pressure vessel Chemical Research
Supports controlled chemical reactions requiring a PTFE-lined pressure vessel
Catalytic Hydrothermal Reactions: Applicable to laboratory-scale hydrothermal reactions involving catalyst-based research Catalytic Hydrothermal Reactions
Applicable to laboratory-scale hydrothermal reactions involving catalyst-based research
Sample Preparation: Can support preparation and treatment of samples where elevated temperature, pressure, and chemical-resistant vessel materials are required Sample Preparation
Can support preparation and treatment of samples where elevated temperature, pressure, and chemical-resistant vessel materials are required
