Vertical Autoclave VEA-03

Name: Vertical Autoclave VEA-03
Brand: Labotemp
SKU: VEA-03
Price: 3972.00 USD
Availability: InStock
Rating: 4.9 (795 reviews)

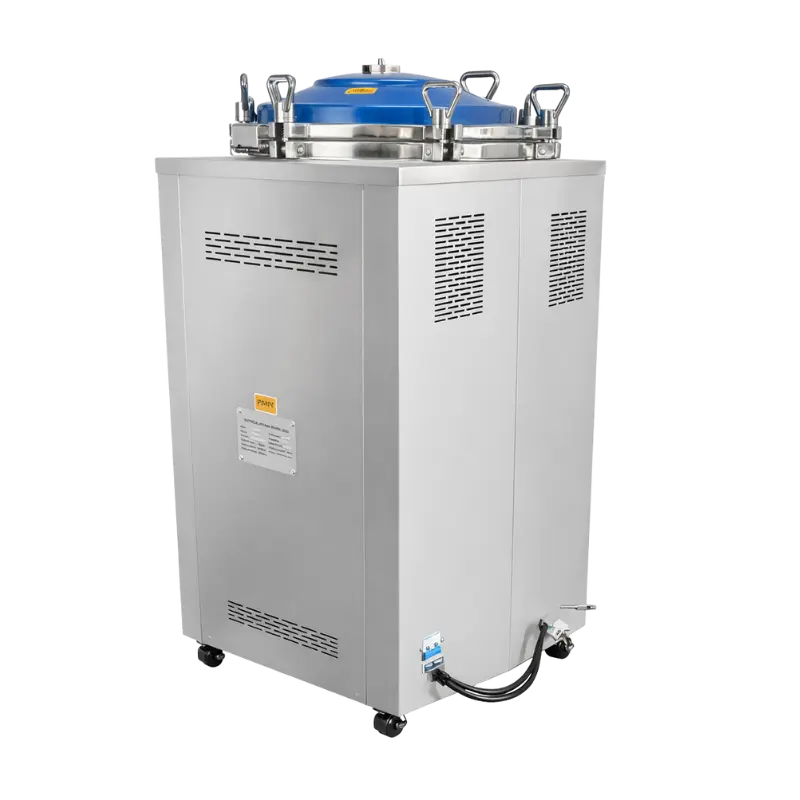

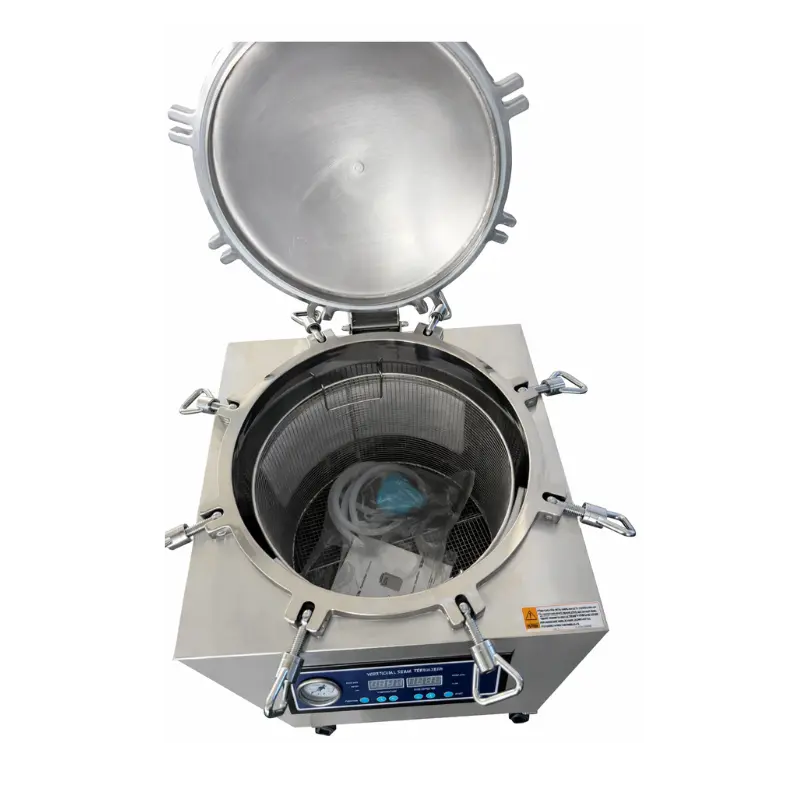

Labotemp Vertical Autoclave Machine VEA-03 is a 120 liter Steam Sterilize designed for reliable sterilization in hospitals, pharmaceutical labs, research institutes, and central sterile departments. Built with a durable stainless steel chamber and secure bolt locking system, it maintains stable steam pressure at a rated working pressure of 0.22 MPa. The sterilization temperature range of 116°C to 134°C with adjustable cycle time from 4 to 120 minutes supports processing of glassware, culture media, surgical instruments, dressing materials, and laboratory equipment requiring controlled steam sterilization.

The VEA-03 features microcomputer automatic control with digital display and touch interface for accurate parameter adjustment. Integrated protections include over temperature control, over pressure self discharge, low water level cutoff, and anti dry heating safeguards. Automatic cooling air and steam exhaust improve turnaround efficiency, while buzzer alert and optional external printer assist with monitoring.

Why Choose Labotemp Vertical Autoclave VEA-03?
✓ Consistent Cycle Accuracy: Stable temperature and pressure control reduces repeat sterilization cycles
✓ User Focused Controls: Programmable interface minimizes operator error and improves workflow
✓ Integrated Safety System: Multi layer protection ensures secure and reliable long term operation

$3972

Datasheet

General Specifications
Volume : 120 L Volume	120 L
Working Temperature : 134°C Working Temperature	134°C
Voltage : AC 220 V, 50 Hz Voltage	AC 220 V, 50 Hz
Power : 4.5 kW Power	4.5 kW
Sterilization Parameters
Design Temperature : 139°C Design Temperature	139°C
Sterilization Temp. Setting Range : 116°C–134°C Sterilization Temp. Setting Range	116°C–134°C
Design Pressure : 0.25 MPa Design Pressure	0.25 MPa
Sterilization Time Setting Range : 4–120 min Sterilization Time Setting Range	4–120 min
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Chamber Dimensions
Chamber Volume : 450 × 760 Chamber Volume	450 × 760
Bucket Dimension : 420 × 680 Bucket Dimension	420 × 680
Physical Dimensions
Outer Dimension (L × W × H) : 555 × 599 × 1200 Outer Dimension (L × W × H)	555 × 599 × 1200
Packing Size (L × W × H) : 690 × 650 × 1330 Packing Size (L × W × H)	690 × 650 × 1330
Gross Weight : 108 kg Gross Weight	108 kg
Net Weight : 82 kg Net Weight	82 kg

120L Chamber Capacity ➤ 120L Chamber Capacity
Bolt structure; High quality stainless steel material ➤ Bolt structure; High quality stainless steel material
Microcomputer automatic control, arbitrary set of sterilization parameters ➤ Microcomputer automatic control, arbitrary set of sterilization parameters
Digital display and touch buttons; Standard test interface ➤ Digital display and touch buttons; Standard test interface
The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning The container with automatic protection function
over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning
With stainless steel bucket or basket ➤ With stainless steel bucket or basket
Buzzer reminder after sterilization, automatic stop ➤ Buzzer reminder after sterilization, automatic stop
Automatic cooling air, sterilization end automatic exhaust steam ➤ Automatic cooling air, sterilization end automatic exhaust steam

Hospitals & Central Sterile Departments: Suitable for sterilizing compatible surgical instruments, laboratory glassware, metal tools, fabric materials, and other heat- and moisture-resistant items used in healthcare facilities Hospitals & Central Sterile Departments
Suitable for sterilizing compatible surgical instruments, laboratory glassware, metal tools, fabric materials, and other heat- and moisture-resistant items used in healthcare facilities
Pharmaceutical Laboratories: Supports steam sterilization of compatible laboratory glassware, instruments, culture media, solutions, and other heat-resistant materials used in pharmaceutical quality-control and testing workflows Pharmaceutical Laboratories
Supports steam sterilization of compatible laboratory glassware, instruments, culture media, solutions, and other heat-resistant materials used in pharmaceutical quality-control and testing workflows
Microbiology Laboratories: Suitable for sterilizing culture media, laboratory glassware, instruments, solutions, and other compatible materials used in microbiological procedures Microbiology Laboratories
Suitable for sterilizing culture media, laboratory glassware, instruments, solutions, and other compatible materials used in microbiological procedures
Research Institutes: Provides reliable steam sterilization for laboratory instruments, glassware, culture media, metal tools, and other reusable materials used in research environments Research Institutes
Provides reliable steam sterilization for laboratory instruments, glassware, culture media, metal tools, and other reusable materials used in research environments
Clinical & Diagnostic Laboratories: Suitable for routine sterilization of compatible laboratory equipment, glassware, instruments, and other heat- and moisture-resistant materials Clinical & Diagnostic Laboratories
Suitable for routine sterilization of compatible laboratory equipment, glassware, instruments, and other heat- and moisture-resistant materials
Laboratory Waste Decontamination: Suitable for steam treatment and decontamination of compatible laboratory waste materials where appropriate sterilization procedures are required Laboratory Waste Decontamination
Suitable for steam treatment and decontamination of compatible laboratory waste materials where appropriate sterilization procedures are required
Healthcare & Institutional Facilities: Supports routine sterilization workflows where reliable automatic operation, safety protection, and higher chamber capacity are required Healthcare & Institutional Facilities
Supports routine sterilization workflows where reliable automatic operation, safety protection, and higher chamber capacity are required
Medium- to High-Volume Sterilization: The 120 L vertical configuration provides increased processing capacity while maintaining a practical footprint for facilities with limited installation space Medium- to High-Volume Sterilization
The 120 L vertical configuration provides increased processing capacity while maintaining a practical footprint for facilities with limited installation space
