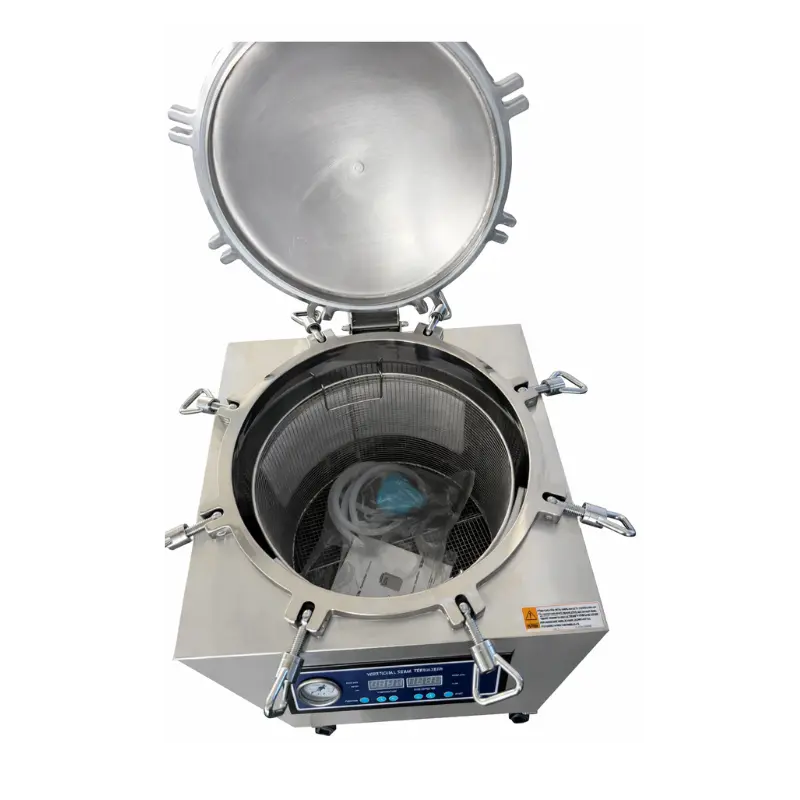

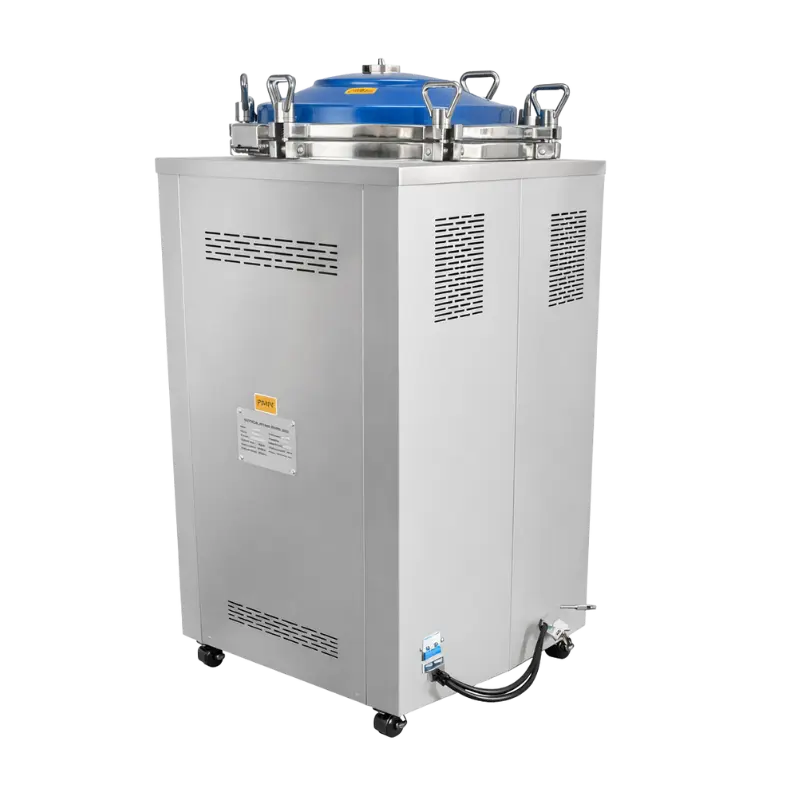

Labotemp Vertical Autoclave Machine VEA-02 is a 75 liter vertical sterilizer designed for medium capacity sterilization in research laboratories, pharmaceutical quality control units, hospitals, and academic institutions. Built with a high quality stainless steel chamber and durable bolt locking structure. It operates at a rated working pressure of 0.22 MPa with a sterilization temperature range of 116°C to 134°C and adjustable cycle time from 4 to 120 minutes, making it suitable for sterilizing glassware, culture media, surgical instruments, laboratory tools, and other heat resistant materials.
The VEA-02 features microcomputer automatic control with digital display and touch buttons for precise parameter adjustment. Integrated safety systems include over temperature protection, over pressure self discharge, low water level protection, and anti dry heating safeguards. Automatic cooling air and automatic exhaust steam at cycle completion enhance workflow efficiency, while buzzer reminder and optional external printer support monitoring and documentation needs.
Why Choose Labotemp Vertical Autoclave Machine VEA-02
✓ Optimal Capacity: 75 liter chamber ideal for medium workload laboratories and hospital departments
✓ Reliable Safety Integration: Multi level protection system ensuring secure and stable sterilization cycles
✓ Certified Manufacturing Standards: Produced under ISO 13485 aligned quality practices and CE certified compliance for assured performance and international acceptance
| General Specifications | |
|
Volume : 75 L Volume |
75 L |
|
Working Temperature : 134°C Working Temperature |
134°C |
|
Voltage : AC 220 V, 50 Hz Voltage |
AC 220 V, 50 Hz |
|
Power : 4.5 kW Power |
4.5 kW |
| Sterilization Parameters | |
|
Design Temperature : 139°C Design Temperature |
139°C |
|
Sterilization Temp. Setting Range : 116°C–134°C Sterilization Temp. Setting Range |
116°C–134°C |
|
Design Pressure : 0.25 MPa Design Pressure |
0.25 MPa |
|
Sterilization Time Setting Range : 4–120 min Sterilization Time Setting Range |
4–120 min |
|
Rated Working Pressure : 0.22 MPa Rated Working Pressure |
0.22 MPa |
| Chamber Dimensions | |
|
Chamber Volume : 400 × 625 Chamber Volume |
400 × 625 |
|
Bucket Dimension : 380 × 560 Bucket Dimension |
380 × 560 |
|

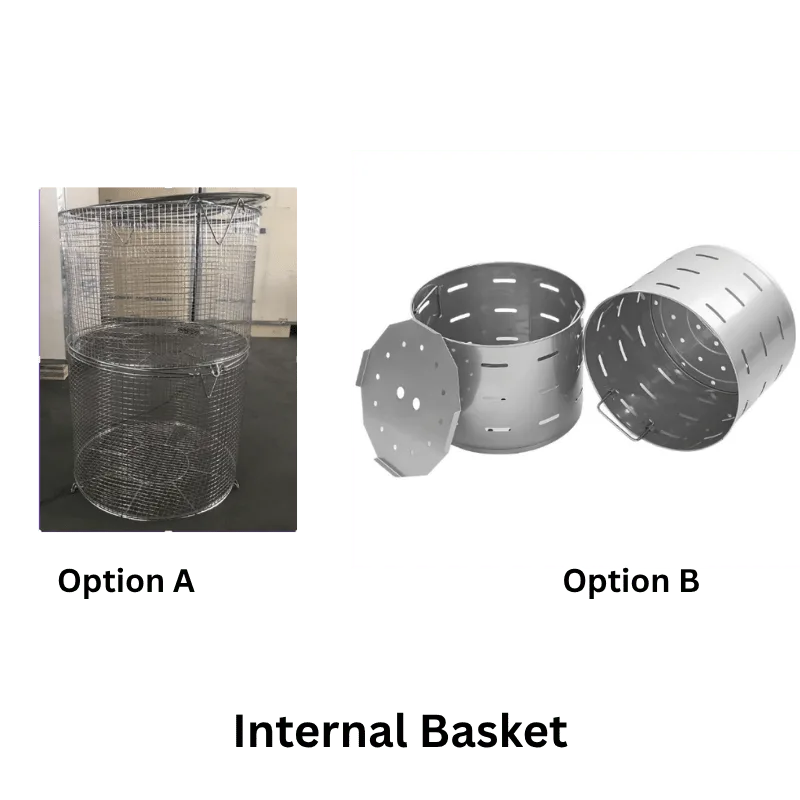

Basket Dimension : 410 × 300 × 2 Basket Dimension |
410 × 300 × 2 |
| Physical Dimensions | |
|
Outer Dimension (L × W × H) : 525 × 525 × 1060 Outer Dimension (L × W × H) |
525 × 525 × 1060 |
|
Packing Size (L × W × H) : 630 × 680 × 1190 Packing Size (L × W × H) |
630 × 680 × 1190 |
|
Gross Weight : 82 kg Gross Weight |
82 kg |
|
Net Weight : 61 kg Net Weight |
61 kg |
