Vertical Autoclave VEA-09

Name: Vertical Autoclave VEA-09
Brand: Labotemp
SKU: VEA-09
Price: 4401.00 USD
Availability: InStock
Rating: 5 (942 reviews)

Labotemp Automatic Vertical Autoclave VEA-09 is a high-capacity vertical autoclave designed for laboratories, hospitals, and pharmaceutical facilities requiring reliable and efficient sterilization. This vertical steam sterilizer offers a 100L chamber with precise temperature control from 116°C to 134°C, ensuring effective sterilization of culture media, glassware, surgical instruments, and laboratory equipment. Built with high-quality stainless steel, the system ensures durability, corrosion resistance, and long-term performance in demanding environments.

This laboratory autoclave features microcomputer-based automatic control with digital display, allowing easy setting of sterilization parameters and cycle monitoring. The integrated drying function enhances post-sterilization efficiency, while automatic steam exhaust, cold air discharge, and internal steam circulation ensure uniform sterilization. Advanced safety features including over-temperature protection, over-pressure self-discharge, and low water level protection make this vertical autoclave a safe and dependable solution for routine and critical sterilization applications.

Why Choose Labotemp Automatic Vertical Autoclave VEA-09
✓ Smart Microprocessor Control: Easy operation with accurate temperature and cycle control
✓ Enhanced Safety System: Multiple protections for pressure, temperature, and water level
✓Trusted Autoclave Manufacturer: Labotemp ensures durable design and reliable long-term performance

$4401

Datasheet

General Specifications
Working Temperature : 134°C Working Temperature	134°C
Volume : 100 L Volume	100 L
Design Temperature : 139°C Design Temperature	139°C
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Sterilization Temperature Range : 116°C–134°C Sterilization Temperature Range	116°C–134°C
Sterilization Time : 4–120 min Sterilization Time	4–120 min
Chamber Dimensions
Chamber Volume : Ø450 × 650 mm Chamber Volume	Ø450 × 650 mm
Bucket Dimension : Ø420 × 540 mm Bucket Dimension	Ø420 × 540 mm

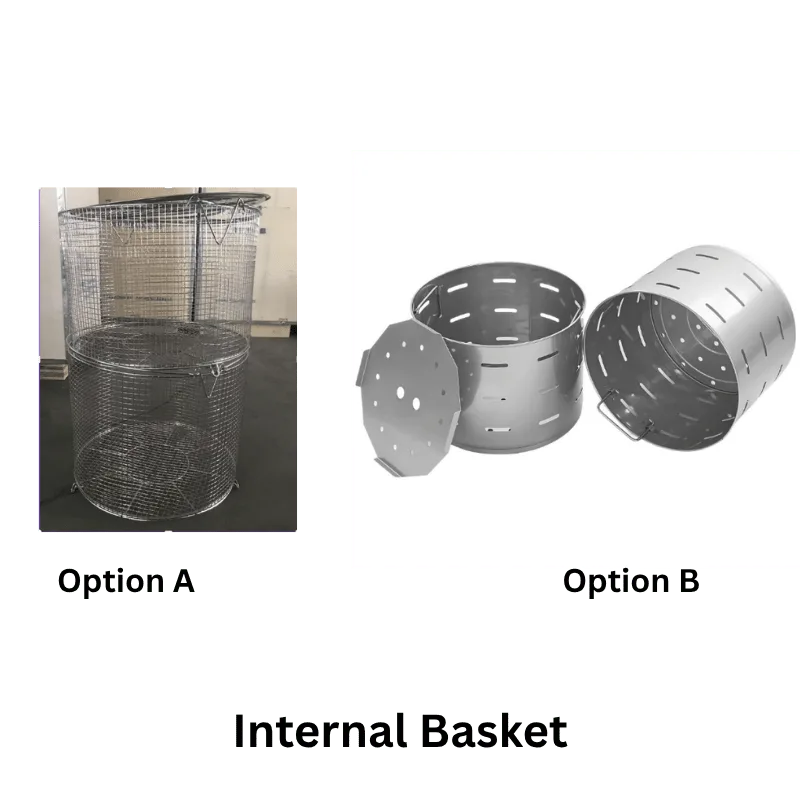

Basket Dimension : Ø410 × 300 × 2 mm Basket Dimension	Ø410 × 300 × 2 mm
Electrical & Construction
Power : 4.5 kW Power	4.5 kW
Voltage : AC 220 V, 50 Hz Voltage	AC 220 V, 50 Hz
Net Weight : 129 kg Net Weight	129 kg
Physical Dimensions
Outer Dimension : 788 × 588 × 1255 mm Outer Dimension	788 × 588 × 1255 mm
Gross Weight : 156 kg Gross Weight	156 kg
Package Size : 820 × 650 × 1380 mm Package Size	820 × 650 × 1380 mm

Fully Automatic ➤ Fully Automatic
Hand wheel translation quick-opening lid for easy and secure operation ➤ Hand wheel translation quick-opening lid for easy and secure operation
High-quality stainless steel chamber for durability and corrosion resistance ➤ High-quality stainless steel chamber for durability and corrosion resistance
Microcomputer automatic control with adjustable sterilization parameters ➤ Microcomputer automatic control with adjustable sterilization parameters
Digital display with touch buttons for user-friendly operation ➤ Digital display with touch buttons for user-friendly operation
Integrated drying function for improved post-sterilization efficiency ➤ Integrated drying function for improved post-sterilization efficiency
Safety interlocking system to prevent operation under unsafe conditions ➤ Safety interlocking system to prevent operation under unsafe conditions
Self-expanding sealing structure for reliable chamber sealing ➤ Self-expanding sealing structure for reliable chamber sealing
Automatic protection system with over-temperature and over-pressure protection ➤ Automatic protection system with over-temperature and over-pressure protection
Low water level protection and anti-dry burning safety feature ➤ Low water level protection and anti-dry burning safety feature
Automatic cold air discharge and steam exhaust for uniform sterilization ➤ Automatic cold air discharge and steam exhaust for uniform sterilization
Internal steam circulation system for effective heat distribution ➤ Internal steam circulation system for effective heat distribution
Standard test interface for validation and monitoring ➤ Standard test interface for validation and monitoring
Stainless steel bucket or basket for flexible loading options ➤ Stainless steel bucket or basket for flexible loading options
Buzzer alert and automatic shutdown after sterilization cycle ➤ Buzzer alert and automatic shutdown after sterilization cycle

Microbiology Laboratories: Sterilization of culture media, glassware, pipettes, and laboratory tools Microbiology Laboratories
Sterilization of culture media, glassware, pipettes, and laboratory tools
Pharmaceutical QC: Sterilization of media, containers, instruments, and laboratory equipment used in quality-control procedures Pharmaceutical QC
Sterilization of media, containers, instruments, and laboratory equipment used in quality-control procedures
Hospitals & Healthcare: Sterilization of surgical instruments, dressing materials, glassware, and reusable medical tools Hospitals & Healthcare
Sterilization of surgical instruments, dressing materials, glassware, and reusable medical tools
Research Laboratories: Sterilization of laboratory utensils, media, containers, and experimental equipment Research Laboratories
Sterilization of laboratory utensils, media, containers, and experimental equipment
Biotechnology Laboratories: Preparation and sterilization of culture media and materials used in microbial and biological research Biotechnology Laboratories
Preparation and sterilization of culture media and materials used in microbial and biological research
Infection Control: Effective sterilization of reusable instruments and laboratory materials to reduce microbial contamination Infection Control
Effective sterilization of reusable instruments and laboratory materials to reduce microbial contamination
GMP-Compliant Processes: Suitable for controlled sterilization procedures requiring consistent temperature, pressure safety, and automated cycles GMP-Compliant Processes
Suitable for controlled sterilization procedures requiring consistent temperature, pressure safety, and automated cycles
