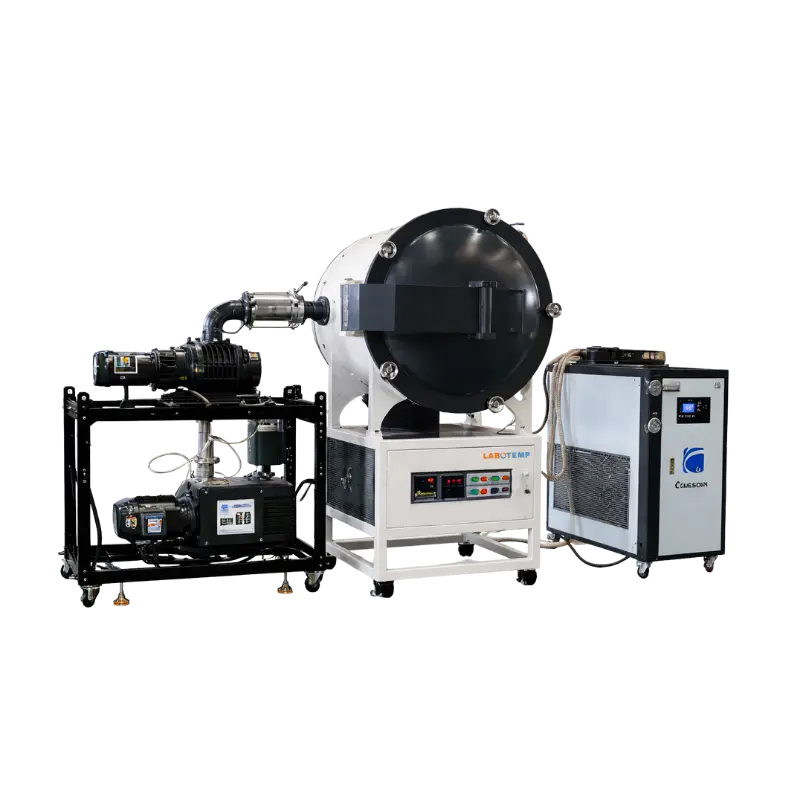

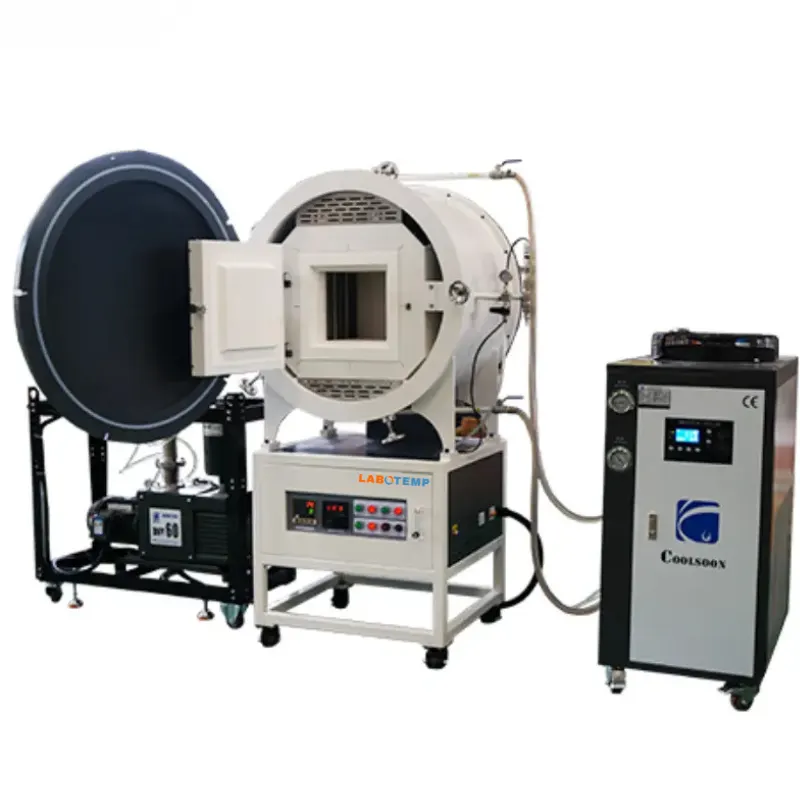

Labotemp Vacuum Furnace FVA-06 is a high-efficiency laboratory vacuum furnace for precision high-temperature processing for research and materials labs. With a 3 L chamber (150×150×150 mm) and max 1400°C (working 1350°C), it supports vacuum annealing, sintering, brazing and controlled-atmosphere heat treatment for ceramics, metals, powder metallurgy and electronic components.
Equipped with SiC rod heating elements, this vacuum furnace delivers rapid heating, uniform temperature and long service life. Shimaden (Japan) S-type controller with S-type thermocouple ensures accurate, repeatable control. Supports vacuum and inert-gas operation via external pump systems to reduce oxidation and contamination. Water-cooling protection enhances safety and durability. Built by experienced vacuum furnace manufacturer, Labotemp provides dependable and long-term technical support.
Why Choose Labotemp Vacuum Furnace FVA-06?
✓ High-Temperature Performance: Reliable up to 1400°C.
✓ Precision Control: SiC heating with Shimaden S-type controller.
✓ Compact & Versatile: Ideal for small-batch research, sintering and brazing.
✓ Certified & Supported: ISO & CE compliant with shipping and installation support.
|
Model NO. : FVA-06 Model NO. |
FVA-06 |
|
Volume (L) : 3 Volume (L) |
3 |
|
Max Temp (°C) : 1400 Max Temp (°C) |
1400 |
|
Working Temp (°C) : 1350 Working Temp (°C) |
1350 |
|
Voltage : 220V Voltage |
220V |
|
Power (kW) : 2 Power (kW) |
2 |
|
Chamber Size (mm) : 150×150×150 Chamber Size (mm) |
150×150×150 |
|
Heating Element : SiC Rod Heating Element |
SiC Rod |
|
Thermocouple Type : S Type Thermocouple Type |
S Type |
|
Controller : Shimaden (Japan) Controller |
Shimaden (Japan) |
|
Vacuum / Pump System : By Pump System Vacuum / Pump System |
By Pump System |
|
Cooling Requirement : Yes (Water Cooling) Cooling Requirement |
Yes (Water Cooling) |
Working Temp (°C): 1350
Volume (L): 3
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp (°C): 1300
Volume (L): 8
Voltage: 220V
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1350
Volume (L): 12
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp (°C): 1300
Volume (L): 18
Voltage: 220V 50Hz
110V 60Hz
Vacuum / Pump System: Rotary Pump
Working Temp (°C): 1350
Volume (L): 36
Voltage: 380V
Vacuum / Pump System: By Pump System
Working Temp (°C) : 1350
Volume (L) : 45
Vacuum Level (High-Vacuum Configuration): 4.5 × 10⁻⁴ Torr (with KT400 diffusion pump + rotary + roots pump)
Vacuum Gauge: Digital gauge (measures to 10⁻⁴ Torr)
Working Temperature (°C): 1100
Volume (L): 3
Voltage: 220V 50Hz
Vacuum / Pump System: By Pump System
Working Temp (°C): 1100
Volume (L): 8
Voltage: 220V 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1100
Volume (L): 12
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp : 1100°C
Volume : 18L
Voltage: 220V 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1100
Volume (L): 30
Voltage: 380V / 50Hz
Vacuum / Pump System: By Pump System
Working Temperature (°C): 1600
Volume (L): 3
Voltage: 220V, 50/60 Hz
Vacuum Range: 500 Pa to 0.06 Pa (with suitable pump)
Working Temp (°C): 1600
Volume (L): 8
Voltage: 220V
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1600
Volume (L): 12
Voltage: 220V
Thermocouple Type: B Type
Working Temp : 1600°C
Volume : 20L
Voltage: 380V / 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp : 1600°C
Volume : 36L
Voltage: 380V / 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp : 1600°C
Volume : 45L
Voltage: 380V / 50Hz
Thermocouple Type: B Type
Working Temperature: 1600°C
Work Chamber Size (W×D×H): 300 × 400 × 300 mm
Transformer: High-quality integrated transformer
Thermocouple: B Type
