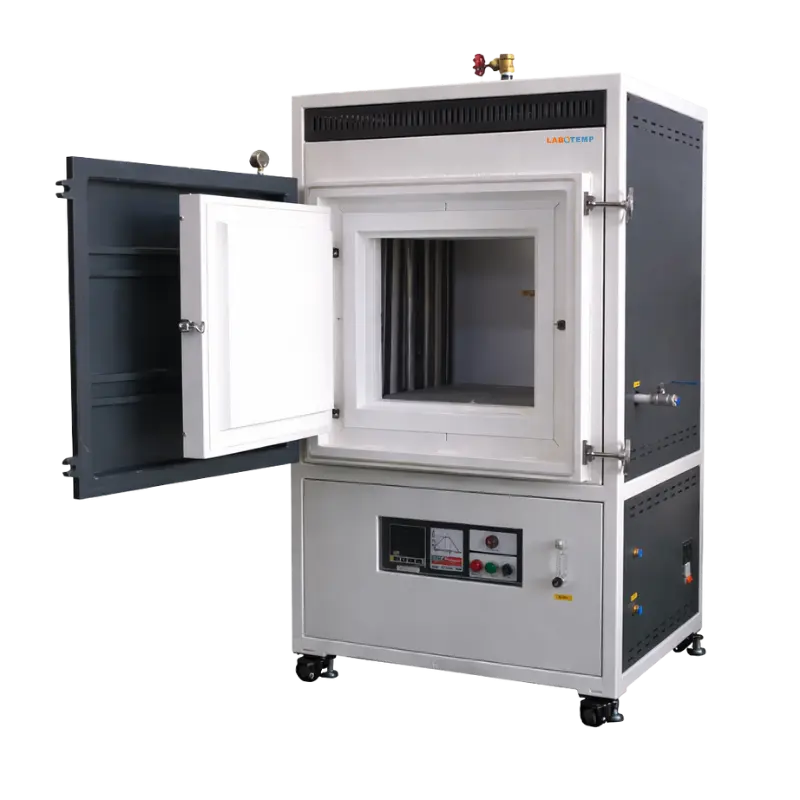

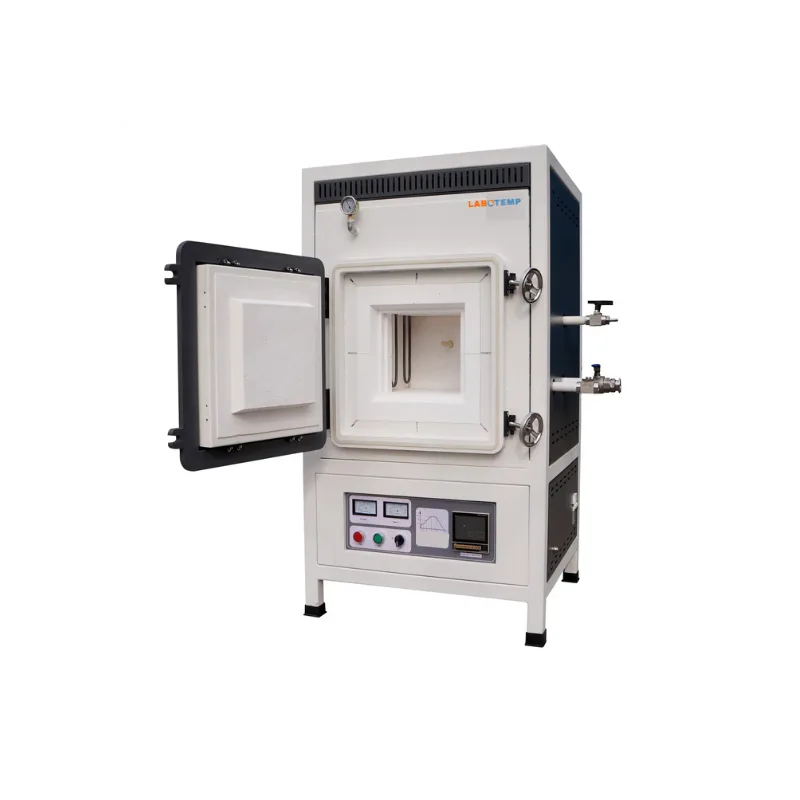

Labotemp Vacuum Furnace FVA-12 is a high-temperature vacuum/atmosphere furnace for advanced thermal processing and demanding materials research. It features an 8 L chamber (200 × 300 × 120 mm) and reaches 1700°C, supporting vacuum heat treatment, pre-vacuum annealing, high-temperature sintering, and controlled-atmosphere processing for advanced ceramics, high-performance alloys, composites, and electronic components in precision research.
MoSi2 rod heating elements provide robust strength at extreme temperatures, fast thermal response, uniform heat distribution, and long cycle life. Pre-vacuum processing allows reduced-oxygen and inert-gas treatments to minimize oxidation during sensitive operations. Developed by experienced vacuum-furnace manufacturer Labotemp, this vacuum furnace offers dependable, efficient performance trusted by aerospace, semiconductor, university, and industrial R&D labs.
Why Choose Labotemp Vacuum Furnace FVA-12?
✓ Ultra-High Temperature Capability: Reliable operation up to 1700°C.
✓ Advanced Heating: MoSi₂ elements for fast response and thermal stability.
✓ Pre-Vacuum Processing: Supports inert-gas and low-oxygen heat treatment.
✓ Safe & Reliable Design: Water cooling ensures stability at extreme temperatures.
|
Model No. : FVA-12 Model No. |
FVA-12 |
|
Volume (L) : 8 Volume (L) |
8 |
|
Max Temp (°C) : 1700 Max Temp (°C) |
1700 |
|
Working Temp (°C) : 1600 Working Temp (°C) |
1600 |
|
Voltage : 220V Voltage |
220V |
|
Power (kW) : 5 Power (kW) |
5 |
|
Chamber Size (mm) : 200×300×120 Chamber Size (mm) |
200×300×120 |
|
Heating Element : MoSi₂ Rod Heating Element |
MoSi₂ Rod |
|
Vacuum / Pump System : No (Pre-vac Only) Vacuum / Pump System |
No (Pre-vac Only) |
|
Cooling Requirement : Yes (at 1700°C) Cooling Requirement |
Yes (at 1700°C) |
